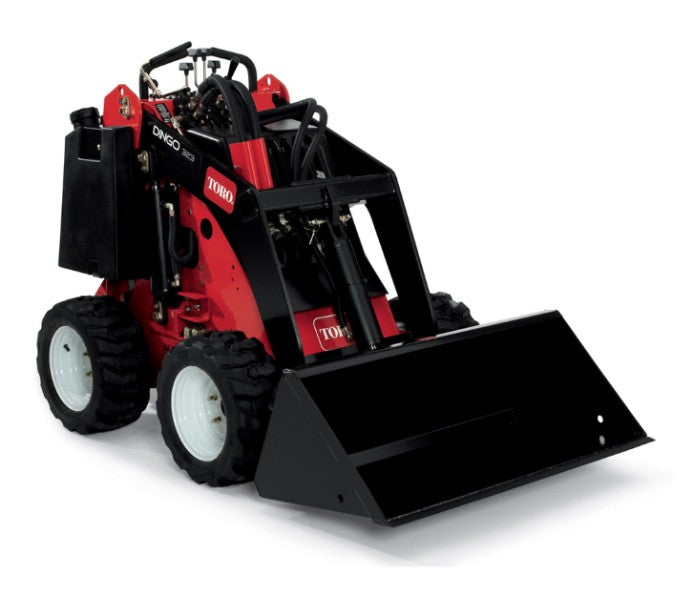

Toro Dingo® 323

ToroSKU: 22318

Price:
Sale price$25,500.00

Description

  • 23 hp (17.2 kw) Kohler® Command Series CH23
  • 4-Paw® Independent 4-Wheel Drive
  • 2-Pump System
  • 2 Ground Speeds

Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

2 Ground Speeds
Operator can select low or high speed ground speed. Low speed directs more hydraulic power to the attachment and high speed directs more power to the wheels. The low speed option also helps new operators shorten their learning curve.

4-Paw® Independent 4-Wheel Drive
Directs hydraulic flow and pressure to all the wheels, at all times. You can power through the toughest conditions and reduce the likelihood of getting stuck. The 4-Paw eliminates the use of chains - reducing maintenance and eliminating the chance of a broken chain.

Compact Size & Maneuverability
Get the Dingo into tight spaces where only hand labor could go before. Add to the easy spin steer turning, and you'll be able to power through the toughest jobs. This means landscape contractors can use the incredible power of the Dingo to save time and money on labor.

Fingertip Controls
Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Durable Hood
Durable, flexible resin hood protects your engine from damage and keeps dirt and debris out of the engine compartment. Your machine will run longer with less downtime.

Hydraulic Power
Up to 10.8 gpm (40.9 lpm) at 3000 psi (207 bar) hydraulic system gives you incredible hydraulic power to auger up to 30" (76 cm) holes or trench 36" (91 cm) deep.

2-Pump Hydraulic System
Independent power can be supplied to the attachment or the wheels. The 2-pump system offers a high flow of 10.8 gpm (37.9 lpm) and a low flow of 4 gpm (15.1 lpm). This provides better usage of power to get the job done as well as not relying on one pump for shared power!

Quick Attach System™
Each attachment is equipped with Toro's unique Quick Attach System™. The Dingo QAS makes changing attachments as simple as turning 2 levers. Each attachment is designed to be installed in less than 1 minute. (One exception - the backhoe takes 2 minutes.)

Extended Run Times
Two durable, 4-gallon gas tanks provide fuel for a full day of hard work.



Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Displacement (cc) 674
Displacement (cu. in.) 41
Dump Angle 34 degrees
Dump Height (cm) 119
Dump Height (inches) 47
Engine Make Kohler
Engine Model Command Series CH23
Fuel Tank (gallons) 11.2
Fuel Tank (liters) 42.4
Fuel Type Gasoline
Ground Clearance (cm) 15
Ground Clearance (inches) 5.8
Ground Speed Forward (mph) 3.7
Ground Speed Foward (km/h) 6
Ground Speed Reverse (km/h) 6
Ground Speed Reverse (mph) 3.7
Hinge Pin Height (cm) 167.6
Hinge Pin Height (inches) 66
Hydraulic Pressure 3250 psi
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 23
Manufacturer's Gross HP Rating (kW) 17.2
Max Operating Height (cm) 231.6
Max Operating Height (inches) 91.2
Oil Capacity (liters) 1.9
Oil Capacity (quarts) 2
Overall Height (cm) 123.7
Overall Height (inches) 48.7
Overall Length w/bucket (cm) 208.8
Overall Length w/bucket (inches) 82.2
Overall Length w/o bucket (cm) 157.5
Overall Length w/o bucket (inches) 62
Overall Width (cm) 103
Overall Width (inches) 40.5
Rated Operating Capacity - 35% of Tip Capacity (kg) 216
Rated Operating Capacity - 35% of Tip Capacity (lbs) 475
Reach – Fully Raised (cm) 71.1
Reach – Fully Raised (inches) 28
Reservoir Capacity (gallons) 17
Reservoir Capacity (liters) 64
RPM 3600
Tip Capacity (kg) 467
Tip Capacity (lbs) 1030
Weight (kg) 711
Weight (lbs) 1567
Wheelbase (inches) 28
