Dingo TX 525 Wide Track

ToroSKU: 22324

Sale price$31,000.00
  • Local pickup available
  • Delivery within 20 miles of Winter Garden, FL, Clermont, FL, Ocala, FL. available at checkout.
  • For more information visit our Pickup and Delivery policy

Pickup currently unavailable at MSM - Clermont


  • 23.3 HP (17.3 kW) Kubota D902
  • 42" width with bucket
  • Turf friendly at only 2013 pounds
  • Patented, easy-to-use traction control system

Diesel. Done Right.
Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.4 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.

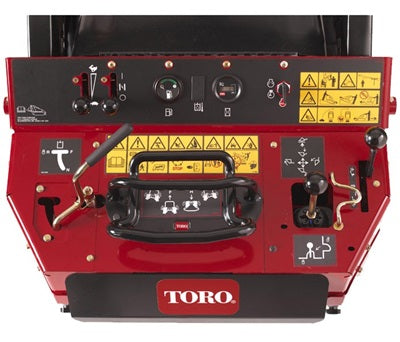

Simple Controls
You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Liquid-Cooled Diesel Engine
The 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Reinforced Tracks
Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.



Air Filter Two-stage, heavy-duty, remote
Cooling System Liquid Cooled
Displacement (cc) 901
Displacement (cu. in.) 55
Dump Angle 38 degrees
Dump Height (cm) 117.1
Dump Height (inches) 46.1
Engine Make Kubota
Engine Model D902E3B
Fuel Tank (gallons) 6
Fuel Tank (liters) 23
Fuel Type Diesel
Ground Clearance (cm) 11.7
Ground Clearance (inches) 4.6
Ground Pressure 3.5 psi
Ground Speed Forward (mph) 4.5
Ground Speed Foward (km/h) 7.2
Ground Speed Reverse (km/h) 3.2
Ground Speed Reverse (mph) 2
Hinge Pin Height (cm) 167.1
Hinge Pin Height (inches) 65.8
Hydraulic Flow Auxilary 13.8 gpm
Hydraulic Flow Traction 16.9 gpm (each pump)
Hydraulic Pressure 3000 PSI
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 23.3
Manufacturer's Gross HP Rating (kW) 17.3
Max Operating Height (cm) 229
Max Operating Height (inches) 90.1
Oil Capacity (liters) 3.63
Oil Capacity (quarts) 3.84
Overall Height (cm) 117.1
Overall Height (inches) 46.1
Overall Length w/bucket (cm) 233.7
Overall Length w/bucket (inches) 92
Overall Length w/o bucket (cm) 180
Overall Length w/o bucket (inches) 70.7
Overall Width (cm) 104
Overall Width (inches) 41
Rated Operating Capacity - 35% of Tip Capacity (kg) 251
Rated Operating Capacity - 35% of Tip Capacity (lbs) 553
Reach – Fully Raised (cm) 55.4
Reach – Fully Raised (inches) 21.8
Reservoir Capacity (gallons) 10.5
Reservoir Capacity (liters) 40
RPM 3400
Tip Capacity (kg) 717
Tip Capacity (lbs) 1580
Track Length (inches) 96.6
Track Length(cm) 245
Track Width (cm) 24.1
Track Width (inches) 9.5
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 907
Weight (lbs) 2013
Wheelbase (inches) 31.2
