Dingo Grapple Rake

ToroSKU: 22577

Price:
Sale price$4,395.00

Description

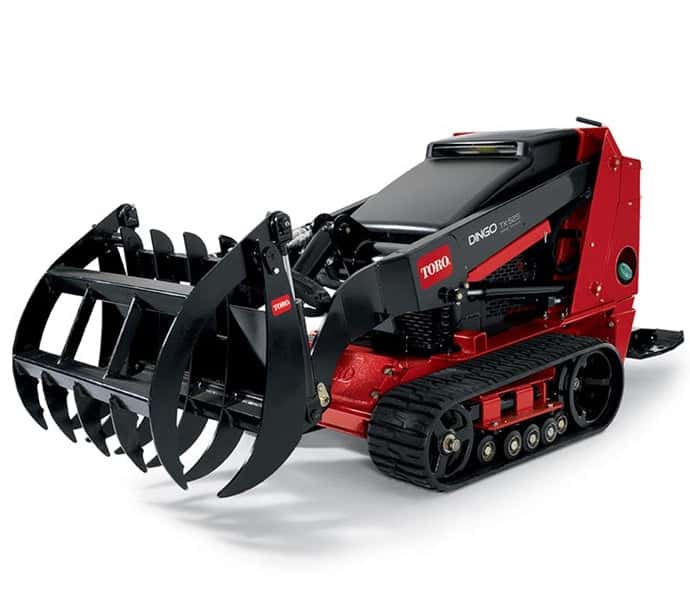

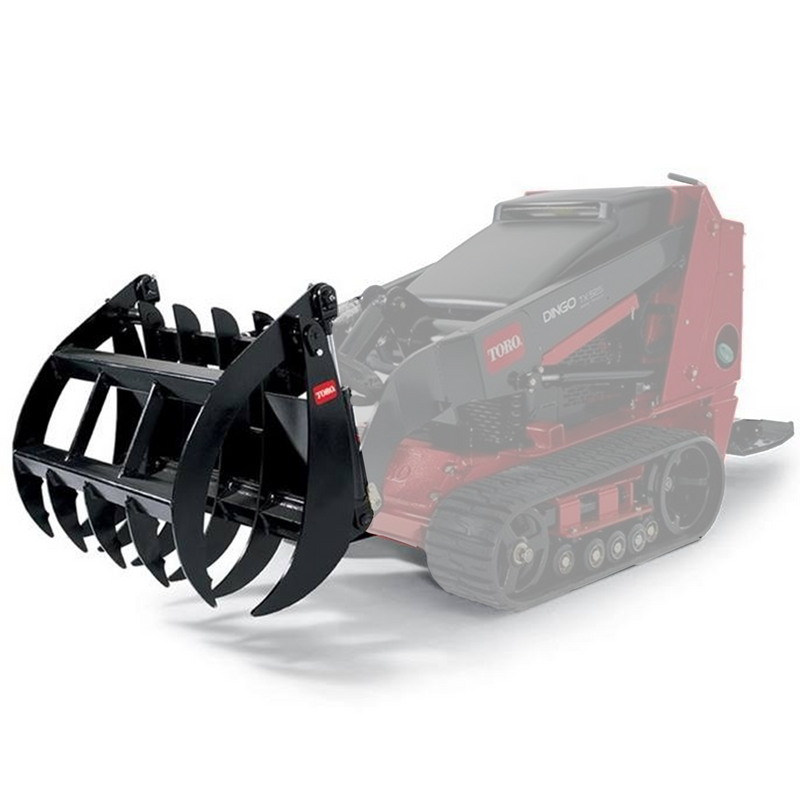

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.
  • Twin heavy-duty hydraulic cylinders
  • 35.5" (87.6 cm) width guarantees access to tight areas
  • Tines constructed of 3/8" (1 cm) AR400 steel*
  • Four greaseable pivots reduce wear

Tines
Constructed of AR400* steel make the Toro grapple one of the strongest and most durable grapples on the market. Tines are spaced 7" (17.8 cm) apart while the bottom tine have 6 1/4" (15.9 cm) spacing, allowing the tines to intertwine to hold even the smallest loads tightly.



Specifications

Construction Fabricated, welded steel frame
Height (cm) 76
Height (inches) 30
Length (cm) 46
Length (inches) 18
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers Dripless, flush face quick couplers
Weight (kg) 120
Weight (lbs) 265
Width (cm) 87.6
Width (inches) 35.5
