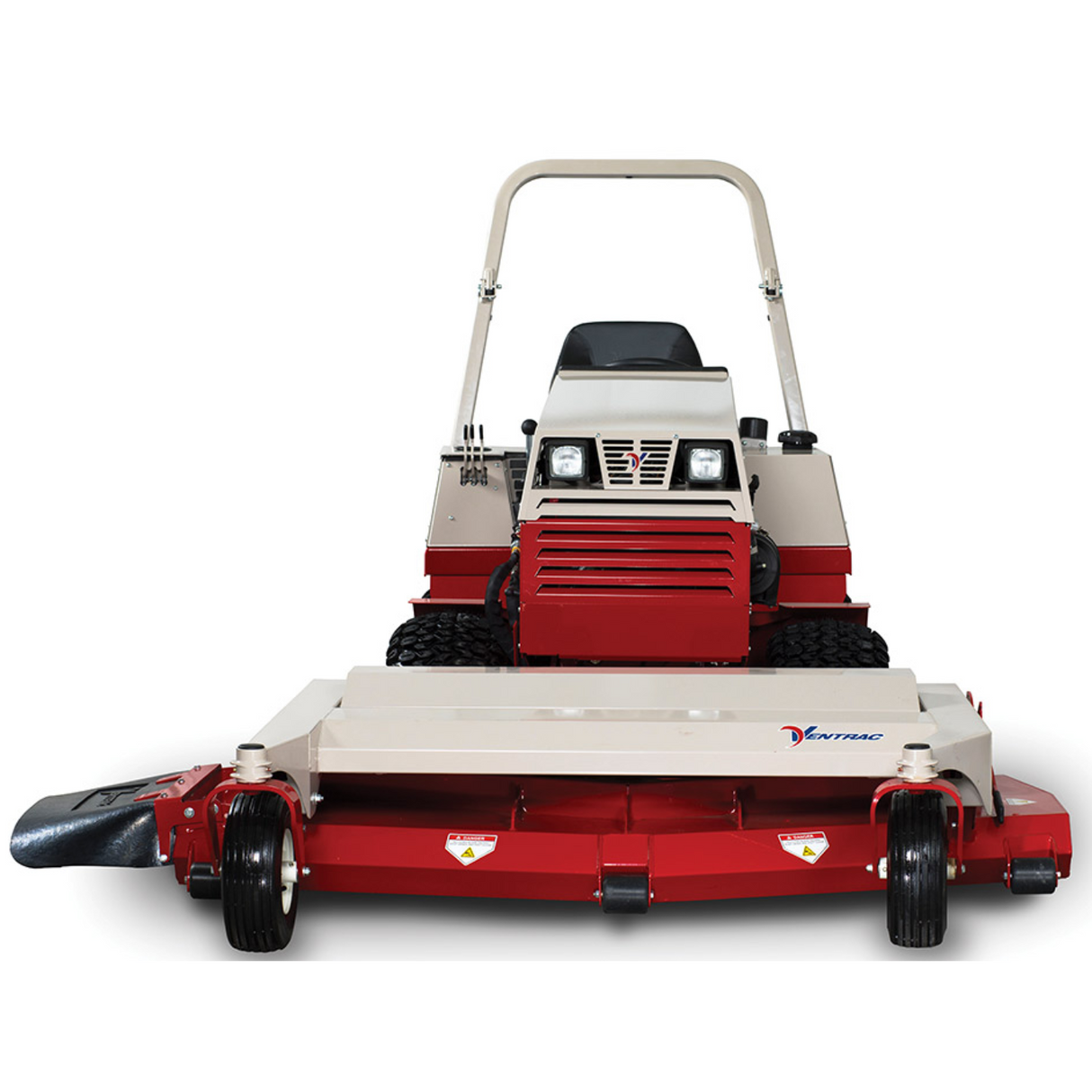

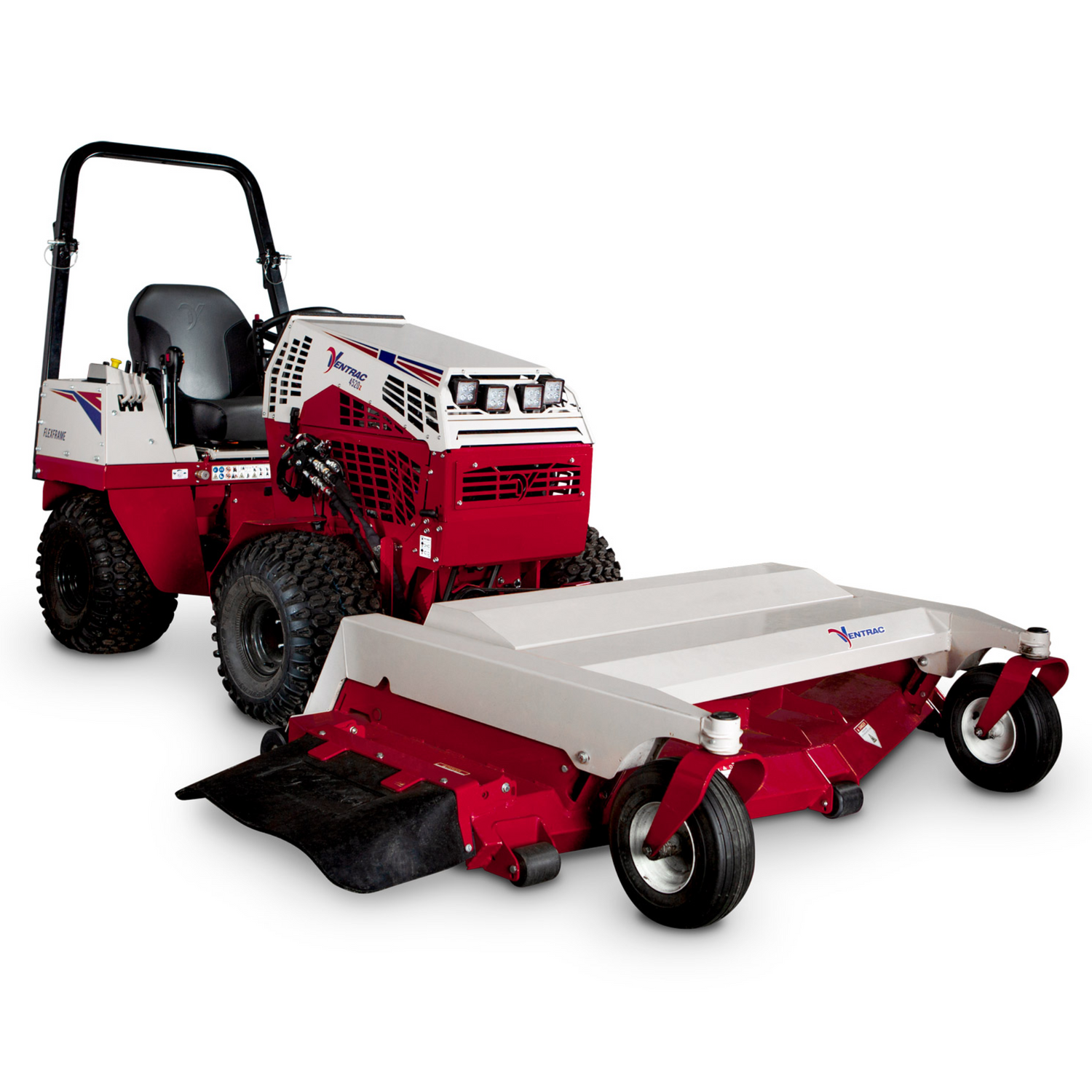

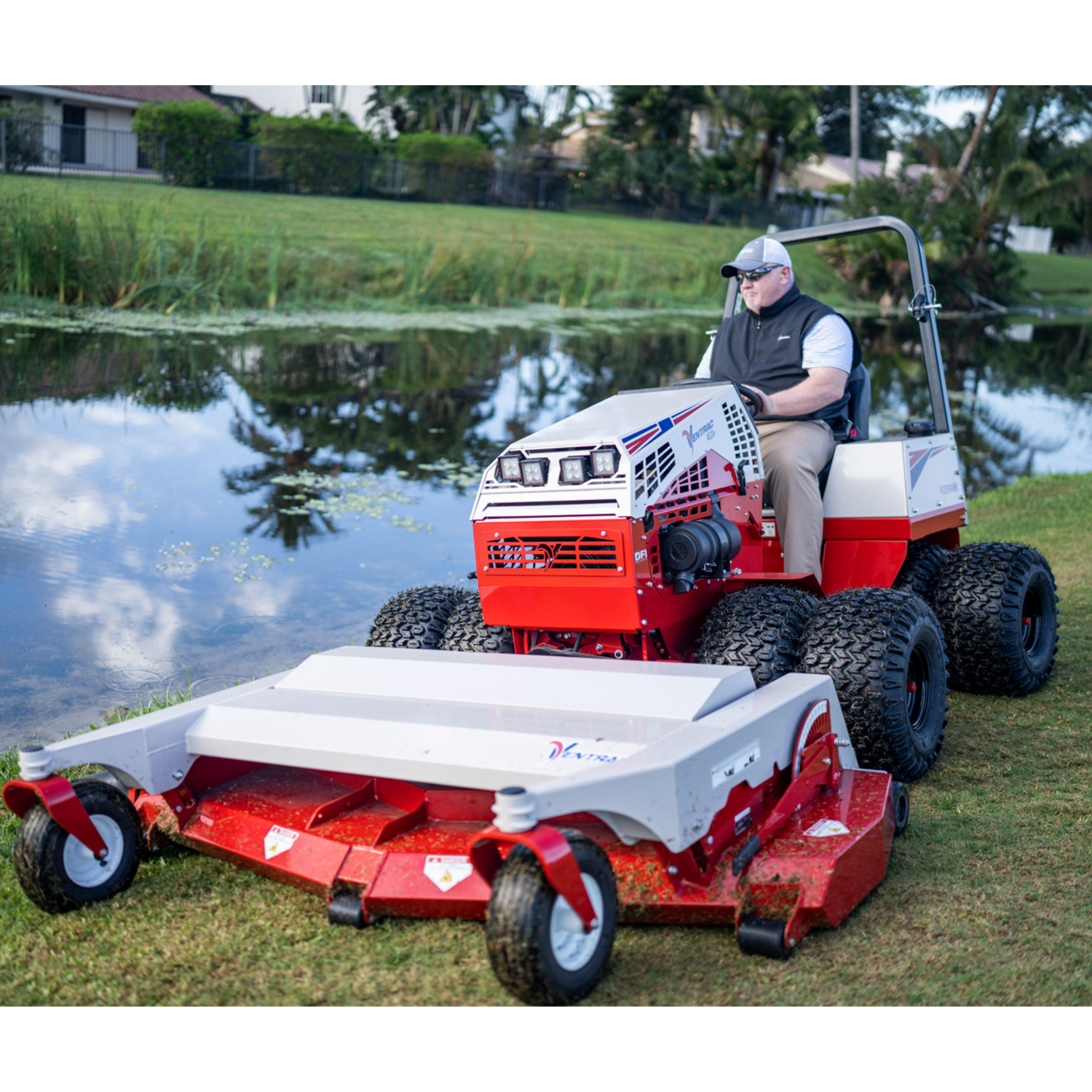

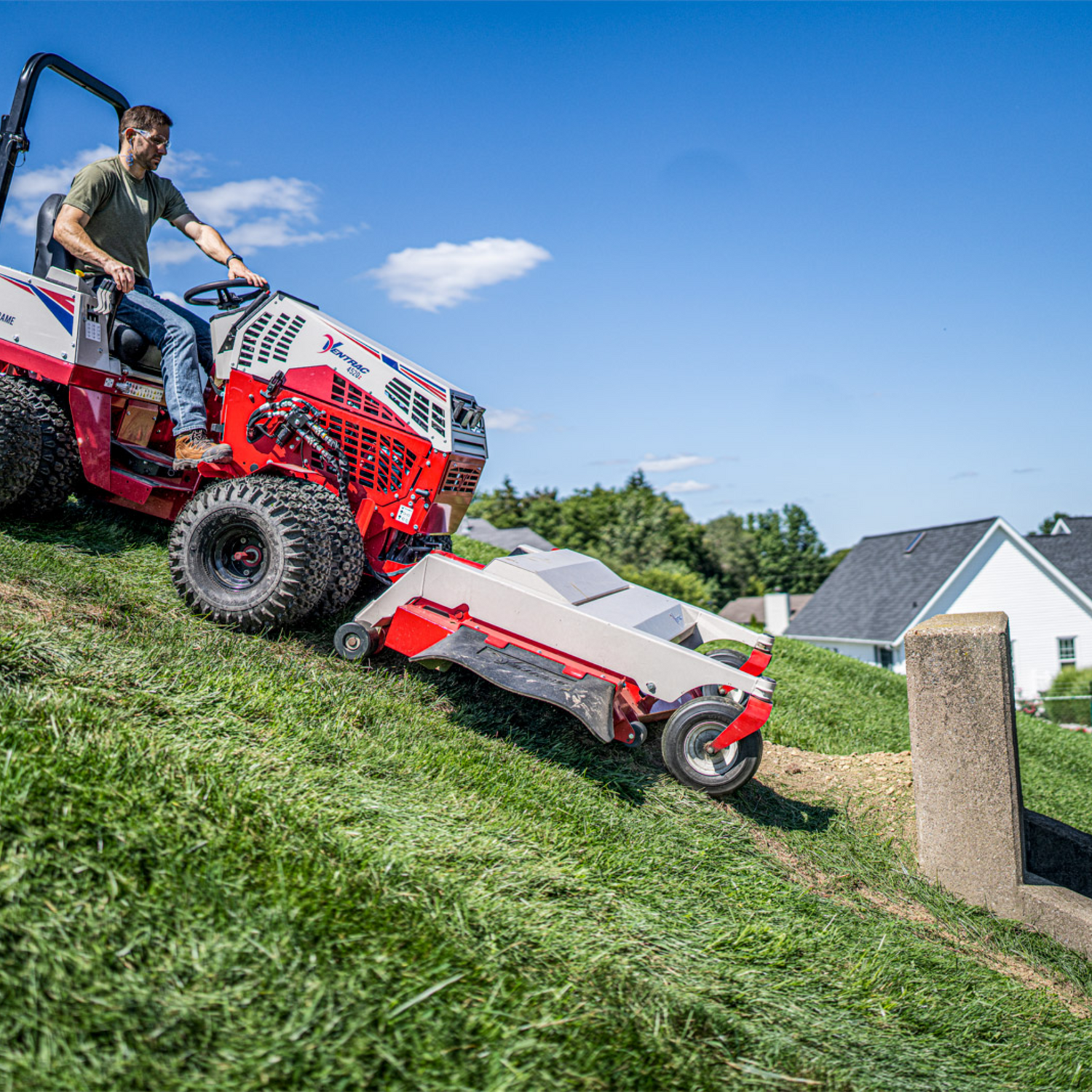

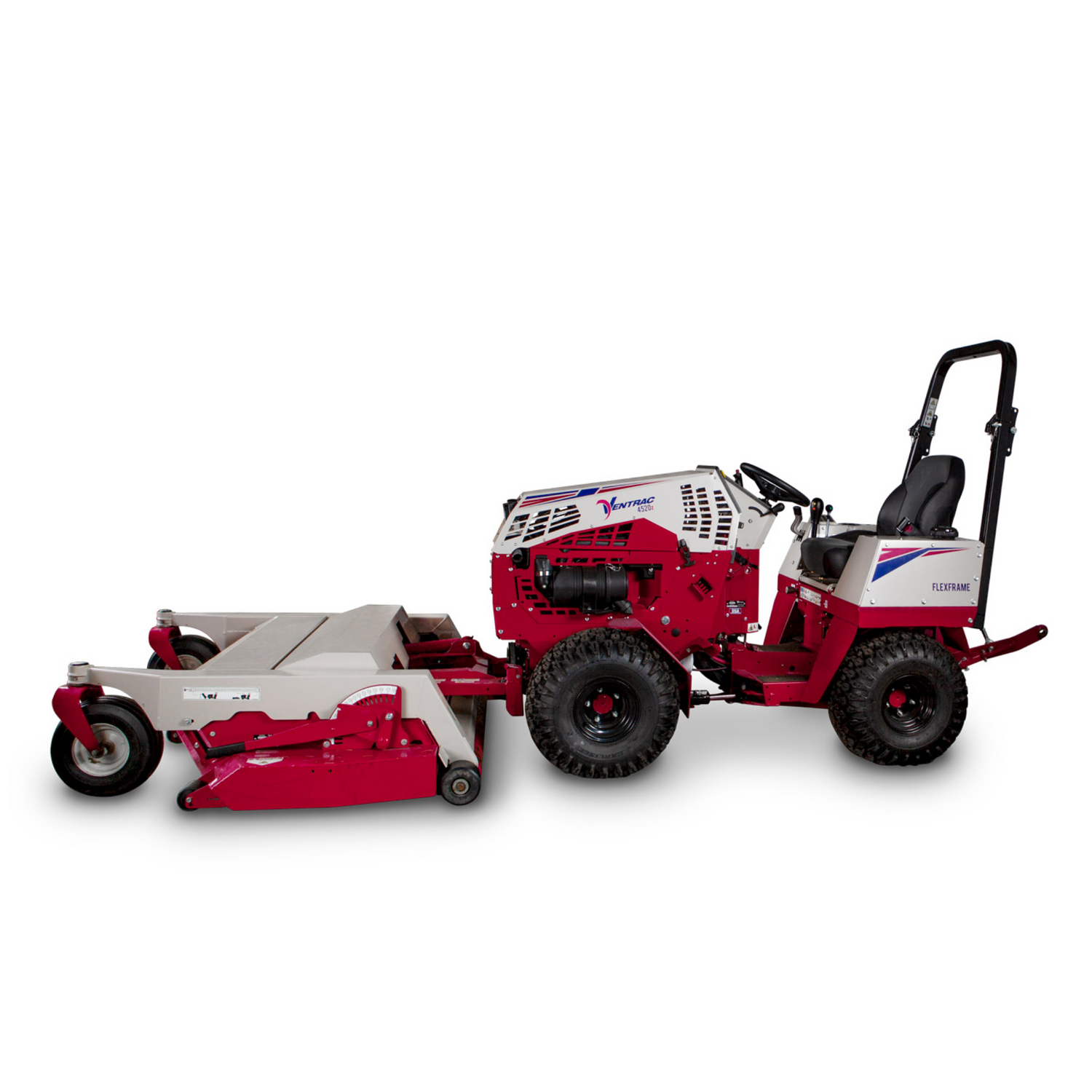

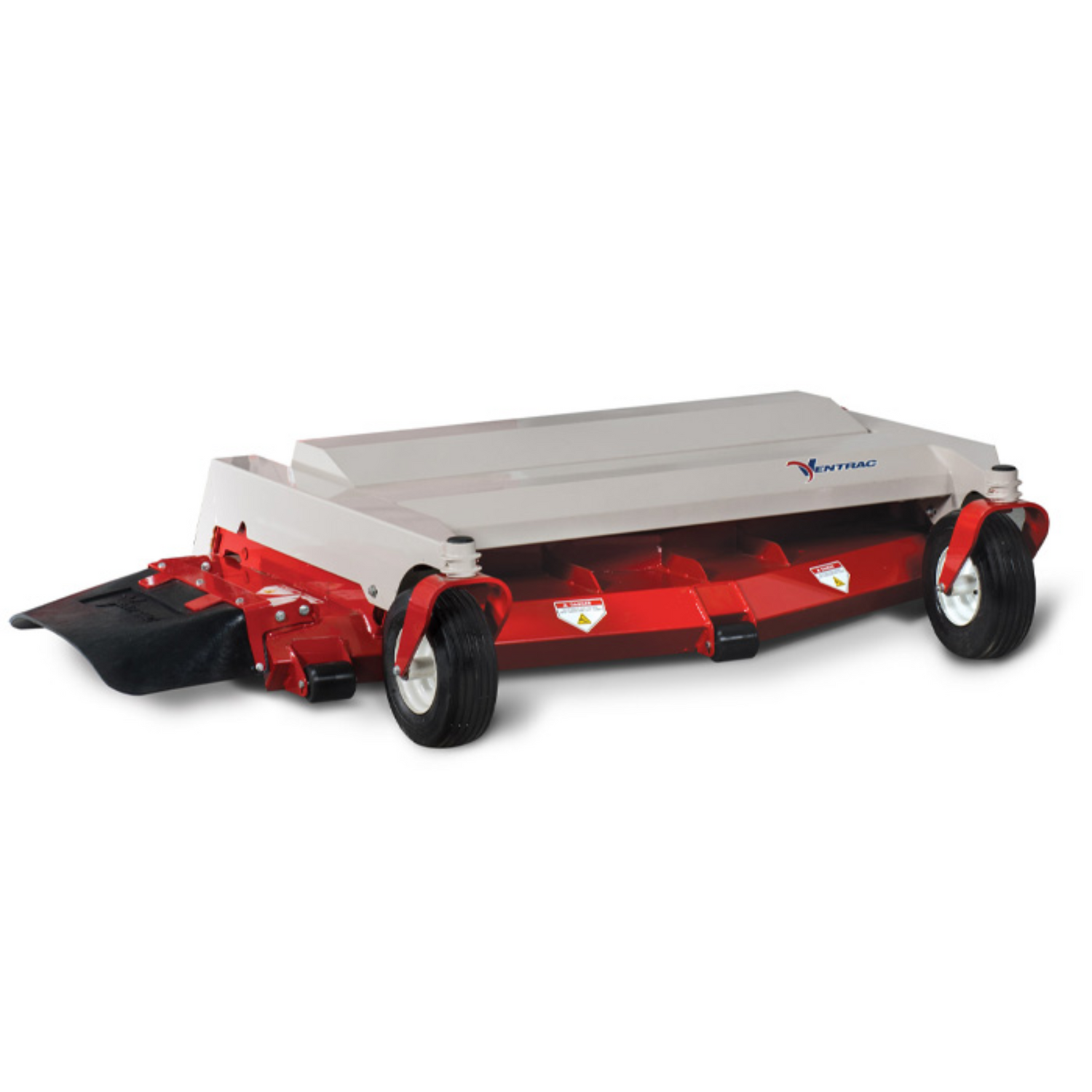

The Ventrac family of MS/MU finish mower decks are designed to cut grass quickly, efficiently, and with endless precision. The result is a beautifully striped lawn, time after time. Professionals and hobbyists alike enjoy the many features that these decks provide. Standard quick, single-lever height adjustments, full length rear rollers, high strength steel deck construction, and industrial quality components combine with the optional hydraulic flip-up and mulch kits to result in exactly what customers have come to expect from Ventrac - the best mower decks money can buy.

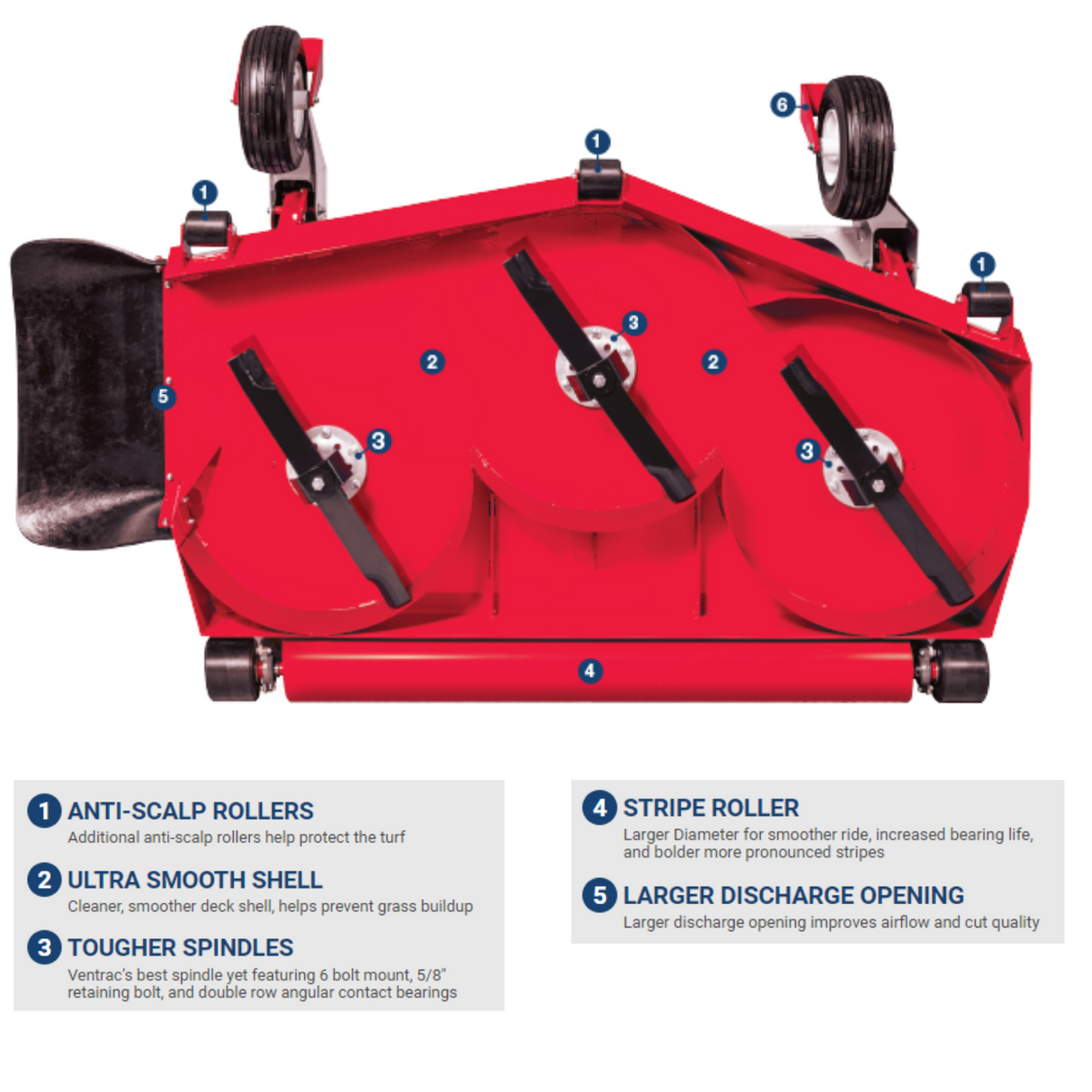

ANTI-SCALP ROLLERS
Additional anti-scalp rollers help protect the turf
ULTRA SMOOTH SHELL
Cleaner, smoother deck shell, helps prevent grass buildup
TOUGHER SPINDLES
Ventrac’s best spindle yet featuring 6 bolt mount, 5/8" retaining bolt, and double row angular contact bearings
STRIPE ROLLER
Larger Diameter for smoother ride, increased bearing life, and bolder more pronounced stripes
LARGER DISCHARGE OPENING
Larger discharge opening improves airflow and cut quality

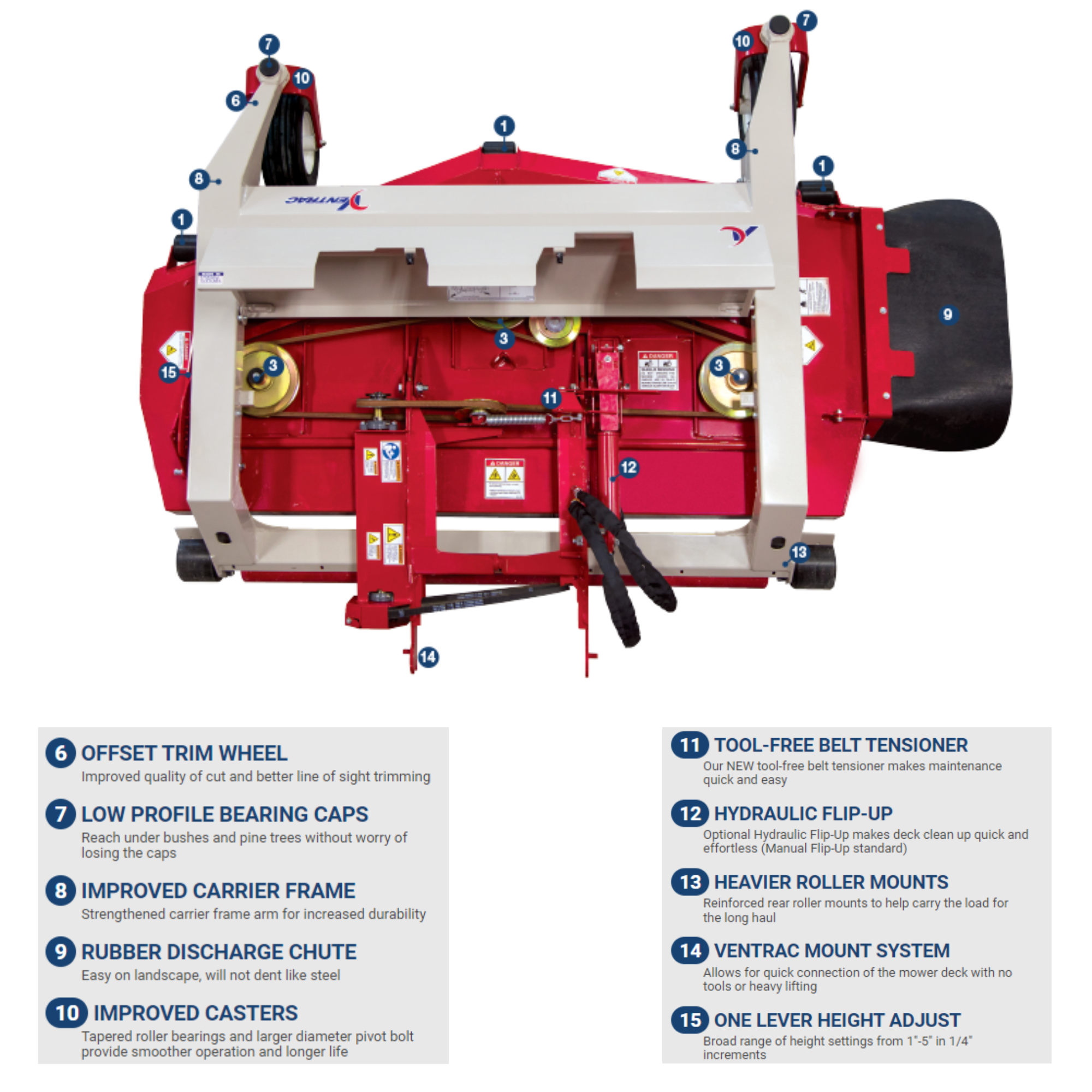

OFFSET TRIM WHEEL
Improved quality of cut and better line of sight trimming
LOW PROFILE BEARING CAPS
Reach under bushes and pine trees without worry of losing the caps
IMPROVED CARRIER FRAME
Strengthened carrier frame arm for increased durability
RUBBER DISCHARGE CHUTE
Easy on landscape, will not dent like steel
IMPROVED CASTERS
Tapered roller bearings and larger diameter pivot bolt provide smoother operation and longer life
TOOL-FREE BELT TENSIONER
Our NEW tool-free belt tensioner makes maintenance quick and easy
HYDRAULIC FLIP-UP
Optional Hydraulic Flip-Up makes deck clean up quick and effortless (Manual Flip-Up standard)
HEAVIER ROLLER MOUNTS
Reinforced rear roller mounts to help carry the load for the long haul
VENTRAC MOUNT SYSTEM
Allows for quick connection of the mower deck with no tools or heavy lifting
ONE LEVER HEIGHT ADJUST
Broad range of height settings from 1"-5" in 1/4" increments
| Specifications | 39.55111 |
|---|---|
| Model | MS720 |
| Full Description | MS, MS720 Mower SD |
| Product Type | Attachment |
| CATEGORY | |
| Attachment Type | Mower |
| Front Mount | Ventrac Mount System |
| Mower Type | Finish |
| 4000 Series Mount | |
| MOWER SPECS | |
| Cutting Width | 72 in |
| Discharge Type | Side |
| Discharge Deflector | Rubber |
| Flip-Up Deck | |
| Cutting Heights (Standard) | 1 to 5 in |
| Cutting Positions | 18 Positions 1-3 (1/8") (3 mm) Positions 4-18 (1/4") (6 mm) |
| Cutting Height Adjustment Type | Single lever quick select |
| Blade Type | 25 in High-lift |
| Number of Blades | 3 |
| Deck Suspension | 2 front tires with full width rear roller |
| Anti Scalp Rollers | 3 |
| Spindles/Pulleys | Field serviceable with bottom grease fittings |
| DIMENSIONS | |
| Length | 661⁄8 in |
| Width with Chute | 861⁄2 in |
| Height | 181⁄4 in |
| Weight | 550 lbs |
