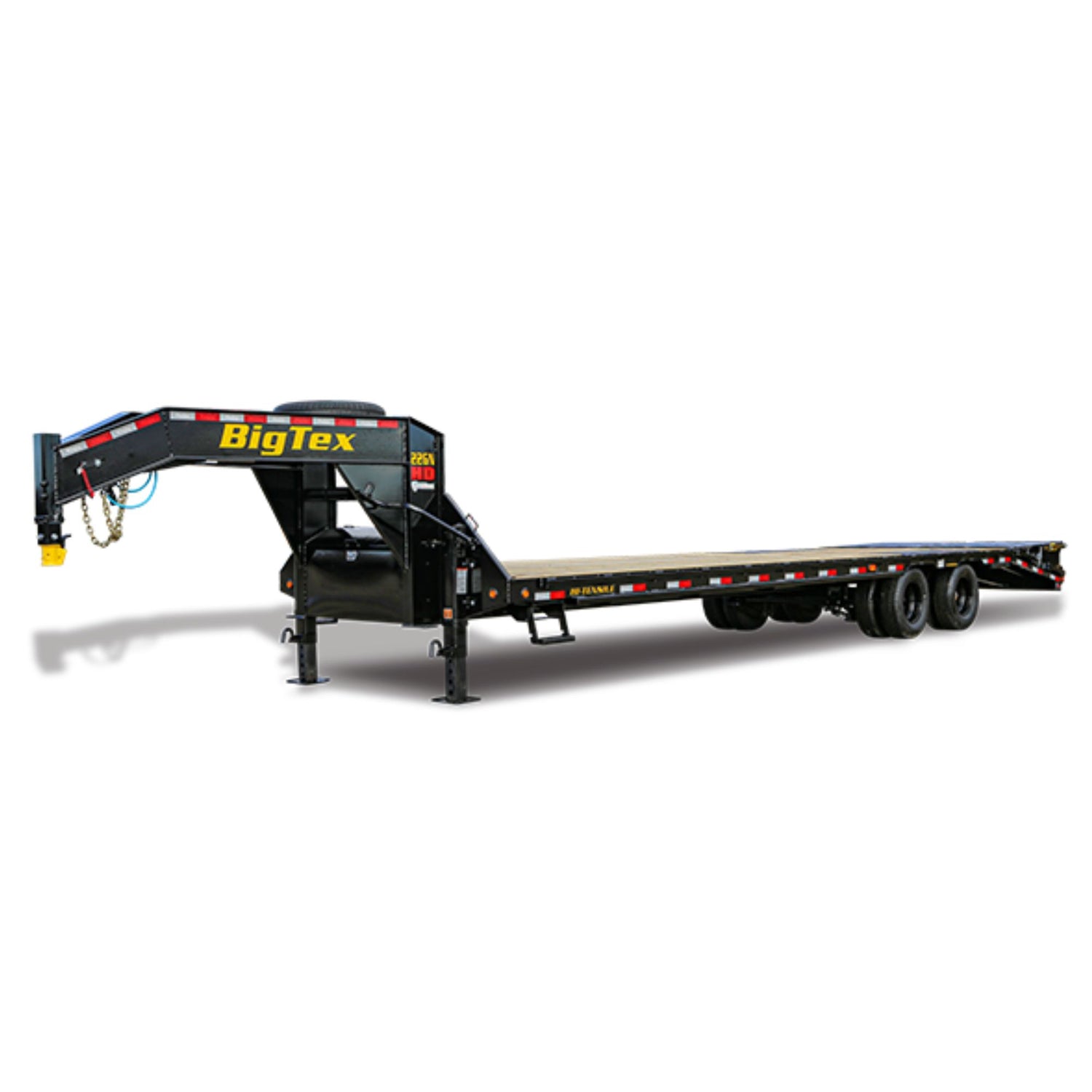

Big Tex Gooseneck | Dual Wheel | Tandem Axle | 28FT + 5' Dovetail | Mega Ramp | 22GN-33D5A-MRBK
Big Tex Gooseneck | Dual Wheel | Tandem Axle | 28FT + 5' Dovetail | Mega Ramp | 22GN-33D5A-MRBK is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Get the ultimate gooseneck trailer! Big Tex Trailers is your trusted supplier for the 22GN tandem dual flatbed, built for rough jobs and rugged conditions. With dual two-speed 50K landing gear and heavy-duty adjustable suspension, it’s made to handle tough loads with ease — perfect for hauling construction equipment or hotshot trucking. Durable, reliable, and ready to work when you are, just like our company.
Provides a large amount of space to haul tools and includes an integrated binder rack.
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Disc) |
| Suspension | Heavy-Duty 30,000#, Adjustable | |
| Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) | Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame | 12" I-Beam, 19# | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | Flip-Over Ramps (Standard on D5A Models)8' Rear Slide-In Ramps (Available on STA models Only)No Ramps (Standard on STA models)(2) 5' MEGA Ramps (Available on D5A Models Only) |
| Dovetail | 5' Cleated Dovetail (on D5A models only) | |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E (Dual) | Tire Upgrade (ST235/80 R-16 LR-G) Includes SpareTire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Wheels | Black Mod | |
| Spare Mount | Top of Neck Spare Tire Mount | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Mudflaps | Standard | |
| Storage | Front Lockable Toolbox Uprights w/ Chain Holder | Low Profile Tool Box 12” x 18” x 36” (Side Mount)Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Cargo Winch | Sliding Winch Track (standard on Trailer 33' or Longer ) | 4" Sliding Winch (Each)4" Weld-On Winch (Each)Sliding Winch Track (Per 6' Section), for trailers less than 33' long |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' StrapExtra 5/8" D-Rings |
| Steps & Handles | (2) Retractable Side Bed Steps + HandlesHelping Hand Riser Step | |
| Twist Guard™ | Included on trailers 33' and Longer | |
| Work Light | Deck Work Light Package w/ Step Illumination |
