Rotary  |  SKU: 11248

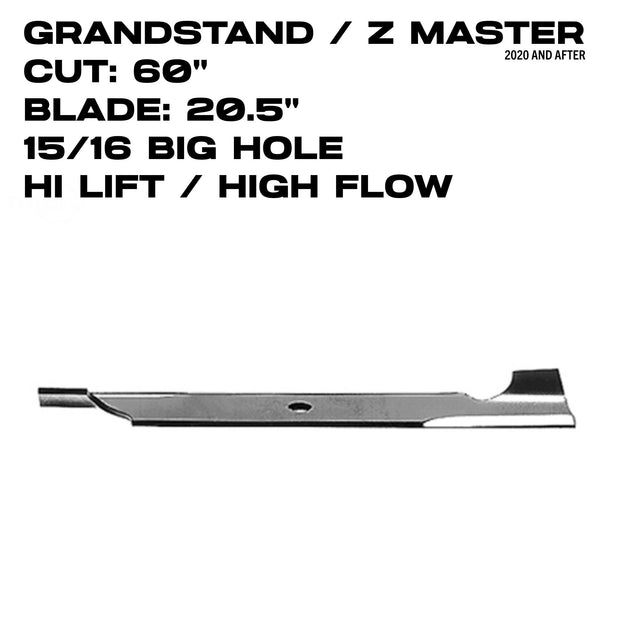

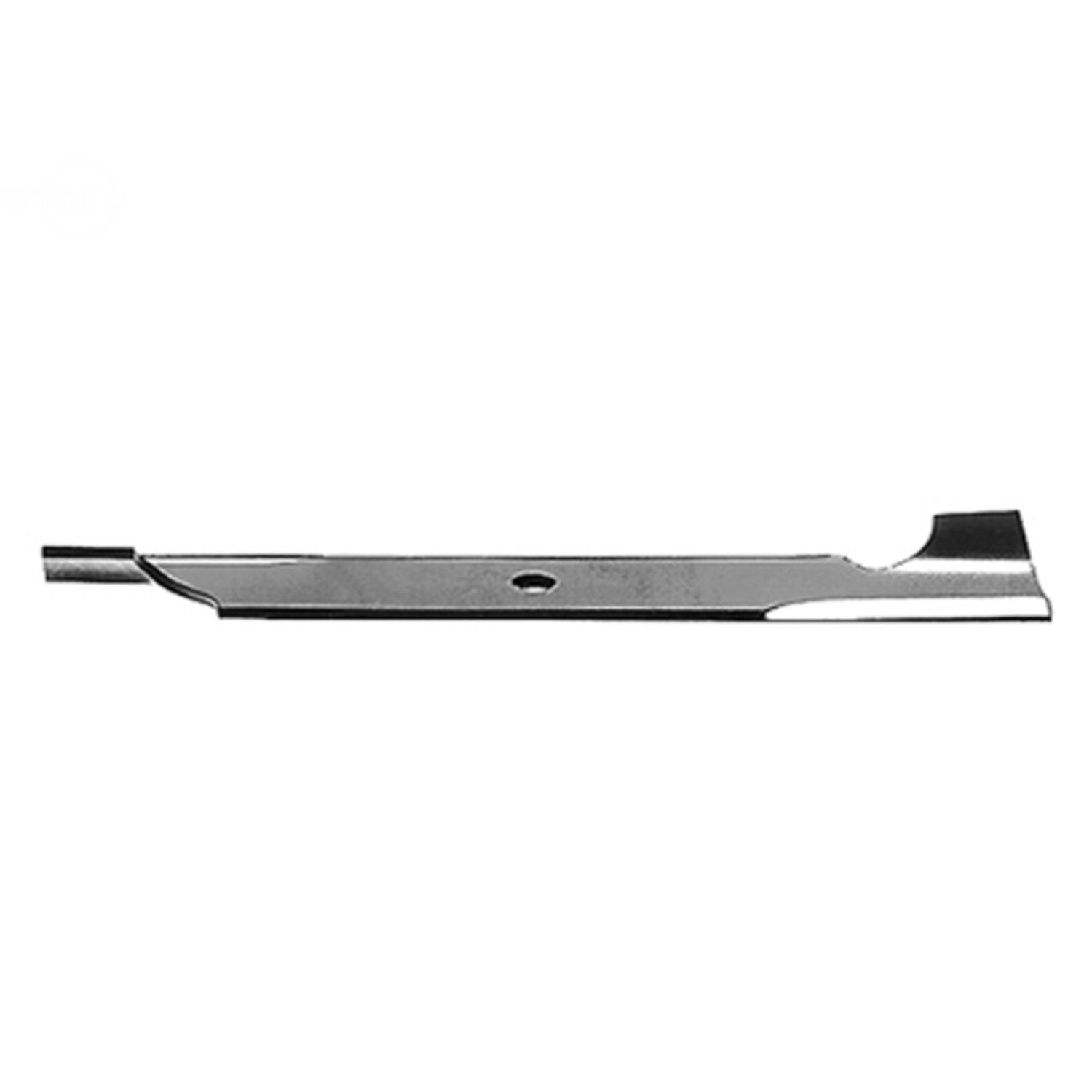

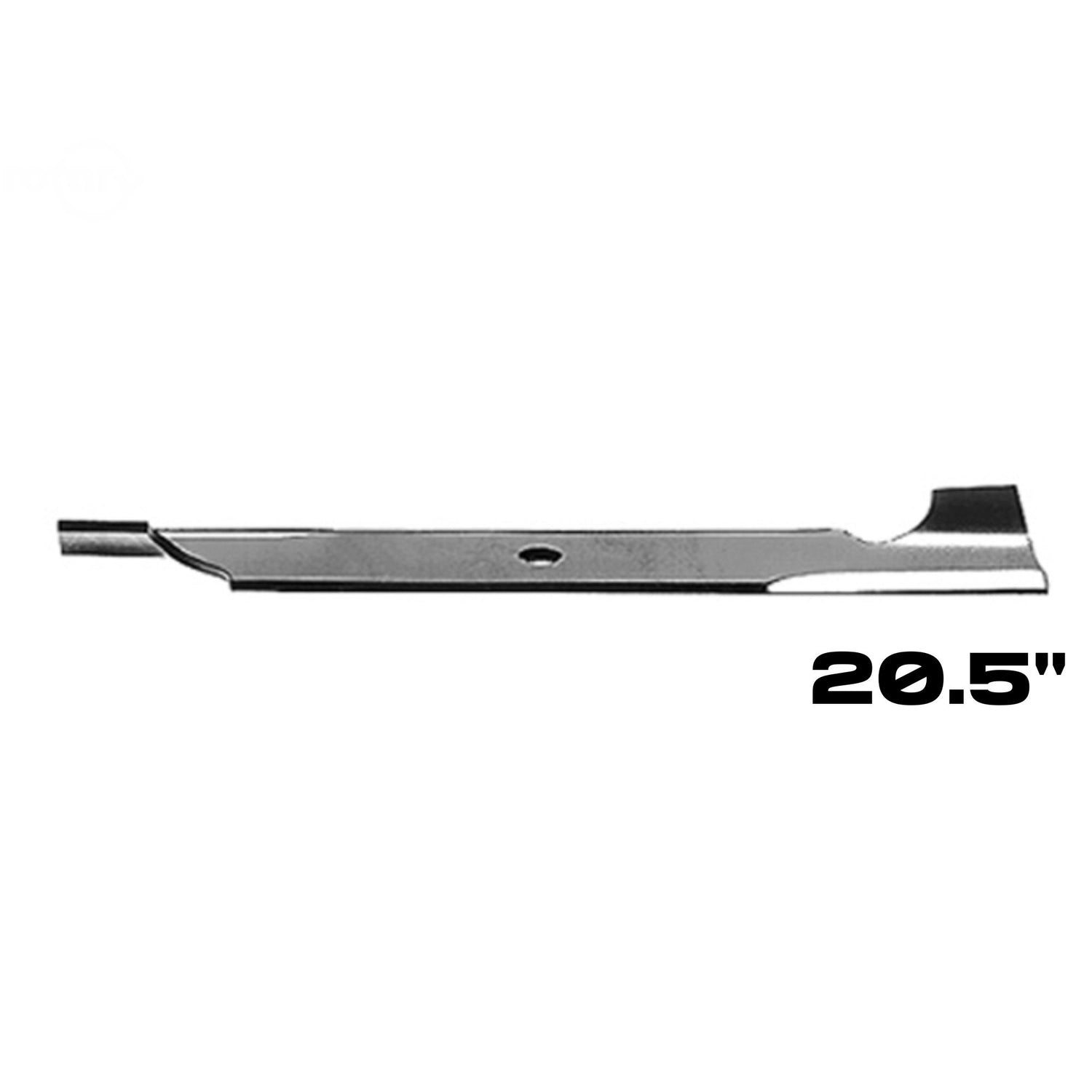

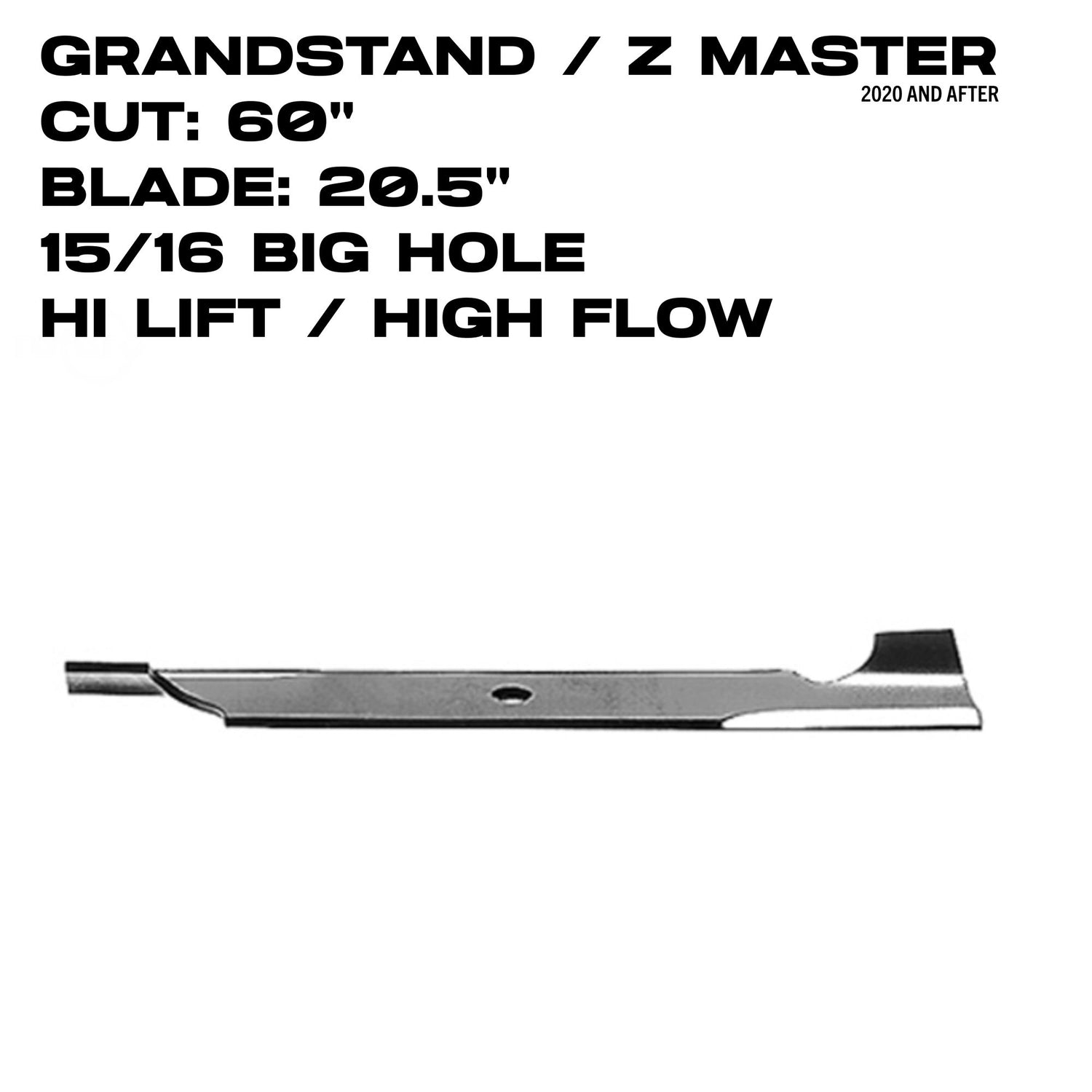

Rotary Blade | 20.5" | GrandStand / Z Master | 60" Deck | 11248

$1695
Taxes, discounts and shipping calculated at checkout.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

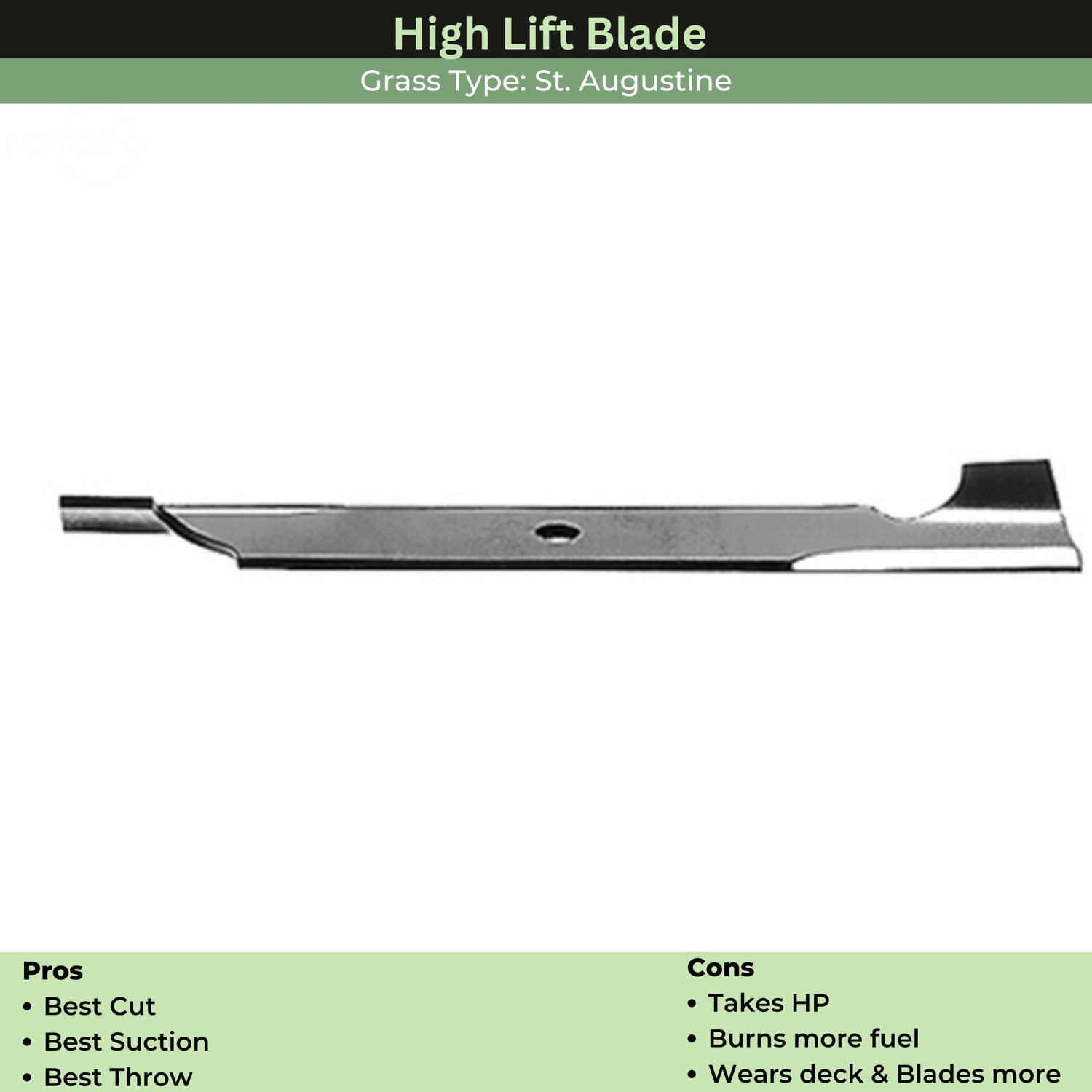

Notched High Lift Blades replaces Exmark 103-6403. (3) Blades for 60" Cut.

Key Specifications
Center Hole: 15/16" round.
Blade Quantity: 3 blades (for 60" decks).
Length: 20-1/2".
Width: 2-1/2".
Thickness: 0.240" to 0.250".
Blade Type: Notched High-Lift.

Technical Specifications
Feature     Specification
Center Hole Size    15/16 inches
Blades Needed for Full Replacement    3 blades
Compatible Mower Deck Size    60-inch deck
Blade Dimensions    Length: 20-1/2 in.
Width: 2-1/2 in.
Thickness: 0.240 in. (or 1/4 in.)
Blade Type    Notched high-lift blade
Compatible Toro Mowers    Fits most Toro mowers with a 60" deck using a splined bushing insert; replaces Toro OEM part 140-1240. Specific compatible models include the Toro Z Master series.

Replaces

  • EXMARK: 103-6403, 103-6403-S, 140-1240
  • Toro: 140-1240.

Fits Models

  • EXMARK: CT, Front Runner, Laser HP, Laser Z, Laser Z AS, Laser Z ASX, Laser Z D, Laser Z E, Laser Z S, Laser Z X, Laser Z XP, Laser Z XS, Phaser, Pioneer, QUEST, SP, TURF RANGER, Ultra Cut, VANTAGE
  • Toro GrandStand Series: 60-inch deck models with the required spindle type.
    Toro Z Master Series: Many 3000, 4000, 5000, 6000, and 7000 series with 60-inch decks and the specific spindle assembly (not the standard round 5/8" hole).

Description

Notched High Lift Blades replaces Exmark 103-6403. (3) Blades for 60" Cut.

Key Specifications
Center Hole: 15/16" round.
Blade Quantity: 3 blades (for 60" decks).
Length: 20-1/2".
Width: 2-1/2".
Thickness: 0.240" to 0.250".
Blade Type: Notched High-Lift.

Technical Specifications
Feature     Specification
Center Hole Size    15/16 inches
Blades Needed for Full Replacement    3 blades
Compatible Mower Deck Size    60-inch deck
Blade Dimensions    Length: 20-1/2 in.
Width: 2-1/2 in.
Thickness: 0.240 in. (or 1/4 in.)
Blade Type    Notched high-lift blade
Compatible Toro Mowers    Fits most Toro mowers with a 60" deck using a splined bushing insert; replaces Toro OEM part 140-1240. Specific compatible models include the Toro Z Master series.

Replaces

  • EXMARK: 103-6403, 103-6403-S, 140-1240
  • Toro: 140-1240.

Fits Models

  • EXMARK: CT, Front Runner, Laser HP, Laser Z, Laser Z AS, Laser Z ASX, Laser Z D, Laser Z E, Laser Z S, Laser Z X, Laser Z XP, Laser Z XS, Phaser, Pioneer, QUEST, SP, TURF RANGER, Ultra Cut, VANTAGE
  • Toro GrandStand Series: 60-inch deck models with the required spindle type.
    Toro Z Master Series: Many 3000, 4000, 5000, 6000, and 7000 series with 60-inch decks and the specific spindle assembly (not the standard round 5/8" hole).
