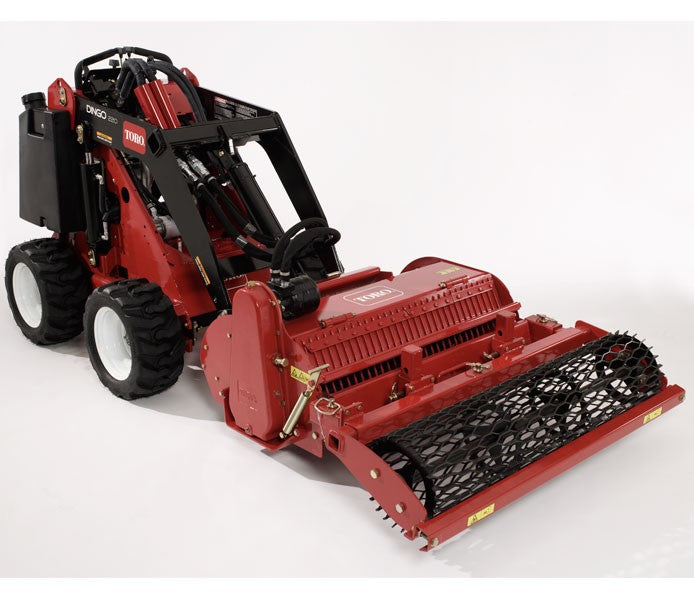

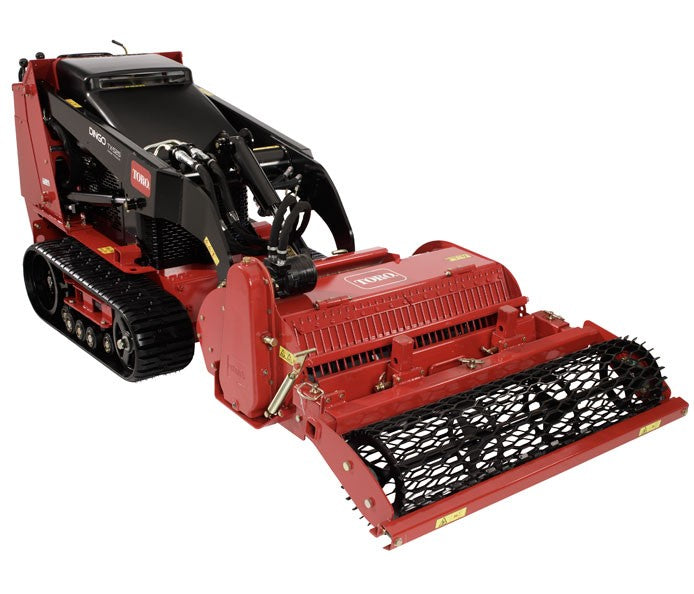

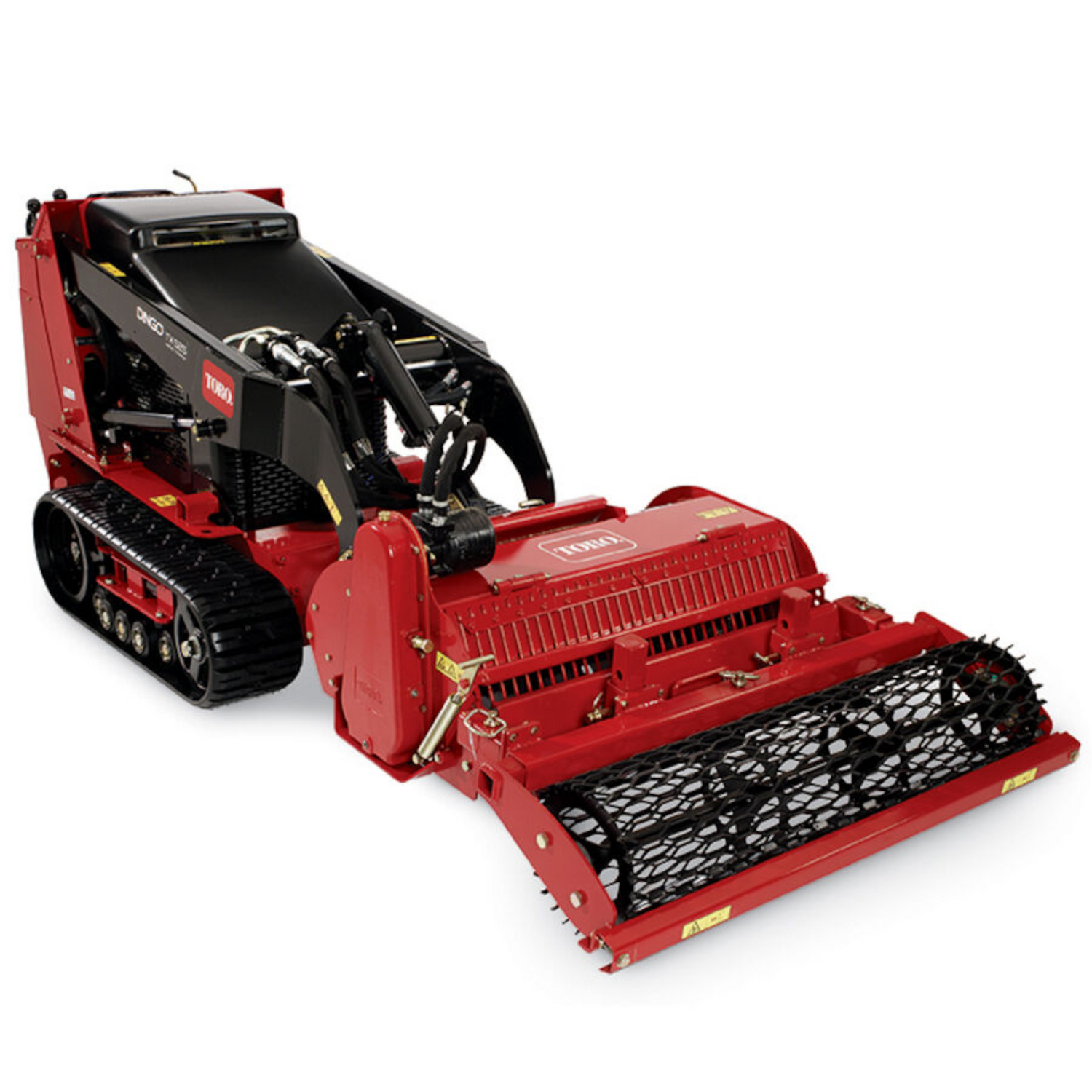

Toro Soil Cultivator Attachment | 23102

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

• One-pass prep for seed or sod
• High filtering grate
• Offset wire mesh finish roller
• Breaks up soil down to 5.5" deep

Offset Wire Mesh Rear Roller
Eliminates ridges between machine passes, and ensures for a uniform seed bed. Creates dimpled surface for maximum seed germination and root penetration.

Deep Soil Cultivation
Tiller cultivates soil up to 5.5" (14 cm) deep for maximum root penetration and healthy turf. Contractor can choose optimal depth for seed bed preparation.

High Filtering Grate
The grate permits only loose soil to pass through. Rocks, sticks, clods and debris are buried below the fresh tilled soil.

Specifications Blade Adjustment Mechanical adjustment Construction Fabricated, welded steel frame Depth Control Mechanical adjustment Height (cm) 53 Height (inches) 21 Hydraulic Flow 7-14 gpm (26.5-53 lpm) Length (cm) 130 Length (inches) 51 Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base Number of Blades 20 "V" non-panning blades Quick Couplers Dripless, flush face quick couplers Rated Pressure 3000 psi (206.7 bar) Roller Adjustment Mechanical adjustment Rotar - Outside Diameter (cm) 28.6 Rotar - Outside Diameter (inches) 11.25 Weight (kg) 250 Weight (lbs) 550 Width (cm) 130 Width (inches) 51 Working Depth (cm) 14 Working Depth (inches) 5.5 Working Width (cm) 91.4 Working Width (inches) 36
