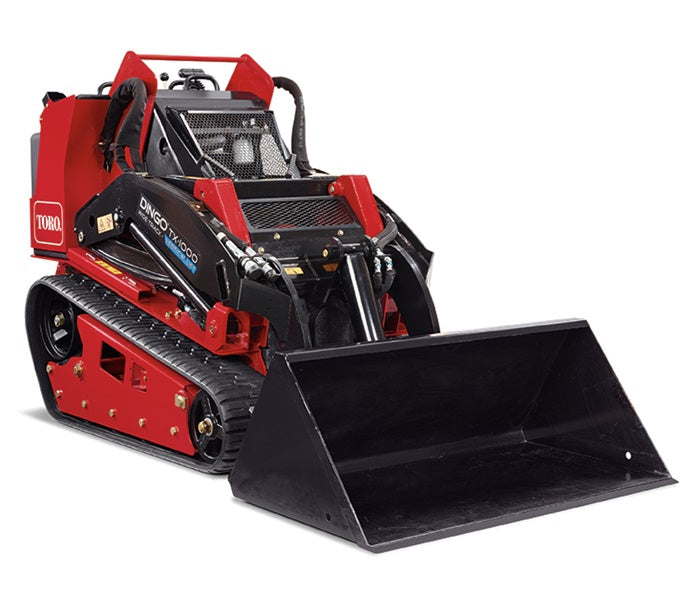

Dingo TX 1000 Wide Track Loader | Kubota Engine | 22328
Dingo TX 1000 Wide Track Loader | Kubota Engine | 22328 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
- Loader arm design increases load capacity and greater reach at full height
- Rated operating capacity over 1,000-lbs
- 81" (206 cm) hinge pin height easily clears side of a 30-yard dumpster or one-ton truck for maximum jobsite productivity
- Exclusive traction control design is intuitive, easy to operate, and effortless
As the market leader, Toro has taken another giant step in innovation, performance and versatility with the Dingo® TX 1000.
Designed with innovative lift loader arms, its 1,000-lb. rated operating capacity delivers performance that’s an industry game-changer. The Dingo TX 1000 also offers increased reach at full height for maximum jobsite productivity. And speaking of productivity, an 81" (206 cm) hinge pin height allows the arms to clear the side of a 30-yard dumpster or one-ton truck. This lightweight, maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage.
Specifications
| Air Filter | Two-stage, heavy-duty, remote |
|---|---|
| Cooling System | Liquid Cooled |
| Displacement (cc) | 1262 |
| Displacement (cu. in.) | 77 |
| Dump Angle | 40 degrees |
| Dump Height (cm) | 154.9 |
| Dump Height (inches) | 61 |
| Engine Make | Kubota |
| Engine Model | D1305 |
| Fuel Tank (gallons) | 11.5 |
| Fuel Tank (liters) | 44 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 15.2 |
| Ground Clearance (inches) | 6 |
| Ground Pressure | 3.6 psi |
| Ground Speed Forward (mph) | 4 |
| Ground Speed Foward (km/h) | 7.6 |
| Ground Speed Reverse (km/h) | 7.6 |
| Ground Speed Reverse (mph) | 4 |
| Hinge Pin Height (cm) | 205.7 |
| Hinge Pin Height (inches) | 81 |
| Hydraulic Flow | 13.3 gpm (each pump) |
| Hydraulic Flow Auxilary | 15.2 gpm |
| Loader Arms | Vertical Lift |
| Manufacturer's Gross HP Rating (HP) | 24.8 |
| Manufacturer's Gross HP Rating (kW) | 18.5 |
| Max Operating Height (cm) | 266.7 |
| Max Operating Height (inches) | 105 |
| Oil Capacity (liters) | 5.7 |
| Oil Capacity (quarts) | 6 |
| Overall Height w/bucket (cm) | 135.1 |
| Overall Height w/bucket (inches) | 53.2 |
| Overall Height w/o bucket (cm) | 135.1 |
| Overall Height w/o bucket (inches) | 53.2 |
| Overall Length w/bucket (cm) | 255.7 |
| Overall Length w/bucket (inches) | 100.7 |
| Overall Length w/o bucket (cm) | 207.5 |
| Overall Length w/o bucket (inches) | 81.7 |
| Overall Width w/bucket (cm) | 104.1 |
| Overall Width w/bucket (inches) | 41 |
| Overall Width w/o bucket (cm) | 104.1 |
| Overall Width w/o bucket (inches) | 41 |
| Rated Operating Capacity* (kg) | 453 |
| Rated Operating Capacity* (lbs) | 1000 |
| Reach – Fully Raised (cm) | 62.2 |
| Reach – Fully Raised (inches) | 24.5 |
| Reservoir Capacity (gallons) | 10 |
| Reservoir Capacity (liters) | 37.8 |
| RPM | 2600 |
| Track Length (inches) | 127.6 |
| Track Length(cm) | 324.1 |
| Track Width (cm) | 24 |
| Track Width (inches) | 9.5 |
| Tracks | Sprocket-drive, 6 road wheels per side |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 1265 |
| Weight (lbs) | 2790 |
| Wheelbase (inches) | 41 |
Disclaimer
