Toro-Dingo  |  SKU: 22371

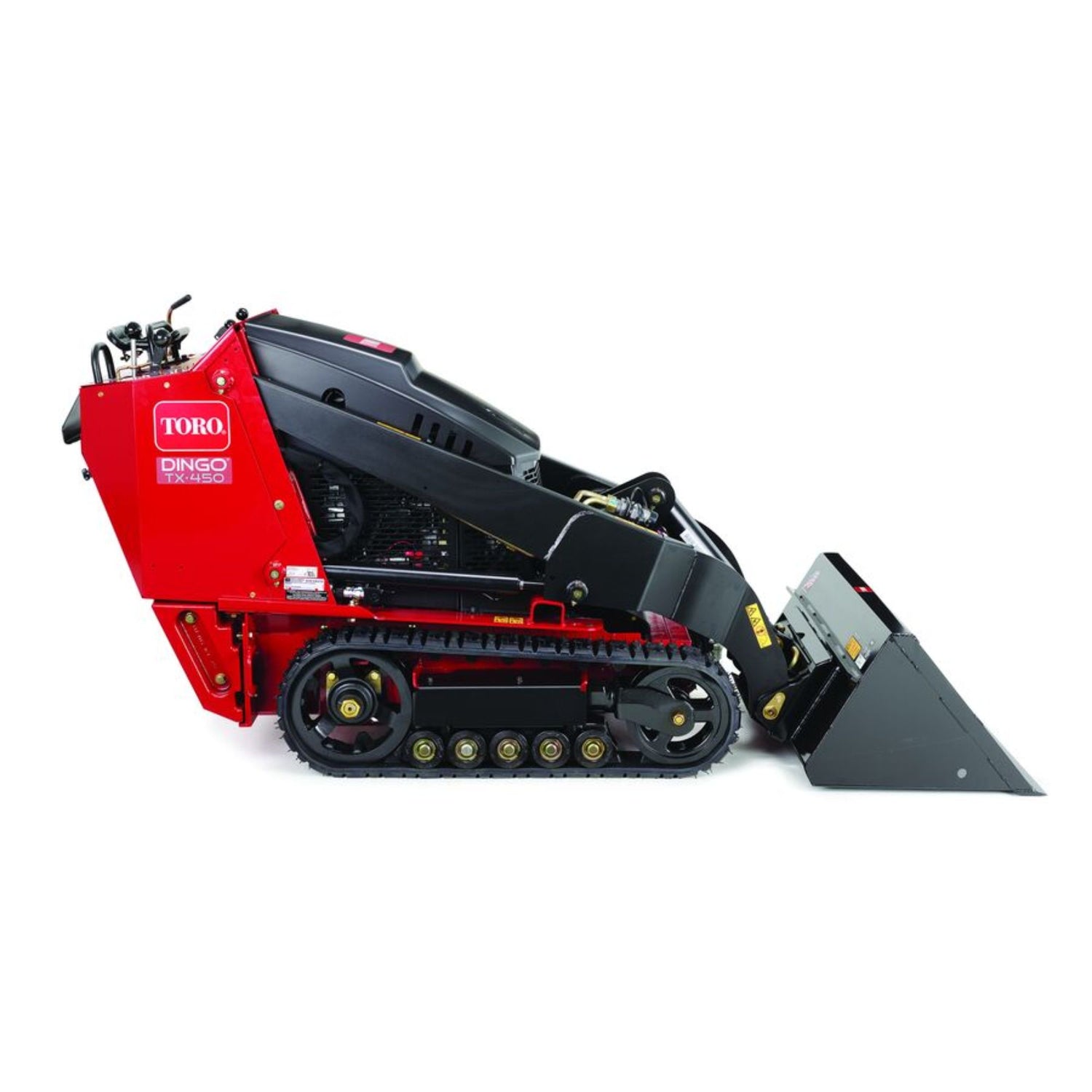

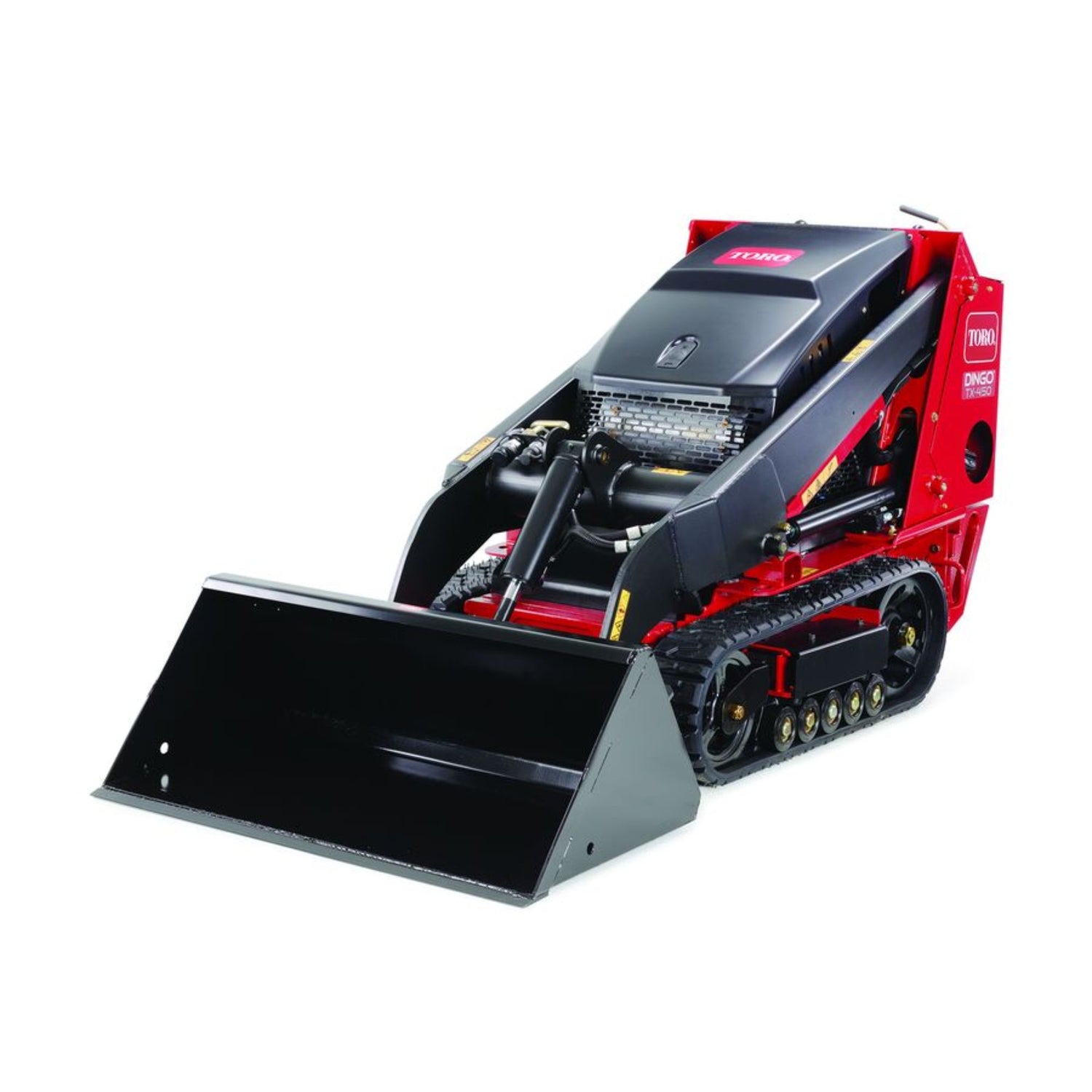

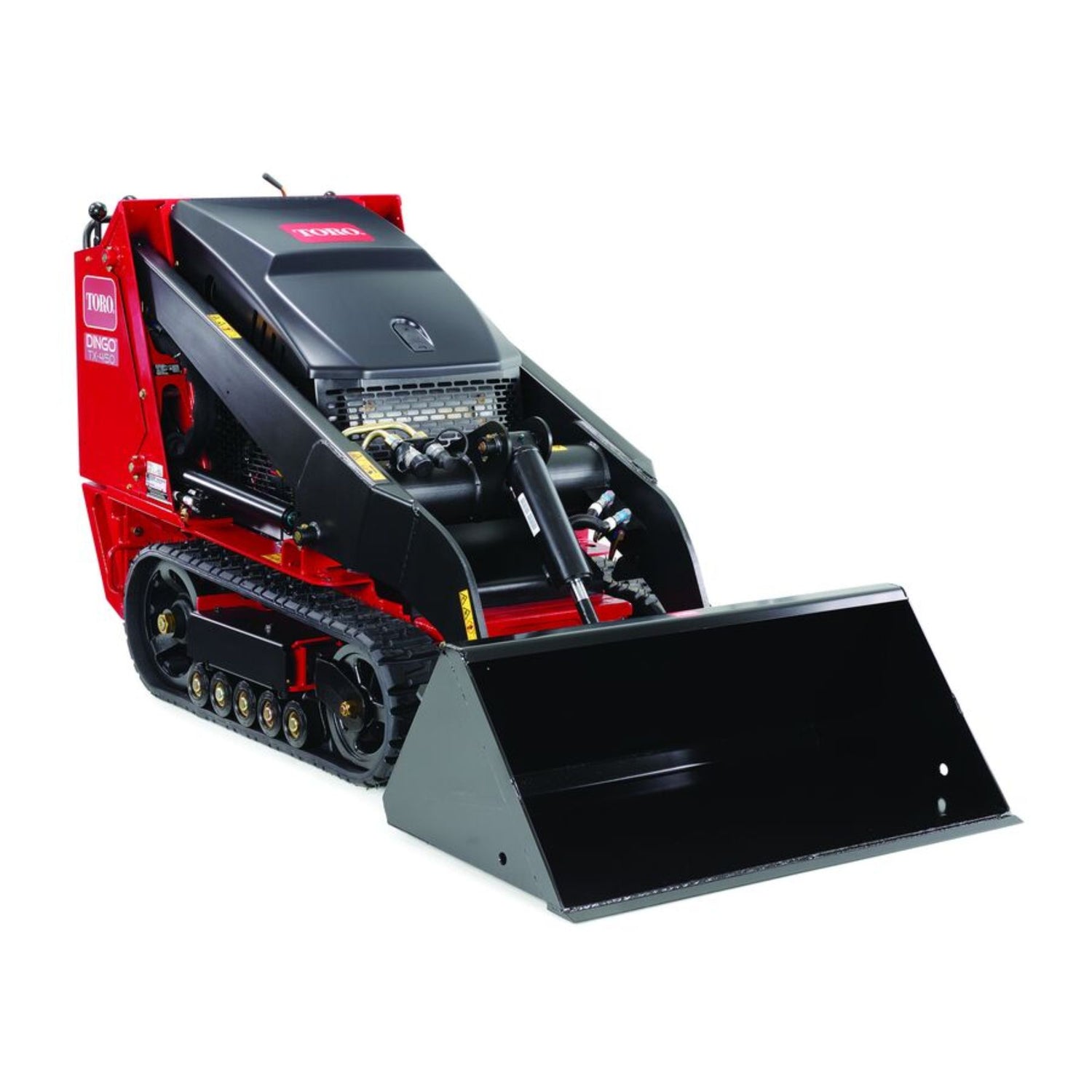

Dingo TX 450 Track Loader | Kohler Engine | 22371

$34,45500
Taxes and shipping calculated at checkout.

Dingo TX 450 Track Loader | Kohler Engine | 22371 is backordered and will ship as soon as it is back in stock.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

The gas-powered Dingo® TX 450 offers cost-effective versatility to tackle outdoor jobs quickly and efficiently. Whether a seasoned landscaping pro or a first-time user, the only walk-behind loader in its class makes it easy to auger, trench, lift and load in tight spaces.

  • The Dingo TX 450 is the right size for jobs that require more than handheld tools, in spaces that don’t allow for bulky machinery.
  • The lightweight, narrow design produces minimal turf disturbance.
  • Intuitive controls allow both first-time users and experienced operators to work quickly and efficiently.
  • The only walk-behind loader in its class, the Dingo TX 450 is designed for simple maneuverability and unbeatable precision in tight spaces.
  • The Dingo TX 450 is built on a 20-year foundation of durability, longevity and dependability.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Dump Angle 38 deg
Dump Height 46.1 in. / 117.0 cm
Engine Displacement 725 cc (44 cu. in.)
Engine Horsepower 25 hp (18.6 kW) @ 3,600 rpm
Engine Make Kohler
Engine Model Command Pro Series CH740
Fuel Tank 6 gal. / 22.7 L
Fuel Type Gasoline
Ground Clearance 4.6 in. / 11.56 cm
Ground Pressure 5.1 psi
Ground Speed - Forward Up to 4.5 mph / 7.2 kph
Ground Speed - Reverse Up to 2.0 mph / 3.2 kph
Height 46.1 in. / 117.0 cm
Height - With Bucket 46.1 in. / 117.0 cm
Hinge Pin Height 65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary 11.4 GPM
Hydraulic Flow - Traction 16.9 GPM
Hydraulic Pressure 3,000 psi
Length 70.7 in. / 179.5 cm
Length - With Bucket 92 in. / 233.6 cm
Loader Arms Radial
Max Operating Height 90.1 in. / 228.8 cm
Oil Capacity 2 qt / 1.9 L
Rated Operating Capacity* 535 lbs / 242.67 kg
Reach - Fully Raised 21.8 in. / 55.3 cm
Reservoir Capacity 10 gal. / 37.8 L
Tip Capacity 1,530 lbs / 694 kg
Track Length 96.6 in. / 245.3 cm
Track Width 5.9 in. / 14.9 cm
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight 1,882 lbs / 854 kg
Wheelbase 31.2 in. / 79.2 cm
Width 33.7 in. / 85.5 cm
Width - With Bucket 33.7 in. / 85.5 cm



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Replace the hydraulic filter.
After the first 50 hours
  • Change the engine oil and filter.
  • Check and adjust the track tension.
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air-filter-service indicator.
  • Check the engine-oil level.
  • Clean the tracks.
  • Check the tracks for excessive wear(If the tracks are worn, replace them).
  • Test the parking brake.
  • Remove debris from the machine.
  • Check for loose fasteners.
Every 25 hours
  • Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
  • Inspect the drive belt for wear or damage.
  • Check the hydraulic-fluid level.
Every 100 hours
  • Change the engine oil.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
  • Check for dirt buildup in the chassis.
Every 200 hours
  • Replace the air filter.
  • Replace the carbon-canister air filter (Service more frequently if conditions are extremely dusty or sandy).
  • Replace the carbon-canister purge-line filter.(Service more frequently when using the vibratory-plow attachment.)
  • Change the oil filter.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check the spark plug(s).
  • Replace the drive belt.
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 400 hours
  • Replace the in-line filter.
  • Change the hydraulic fluid.
Every 500 hours
  • Replace the spark plug.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
