Toro-Dingo  |  SKU: 22324

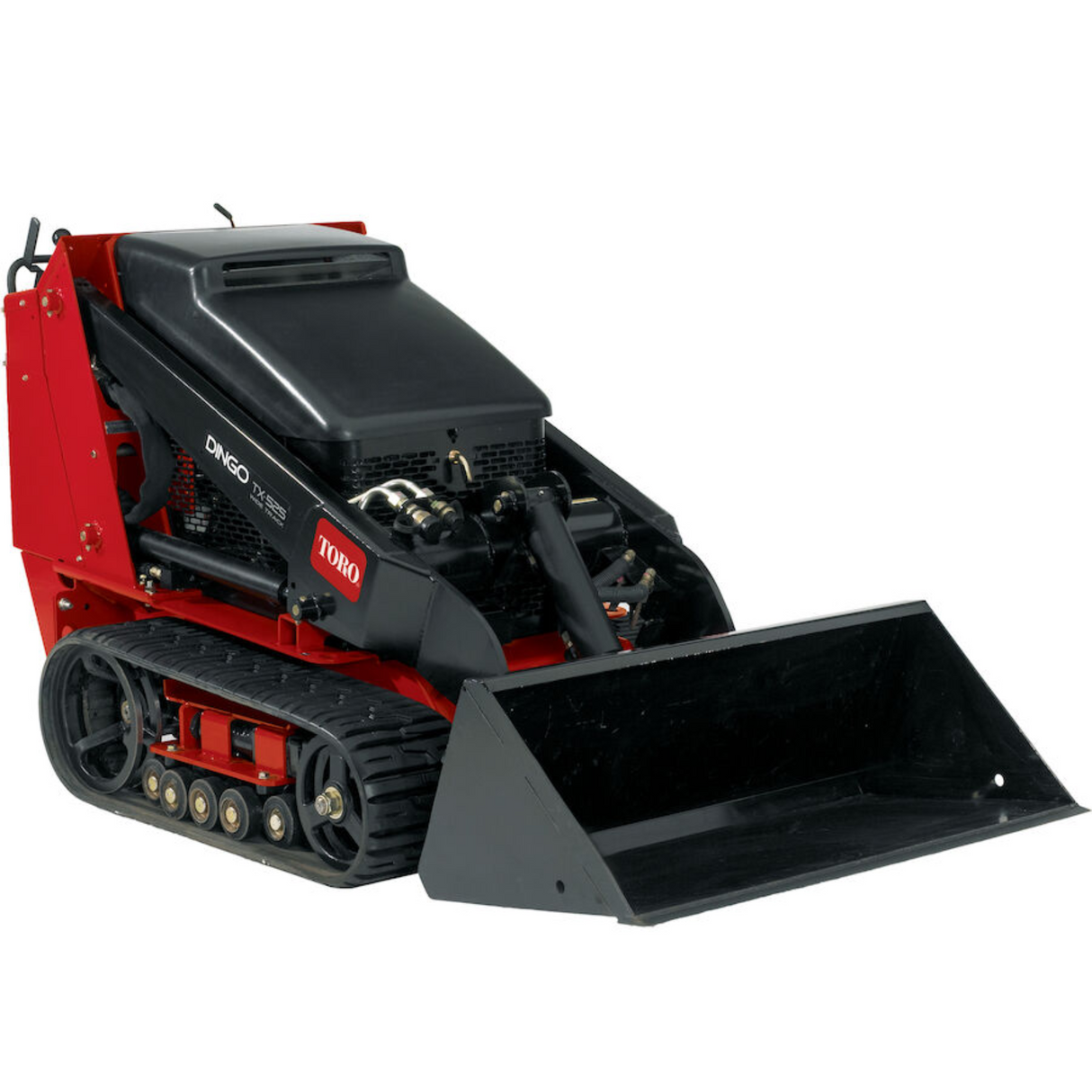

Dingo TX 525 Wide Track Loader | Kubota Engine | 22324

$32,97600
Taxes and shipping calculated at checkout.

Dingo TX 525 Wide Track Loader | Kubota Engine | 22324 is backordered and will ship as soon as it is back in stock.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

  • 23.3 HP (17.3 kW) Kubota D902
  • 42" width with bucket
  • Turf friendly at only 2013 pounds
  • Patented, easy-to-use traction control system

Diesel. Done Right.
Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.4 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.

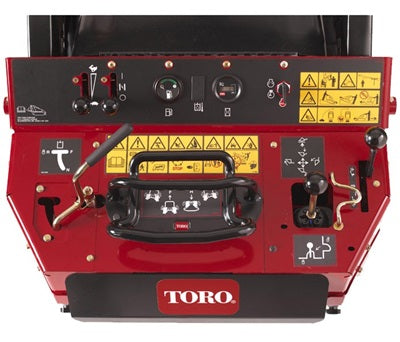

Simple Controls
You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Liquid-Cooled Diesel Engine
The 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Reinforced Tracks
Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.



Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Liquid Cooled
Displacement (cc) 901
Displacement (cu. in.) 55
Dump Angle 38 degrees
Dump Height (cm) 117.1
Dump Height (inches) 46.1
Engine Make Kubota
Engine Model D902E3B
Fuel Tank (gallons) 6
Fuel Tank (liters) 23
Fuel Type Diesel
Ground Clearance (cm) 11.7
Ground Clearance (inches) 4.6
Ground Pressure 3.5 psi
Ground Speed Forward (mph) 4.5
Ground Speed Foward (km/h) 7.2
Ground Speed Reverse (km/h) 3.2
Ground Speed Reverse (mph) 2
Hinge Pin Height (cm) 167.1
Hinge Pin Height (inches) 65.8
Hydraulic Flow Auxilary 13.8 gpm
Hydraulic Flow Traction 16.9 gpm (each pump)
Hydraulic Pressure 3000 PSI
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 23.3
Manufacturer's Gross HP Rating (kW) 17.3
Max Operating Height (cm) 229
Max Operating Height (inches) 90.1
Oil Capacity (liters) 3.63
Oil Capacity (quarts) 3.84
Overall Height (cm) 117.1
Overall Height (inches) 46.1
Overall Length w/bucket (cm) 233.7
Overall Length w/bucket (inches) 92
Overall Length w/o bucket (cm) 180
Overall Length w/o bucket (inches) 70.7
Overall Width (cm) 104
Overall Width (inches) 41
Rated Operating Capacity - 35% of Tip Capacity (kg) 251
Rated Operating Capacity - 35% of Tip Capacity (lbs) 553
Reach – Fully Raised (cm) 55.4
Reach – Fully Raised (inches) 21.8
Reservoir Capacity (gallons) 10.5
Reservoir Capacity (liters) 40
RPM 3400
Tip Capacity (kg) 717
Tip Capacity (lbs) 1580
Track Length (inches) 96.6
Track Length(cm) 245
Track Width (cm) 24.1
Track Width (inches) 9.5
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 907
Weight (lbs) 2013
Wheelbase (inches) 31.2



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Replace the hydraulic filter.
After the first 50 hours
  • Change the engine oil and filter.
  • Check and adjust the track tension.
Before each use or daily
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air-filter-service indicator.
  • Check the engine-oil level.
  • Drain water and other contaminants from the fuel filter/water separator.
  • Clean the tracks.
  • Check the tracks for excessive wear(If the tracks are worn, replace them).
  • Clean the screen, oil cooler, and front of the radiator (more often in dirty or dusty conditions).
  • Check the coolant level in the expansion tank.
  • Check and clean the radiator screen
  • Test the parking brake.
  • Remove debris from the machine.
  • Check for loose fasteners.
Every 25 hours
  • Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
  • Check the hydraulic-fluid level.
Every 100 hours
  • Change the engine oil.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check and adjust the track tension.
  • Check the cooling system hoses.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
  • Check for dirt buildup in the chassis.
  • Check the alternator/fan belt tension (refer to the engine owner’s manual for instructions).
Every 200 hours
  • Change the oil filter.(Service more frequently if conditions are extremely dusty or sandy.)
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 400 hours
  • Check the fuel lines and connections for deterioration, damage, or loose connections.
  • Replace the fuel filter canister and in-line filter.
  • Change the hydraulic fluid.
Every 500 hours
  • Replace the alternator/fan belt (refer to the engine owner’s manual for instructions).
Yearly
  • Change the engine coolant.
  • Check the condition of the hydraulic pump belt.
Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
Every 2 years
  • Drain and clean the fuel tank(s)—Authorized Service Dealer only.
