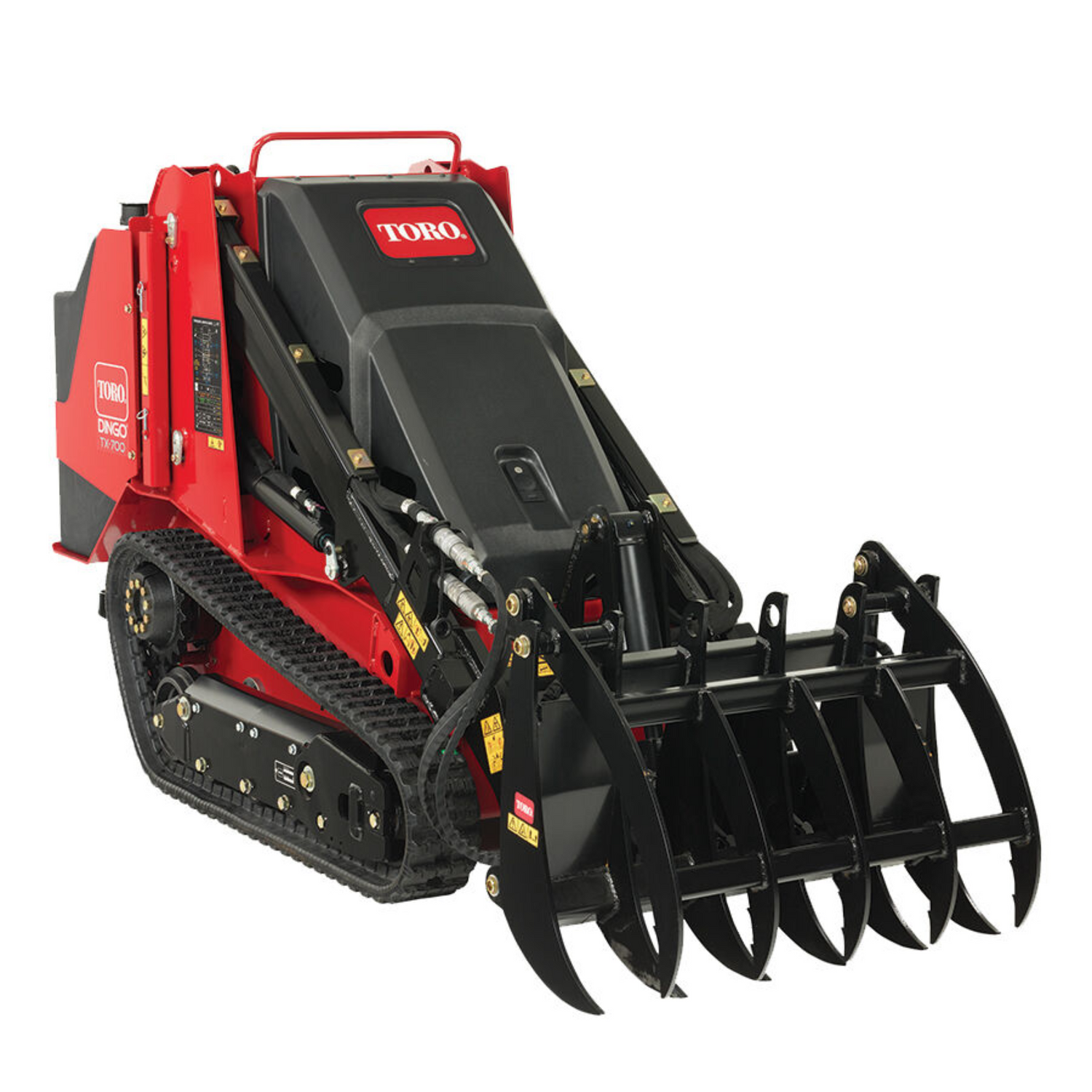

Dingo TX 700 Narrow Track Loader | Yanmar Engine | Diesel | 22351
Dingo TX 700 Narrow Track Loader | Yanmar Engine | Diesel | 22351 is backordered and will ship as soon as it is back in stock.
Pickup available at MSM - Clermont
Usually ready in 4 hours
Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.
- Compact footprint
- Patented traction control
- Camso track system with less aggressive tread pattern that minimizes turf damage
Specifications
| Air Filter | Dual Element Air Filter |
|---|---|
| Dump Angle | 42 degrees |
| Dump Height (cm) | 134.4 |
| Dump Height (inches) | 52.9 |
| Engine Make | Yanmar |
| Engine Model | 3TNV80F |
| Fuel Tank (gallons) | 5.5 |
| Fuel Tank (liters) | 20.8 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 13.3 |
| Ground Clearance (inches) | 5.25 |
| Ground Pressure | 6.4 psi |
| Ground Speed Forward (mph) | 4.5 |
| Ground Speed Foward (km/h) | 7.2 |
| Ground Speed Reverse (km/h) | 7.2 |
| Ground Speed Reverse (mph) | 4.5 |
| Hinge Pin Height (cm) | 186.7 |
| Hinge Pin Height (inches) | 73.5 |
| Hydraulic Flow | 14.5 gpm (each pump) |
| Hydraulic Flow Auxilary | 13.7 gpm |
| Hydraulic Pressure | 3,000 psi |
| Loader Arms | Radial |
| Manufacturer's Gross HP Rating (HP) | 24.7 |
| Manufacturer's Gross HP Rating (kW) | 18 |
| Max Operating Height (cm) | 246.4 |
| Max Operating Height (inches) | 97 |
| Oil Capacity (liters) | 3.4 |
| Oil Capacity (quarts) | 3.6 |
| Overall Height (cm) | 140.5 |
| Overall Height (inches) | 55.3 |
| Overall Length w/bucket (cm) | 261.1 |
| Overall Length w/bucket (inches) | 102.8 |
| Overall Length w/o bucket (cm) | 208.3 |
| Overall Length w/o bucket (inches) | 82 |
| Overall Width (cm) | 86.9 |
| Overall Width (inches) | 34.2 |
| Rated Operating Capacity - 35% of Tip Capacity (kg) | 346 |
| Rated Operating Capacity - 35% of Tip Capacity (lbs) | 764 |
| Reach – Fully Raised (cm) | 78.7 |
| Reach – Fully Raised (inches) | 31 |
| Reservoir Capacity (gallons) | 10 |
| Reservoir Capacity (liters) | 37.9 |
| RPM | 3000 |
| Tip Capacity (kg) | 989 |
| Tip Capacity (lbs) | 2182 |
| Track Length (inches) | 126.6 |
| Track Length(cm) | 321.6 |
| Track Width (cm) | 13.7 |
| Track Width (inches) | 5.4 |
| Tracks | Camso B-Tread |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 1140 |
| Weight (lbs) | 2514 |
| Wheelbase (inches) | 39 |
