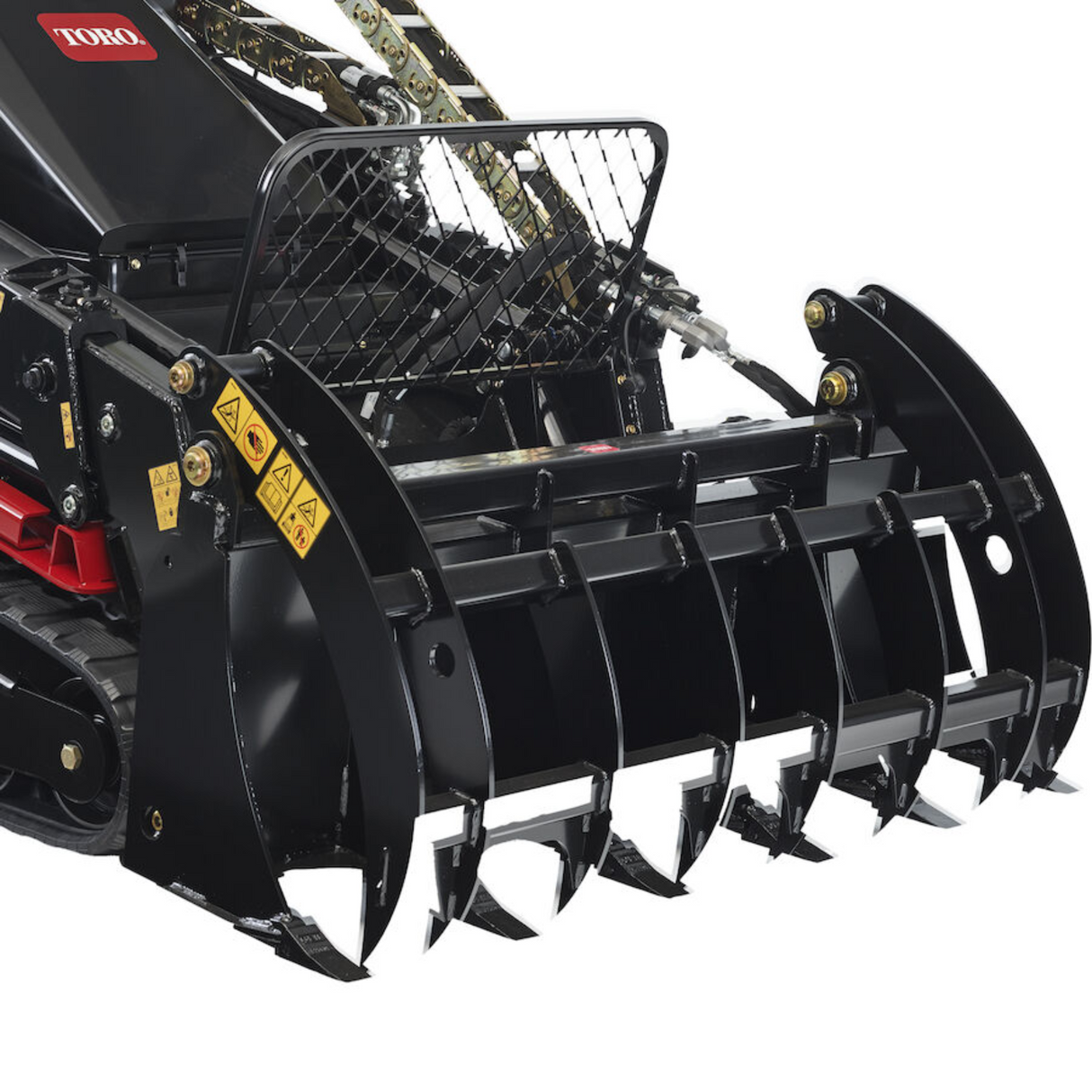

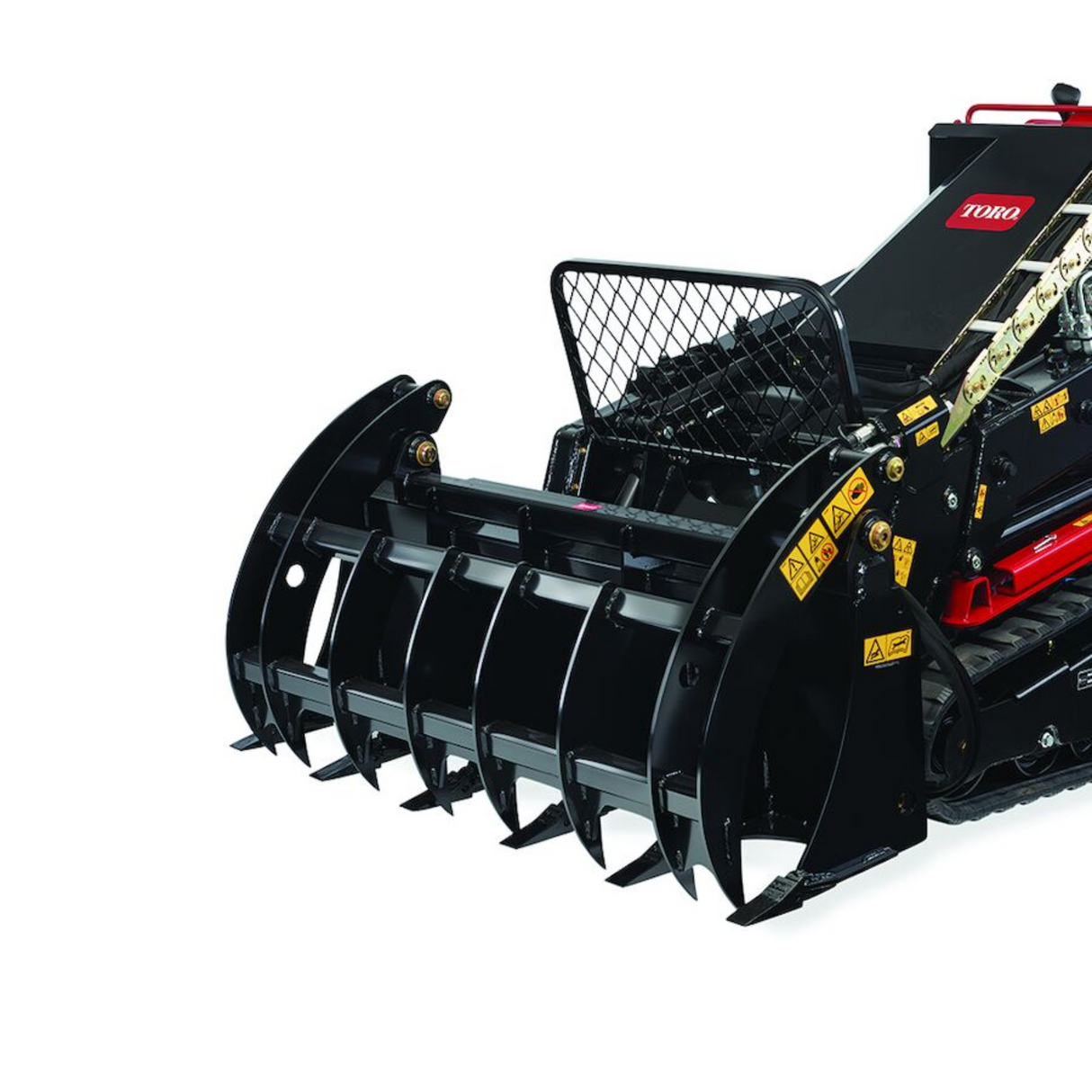

Dingo TXL 2000 Grapple Attachment | 22535
Dingo TXL 2000 Grapple Attachment | 22535 is backordered and will ship as soon as it is back in stock.
Pickup available at MSM - Clermont
Usually ready in 4 hours
- Two-cylinder, single jaw grapple for digging, raking, piling and loading debris
- 40” grapple jaw opening to haul large amounts of brush per load
Dig, rake, pile and load debris with this grapple, which features a 40” jaw opening to haul large amounts of brush in each load. The unique design allows efficient forward and reverse operation to drag loose material into piles. For maximum durability, the heavy-duty jaw and rake tines are constructed from 3/8″ Grade 80 steel.
Specifications
| Height (cm) | 64 |
|---|---|
| Height (inches) | 25 |
| Load Rating Capacity (SAE J1197) Loader Arms Retracted (lbs) | 1350 |
| Load Rating Capacity (SAE J1197) Loader Arms Extended (kg) | 299 |
| Load Rating Capacity (SAE J1197) Loader Arms Extended (lbs) | 660 |
| Load Rating Capacity (SAE J1197) Loader Arms Retracted (kg) | 612 |
| Weight (kg) | 358 |
| Weight (lbs) | 790 |
| Width (cm) | 173 |
| Width (inches) | 68 |
| Working Depth (cm) | 56 |
| Working Depth (inches) | 22 |
