Toro | SKU:
74532

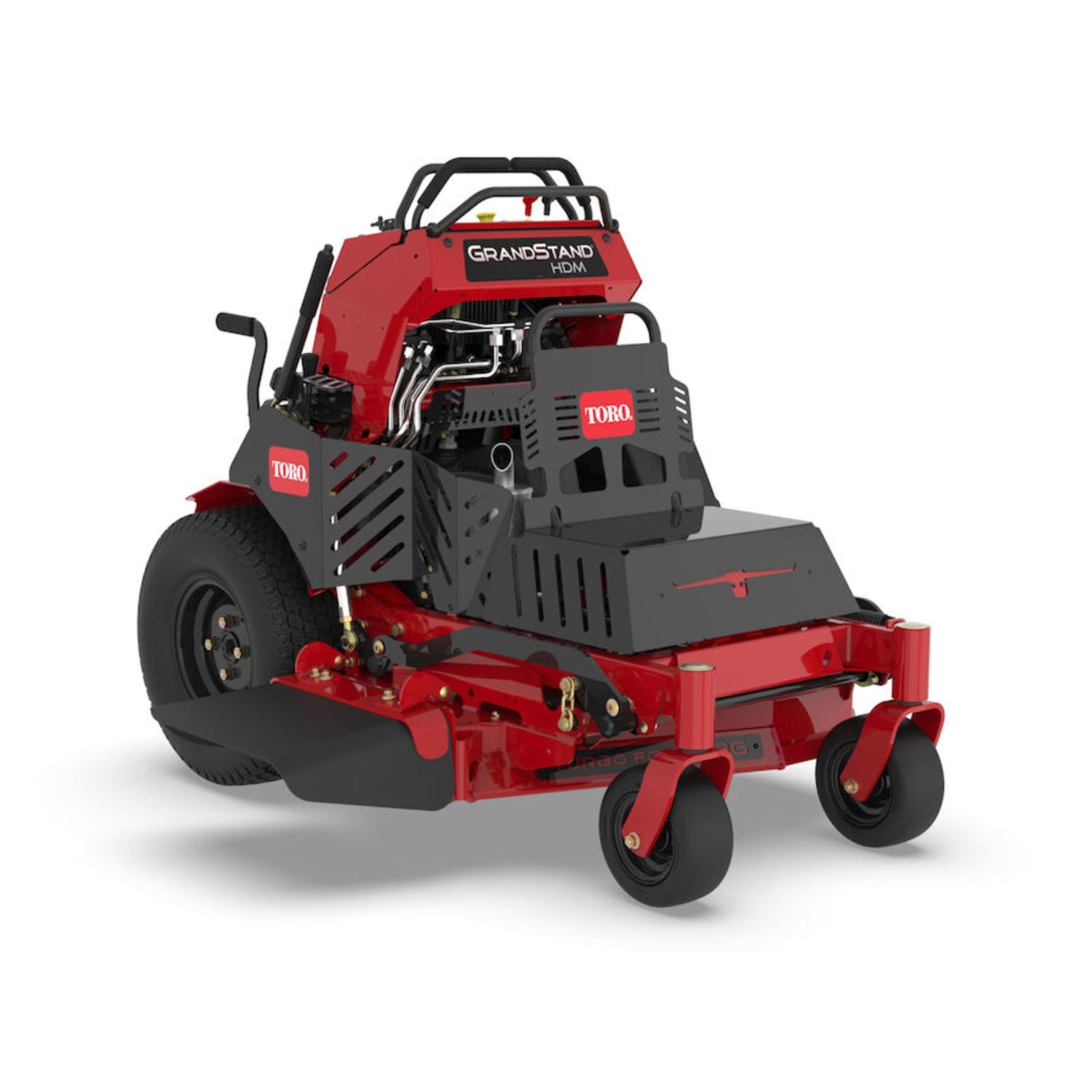

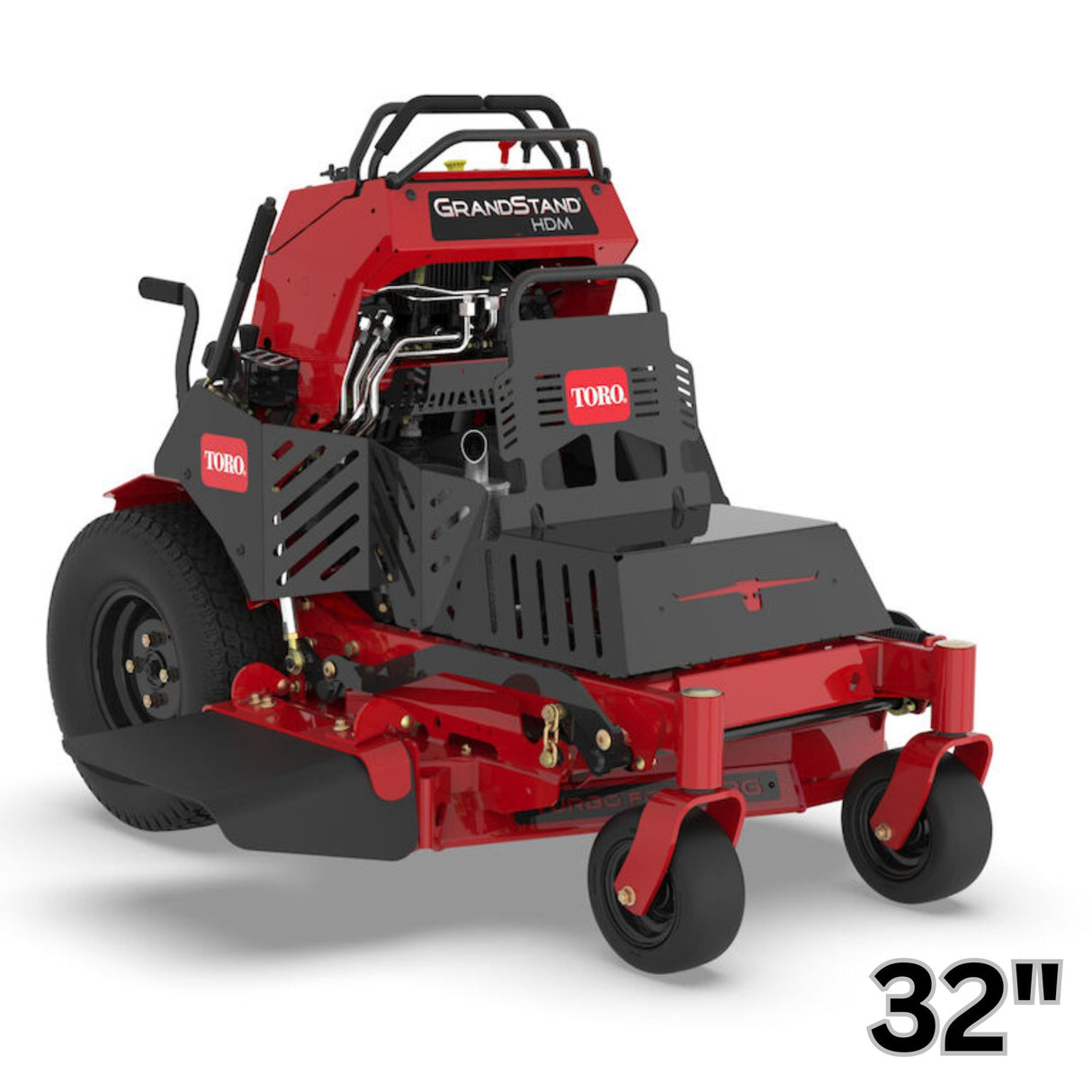

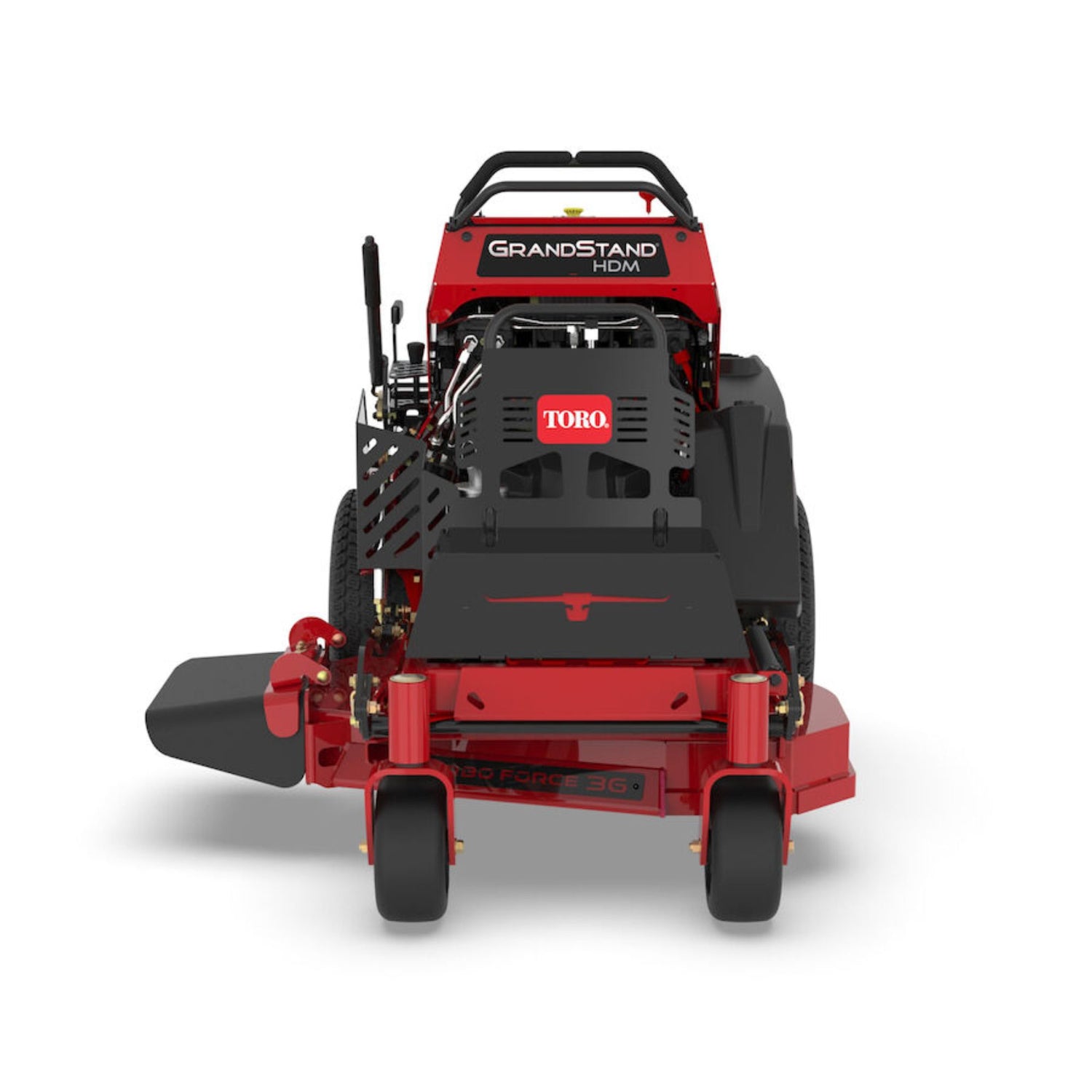

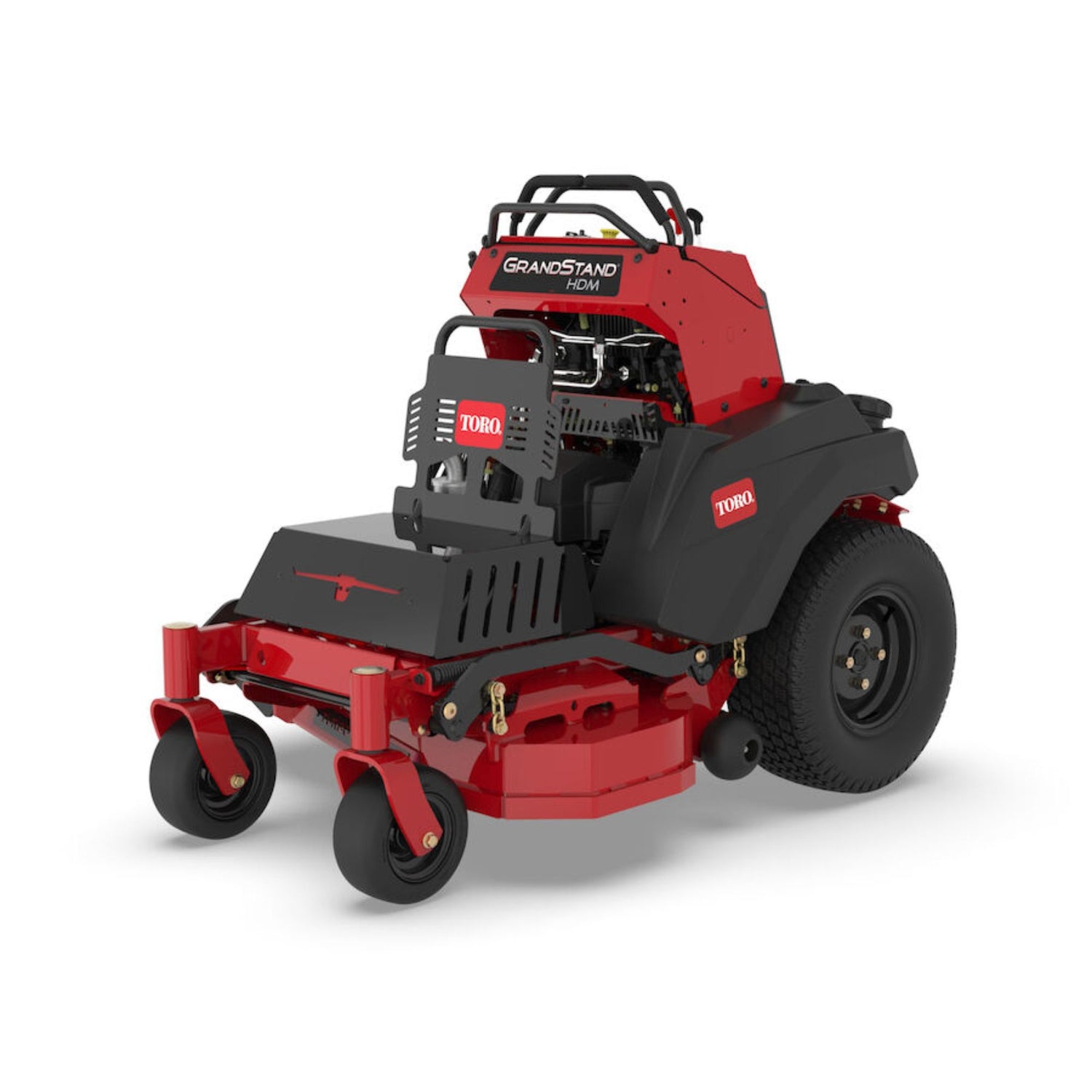

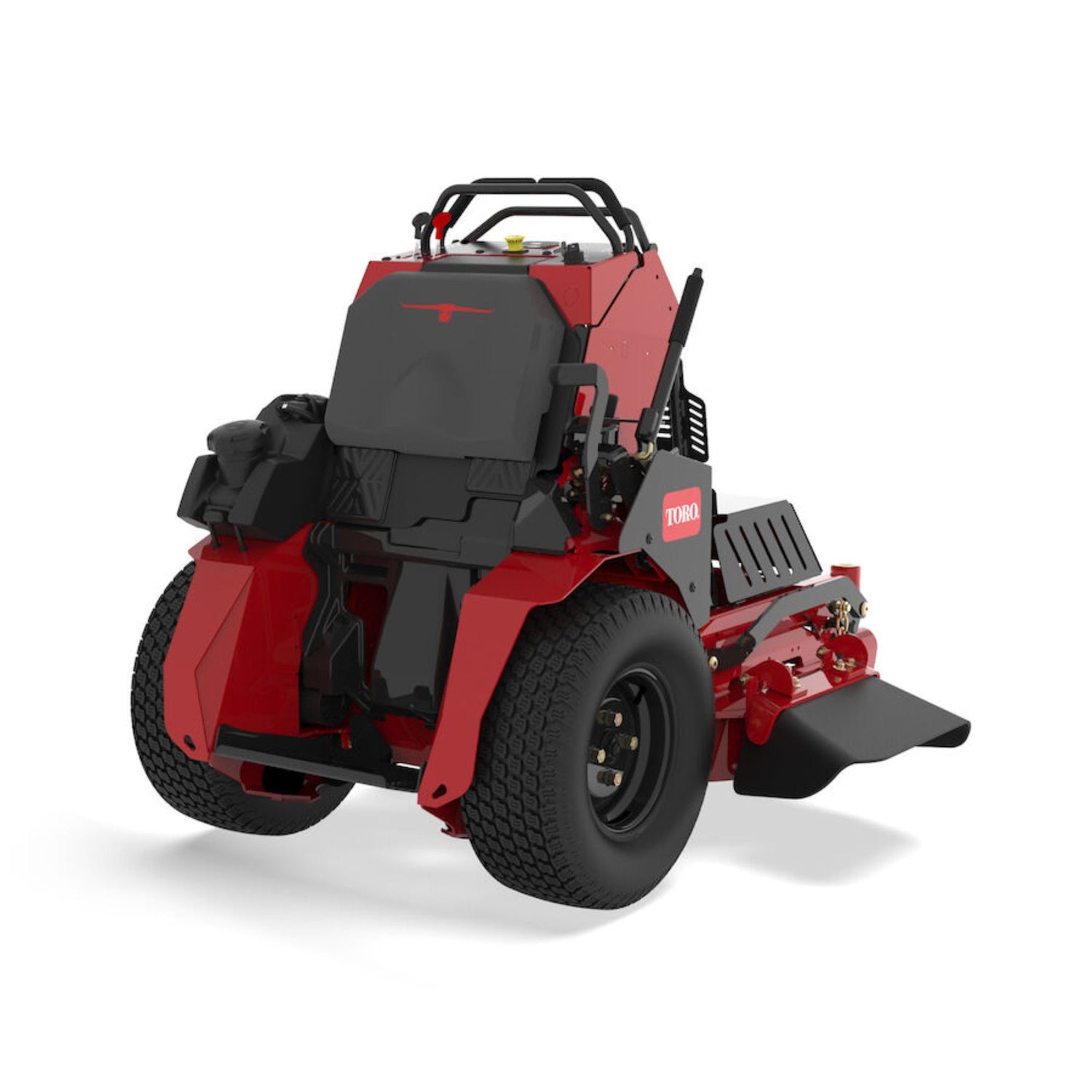

Toro Grandstand HDM Stand-On Mower | 32" Deck | 18.5 Kawasaki | 74532
$10,29900
Unit price
Unavailable
Taxes, discounts and shipping calculated at checkout.
Toro Grandstand HDM Stand-On Mower | 32" Deck | 18.5 Kawasaki | 74532 is backordered and will ship as soon as it is back in stock.
Pickup available at MSM - Clermont
Usually ready in 4 hours
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
- Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
- Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
- Get the job done 3x faster than a 21-inch walk behind mower.**
**Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions. - Redesigned hood flips up for easy maintenance and cleaning.
- Trim close without damaging landscape structures or your chute.
- Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.
You asked for a compact GrandStand. We listened. We've added a 32-inch deck option to the fan-favorite stand-on lineup. Combining the speed and comfort of a zero-turn riding mower with the ease and maneuverability of a walk mower, you'll knock out more jobs, faster, without the fatigue of a small walk-behind. From mowing to maintenance, this compact machine is built for easy, fast work.
Specifications
| Air Filter | Dual Element with Reinforced Primary Filter |
|---|---|
| Blade Design | 0.204 in. / 0.518 cm Thick Heat-treated Steel |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Box Dimensions | 45.5 in. x 70 in. x 52 in. / 115.6 cm x 117.8 cm x 132.1 cm |
| Brake System | Lever Actuated Bar Brake (Park Brake) |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel |
| Caster Tires | 9 in. x 4.5 in. - 5 in. (22.8 cm x 11.4 cm - 12.5 cm) Smooth Semi-Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Deck Design | Fabricated Weldment |
| Deck Material | 7 Gauge High-Strength Steel |
| Deck Size | 32 in / 81 cm |
| Discharge Chute | Rubber |
| Drive System | Rear Wheel Drive |
| Drive Tires | 21 in. x 8.5 in. - 10 in. (53.3 cm x 21.6 cm x 25.4 cm) Turf Tires |
| Drive Type | Rear-Wheel Drive |
| Engine | 18.5 hp Kawasaki FS600V 603 cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 603 cc |
| Engine Horsepower | 18.5 hp |
| Forward Ground/Transport Speed | Up to 7.5 mph / 12.0 kph |
| Forward Mowing Speed | Up to 7.5 mph / 12.0 kph |
| Front Bumper | Bull-Nose |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Product Type | Stand-On Mowers |
| Product Use | Commercial |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Weight | 775 lbs / 351.5 kg |
Disclaimer
*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
**Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
**Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
