Toro | SKU: 77288

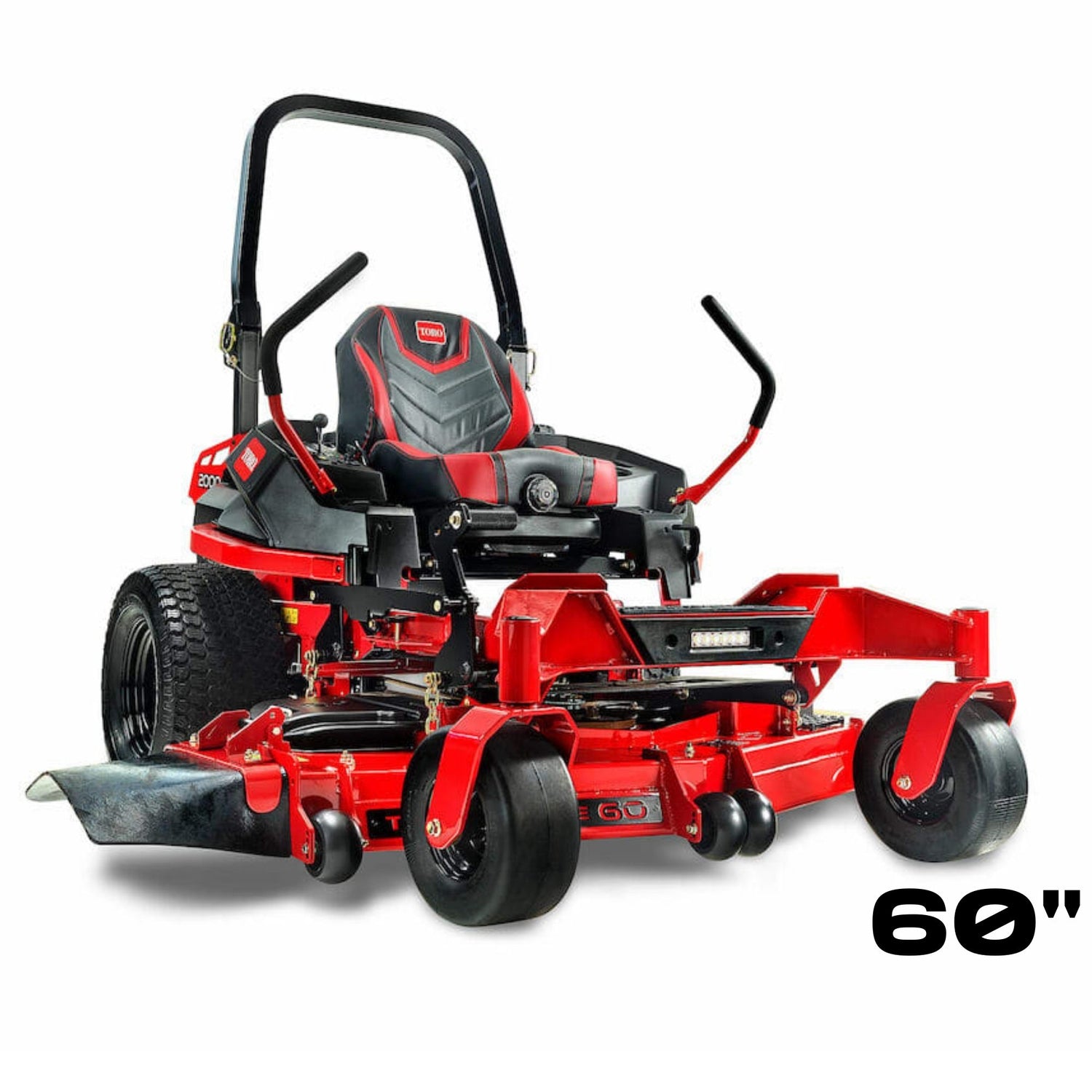

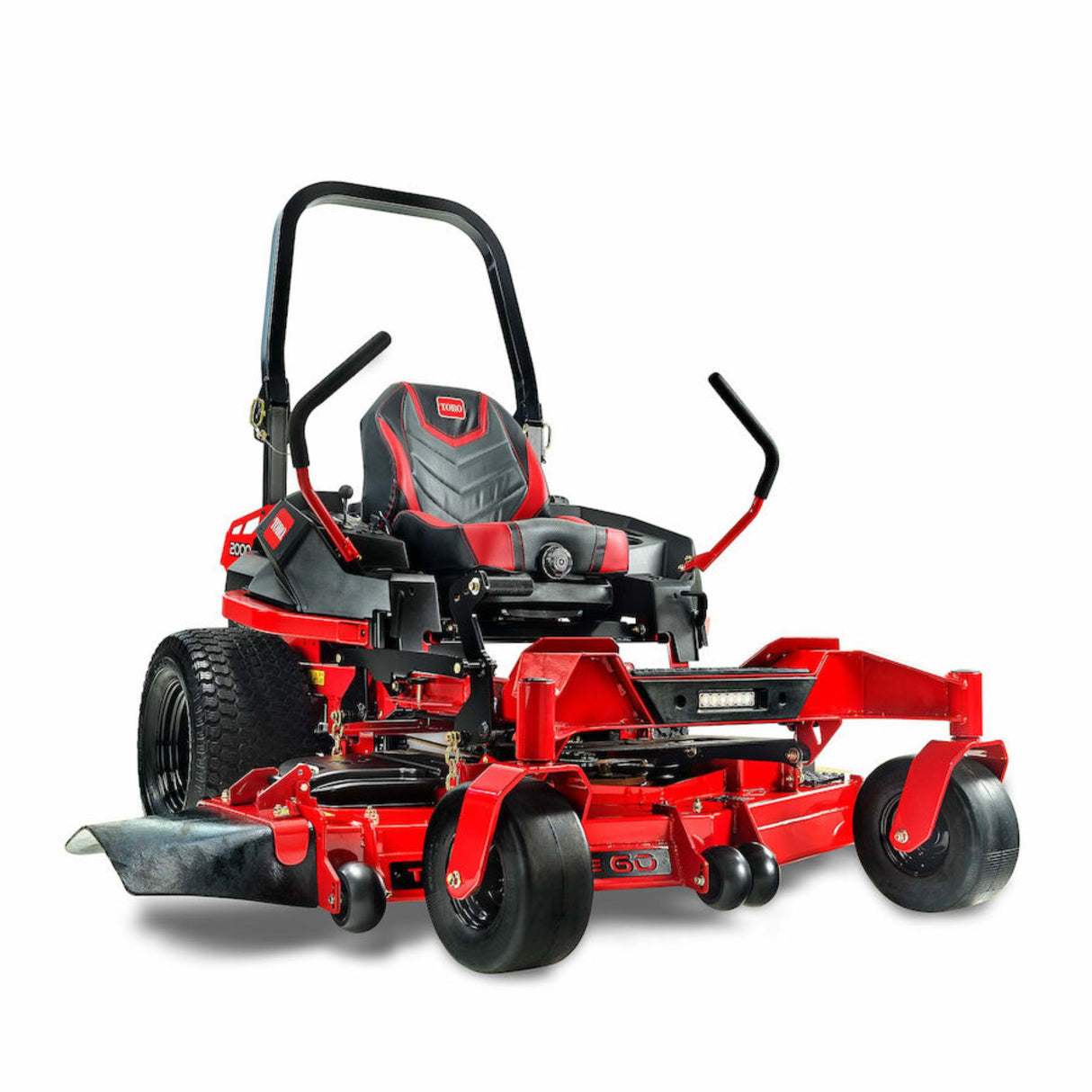

Toro Z Master 2000 | 60" Deck | Voodoo | 28hp Vanguard | 77288

Name: Toro Z Master 2000 | 60" Deck | Voodoo | 28hp Vanguard | 77288
Brand: Toro
SKU: 77288
Price: 11799.00 USD
Availability: InStock

$11,799⁰⁰

Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. Plus, with a high-back suspension comfort seat you'll enjoy the ride, too.

TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
Low-Back Suspension Seat - Stay comfortable on the job with the premium low-back shock absorbing suspension seat.
24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Anti Scalp Wheels	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Box Dimensions	91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch	Electromagnetic
Deck Design	5.5” (14 cm) deck depth, 7-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive Tires	Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 x 24.1 - 30.5 cm)
Engine	Vanguard 810 EFI
Engine Brand	Vanguard
Engine Displacement (cc)	810 cc
Engine Horsepower	28.0 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Fuel Capacity	7 gal. / 26.5 L / 28 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hitch Bracket	Standard
Hour Meter	Standard
Ignition	Electric
Lighting	LED Headlights
Notes	Hitch: Integrated Receiver Hitch - 2 in. x 2 in. 80 lbs. (36.3 kg) max tongue, 250 lbs. (113.4 kg) max tow
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection System (ROPS)	Folding; Standard
Seat	Deluxe Suspension Seat
Spindle Housing	8 in / 20.3 cm Diameter Aluminum (Non Greasable) Ball Bearing, 1 in / 2.5 cm Shaft
Steering Controls	1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Tool Mounting Capability	Side Console / Rear Guard Ready
Transmission	Hydro-Gear ZT-3400
Weight	1,070 lbs / 485.3 kg

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Maintenance Service Interval	Maintenance Procedure
After the first 5 hours	For Toro engines—change the engine oil and filter.
After the first 75 hours	Change the hydraulic-system filters and fluid.
Before each use or daily	Check the safety-interlock system. For Kawasaki engines—check the engine-oil level. For Toro engines—check the engine-oil level. For Briggs and Stratton engines—Check the engine-oil level. Clean the blower housing (more often under dusty, dirty conditions). Clean the engine screen, engine-oil cooler, and the area around the engine. Clean around the engine-exhaust system. Check the seat belt. Check the hydraulic-fluid level. Inspect the blades. Clean the suspension system.
After each use	Clean the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure.For machines with pneumatic tires only. Inspect the belts for cracks and wear.
Every 100 hours	Lubricate the mower deck-lift pivots. For Kawasaki engines—change the engine oil(more often in dirty or dusty conditions). For Kawasaki engines—replace or clean and gap the spark plug.
Every 100 hours or yearly, whichever comes first	For Toro engines—change the engine oil and oil filter(more often in dirty or dusty conditions). For Toro engines—check the spark plug(s). For Briggs and Stratton engines—Change the engine oil and filter. For Briggs and Stratton engines—Replace the spark plug.
Every 200 hours	For Kawasaki engines—change the engine-oil filter(more often in dirty or dusty conditions). For Toro engines—replace the spark plug(s).
Every 250 hours	For Kawasaki engines—replace the primary air filter(more often in dirty or dusty conditions). For Kawasaki engines—check the safety air filter(more often in dirty or dusty conditions). For Toro engines—replace the air filter(more often in dirty or dusty conditions). For Briggs and Stratton engines—Check and adjust the valve clearance. Contact an Authorized Service Dealer. For Briggs and Stratton engines—Check the air cleaner (more often in dirty or dusty conditions).
Every 300 hours	For Kawasaki engines—Check and adjust the valve clearance. See an Authorized Service Dealer. For Toro engines—Check and adjust the valve clearance. See an Authorized Service Dealer.
Every 400 hours	Grease the caster pivots (more often in dirty or dusty conditions). For Briggs and Stratton engines—Replace the primary air filter. Check and clean the engine cooling fins and shrouds (more often in dirty or dusty conditions). After the initial change—change the hydraulic-system filters and fluid when using Toro® HYPR-OIL™ 500 fluid.(Change it more often under dirty or dusty conditions)
Every 500 hours	For Kawasaki engines—replace the safety air filter(more often in dirty or dusty conditions). Replace the emissions-air intake filter. Replace the fuel filter(more often in dusty, dirty conditions). Check the parking brake adjustment.
Every 600 hours	For Briggs and Stratton engines—Replace the inner air filter.
Monthly	Check the battery charge.
Yearly	Repack the caster-wheel bearings(more often in dirty or dusty conditions). Greasing the caster-wheel hubs.
Yearly or before storage	Paint chipped surfaces. Complete all the procedures in the Storage chapter.
