Toro | SKU: 77291

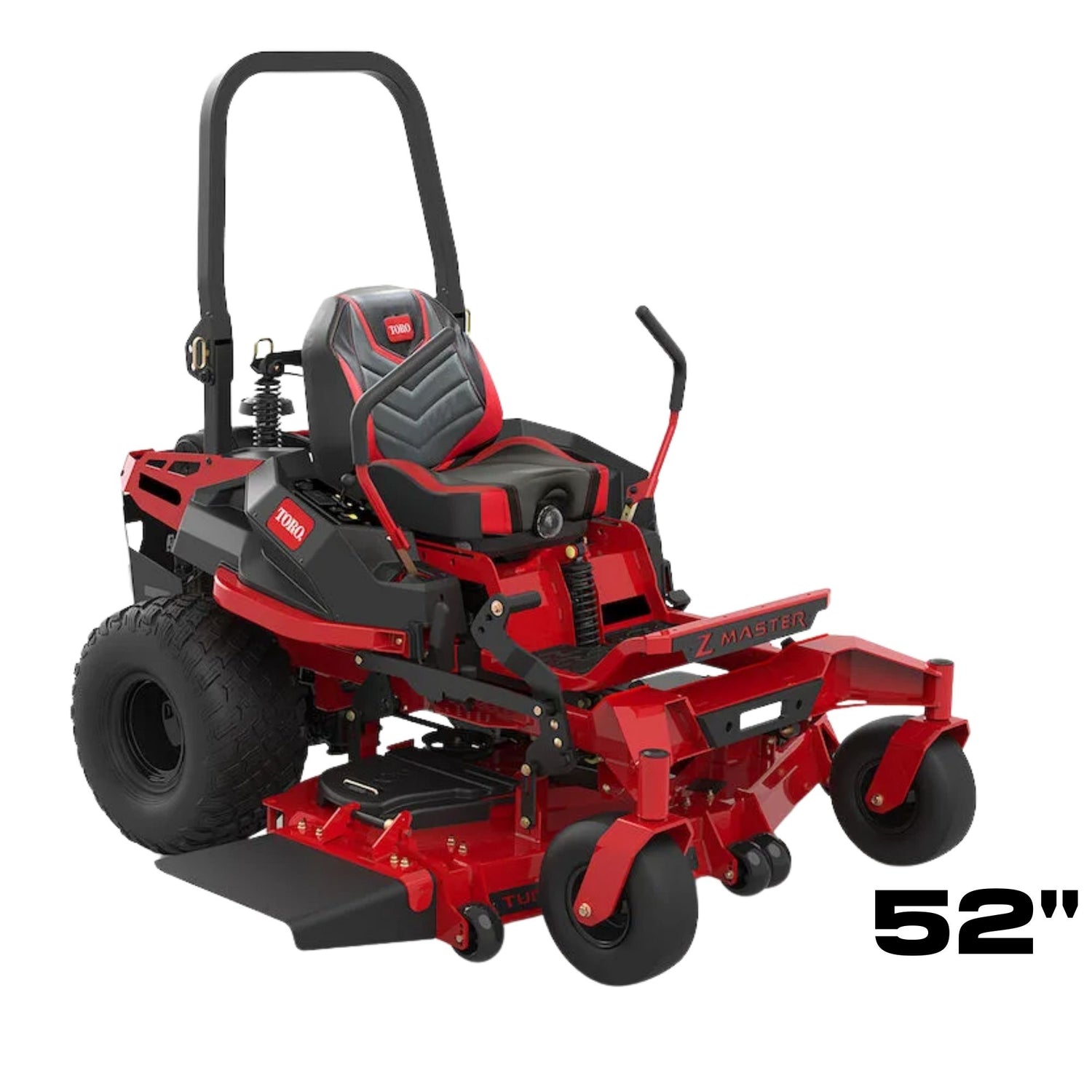

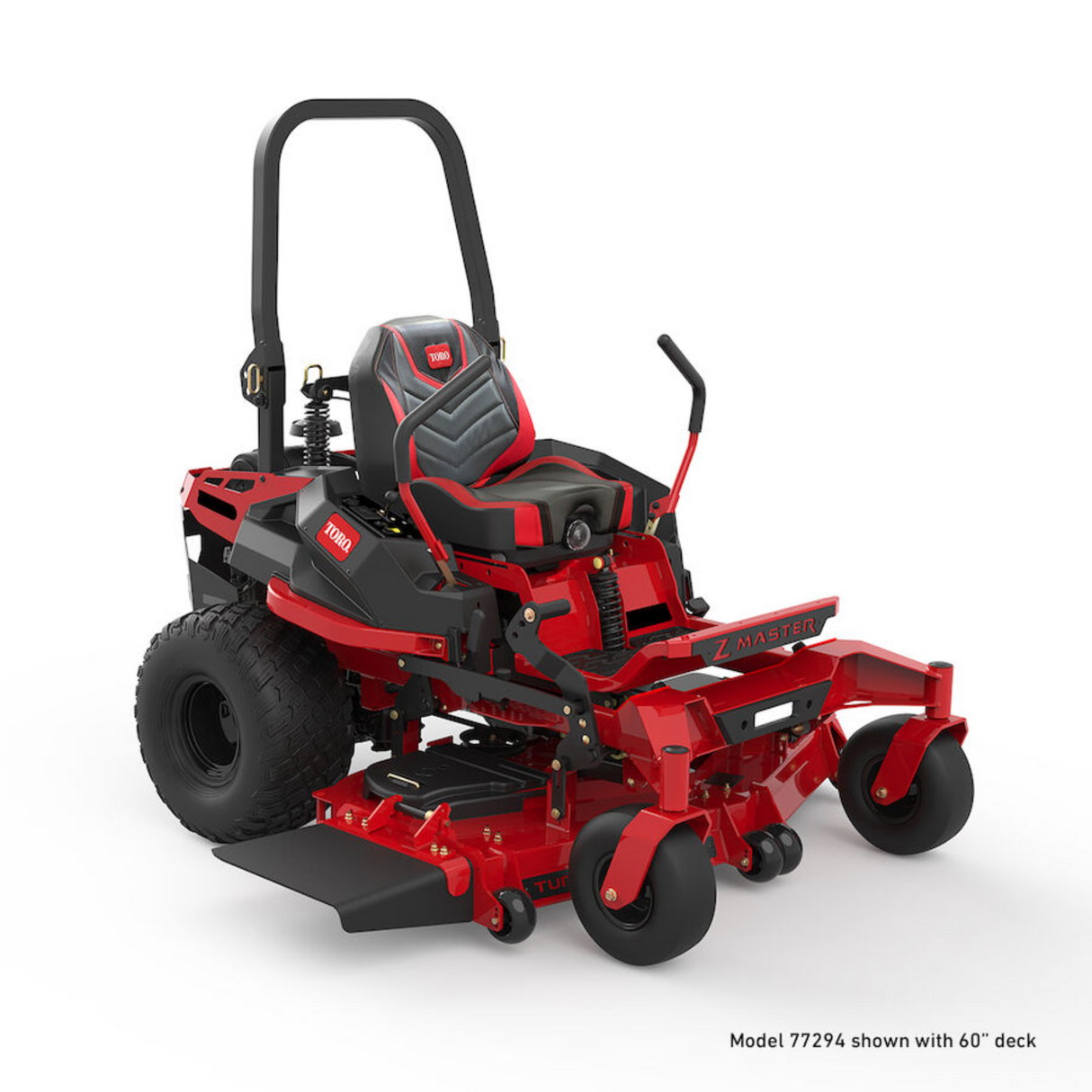

Toro Z Master 2000 HDX | VooDoo | MyRIDE | 52" Deck | 23.5hp Kawasaki | 77291

$11,599⁰⁰

Taxes and shipping calculated at checkout.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, you'll stay comfortable even on the longest days.

TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Anti Scalp Wheels	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Box Dimensions	91 in. x 63 in. x 52.5 in. / 231.1 cm x 160 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch	Electromagnetic
Comfort Platform	MyRIDE^® Suspension System
Deck Design	5.5” (14 cm) deck depth, 7-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper
Deck Size	52 in / 132 cm
Discharge Chute	Rubber
Drive Tires	Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 x 24.1 - 30.5 cm)
Engine	Kawasaki FX730V
Engine Brand	Kawasaki
Engine Displacement (cc)	747 cc
Engine Horsepower	23.5 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Fuel Capacity	7 gal. / 26.5 L / 28 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hitch Bracket	Standard
Hour Meter	Standard
Ignition	Electric
Lighting	LED Headlights
Notes	Hitch: Integrated Receiver Hitch - 2 in. x 2 in. 80 lbs. (36.3 kg) max tongue, 250 lbs. (113.4 kg) max tow
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection System (ROPS)	Folding; Standard
Seat	Deluxe Comfort Seat
Spindle Housing	8 in / 20.3 cm Diameter Aluminum (Non Greasable) Ball Bearing, 1 in / 2.5 cm Shaft
Start Type	Electric
Steering Controls	1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Tool Mounting Capability	Side Console / Rear Guard Ready
Transmission	Hydro-Gear ZT-3400
Weight	1,097 lbs / 497.6 kg

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Maintenance Service Interval	Maintenance Procedure
After the first 75 hours	Change the hydraulic-system filters and fluid.
Before each use or daily	Check the safety-interlock system. Check the engine-oil level. Clean the blower housing (more often under dusty, dirty conditions). Clean the engine screen, engine-oil cooler, and the area around the engine. Clean around the engine-exhaust system. Check the seat belt. Check the hydraulic-fluid level. Inspect the blades. Clean the suspension system.
After each use	Clean the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure.For machines with pneumatic tires only. Inspect the belts for cracks and wear.
Every 100 hours	Lubricate the mower deck-lift pivots. Change the engine oil(more often in dirty or dusty conditions). Replace or clean and gap the spark plug.
Every 200 hours	Change the engine-oil filter(more often in dirty or dusty conditions).
Every 250 hours	Replace the primary air filter(more often in dirty or dusty conditions). Check the safety air filter(more often in dirty or dusty conditions).
Every 300 hours	Check and adjust the valve clearance. See an Authorized Service Dealer.
Every 400 hours	Grease the caster pivots (more often in dirty or dusty conditions). Check and clean the engine cooling fins and shrouds (more often in dirty or dusty conditions). After the initial change—change the hydraulic-system filters and fluid when using Toro® HYPR-OIL™ 500 fluid.(Change it more often under dirty or dusty conditions)
Every 500 hours	Replace the safety air filter(more often in dirty or dusty conditions). Replace the emissions-air intake filter. Replace the fuel filter(more often in dusty, dirty conditions). Check the parking brake adjustment.
Monthly	Check the battery charge.
Yearly	Repack the caster-wheel bearings(more often in dirty or dusty conditions). Greasing the caster-wheel hubs.
Yearly or before storage	Paint chipped surfaces. Complete all the procedures in the Storage chapter.
