Toro | SKU: 74020

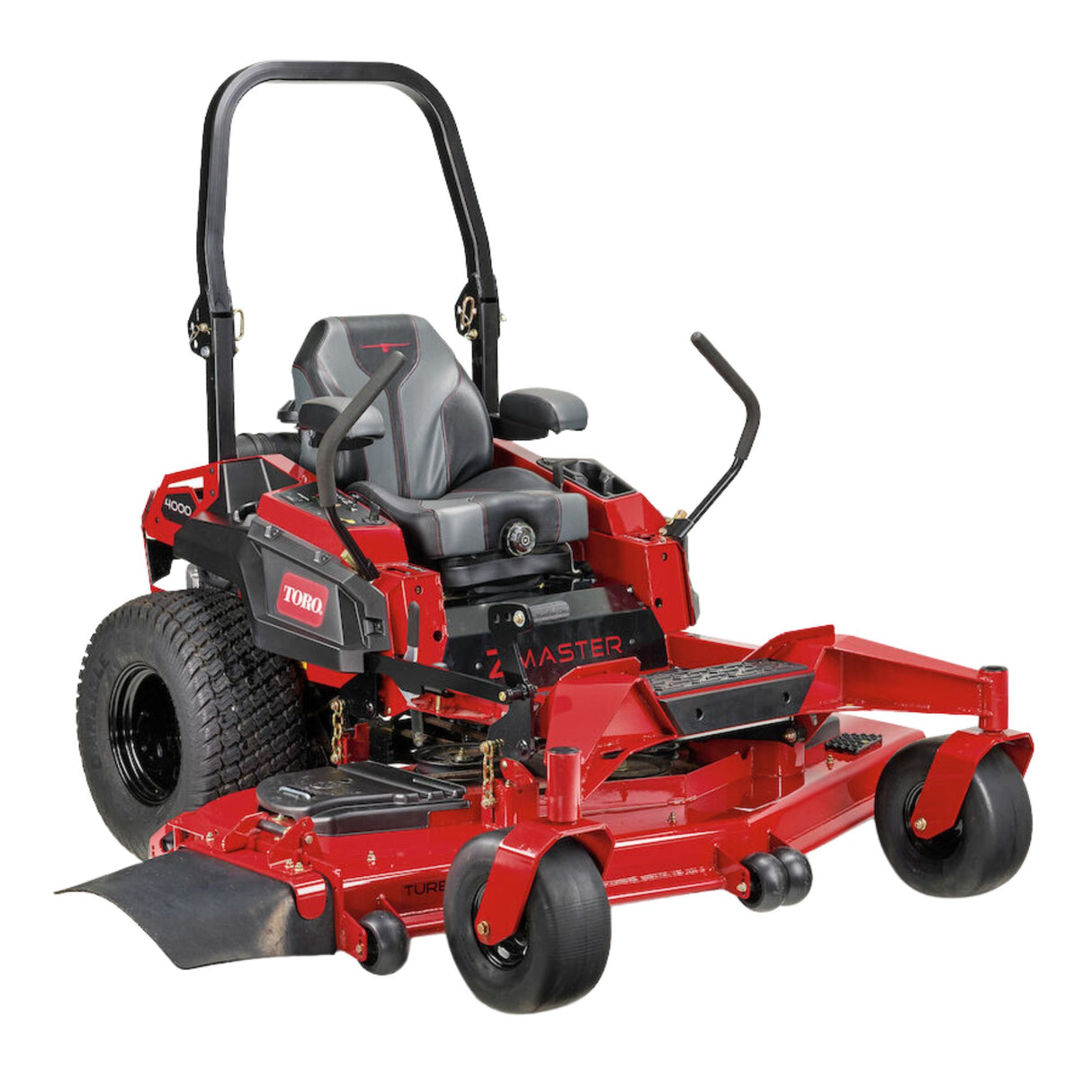

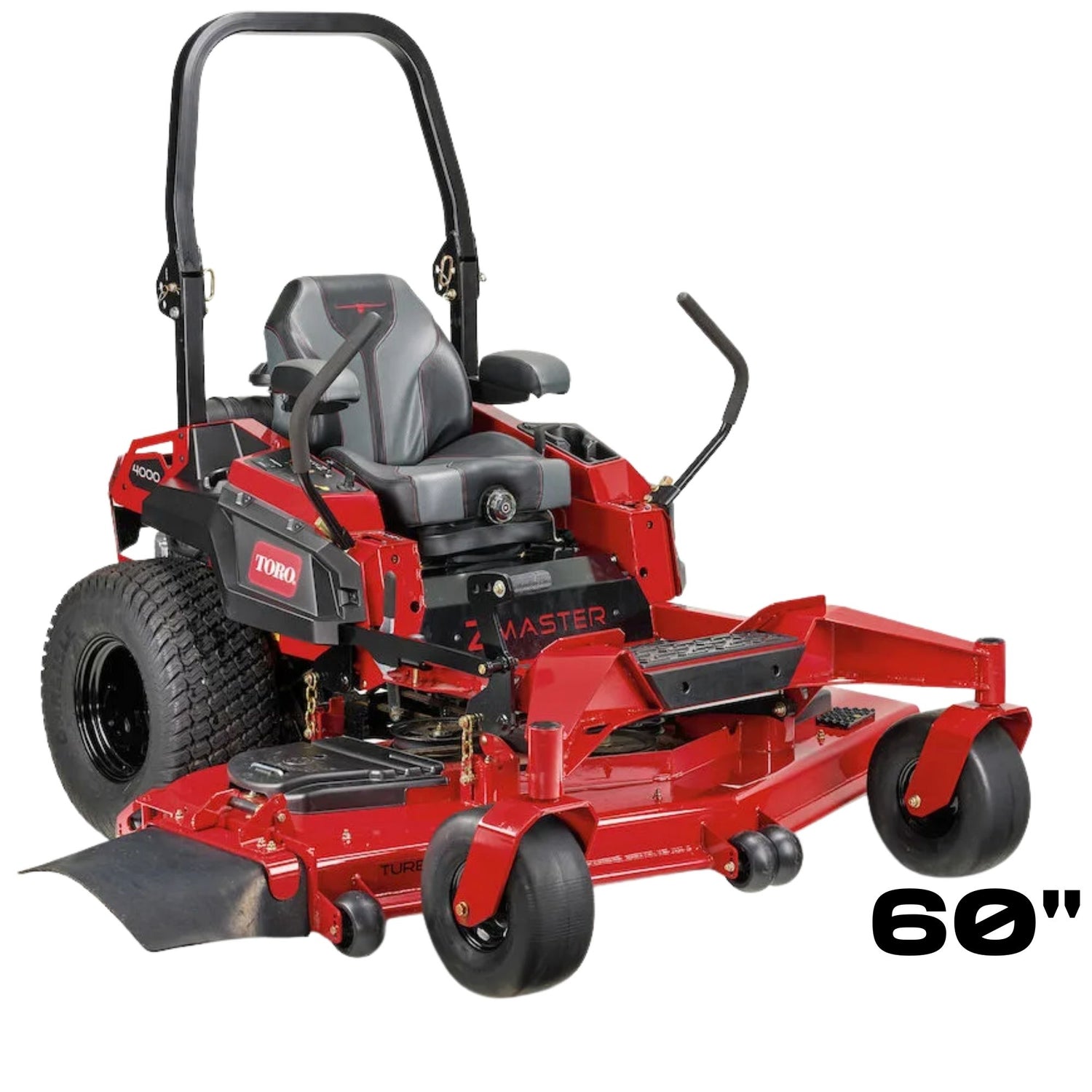

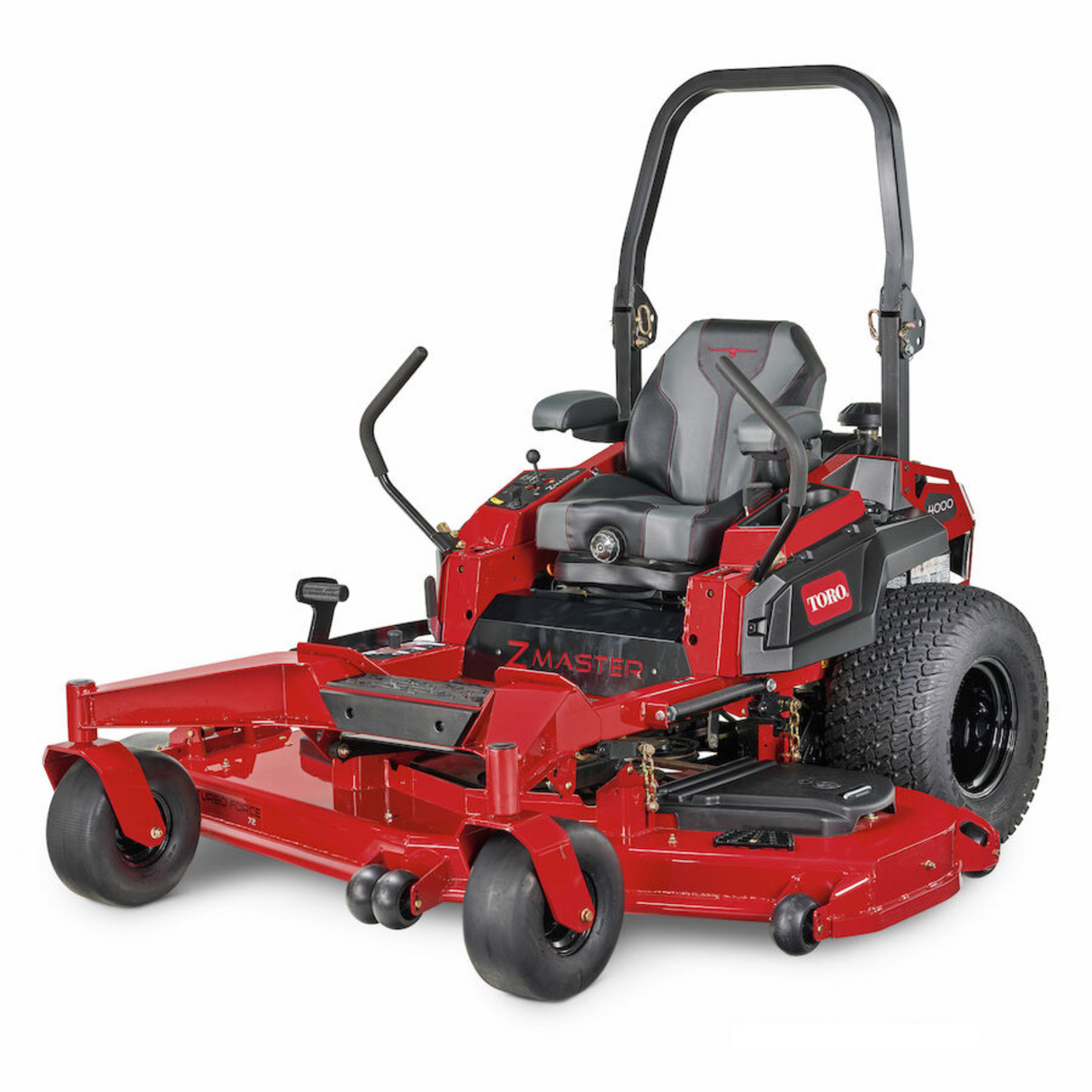

Toro Z Master 4000 HDX Pro XL | 60 in. Deck | 35 hp Kawasaki | Zero Turn Mower | 74020

Name: Toro Z Master 4000 HDX Pro XL | 60 in. Deck | 35 hp Kawasaki | Zero Turn Mower | 74020
Brand: Toro
SKU: 74020
Price: 14599.00 USD
Availability: InStock

$14,599⁰⁰

Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
Keep your phone and drink at arm's reach.
Keep tabs on time and keep devices powered up with the hour meter and USB ports.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

The Z-Master 4000 HDX Pro XL has been engineered to last and built to reign. Redefine durability with a powerful 35 hp* Kawasaki FX1000V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 26 in. tires, and a 60 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Add in the hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.

Specifications

Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.204 in. (0.5 cm) heat-treated steel
Caster Tires	15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Deck Design	60" (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive Tires	Carlisle Multi Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)
Engine	35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine Brand	Kawasaki
Engine Displacement (cc)	999 cc
Engine Horsepower	35 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Capacity	10 gal. / 37.8 L / 40 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments
Hour Meter	Standard Hour Meter
Product Type	Zero Turn Mowers
Roll-Over Protection (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 2.9 cm Diameter Aluminum
Start Type	Electric
Steering Controls	1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission	ZT-5400 Integrated Pumps and Wheel Motors

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.

Maintenance Service Interval	Maintenance Procedure
After the first 8 hours	For Kawasaki engines—change the engine oil. For Kohler engines—change the engine oil.
After the first 100 hours	Check the parking brake adjustment. Change the hydraulic-system filters and fluid.
Before each use or daily	Check the safety-interlock system. For Kawasaki engines—check the engine-oil level. For Kohler Engines—check the engine-oil level. Clean the engine screen, engine-oil cooler, and the area around the engine. Clean around the engine-exhaust system. Check the seat belt. Check the hydraulic-fluid level in the expansion tank. Inspect the blades. Clean the suspension system.
After each use	Clean the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure.For machines with pneumatic tires only. Inspect the belts for cracks and wear.
Every 100 hours	Lubricate the mower deck-lift pivots. For Kawasaki engines—change the engine oil(more often in dirty or dusty conditions). For Kawasaki engines—replace or clean and gap the spark plug. For Kohler Engines—change the engine oil(more often in dirty or dusty conditions).
Every 150 hours	For Kohler engines—inspect the primary filter(more often in dirty or dusty conditions).
Every 200 hours	For Kawasaki engines—change the engine-oil filter(more often in dirty or dusty conditions). For Kohler Engines—change the engine-oil filter(more often in dirty or dusty conditions). For Kohler Engines—check the spark plug(s).
Every 250 hours	For Kawasaki engines—replace the primary air filter(more often in dirty or dusty conditions). For Kawasaki engines—check the safety air filter(more often in dirty or dusty conditions).
Every 300 hours	For Kawasaki engines—Check and adjust the valve clearance. See an Authorized Service Dealer. For Kohler engines—replace the primary air filter(more often in dirty or dusty conditions). For Kohler engines—check the inner air filter(more often in dirty or dusty conditions).
Every 400 hours or yearly, whichever comes first	After the initial change—change the hydraulic-system filters and fluid when using Toro® HYPR-OIL™ 500 fluid(change it more often under dirty or dusty conditions).
Every 500 hours	For Kawasaki engines—replace the safety air filter(more often in dirty or dusty conditions). For Kohler Engines—replace the spark plug(s). Replace the fuel filter(more often in dusty, dirty conditions). Check the parking brake adjustment.
Every 600 hours	For Kohler engines—replace the inner air filter.
Monthly	Check the battery charge.
Yearly	Repack the caster-wheel bearings(more often in dirty or dusty conditions). Greasing the caster-wheel hubs.
Yearly or before storage	Paint chipped surfaces.
