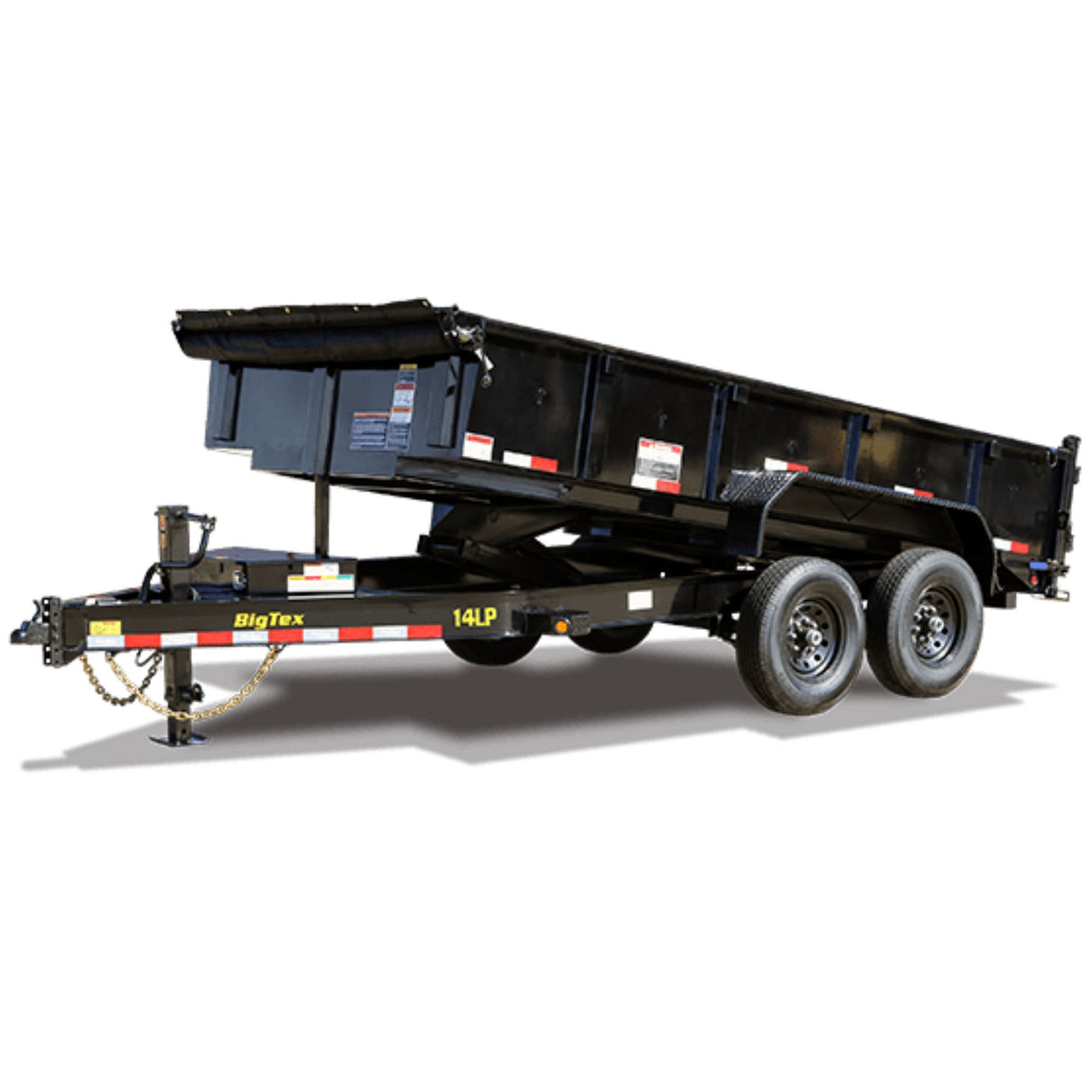

Big Tex Dump Trailer | 16FT | HD | Tandem Axle | Ultra Low Profile | Slide-In Ramps | 14LP-16BK6SIRPD
Big Tex Dump Trailer | 16FT | HD | Tandem Axle | Ultra Low Profile | Slide-In Ramps | 14LP-16BK6SIRPD is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
The 14LP Heavy Duty Low Profile Dump Trailer is built to handle your toughest jobs, whether you're in construction or hauling large loads. It’s designed for heavy-duty performance but also includes features like an ultra-low profile deck and side step to make loading, unloading, and transporting materials easier and more convenient.
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | Drop Axles (Lowers Deck Height to 24" from Ground) |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Tongue | 8" Seamless I-Beam Integrated w/ Frame (10#) | |
| Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | 12,000# Elec/Hyd. Jack BY Stillwell™ |
| Frame | 8" Seamless I-Beam (10#) | |
| Cross-Members | 3" Channel on 16" Centers | |
| Floor | 10 Gauge Smooth Steel | Upgrade Floor to 7-Gauge Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |
| Ramps | 6.5' Slide in Ramps with Integrated Ramp Door | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Lug | |
| Wheels | Black Mod Steel | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E)Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure EquipmentAlong Sides and Rear for Cargo Control | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Battery | 12V Deep Cycle | |
| Charger | 5A 110V on Board Battery Charger | |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
| J-Hooks | Along sides and rear for Cargo Control | |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump | 5 Watt Solar ChargerWireless Remote |
| Ram | Self-Contained Scissor | |
| Sides | 24" Tall (10 Ga) with formed Channel Supports | 24" Expanded Metal Side Extensions4' Solid Sheet Metal Sides |
| Stabilizers | Rear Stabilizer Stands | |
| Steps | Convenient Side-Step to Access Top Rail | |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
| Top Rail | 3"x 2" Rectangular Tubing | |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
