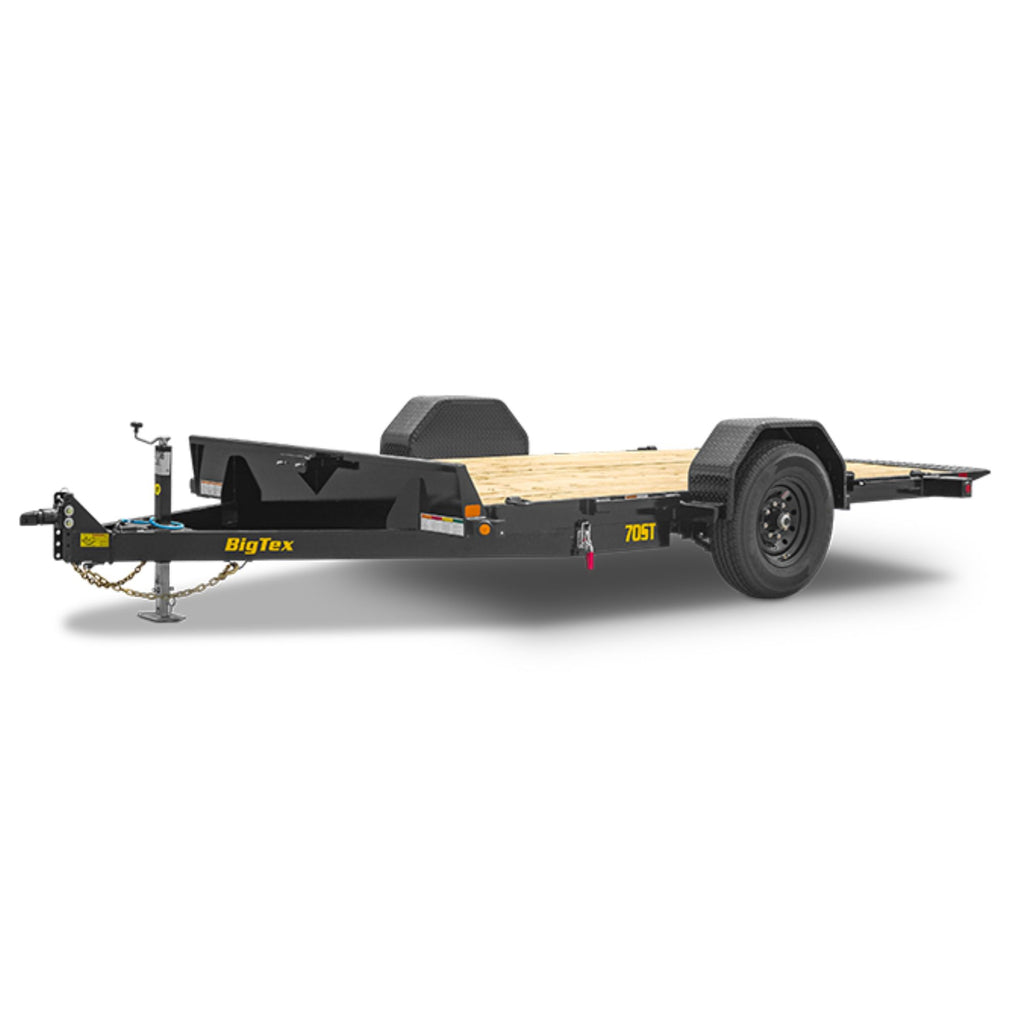

Experience the compact and hardworking 70ST Single Axle Tilt Trailer, a cost-effective way to haul a wide variety of smaller vehicles or light-duty equipment. From its smooth hydraulic dampening system to its torsion axles and superior deck design that reduces load angles, this trailer is equipped with the features you need to safely move your haul from point A to B. Delivering effortless loading and unloading at an exceptional value. It’s the smart choice for those watching their budgets with a close eye.
|
Standard Feature |
Available Options |
| Axles |
1 - 7,000# 4" Drop Axle w/ Quick Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Coupler |
2" Forged, Adjustable |
- 2-5/16” Forged Coupler in Adjustable Channel
- 2-5/16” Stamped Coupler in Adjustable Channel
|
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) |
|
| Jack |
8,000# Set-Back, Drop-Leg Jack |
|
| Frame |
5" Channel |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
| Floor |
APEX Fortified Lumber |
- Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
- 1/8” Diamond Plate Steel Floor (Per Square Foot)
|
| Fenders |
9” x 36” Diamond Plate Double Square Broke (Removable) |
|
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
Tire Upgrade (ST235/85 R-16 LR-G) |
| Bolt Pattern |
8-Bolt |
|
| Spare Mount |
Front Spare Tire Mount |
|
| Spare Tire |
Not Included |
- Spare Tire & Wheel (ST235/80 R-16 LR-E)
- Spare Tire Upgrade (ST235/80 R-16 LR-G)
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tilt Deck Dimensions |
81"x13' Wide (81" Between Fenders) with 1/4" Diamond plate Knife Edge |
|
| Tilt Deck Operation |
Hydraulic Dampening With Deck Locking |
|
| Stationary Deck Area |
3' x 81" (16' Model) |
|
| Rubrail |
Rub Rail Along Both Sides |
|
| Tie-Downs |
(4) 5/8" D-Rings |
- Extra 5/8" D-Rings
- Recessed D-Ring in Floor (Steel Floor Only)
|
| Break-Away Kit |
Complete Breakaway System w/ Zip™ Breakaway Cable and Charger |
|
| Tilt Deck Angle |
12° |
|
| Model |
70ST-16 |
70ST-13 |
| Pull Type |
Bumperpull |
Bumperpull |
| GVWR |
7000 lbs |
7000 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
7000 lbs |
| Empty Weight |
2310 lbs |
2110 lbs |
| Cargo Capacity |
4690 lbs |
4890 lbs |
| Bed Length |
16' |
13' |
| Bed Width |
83" |
83" |
| A |
192-7/8" |
157-1/8" |
| B |
110-1/2" |
74-1/2" |
| Tongue Length |
53" |
53" |
