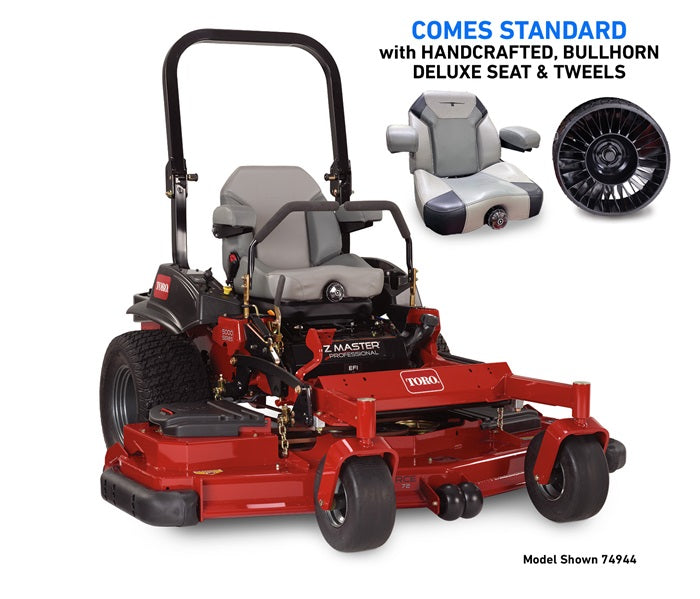

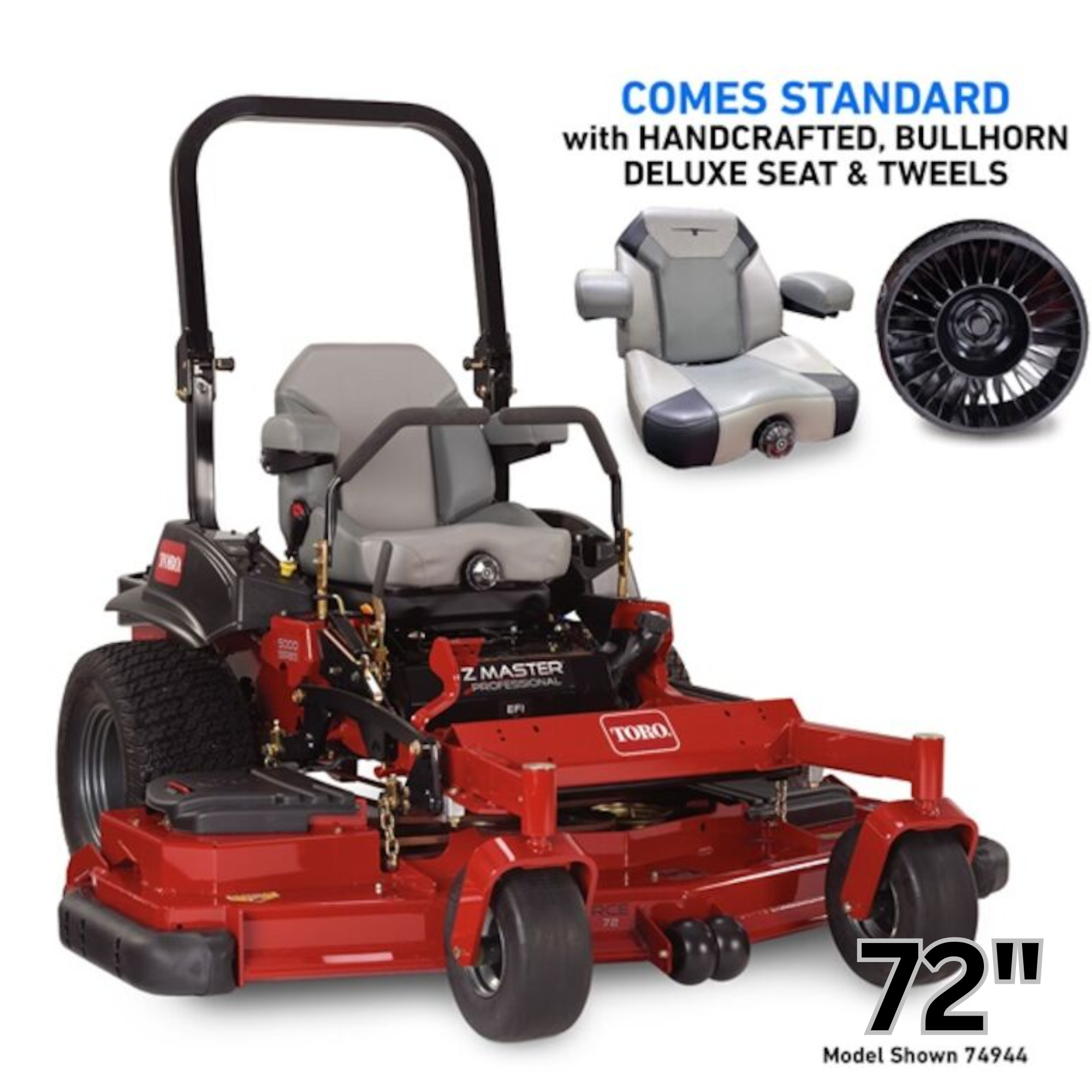

- Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
- 26.5 hp (20 kw) Kohler® Command Pro® EFI 747cc Engine
- 72" (182.9 cm) TURBO FORCE Rear Discharge deck
- The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds.
Z Master Professional 5000 Series mowers offer rear discharge decks for increased productivity in taller grass. These EFI models also use up to 25% less fuel than equivalent non-EFI mowers. The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds. Clippings are dropped within the path of the mower, saving time and cleanup.
Specifications
Adjustable Discharge Baffle |
Standard |
Air Filter |
Heavy-Duty Canister Air Cleaner |
Anti Scalp Wheels |
2 Side Bumpers, 4 Rollers |
Armrests |
Standard |
Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
Blades |
0.204 in. (0.5 cm) heat-treated steel |
Box Dimensions |
91 in. x 80 in. x 52.5 in. / 231.1 cm x 203.2 cm x 133.4 cm |
CARB Compliant |
CARB Compliant |
Carrier Frame |
3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge) |
Caster Tires |
13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic |
Cup Holder |
Standard |
Cutting Width |
72 in. / 183 cm |
Deck Design |
80-Grade 7-gauge 72" (182.9 cm) TURBO FORCE® Rear Discharge w/ bull-nose bumper |
Discharge Chute |
Rubber |
Drive System |
Unitized Pumps 12cc and Wheel Motors 14.6 cir |
Drive Tires |
Airless radial 24 in. (60.9 cm) Michelin x Tweel Turf Tires |
Engine |
26.5 hp* (20kW) Kohler® Command Pro EFI 747 cc |
Engine Brand |
Kohler |
Engine Displacement (cc) |
747 cc |
Engine Horsepower |
26.5 hp |
Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
Front Bumper |
Reinforced Bull-Nose |
Fuel Capacity |
12 gal. / 45.4 L / 48 Qt. |
Fuel Type |
Gasoline |
Height of Cut |
1.0 - 5.5 in. / 2.5 - 14.0 cm |
Hour Meter |
Standard Hour Meter |
Hydraulic Fluid |
Premium synthetic |
Number of Blades |
3 |
Product Features |
Electric Start, Gas Powered, Hour Meter |
Product Type |
Zero Turn Mower |
Product Use |
Commercial |
Roll-Over Protection (ROPS) |
Folding; Standard |
Seat |
Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent |
Spindle Bearings |
Maintenance-free |
Spindle Housing |
9 in / 22.9 cm Diameter Cast Aluminum |
Start Type |
Electric |
Steering Controls |
1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened |
Disclaimer
*The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
|
