Description
Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the 4520 tractor.
Ventrac has become the #1 choice for versatility for grounds care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

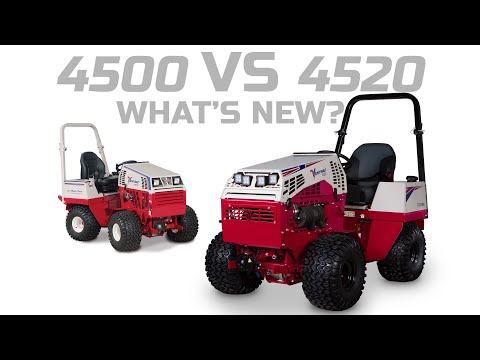

NEW FOR THE 4520
- Redesigned Operator Dashboard with USB Charge Port
- Improved Performance
- Faster Hydraulic Speed
- Quieter Operation
- Brighter LED Lighting Output
| Specifications | 39.51215 |
|---|---|
| Model | 4520Z |
| Full Description | KN, 4520Z Kubota WG972-GL |
| Product Type | Tractor |
| ENGINE | |
| Engine Manufacturer | Kubota |
| Model # | WG972-GL-E3 |
| Horsepower | 321⁄2 hp |
| Peak Torque | 51 ft-lbf |
| Num. of Cylinders | 3 |
| Engine Disp. | 962 cc |
| Cooling | Liquid |
| Fuel Capacity | 6 gal |
| Fuel Type | Gas |
| Est. Fuel Economy (W/ 60in Mower) | 11⁄2 gal /hour |
| DRIVE SYSTEM | |
| Drive | AWD All Wheel Drive |
| Travel Speed - Low Range | 5 mph, 4 mph reverse |
| Travel Speed - High Range | 10 mph, 8 mph reverse |
| DIMENSIONS | |
| Overall Width | 481⁄2 in |
| Overall Length | 811⁄2 in standard hitch, ROPS up |
| Height (ROPS up) | 68 in |
| Height (ROPS down) | 54 in |
| Weight with 3Pt hitch | 1770 lbs |
| Wheelbase | 45 in |
| Weight | 1690 lbs |
| TIRES | |
| All Terrain |
|
| Turf |
|
| GENERAL | |
| Turning Radius | 39 in |
| Ground Clearance | 5 in |
| Oscillation amount (@wheel) | 71⁄2 in |
