Description

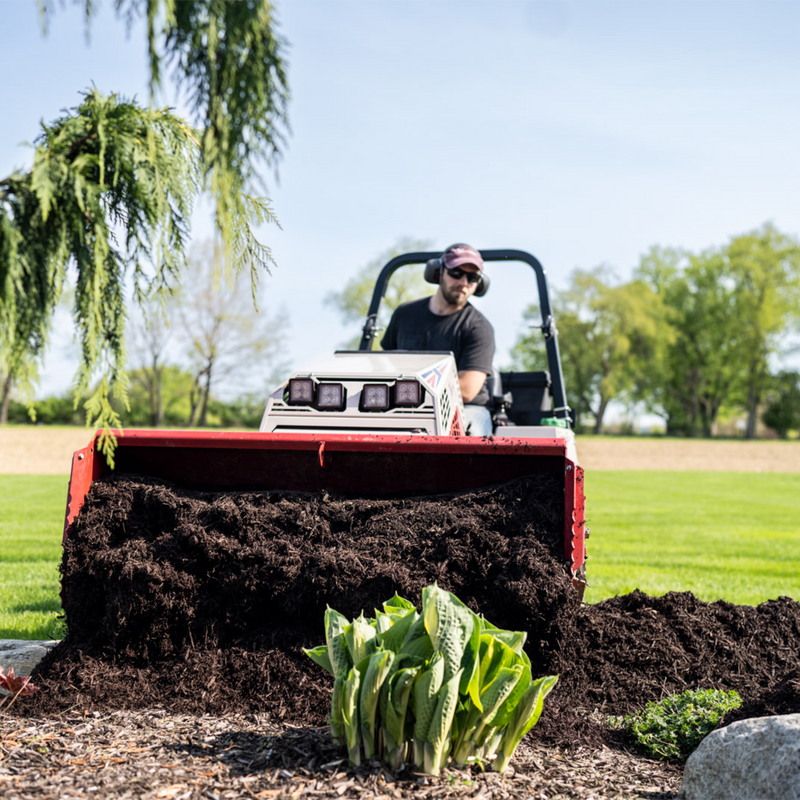

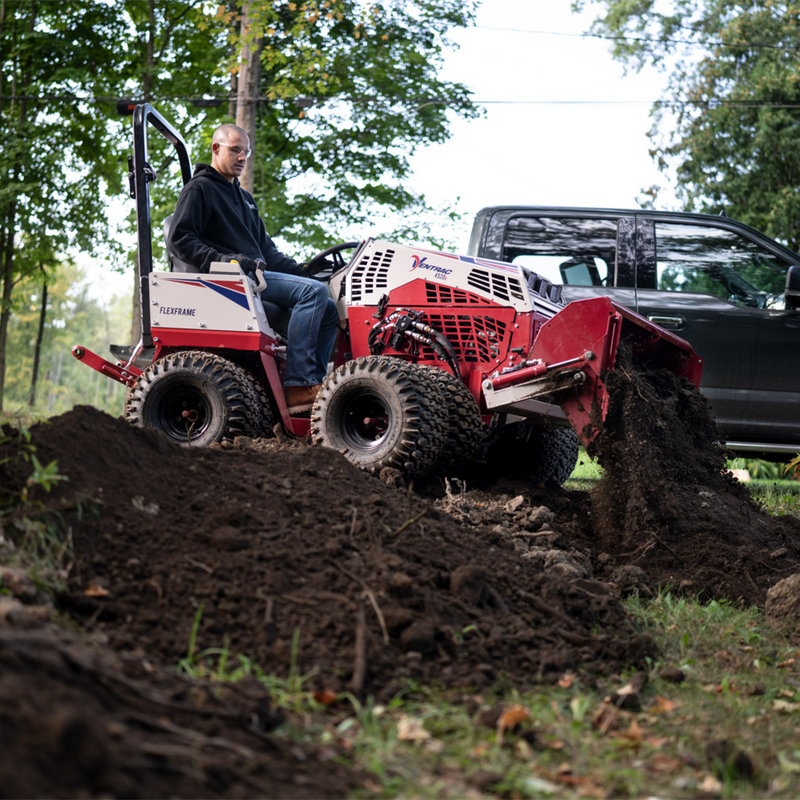

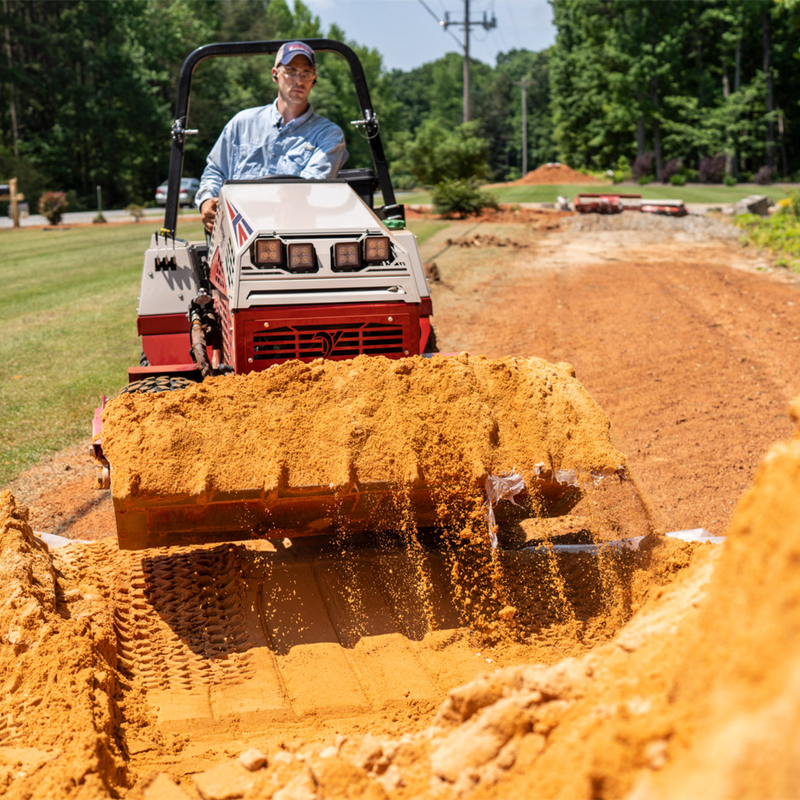

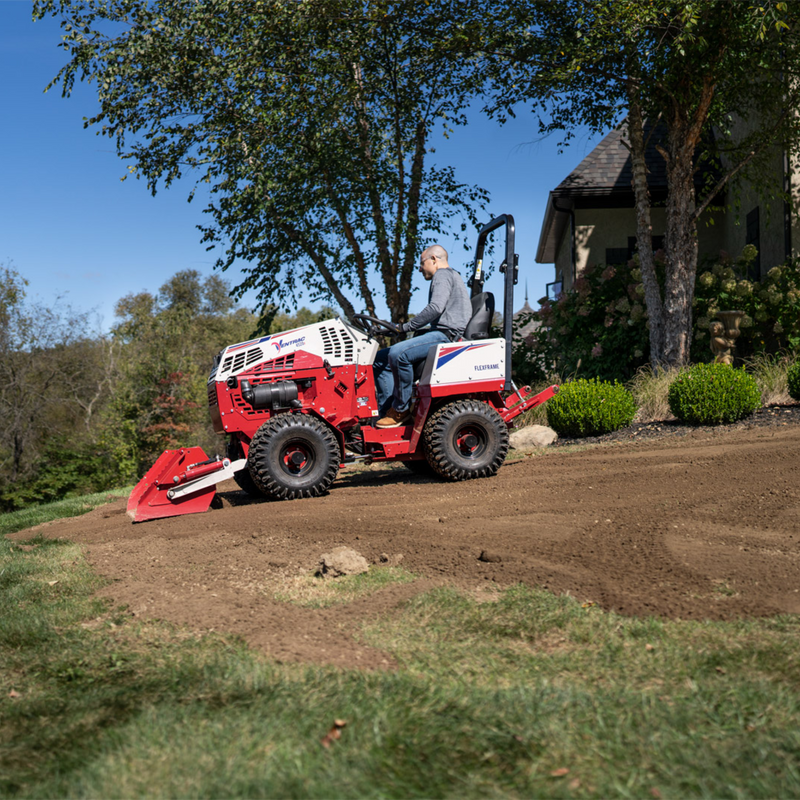

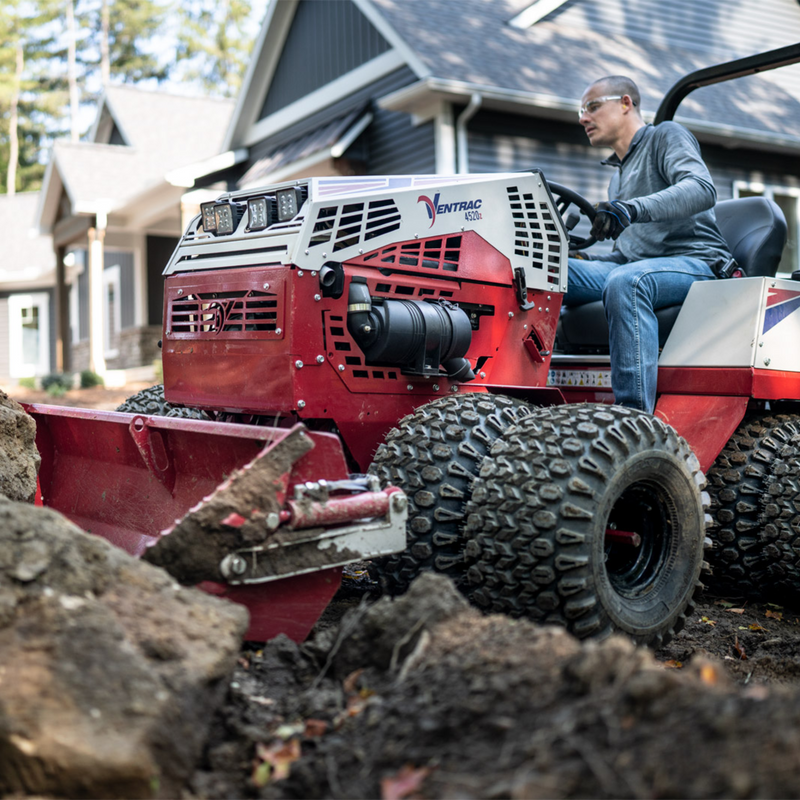

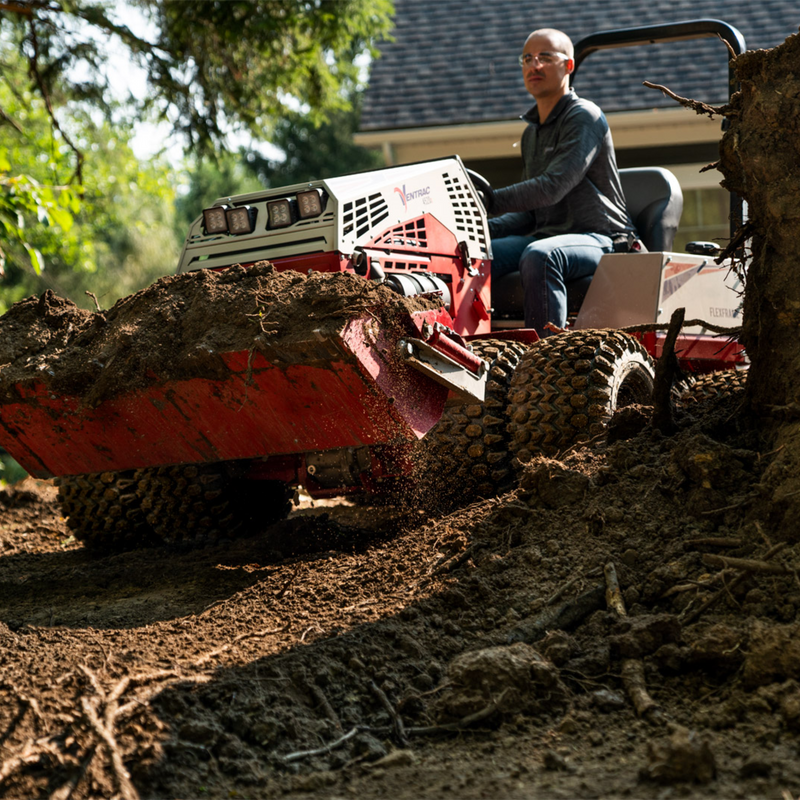

Ventrac Power Buckets are a must for any Ventrac owner. The power buckets are great for transporting material such as soil, sand, gravel, mulch, debris, snow, and much more. Used for landscaping, excavation, back-filling, leveling, digging and grading, the Power Buckets are an indispensable attachment from construction sites to your own backyard, allowing you to say goodbye to your old wheelbarrow.

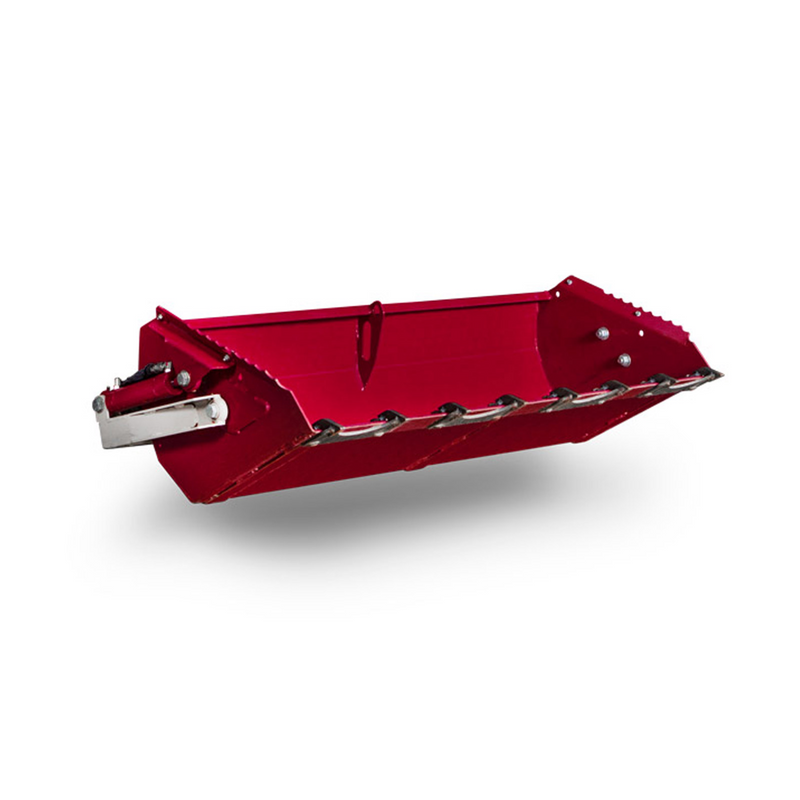

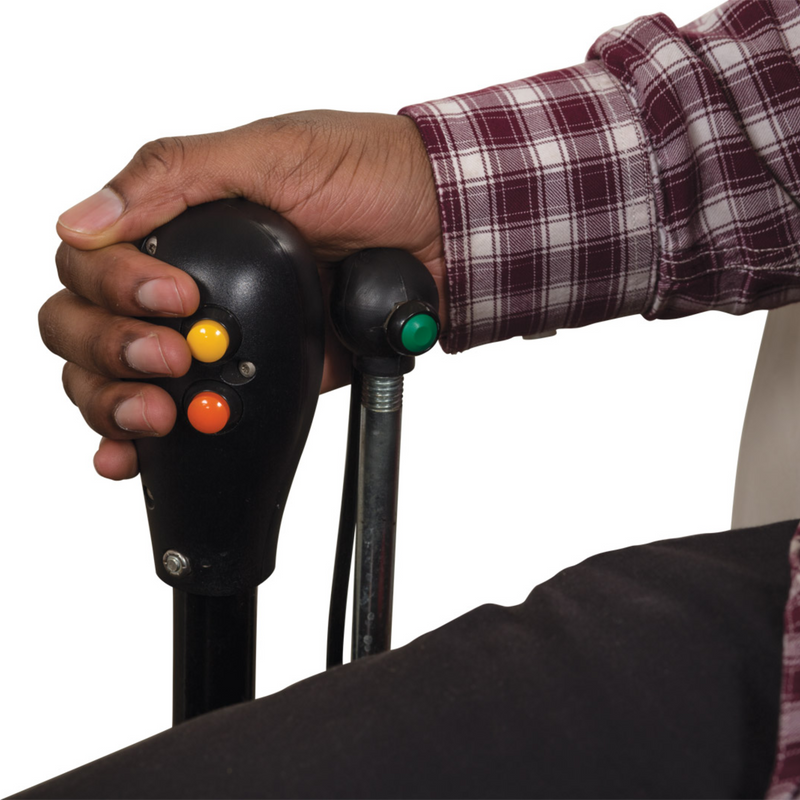

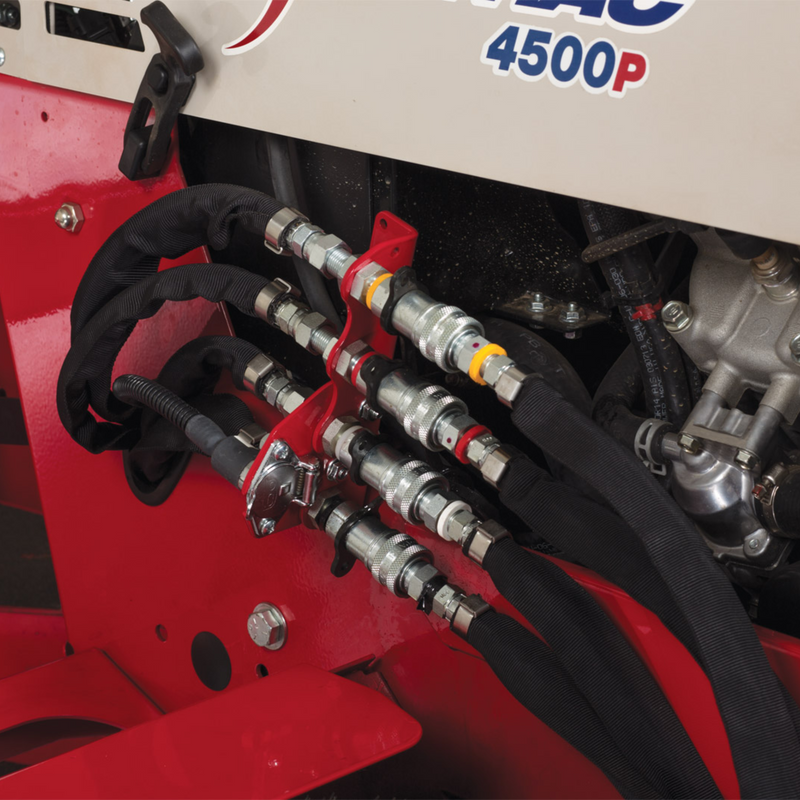

Ventrac Power Buckets are hydraulically controlled from the driver's seat, allowing for smooth, effortless operation. The Power Bucket is designed to sit upright after detachment, with the lift arms in the proper position for direct reconnect when the bucket is used again.

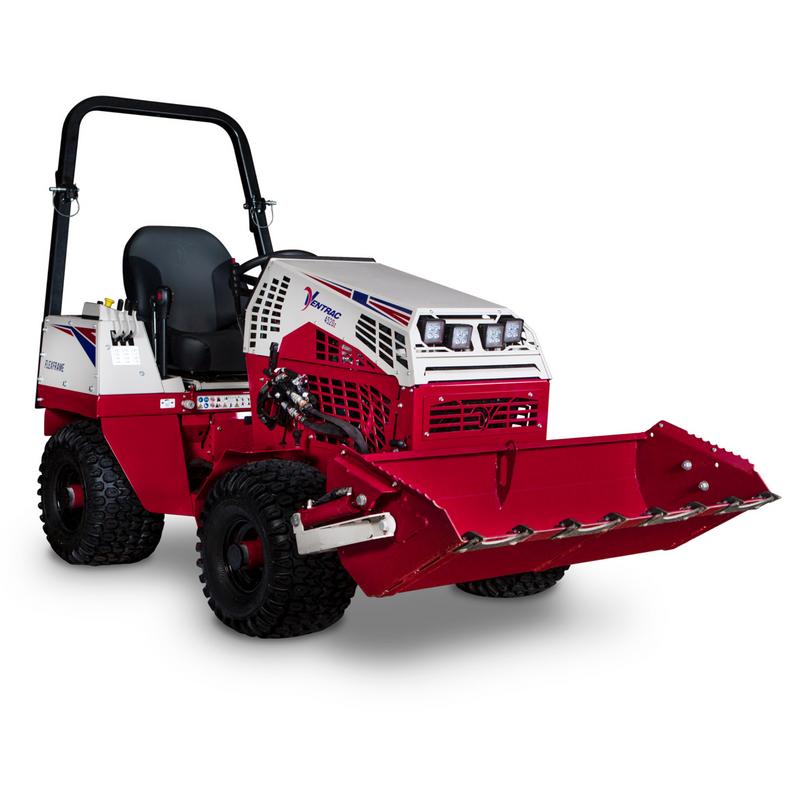

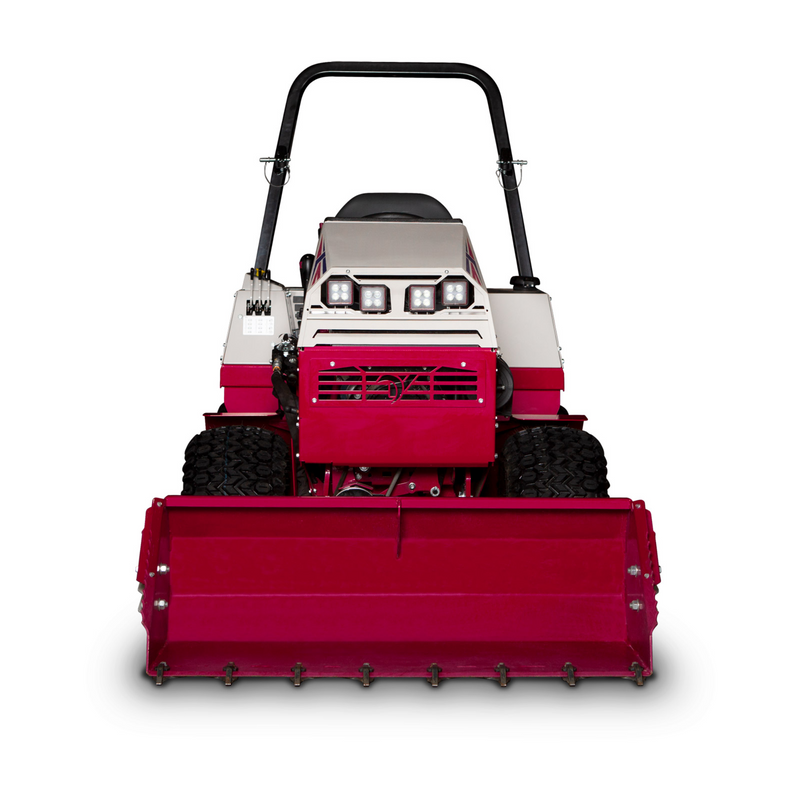

The Power Bucket attaches with the Ventrac Mount System, allowing for attachment changes in a snap.
| Specifications | 39.55214 |
|---|---|
| INFO | |
| Full Description | HE, HE482 Power Bucket |
| Product Type | Attachment |
| CATEGORY | |
| Front Mount | Ventrac Mount System |
| 3000 Series Mount | |
| 4000 Series Mount | |
| DIMENSIONS | |
| Length | 34 in |
| Overall Width | 53 in |
| Working Width | 48 in |

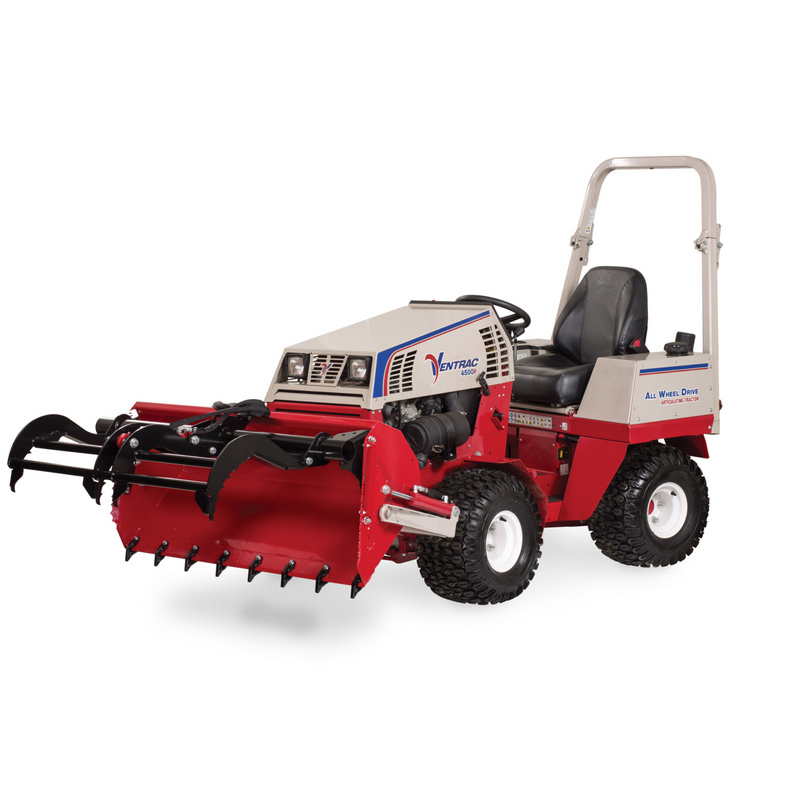

| Length with Grapple | 391⁄4 in |
| Height with Grapple | 23 in |
| Height | 16 in |
| Weight with Grapple | 265 lbs |
| Weight | 190 lbs |
| Max Ground Clearance, Dumped (4500) | 7.38 in |
| Max Ground Clearance, Raised(3400) | 81⁄2 in |
| Max Ground Clearance, Dumped (3400) | 6.63 in |

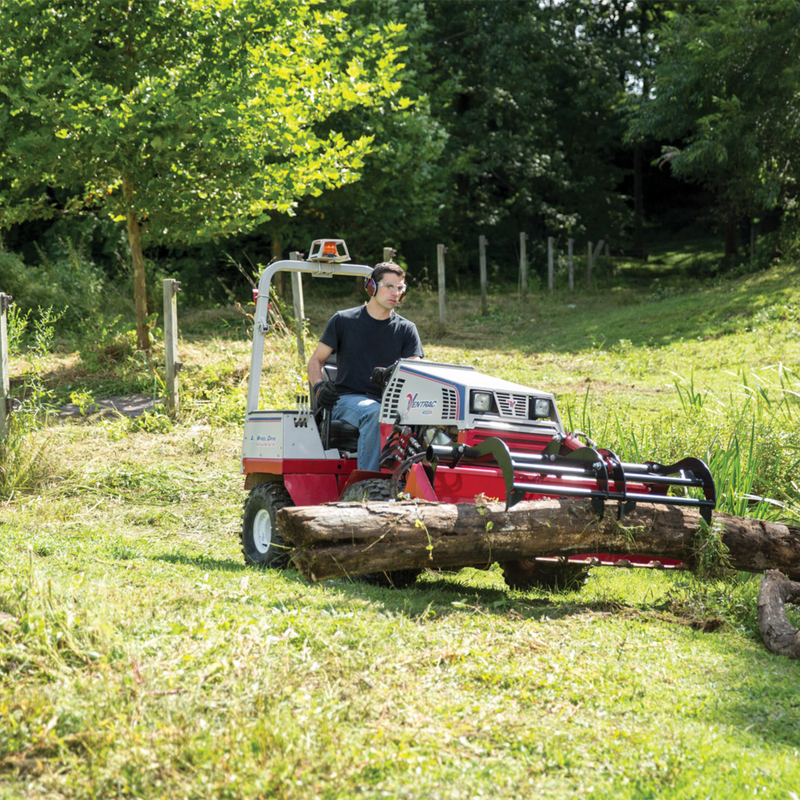

| Grapple Max Opening Distance | 26 in to the Bucket Teeth |
| Grapple Max Opening Distance | 26 in to the Cutting Edge |
| Max Ground Clearance, Raised (4500) | 91⁄4 in |
| GENERAL | |
| Bucket Capacity | 6 ft3 |

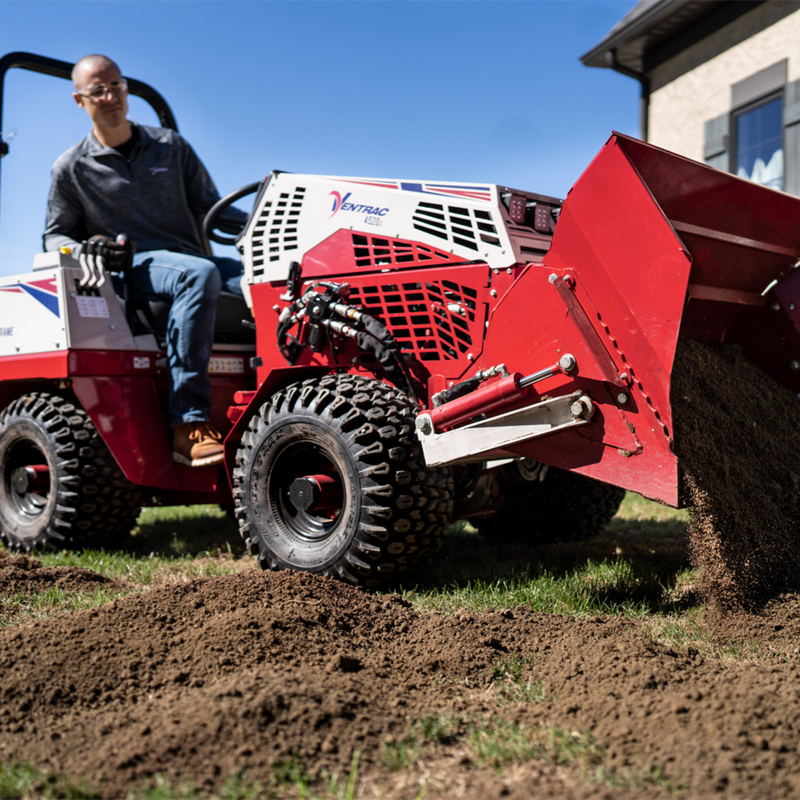

| Dump Angle | 51 ° @ Full Height |
