Description

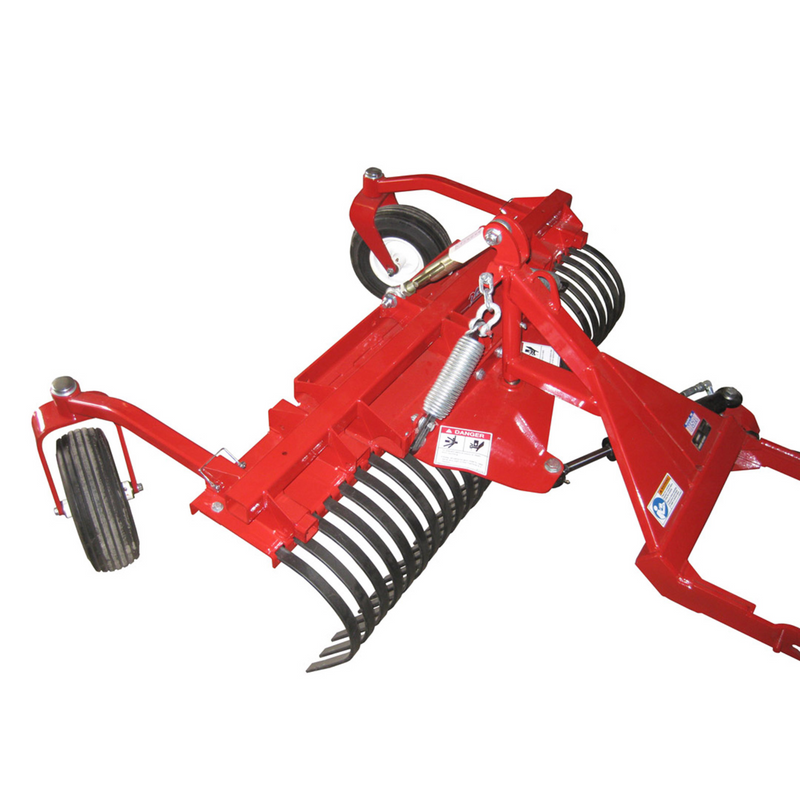

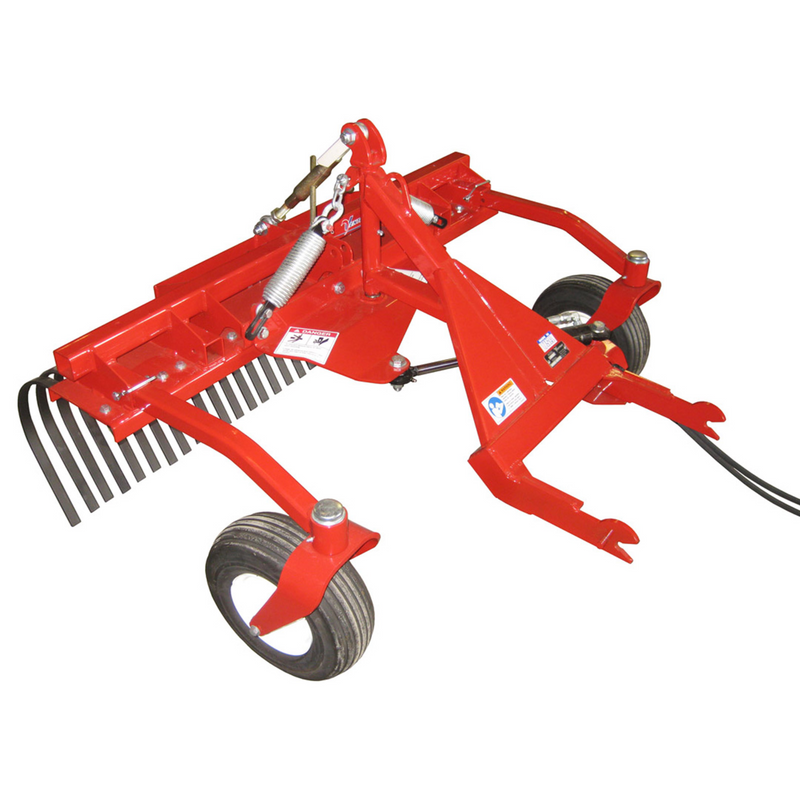

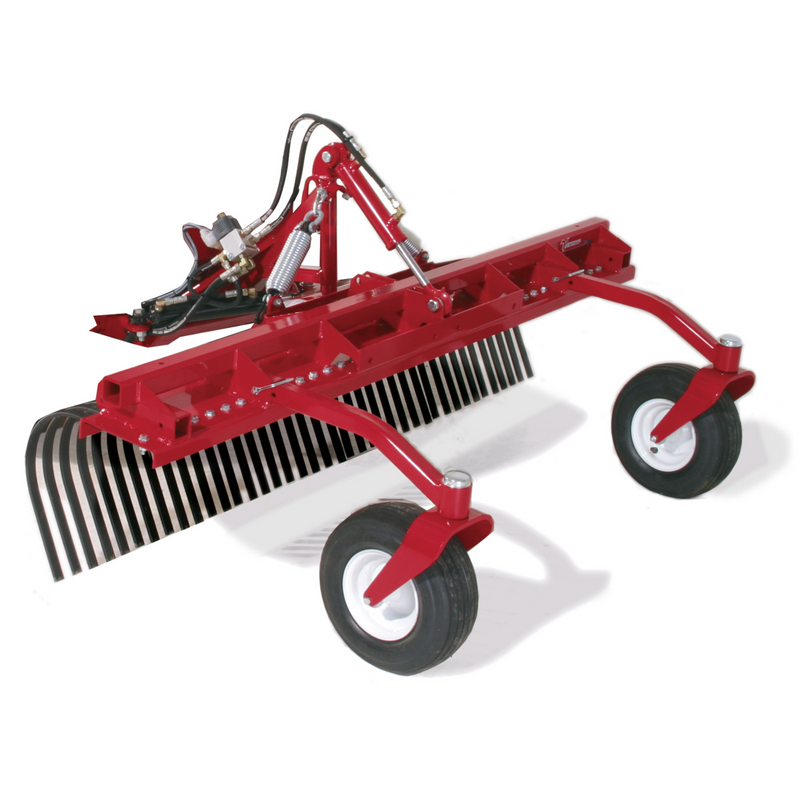

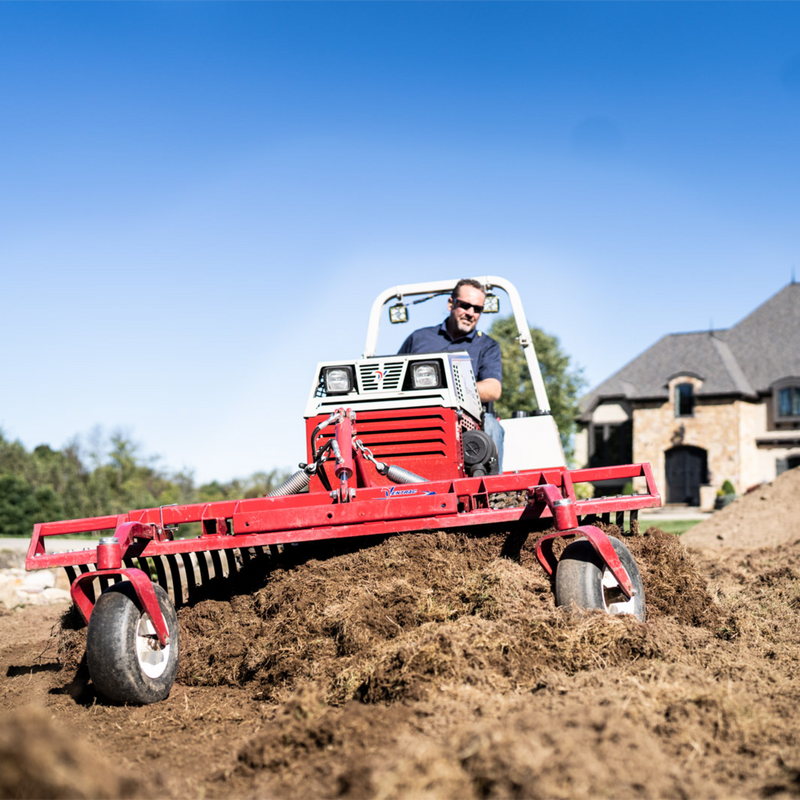

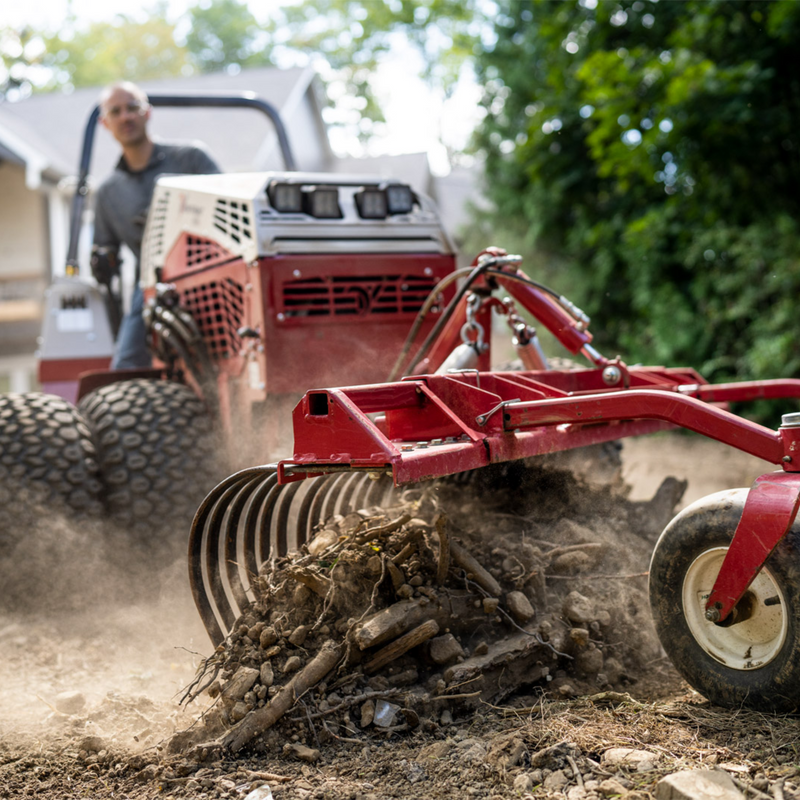

The 49-inch Ventrac KR Landscape Rake performs a variety of landscaping tasks. From soil preparation, leveling ground, to removing rocks and debris, the KR502 works with ease and efficiency.

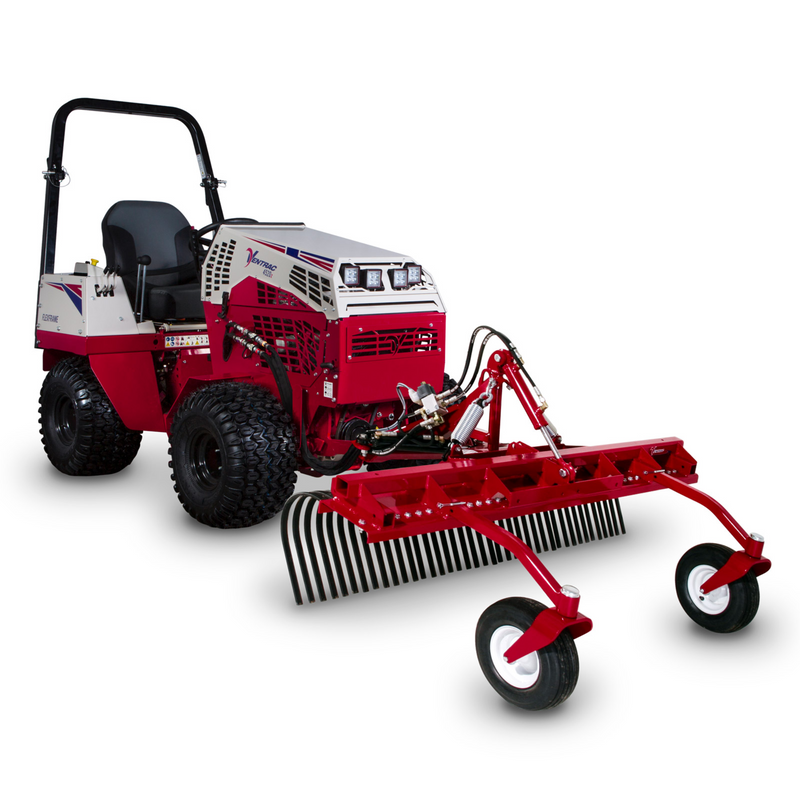

The curved tines on the Landscape Rake can be used in either direction. Unlike pull-behind units,the Ventrac Landscape Rake is front mounted, allowing the operator to keep material from being driven over. This minimizes compaction as well as making the Landscape Rake very easy to use. The Landscape Rake can also be mounted to the rear 3-Point Hitch with the Ventrac 3-N-1 Adapter for pulling material.
Front gauge wheels are adjustable front-to-back. If a wider surface area is needed, optional 10 -inch extensions are available, giving the operator an additional 20 inches of surface area.
| Model | KR502 |
| Full Description | KR, KR502 Landscape Rake |
| Product Type | Attachment |
| CATEGORY | |
| Front Mount | Ventrac Mount System |
| 3000 Series Mount | |
| 4000 Series Mount | |
| DIMENSIONS | |
| Overall Width | 49 in |
| Height | 32 in |
| Weight | 250 lbs |
| Max Length | 59 in |
| GENERAL | |
| Width w/ Wings | 69 in |
| Tine Adjustment | 6 in |
| Angle of degree to right or left | 28 deg |
| Min. Length | 531⁄2 in |
| Digging Depth | 3 in |
