Toro-Dingo  |  SKU: 22370

Dingo TX 1300 Track Loader Telescoping | Yanmar Engine | Diesel | 22370

$58,35200
Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

  • Intelescope Loader Arm
  • Outstanding ROC
  • Quick Coupler System
  • User friendly auxiliary pedal
  • Patented traction control

Features

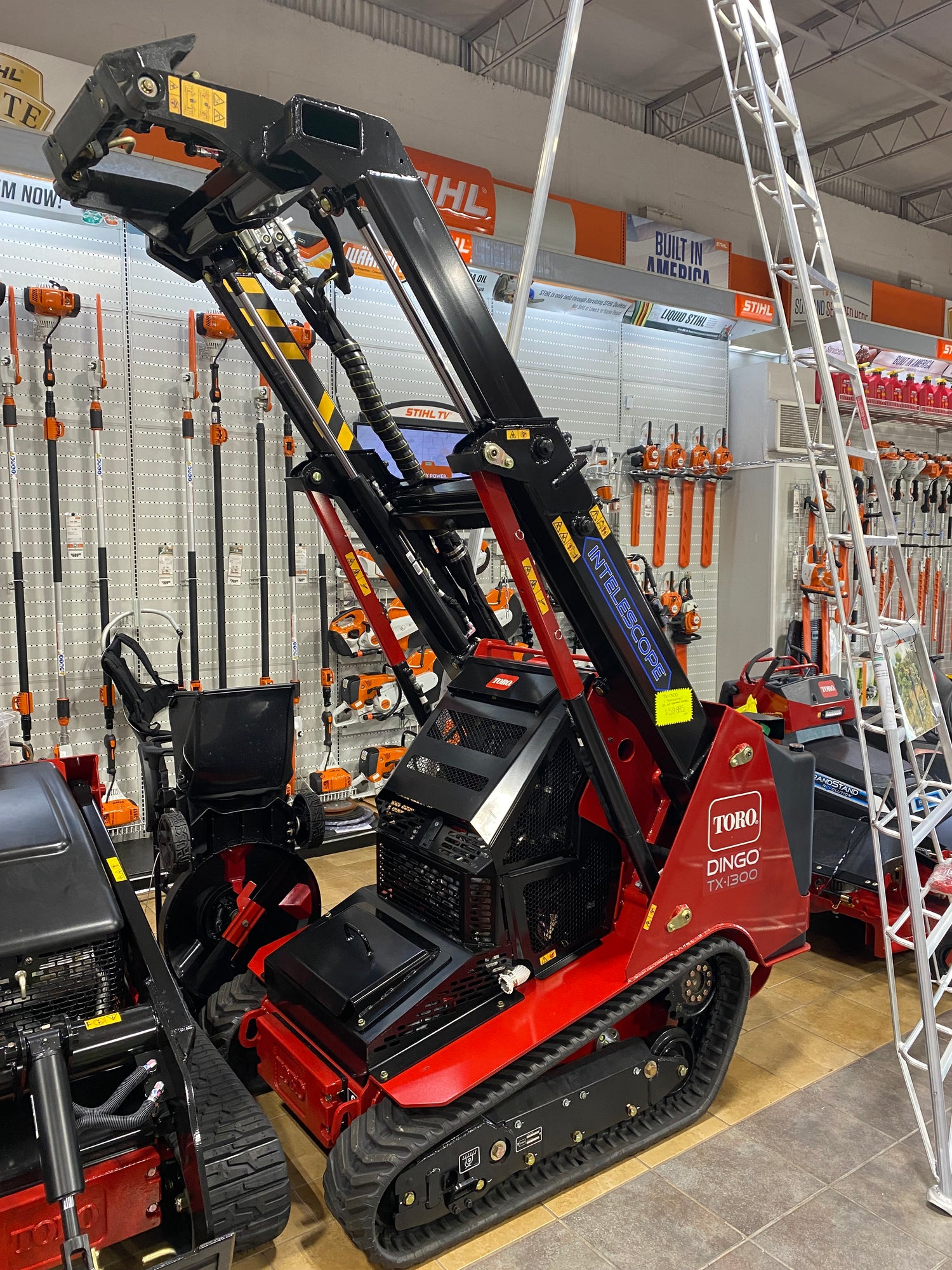

Intelescope Loader Arm
Featuring SmartLoad for a hinge-pin height of 109" which adds 26" of reach over other compact utility loaders.

Outstanding ROC
The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity

Quick Coupler System
Pressure relieving quick coupler system makes connection of attachments easier

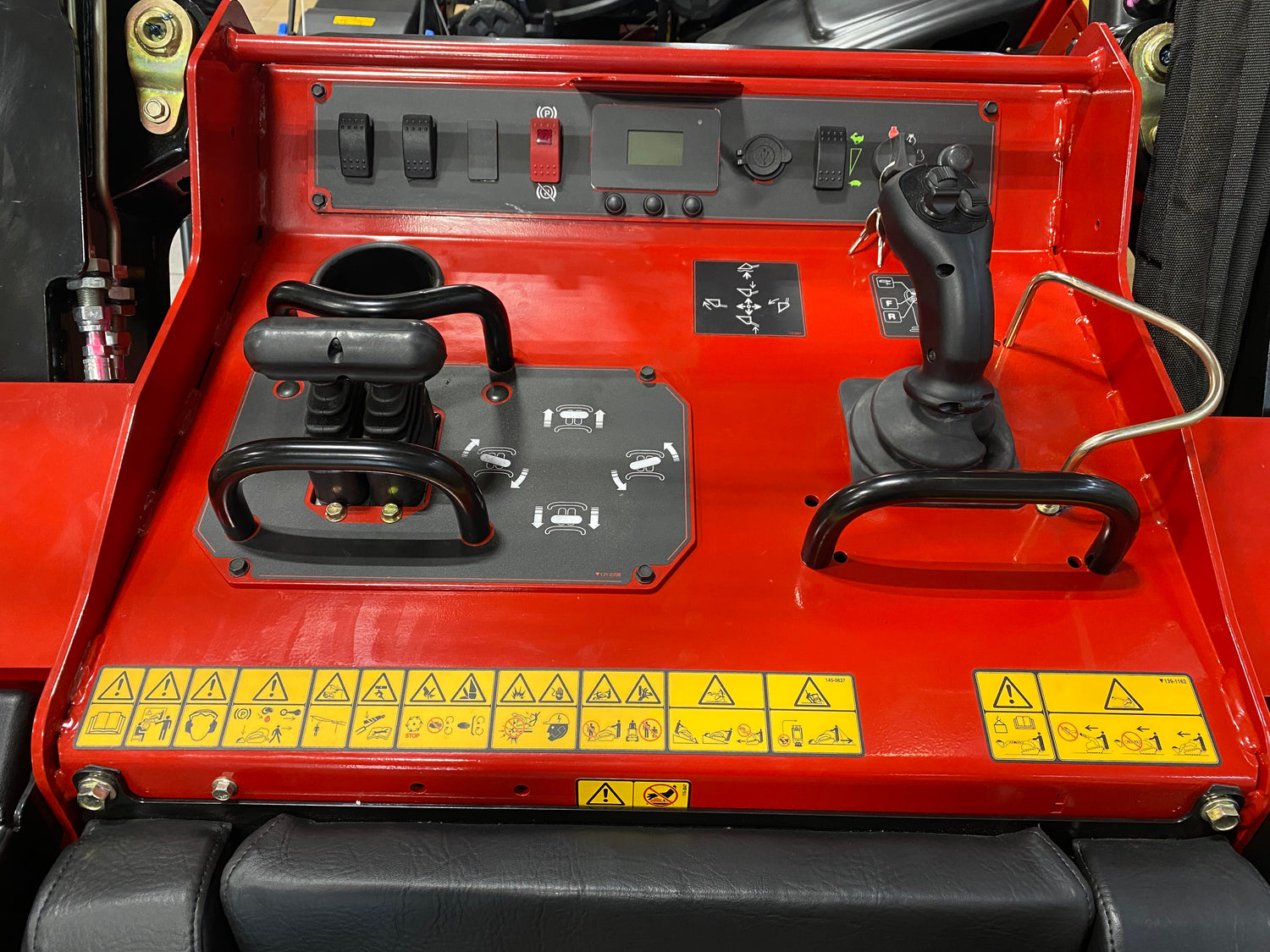

Auxiliary Pedal
User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement

Ease of Use
Toro patented traction control and integrated hydraulic operation in loader arm control



Specifications

Air Filter Remote dual element
Dump Angle 38 degrees
Dump Height (cm) 230.3
Dump Height (inches) 90.7
Engine Make Yanmar
Fuel Tank (gallons) 11
Fuel Tank (liters) 42
Fuel Type Diesel
Ground Clearance (cm) 15
Ground Clearance (inches) 5.9
Ground Pressure 5.5 psi
Ground Speed Forward (mph) 4.7
Ground Speed Foward (km/h) 7.6
Ground Speed Reverse (km/h) 7.6
Ground Speed Reverse (mph) 4.7
Hinge Pin Height (cm) 277.4
Hinge Pin Height (inches) 109.2
Hydraulic Flow Auxilary 14.3 gpm
Hydraulic Flow Traction 13.4 gpm (each pump)
Hydraulic Pressure 3,200 psi
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 37
Manufacturer's Gross HP Rating (kW) 27
Max Operating Height (cm) 337.8
Max Operating Height (inches) 133
Oil Capacity (liters) 4.7
Oil Capacity (quarts) 5
Overall Height (cm) 143.5
Overall Height (inches) 56.5
Overall Length w/bucket (cm) 262
Overall Length w/bucket (inches) 103.1
Overall Length w/o bucket (cm) 215.6
Overall Length w/o bucket (inches) 84.9
Overall Width (cm) 116.8
Overall Width (inches) 46
Rated Operating Capacity - 35% of Tip Capacity (kg) 590
Rated Operating Capacity - 35% of Tip Capacity (lbs) 1300
Reach – Fully Raised (cm) 67.8
Reach – Fully Raised (inches) 26.7
Reservoir Capacity (gallons) 9.2
Reservoir Capacity (liters) 34.8
RPM 3000
Tip Capacity (kg) 1685
Tip Capacity (lbs) 3714
Track Length (inches) 126.6
Track Length(cm) 322
Track Width (cm) 23
Track Width (inches) 9.1
Tracks MERT track with "TF" style tread
Traction Dual Hydrostatic Pump
Weight (kg) 1750
Weight (lbs) 3858
Wheelbase (inches) 39



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Check and adjust the track tension.
After the first 50 hours
  • Change the engine oil and filter.
  • Check and adjust the track tension.
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air-filter-service indicator.
  • Check the engine-oil level.
  • Clean the tracks and check for excessive wear and proper tension.
  • Clean the screen, oil cooler, and front of the radiator (more often in dirty or dusty conditions).
  • Check and clean the radiator screen
  • Check the coolant level in the expansion tank.
  • Remove debris from the machine.
  • Check for loose fasteners.
Every 25 hours
  • Check the hydraulic-fluid level.
  • Torque the loader arm adjustment screws.Check the torque whenever the lower loader arms rattle.
Every 50 hours
  • Drain water and other contaminants from the water separator.
  • Check the battery condition.
  • Check and adjust the track tension.
Every 100 hours
  • Remove the air-cleaner cover and clean out debris. (Clean more often in dirty or dusty conditions.)
  • Check the cooling system hoses.
  • Check the alternator-belt tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
  • Check for dirt buildup in the chassis.(More often in dirty conditions.)
  • Check the alternator/fan belt tension.
Every 250 hours
  • Change the engine oil and filter.
Every 400 hours
  • Check the fuel lines and connections for deterioration, damage, or loose connections.
  • Replace the hydraulic oil and filters (if not using Toro fluid).
Every 500 hours
  • Service the air cleaner.(Service more frequently in extremely dusty or dirty conditions).
  • Replacing the water separator filter.
  • Replace the Fuel Filter.
  • Drain and clean the fuel tank(s)—Authorized Service Dealer only.
  • Replace the alternator/fan belt (refer to the engine owner’s manual for instructions).
Every 800 hours
  • Change the engine coolant.
Every 1,000 hours
  • Replace the hydraulic oil and filters (if using Toro fluid).
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Every 3,000 hours
  • Disassemble, clean, and assemble the soot filter of the DPFor if engine faults spn 3251 fmi 0, spn 3720 fmi 0, or spn 3720 fmi 16 display in the InfoCenter.
Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
Every 2 years
  • Replace all moving hydraulic hoses.
