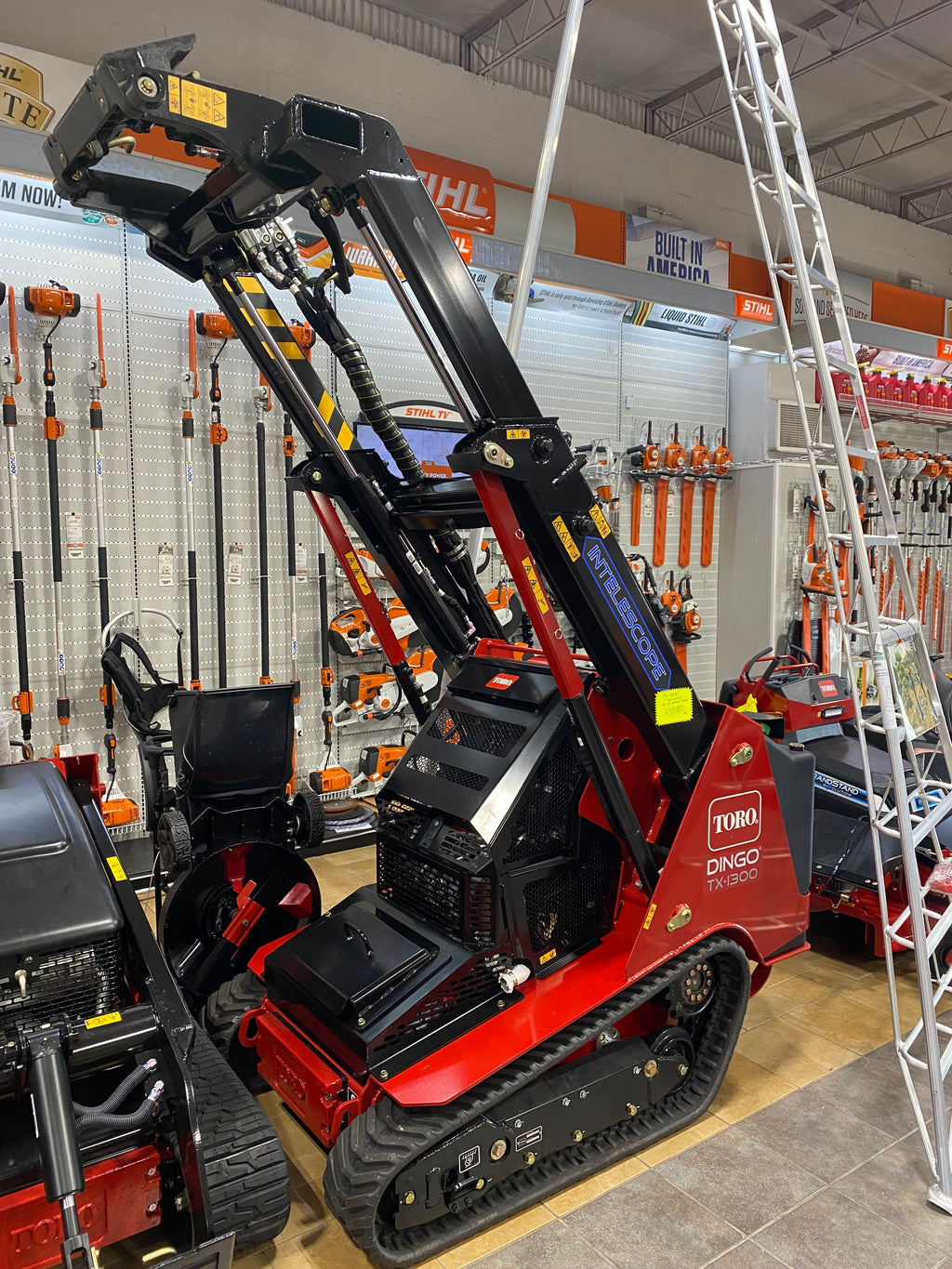

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.
- Intelescope Loader Arm
- Outstanding ROC
- Quick Coupler System
- User friendly auxiliary pedal
- Patented traction control
Features
Intelescope Loader Arm
Featuring SmartLoad for a hinge-pin height of 109" which adds 26" of reach over other compact utility loaders.
Outstanding ROC
The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity
Quick Coupler System
Pressure relieving quick coupler system makes connection of attachments easier
Auxiliary Pedal

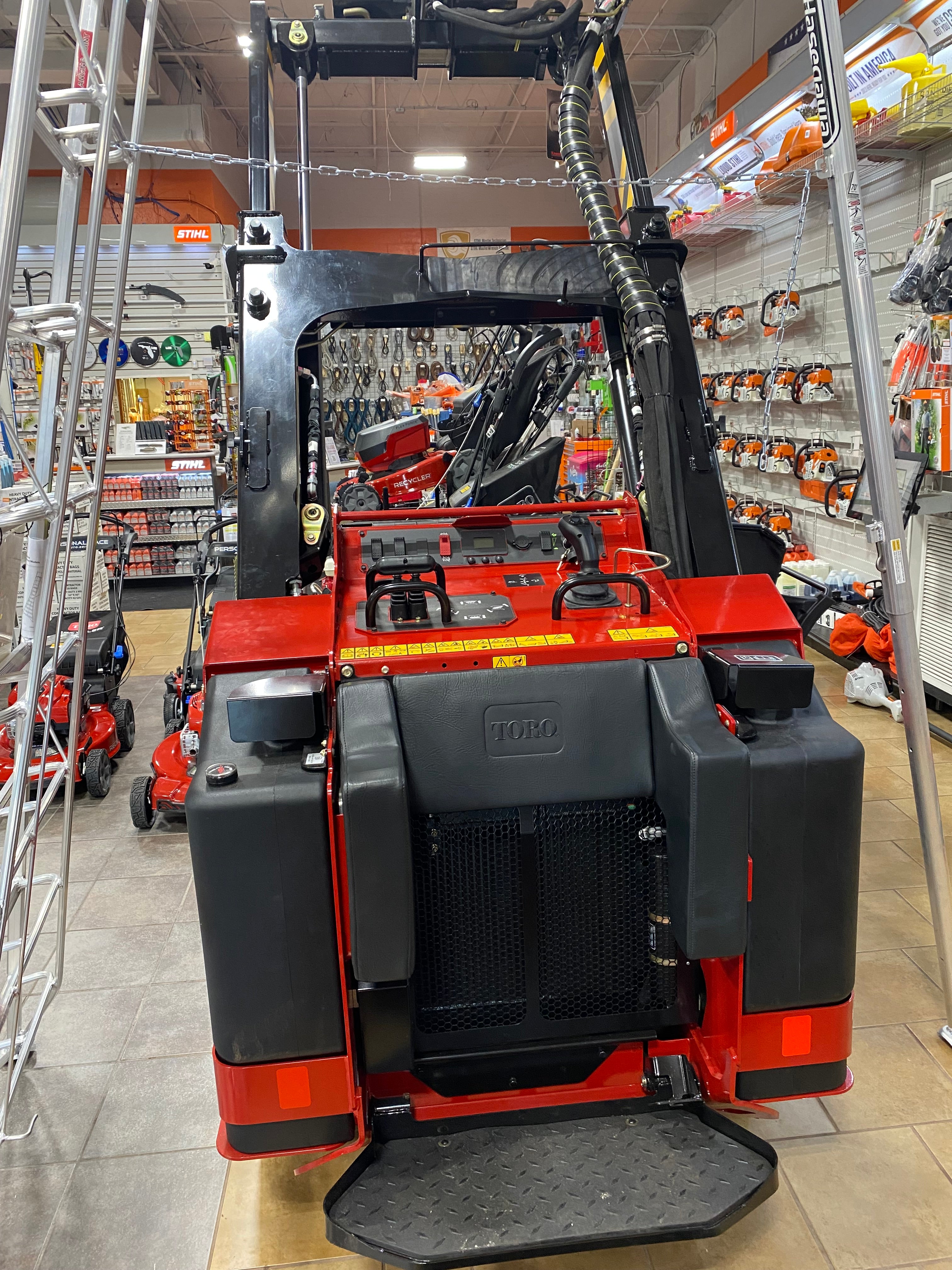

User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement
Ease of Use

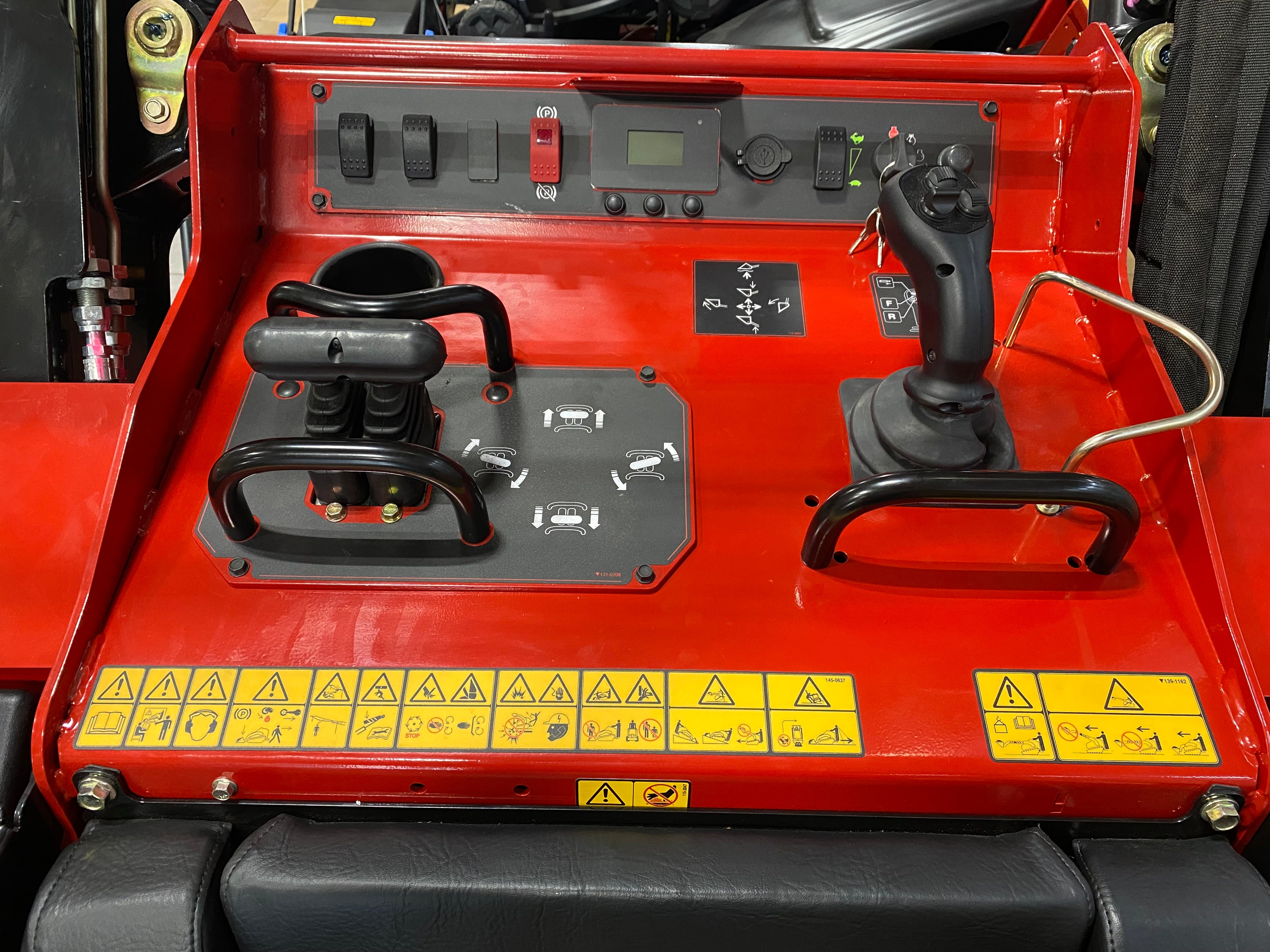

Toro patented traction control and integrated hydraulic operation in loader arm control
Specifications
| Air Filter |
Remote dual element |
| Dump Angle |
38 degrees |
| Dump Height (cm) |
230.3 |
| Dump Height (inches) |
90.7 |
| Engine Make |
Yanmar |
| Fuel Tank (gallons) |
11 |
| Fuel Tank (liters) |
42 |
| Fuel Type |
Diesel |
| Ground Clearance (cm) |
15 |
| Ground Clearance (inches) |
5.9 |
| Ground Pressure |
5.5 psi |
| Ground Speed Forward (mph) |
4.7 |
| Ground Speed Foward (km/h) |
7.6 |
| Ground Speed Reverse (km/h) |
7.6 |
| Ground Speed Reverse (mph) |
4.7 |
| Hinge Pin Height (cm) |
277.4 |
| Hinge Pin Height (inches) |
109.2 |
| Hydraulic Flow Auxilary |
14.3 gpm |
| Hydraulic Flow Traction |
13.4 gpm (each pump) |
| Hydraulic Pressure |
3,200 psi |
| Loader Arms |
Radial |
| Manufacturer's Gross HP Rating (HP) |
37 |
| Manufacturer's Gross HP Rating (kW) |
27 |
| Max Operating Height (cm) |
337.8 |
| Max Operating Height (inches) |
133 |
| Oil Capacity (liters) |
4.7 |
| Oil Capacity (quarts) |
5 |
| Overall Height (cm) |
143.5 |
| Overall Height (inches) |
56.5 |
| Overall Length w/bucket (cm) |
262 |
| Overall Length w/bucket (inches) |
103.1 |
| Overall Length w/o bucket (cm) |
215.6 |
| Overall Length w/o bucket (inches) |
84.9 |
| Overall Width (cm) |
116.8 |
| Overall Width (inches) |
46 |
| Rated Operating Capacity - 35% of Tip Capacity (kg) |
590 |
| Rated Operating Capacity - 35% of Tip Capacity (lbs) |
1300 |
| Reach – Fully Raised (cm) |
67.8 |
| Reach – Fully Raised (inches) |
26.7 |
| Reservoir Capacity (gallons) |
9.2 |
| Reservoir Capacity (liters) |
34.8 |
| RPM |
3000 |
| Tip Capacity (kg) |
1685 |
| Tip Capacity (lbs) |
3714 |
| Track Length (inches) |
126.6 |
| Track Length(cm) |
322 |
| Track Width (cm) |
23 |
| Track Width (inches) |
9.1 |
| Tracks |
MERT track with "TF" style tread |
| Traction |
Dual Hydrostatic Pump |
| Weight (kg) |
1750 |
| Weight (lbs) |
3858 |
| Wheelbase (inches) |
39 |
|
