Toro-Dingo  |  SKU: 22321

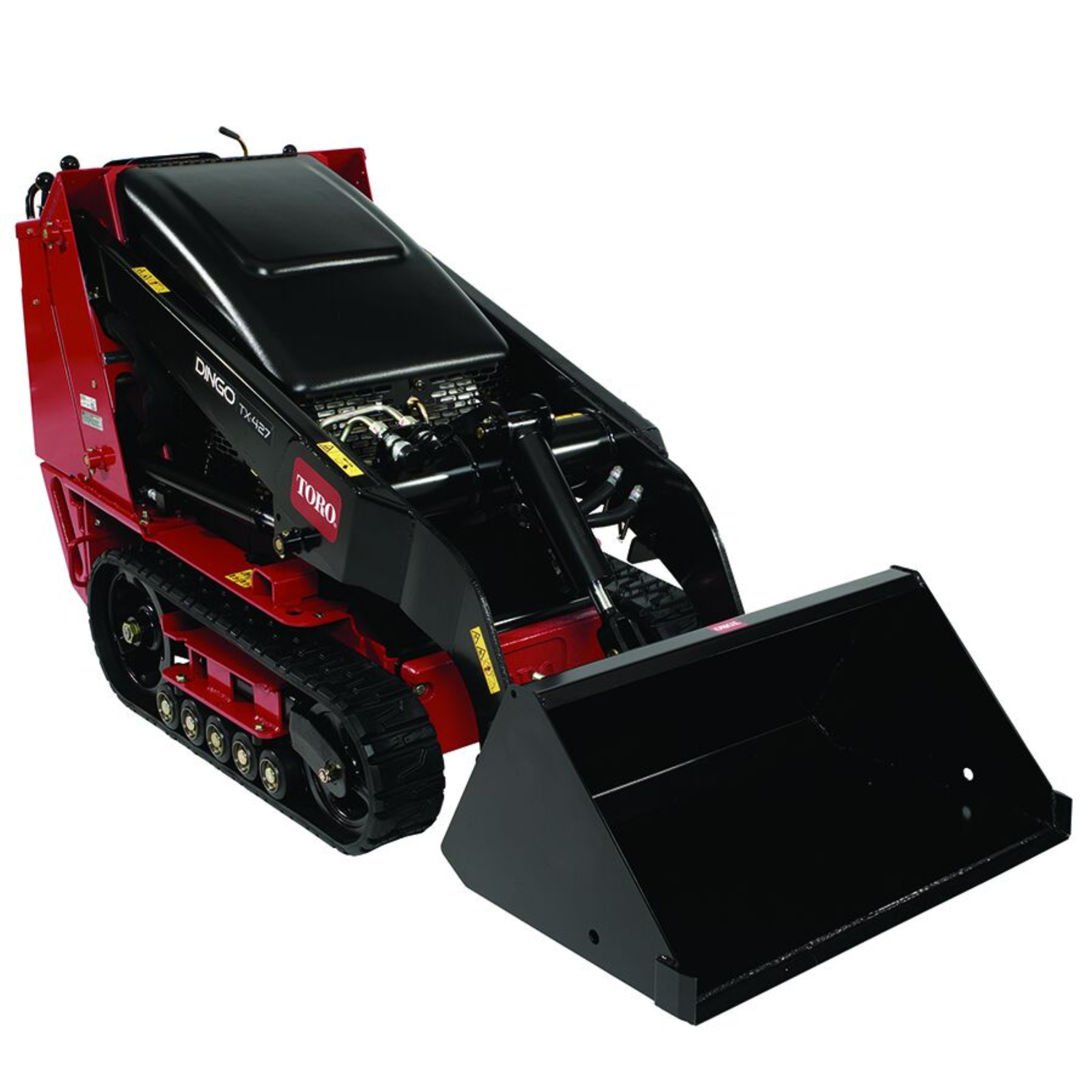

Dingo TX 427 Narrow Track Loader | Kohler Engine | 22321

$31,01000
Taxes and shipping calculated at checkout.

Dingo TX 427 Narrow Track Loader | Kohler Engine | 22321 is backordered and will ship as soon as it is back in stock.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

  • 27 HP (18.6 kW) CH 740 Kohler Command Pro Series
  • Patented, easy-to-use traction control system
  • 34.5" width with bucket
  • Turf friendly at only 1882 pounds

Toro Dingo® compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 Narrow track design provides a low 5.1 psi ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which make it simple for any worker to step up and be productive immediately!

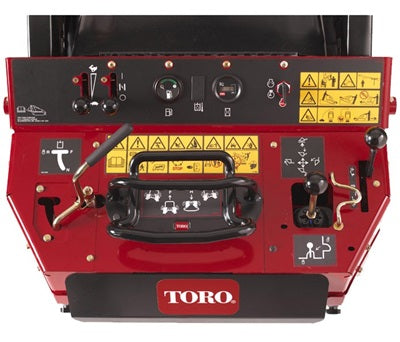

Simple Controls
You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Air-Cooled Gasoline Engine
A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Reinforced Tracks
Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Displacement (cc) 725
Displacement (cu. in.) 44
Dump Angle 38 degrees
Dump Height (cm) 117
Dump Height (inches) 46.1
Engine Make Kohler
Engine Model Command Pro Series CH740
Fuel Tank (gallons) 6
Fuel Tank (liters) 23
Fuel Type Gasoline
Ground Clearance (cm) 11.6
Ground Clearance (inches) 4.6
Ground Pressure 5.1 psi
Ground Speed Forward (mph) 4.5
Ground Speed Forward (km/h) 7.2
Ground Speed Reverse (km/h) 3.2
Ground Speed Reverse (mph) 2
Hinge Pin Height (cm) 167.1
Hinge Pin Height (inches) 65.8
Hydraulic Flow 16.9 gpm (each pump)
Hydraulic Flow Auxiliary 11.4 gpm
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 25
Manufacturer's Gross HP Rating (kW) 18.6
Max Operating Height (cm) 228.9
Max Operating Height (inches) 90.1
Oil Capacity (liters) 2.95
Oil Capacity (quarts) 2
Overall Height w/bucket (cm) 117
Overall Height w/bucket (inches) 46.1
Overall Height w/o bucket (cm) 117
Overall Height w/o bucket (inches) 46.1
Overall Length w/bucket (cm) 233.6
Overall Length w/bucket (inches) 92
Overall Length w/o bucket (cm) 179.5
Overall Length w/o bucket (inches) 70.7
Overall Width w/bucket (cm) 85.5
Overall Width w/bucket (inches) 33.7
Overall Width w/o bucket (cm) 86.5
Overall Width w/o bucket (inches) 33.7
Rated Operating Capacity* (kg) 242
Rated Operating Capacity* (lbs) 535
Reach – Fully Raised (cm) 55.3
Reach – Fully Raised (inches) 21.8
Reservoir Capacity (gallons) 10
Reservoir Capacity (liters) 37.8
RPM 3600
Track Length (inches) 96.6
Track Length(cm) 245.3
Track Width (cm) 14.9
Track Width (inches) 5.9
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 853
Weight (lbs) 1882
Wheelbase (inches) 31.2

Disclaimer

*Per ISO 14397-1

Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Replace the hydraulic filter.
After the first 50 hours
  • Change the engine oil and filter.
  • Check and adjust the track tension.
Before each use or daily
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air-filter-service indicator.
  • Check the engine-oil level.
  • Clean the tracks.
  • Check the tracks for excessive wear(If the tracks are worn, replace them).
  • Test the parking brake.
  • Remove debris from the machine.
  • Check for loose fasteners.
Every 25 hours
  • Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
  • Inspect the drive belt for wear or damage.
  • Check the hydraulic-fluid level.
Every 100 hours
  • Change the engine oil.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
  • Check for dirt buildup in the chassis.
Every 200 hours
  • Replace the carbon-canister air filter (Service more frequently if conditions are extremely dusty or sandy).
  • Replace the carbon-canister purge-line filter (Service more frequently when using the vibratory-plow attachment).
  • Change the oil filter.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check the spark plug(s).
  • Change the fuel filter.
  • Replace the drive belt.
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • Replace the spark plug.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
