- 27 HP (18.6 kW) CH 740 Kohler Command Pro Series
- Patented, easy-to-use traction control system
- 34.5" width with bucket
- Turf friendly at only 1882 pounds

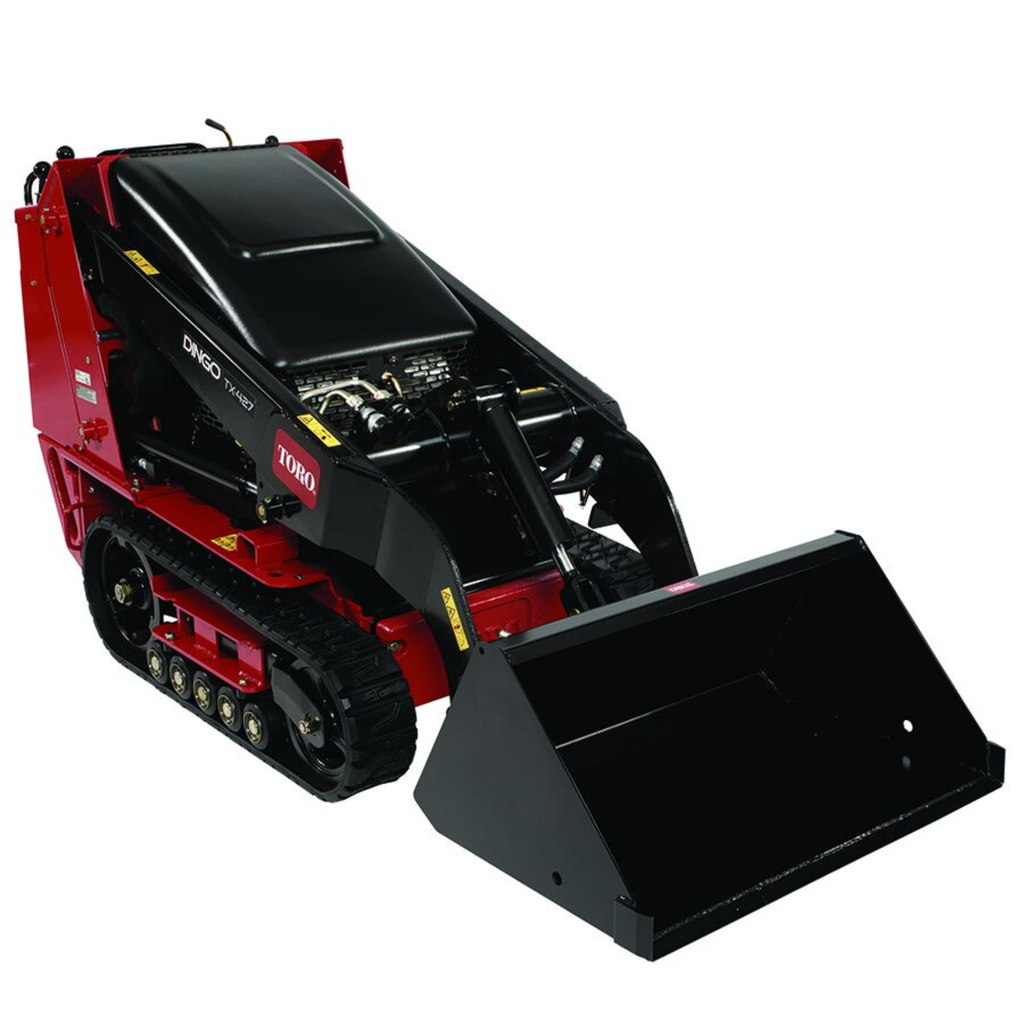

Toro Dingo® compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 Narrow track design provides a low 5.1 psi ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which make it simple for any worker to step up and be productive immediately!

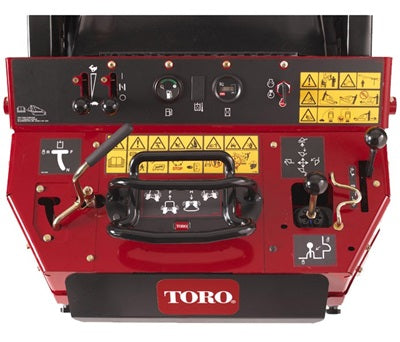

Simple Controls
You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.
Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.
4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
Air-Cooled Gasoline Engine
A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.
Reinforced Tracks
Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.
Specifications
| Air Filter |
Two-stage, heavy-duty, remote |
| Cooling System |
Air Cooled |
| Displacement (cc) |
725 |
| Displacement (cu. in.) |
44 |
| Dump Angle |
38 degrees |
| Dump Height (cm) |
117 |
| Dump Height (inches) |
46.1 |
| Engine Make |
Kohler |
| Engine Model |
Command Pro Series CH740 |
| Fuel Tank (gallons) |
6 |
| Fuel Tank (liters) |
23 |
| Fuel Type |
Gasoline |
| Ground Clearance (cm) |
11.6 |
| Ground Clearance (inches) |
4.6 |
| Ground Pressure |
5.1 psi |
| Ground Speed Forward (mph) |
4.5 |
| Ground Speed Forward (km/h) |
7.2 |
| Ground Speed Reverse (km/h) |
3.2 |
| Ground Speed Reverse (mph) |
2 |
| Hinge Pin Height (cm) |
167.1 |
| Hinge Pin Height (inches) |
65.8 |
| Hydraulic Flow |
16.9 gpm (each pump) |
| Hydraulic Flow Auxiliary |
11.4 gpm |
| Loader Arms |
Radial |
| Manufacturer's Gross HP Rating (HP) |
25 |
| Manufacturer's Gross HP Rating (kW) |
18.6 |
| Max Operating Height (cm) |
228.9 |
| Max Operating Height (inches) |
90.1 |
| Oil Capacity (liters) |
2.95 |
| Oil Capacity (quarts) |
2 |
| Overall Height w/bucket (cm) |
117 |
| Overall Height w/bucket (inches) |
46.1 |
| Overall Height w/o bucket (cm) |
117 |
| Overall Height w/o bucket (inches) |
46.1 |
| Overall Length w/bucket (cm) |
233.6 |
| Overall Length w/bucket (inches) |
92 |
| Overall Length w/o bucket (cm) |
179.5 |
| Overall Length w/o bucket (inches) |
70.7 |
| Overall Width w/bucket (cm) |
85.5 |
| Overall Width w/bucket (inches) |
33.7 |
| Overall Width w/o bucket (cm) |
86.5 |
| Overall Width w/o bucket (inches) |
33.7 |
| Rated Operating Capacity* (kg) |
242 |
| Rated Operating Capacity* (lbs) |
535 |
| Reach – Fully Raised (cm) |
55.3 |
| Reach – Fully Raised (inches) |
21.8 |
| Reservoir Capacity (gallons) |
10 |
| Reservoir Capacity (liters) |
37.8 |
| RPM |
3600 |
| Track Length (inches) |
96.6 |
| Track Length(cm) |
245.3 |
| Track Width (cm) |
14.9 |
| Track Width (inches) |
5.9 |
| Tracks |
Sprocket-drive, 10 road wheels per side |
| Traction |
Dual Hydrostatic Pump |
| Weight (kg) |
853 |
| Weight (lbs) |
1882 |
| Wheelbase (inches) |
31.2 |
Disclaimer
*Per ISO 14397-1
