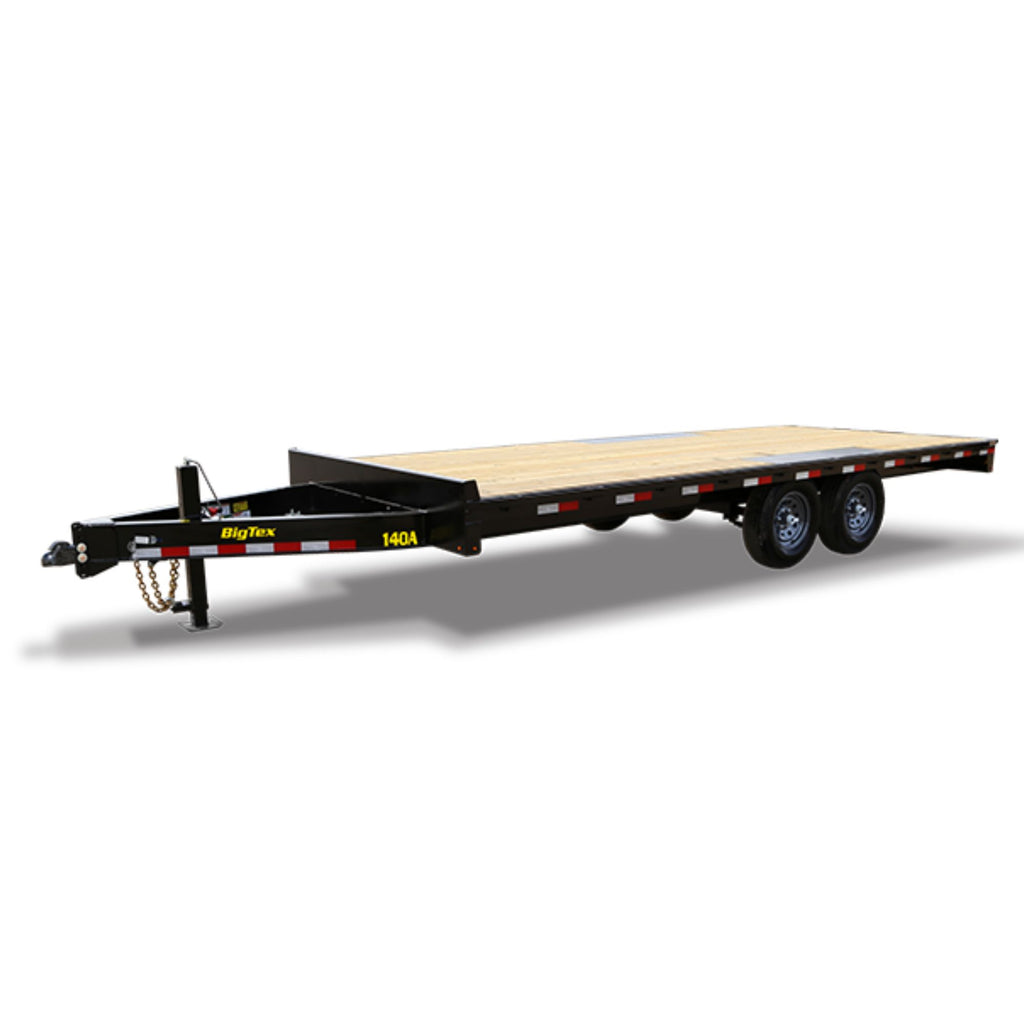

Wider and stronger is the name of the game for the 14OA Heavy Duty Over-The-Axle Bumperpull Trailer. With a 102’’ wide deck and a 14,000 lbs G.V.W.R., this heavy-duty deck-over trailer is built with the space and strength that haulers demand. Available in multiple lengths (16’, 18’, and 20’) and equipped with standard 8’ slide-in ramps, the 14OA works hard for those hauling pallets and medium-weight equipment. It’s spacious and strong, and it’s ready to get the job done—are you?
|
Standard Feature |
Available Options |
| Axles |
2 - 7,000# Premium, with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler |
Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) |
|
| Jack |
12,000# Drop-Leg Jack (Top Wind) |
|
| Frame |
8" I-Beam (10#) |
|
| Cross-Members |
3" x 3.5" Channel |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
| Floor |
APEX Fortified Lumber |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps |
|
- 5’ HD Stand Up Ramps (Standard Equipped on "+3" Models)
- 8’ Slide In Ramp Package
|
| Stake Pockets |
Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern |
8-Lug |
|
| Spare Mount |
Front Spare Tire Mount |
|
| Spare Tire |
|
- Spare Tire & Wheel (ST235/80 R-16 LR-E)
- Spare Tire Upgrade (ST235/80 R-16 LR-G)
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Rubrail |
Rub Rail Along Both Sides |
|
| Tie-Downs |
|
Extra 5/8" D-Rings |
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Storage |
Storage Tray in Tongue |
|
| Side Rail |
5" Channel |
|
| Model |
14OA-24 |
14OA-22 |
14OA-21+3 |
14OA-20 |
14OA-19+3 |
14OA-18 |
14OA-17+3 |
14OA-16 |
| Pull Type |
Bumperpull |
Bumperpull |
Bumperpull |
Bumperpull |
Bumperpull |
Bumperpull |
Bumperpull |
Bumperpull |
| GVWR |
14000 lbs |
14000 lbs |
14000 lbs |
14000 lbs |
14000 lbs |
14000 lbs |
14000 lbs |
14000 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
7000 lbs |
7000 lbs |
7000 lbs |
7000 lbs |
7000 lbs |
7000 lbs |
7000 lbs |
| Empty Weight |
4050 lbs |
3850 lbs |
4180 lbs |
3650 lbs |
3890 lbs |
3450 lbs |
3680 lbs |
3250 lbs |
| Cargo Capacity |
9950 lbs |
10150 lbs |
9820 lbs |
10350 lbs |
10110 lbs |
10550 lbs |
10320 lbs |
10750 lbs |
| Bed Length |
24' |
22' |
24' |
20' |
22' |
18' |
20' |
16' |
| Bed Width |
102" |
102" |
102" |
102" |
102" |
102" |
102" |
102" |
| A |
|
264' |
|
240" |
264' |
217-1/2" |
240" |
193-1/2" |
| B |
|
150' |
|
138" |
150' |
127" |
138" |
115" |
| C |
|
114' |
|
102" |
114' |
90-1/2" |
102" |
78-1/2" |
| Tongue Length |
63-1/4" |
63-1/4" |
63-1/4" |
63-1/4" |
63-1/4" |
63-1/4" |
63-1/4" |
63-1/4" |
