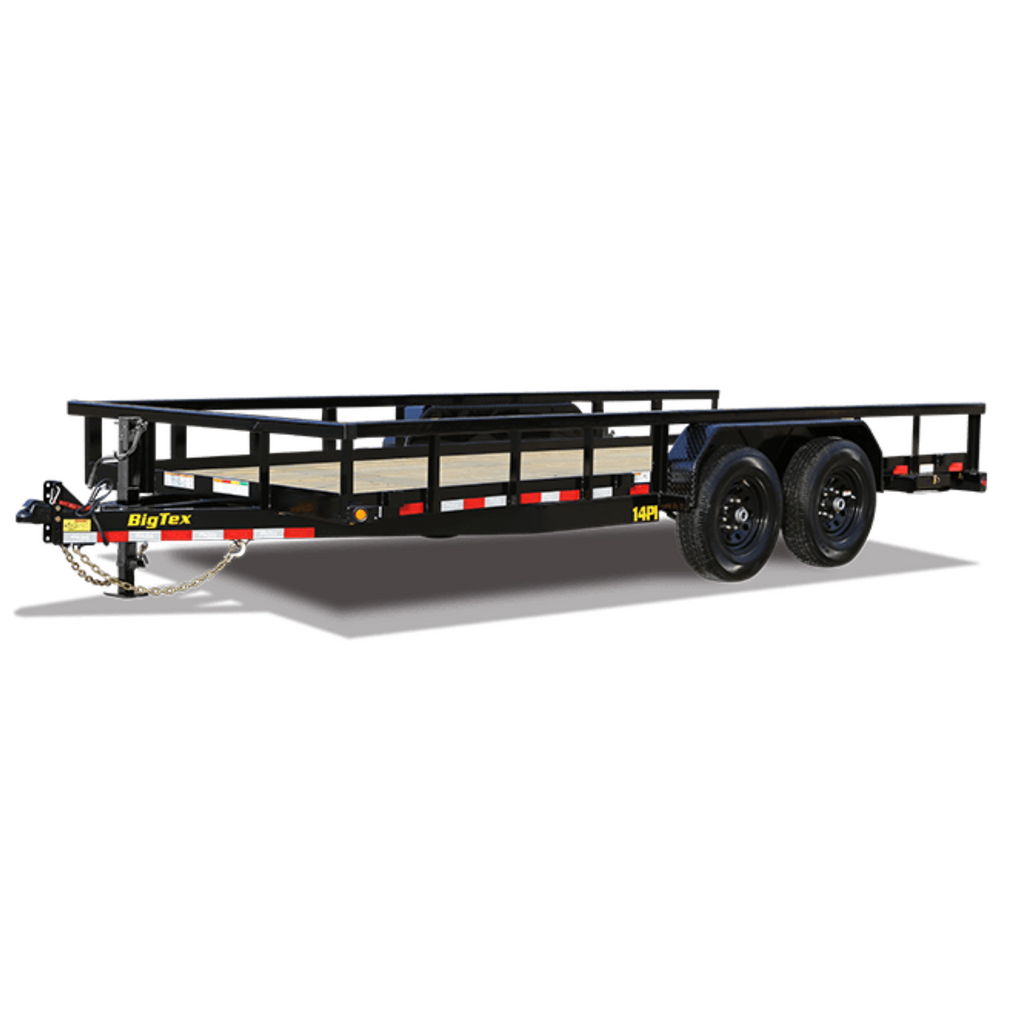

Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
| STANDARD FEATURE |
AVAILABLE OPTIONS |
|
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on All Hubs |
|
| Suspension |
Multi-Leaf Spring w/ Equalizer |
|
| Coupler |
Adjustable 2-5/16” Demco EZ Latch |
Adjustable Pintle in Channel |
| Safety Chains |
1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
8,000# Drop-Leg Jack (Side Wind) |
|
| Frame |
5" x 3" x 5/16" Angle |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Floor |
Treated Pine Floor |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders |
9" x 72" 14 Ga. Diamond Plate Double Broke |
|
| Ramps |
4' Slide in Channel Ramps |
- 4' Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist5’ Stand Up Ramps
- 5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist
|
| Stake Pockets |
Outside Frame Stake Pockets |
Additional Stake Pockets (Each) |
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST235/80 R-16 Load Range E |
Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern |
8-Bolt |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
|
- Spare Tire (ST235/80 R-15 LR-E)
- Spare Tire & Wheel (ST235/80 R-16 LR-E)
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
|
5/8" D-Ring |
| Sides |
15" Tall Open sides with 3"x 2”x 3/16" Angle uprights and 3" x 3" Square Tubing Top Rail |
- 2' High Sides (Open, Total Height with Top Rail)
- 3’ High Sides (Open, total height with Top Rail)
- 4’ High Sides (Open, total height with Top Rail)
- Car Hauler Style (No Side Rails)
- Enclose Sides w/ Expanded Metal (Per Square Foot)
- Enclose Sides w/ Sheet Metal (Per Square Foot)
|
| Storage |
|
Bolt-On Landscape Box (24" x 24" x 87") |
| MODEL |
14PI-16 |
| PULL TYPE |
Bumperpull |
| GVWR |
14000 lbs |
| GAWR (EA. AXLE) |
7000 lbs |
| EMPTY WEIGHT |
2740 lbs |
| CARGO CAPACITY |
11260 lbs |
| BED LENGTH |
16' |
| BED WIDTH |
83" |
| A |
193-1/2" |
| B |
115" |
| C |
78-1/2" |
| TONGUE LENGTH |
42-3/4" |
| MODEL |
14PI-18 |
| PULL TYPE |
Bumperpull |
| GVWR |
14000 lbs |
| GAWR (EA. AXLE) |
7000 lbs |
| EMPTY WEIGHT |
2890 lbs |
| CARGO CAPACITY |
11110 lbs |
| BED LENGTH |
18' |
| BED WIDTH |
83" |
| A |
217-1/2" |
| B |
127” |
| C |
90-1/2" |
| TONGUE LENGTH |
42-3/4" |
| MODEL |
14PI-20 |
| PULL TYPE |
Bumperpull |
| GVWR |
14000 lbs |
| GAWR (EA. AXLE) |
7000 lbs |
| EMPTY WEIGHT |
3040 lbs |
| CARGO CAPACITY |
10960 lbs |
| BED LENGTH |
20' |
| BED WIDTH |
83" |
| A |
240" |
| B |
138" |
| C |
102" |
| TONGUE LENGTH |
42-3/4" |
