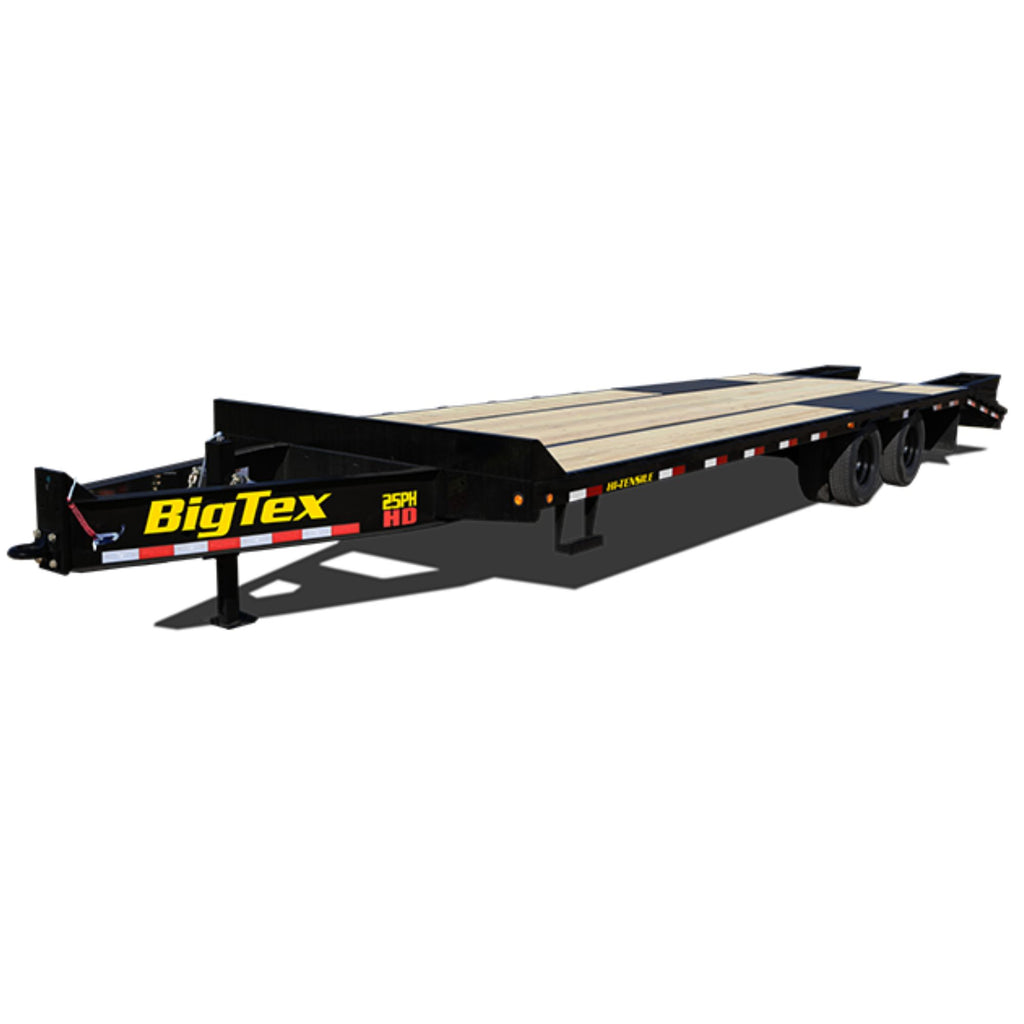

Putting your nose to the grindstone? Need a trailer that does too? The hardworking 25PH Heavy Duty Tandem Dual Axle Pintle Trailer is here to stand by your side, hauling heavy-duty loads in the most rugged and challenging conditions. This powerful trailer has it all; two 12K axles, a low-profile bed with a pierced-beam frame, and heavy-duty adjustable suspension. It’s a robust, pintle hitch trailer that gets the heavy work done in agricultural, construction, and industrial settings. Ready to take on the heaviest of loads? This trailer is—and so will you.
|
Standard Feature |
Available Options |
Axles |
2 - 12,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps |
|
Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
- Electric Over Hydraulic Brakes (Disc)
- Electric Over Hydraulic Brakes (Drum)
|
Suspension |
Heavy-Duty 30,000#, Adjustable |
|
Coupler |
3" ID Pintle Ring |
|
Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
Jack |
12,000# Drop-Leg Jack (Top Wind) |
- Dual Single-Speed Drop-Leg Jacks
- Dual 2-Speed Landing Gear
- Dual Electric Over Hydraulic Jacks by Stillwell™
|
Frame |
12" I-Beam |
|
Cross-Members |
3" Channel |
|
Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
Floor |
APEX Fortified Lumber |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps |
- 8' Rear Slide-In Ramps (Straight Deck Only)
- (2) 5' MEGA Ramps
|
Stake Pockets |
Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
|
Trailer Plug |
7-Way RV |
|
Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
Tires |
ST235/80 R-16 Load Range E Radial Tires |
- Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes
- Spare Tire Upgrade (ST235/80R-16 LR-G Dual) Includes Spare
|
Bolt Pattern |
8-Lug |
|
Spare Mount |
Front Spare Tire Mount |
|
Spare Tire |
ST235/80 R-16 Load Range E Radial Tire |
|
Paint Type |
Professional Finish w/ Primer Standard |
|
Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
Rubrail |
3/8” Heavy Duty Rub Rail |
|
Tie-Downs |
|
Extra 5/8" D-Rings |
Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
Mudflaps |
Standard |
|
Storage |
|
- Lockable Lid Over Tool Storage in Tongue
- Low Profile Tool Box 12” x 18” x 36” (Side Mount)
|
Cargo Winch |
|
- 4" Sliding Winch (Each)
- 4" Weld-On Winch (Each)
- Sliding Winch Track
|
Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
4" x 30' Strap |
Side Rail |
8" Channel |
|
Steps & Handles |
(2) Side Bed Steps |
|
Model |
25PH-25+5 |
25PH-20+5 |
Pull Type |
Bumperpull |
Bumperpull |
GVWR |
25900 lbs |
25900 lbs |
GAWR (Ea. Axle) |
12000 lbs |
12000 lbs |
Empty Weight |
6300 lbs |
5800 lbs |
Cargo Capacity |
19600 lbs |
20100 lbs |
Bed Length |
30' |
25' |
Bed Width |
102" |
102" |
A |
300" |
240" |
B |
216" |
180" |
C |
84" |
60" |
Tongue Length |
70" |
70" |
