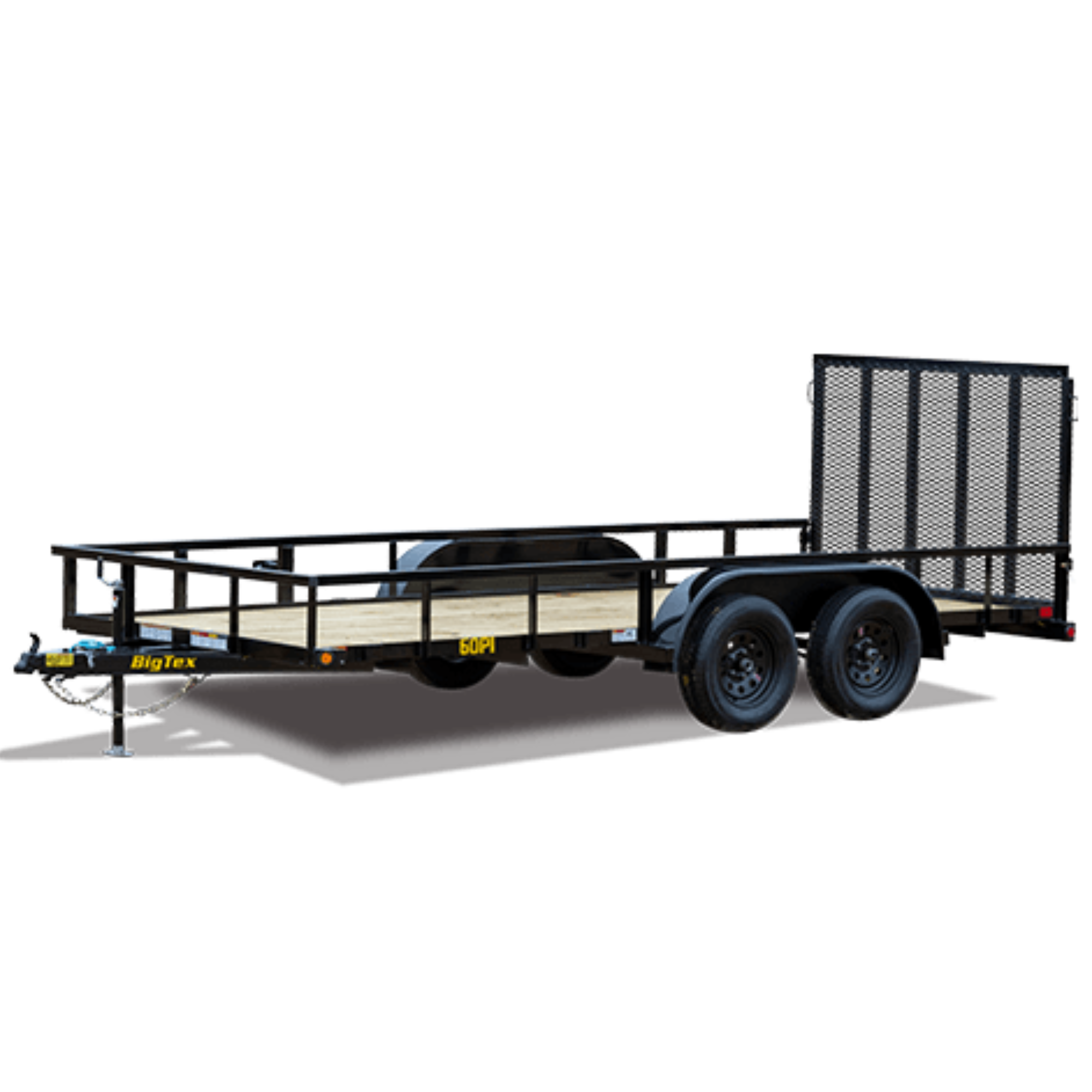

Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. It’s built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.
|
STANDARD FEATURE |
AVAILABLE OPTIONS |
| Axles |
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Electric Brake on Front Axle |
Electric Brakes on 2nd Axle |
| Suspension |
Multi-Leaf Spring w/ Equalizer |
|
| Coupler |
2" A-Frame |
- 2" Forged Coupler
- 2-5/16” Forged Coupler
- 2-5/16” Stamped Coupler
|
| Safety Chains |
1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
|
| Jack |
2,000# Top Wind, Set-Back Jack with Removable Sand Foot |
2,000# Fold-Up Jack |
| Frame |
3" x 2" x 3/16" Angle |
|
| Cross-Members |
3” x 2” x 3/16” Angle |
|
| Floor |
Treated Pine Floor |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders |
9" x 72" Rolled Formed w/ Back |
|
| Ramps |
|
- 4' Slide-In Angle Ramps
- 4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
- 4' Tall Rear Ramp Gate w/ Coil Spring Assist
- 5' Tall Rear Ramp Gate w/ Coil Spring Assist
|
| Stake Pockets |
|
Additional Stake Pockets (Each) |
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST205/75 R-15 Load Range C |
|
| Bolt Pattern |
5 Bolt |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
|
Spare Tire (ST205/75R-15 LR-C) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
(4) Tie Down Loops Inside Bed |
Additional Tie Loops |
| Sides |
17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail |
- 2' High Sides (Open, Total Height with Top Rail)
- 3’ High Sides (Open, total height with Top Rail)
- 4’ High Sides (Open, total height with Top Rail)
- Car Hauler Style (No Side Rails)
- Enclose Sides w/ Expanded Metal (Per Square Foot)
- Enclose Sides w/ Sheet Metal (Per Square Foot)
|
| MODEL |
60PI-12 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1265 lbs |
| CARGO CAPACITY |
4735 lbs |
| BED LENGTH |
12' |
| BED WIDTH |
77" |
| A |
145-1/2” |
| B |
85" |
| C |
60-1/2" |
| TONGUE LENGTH |
37" |
| MODEL |
60PI-14 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1400 lbs |
| CARGO CAPACITY |
4600 lbs |
| BED LENGTH |
14' |
| BED WIDTH |
103" |
| A |
169-1/2” |
| B |
103” |
| C |
72-1/2” |
| TONGUE LENGTH |
37" |
| MODEL |
60PI-16 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1535 lbs |
| CARGO CAPACITY |
4465 lbs |
| BED LENGTH |
16' |
| BED WIDTH |
77" |
| A |
193-1/2" |
| B |
115" |
| C |
78-1/2" |
| TONGUE LENGTH |
37" |
