Toro-Dingo  |  SKU: 22972

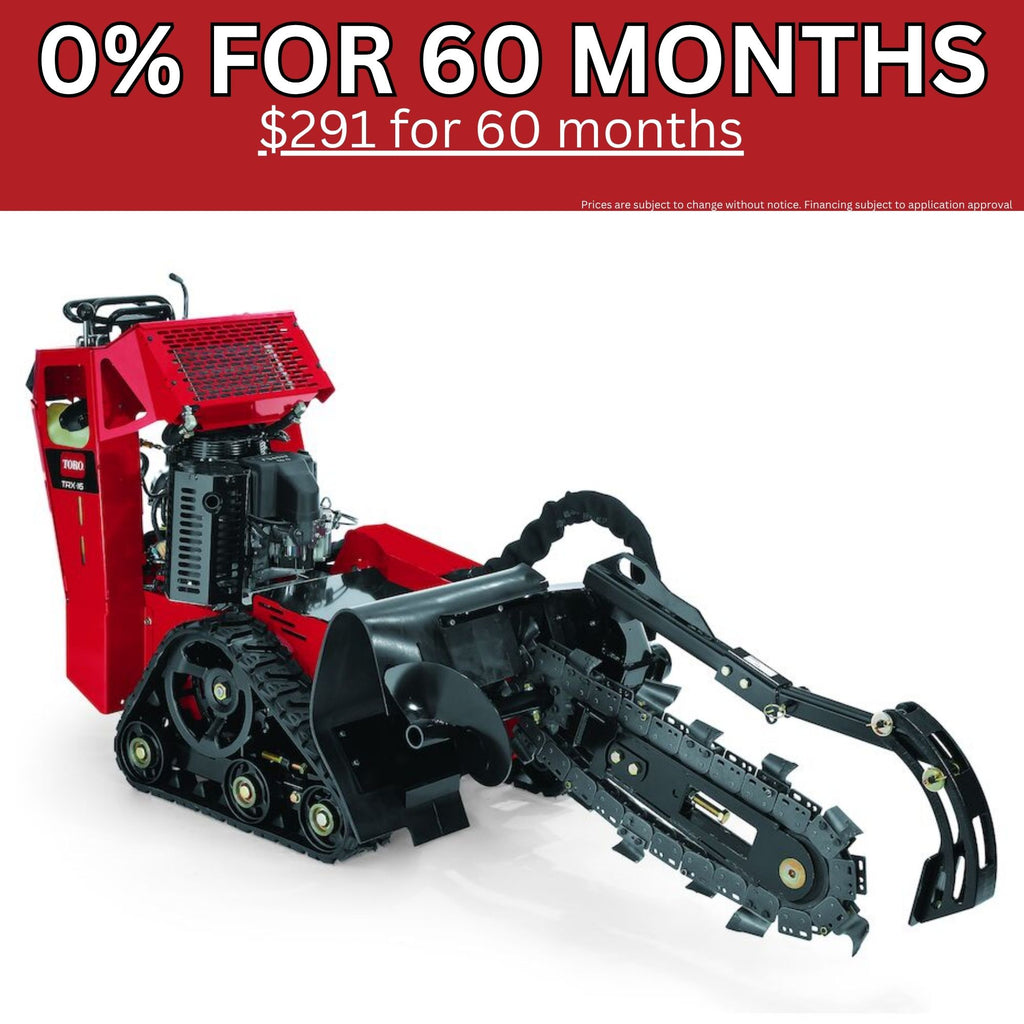

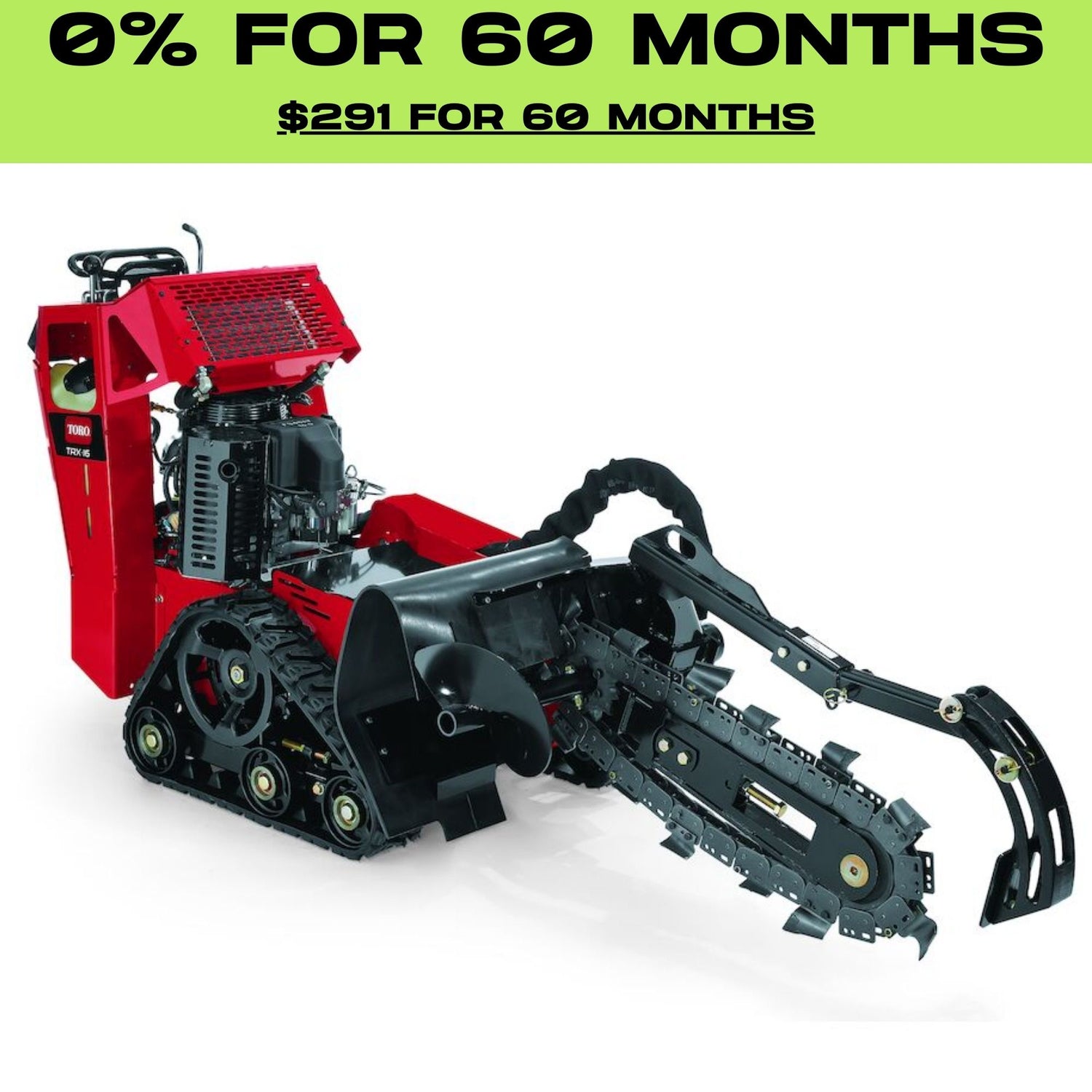

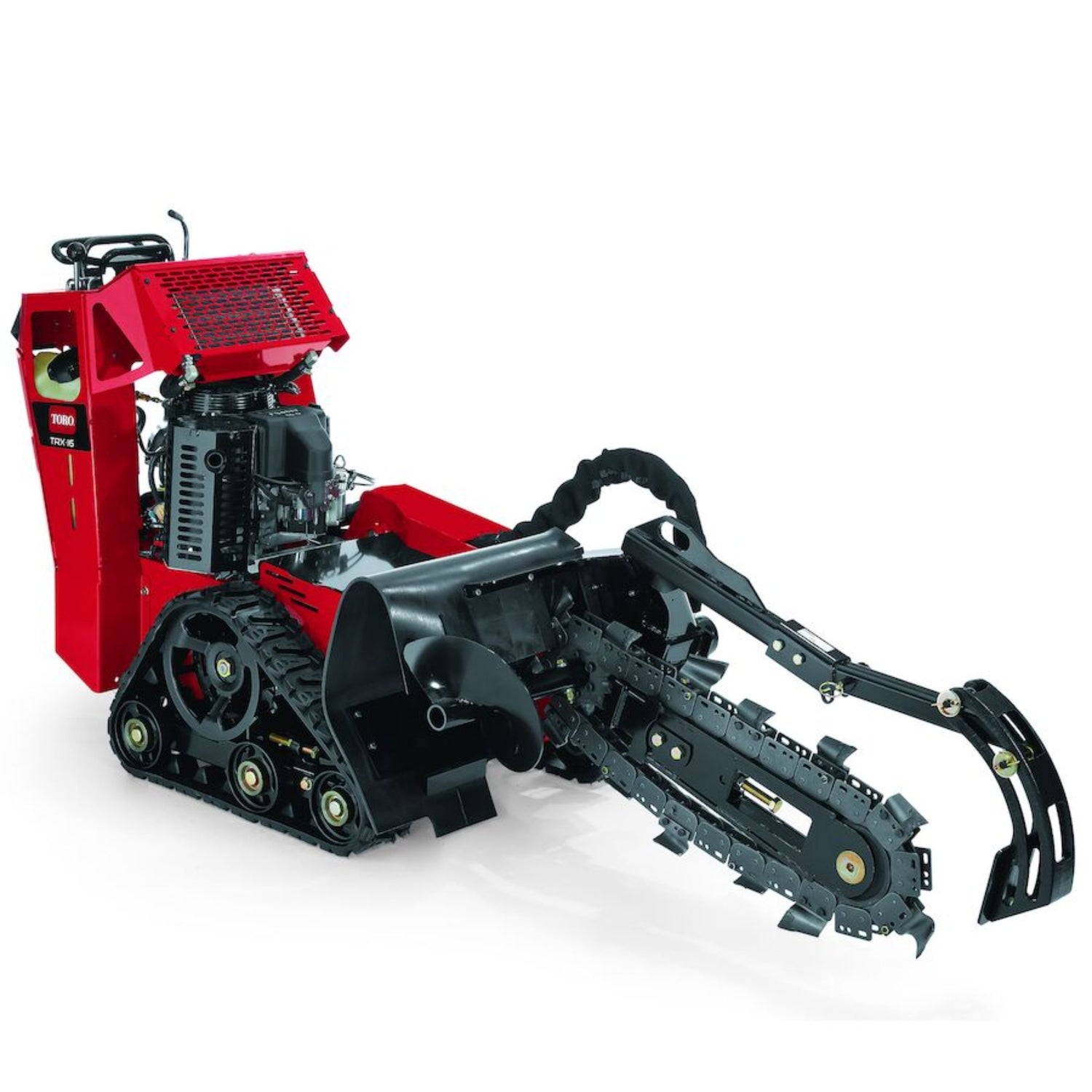

Dingo TRX-16 Walk-Behind Trencher | 22972

$19,35000
Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Tracks instead of wheels. Simplicity instead of complexity. The TRX trenchers are the first tracked, dedicated walk-behind trenchers that have it all. Tracks - combined with Toro's exclusive easy-to-use control system - provide unparalleled maneuverability, all while offering the ultimate in operational performance.

  • Low center of gravity and large footprint, offer stability and increased maneuverability
  • Simple controls are quickly easy to learn

Specifications

Boom Depths 24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm
Boom Widths 4 in. & 6 in. / 10.1 cm & 15.2 cm
Cooling System Air Cooled
Engine Horsepower 14.5 hp (10.8 kW) @ 3,600 rpm
Engine Make Kawasaki
Engine Model FS481V, V-Twin
Fuel Tank 1.9 gal. / 7.4 L
Fuel Type Gasoline
Ground Pressure w/ 24" (60.9 cm) Boom 4.1 PSI
Ground Pressure w/ 36" (91.4 cm) Boom 4.3 PSI
Ground Pressure w/ 48" (121.9 cm) Boom 4.4 PSI
Headshaft Speed 226 rpm with 315 ft/lbs of torque
Hour Meter Standard
Hydraulic Flow Traction (each pump) 9.5 GPM (36 LPM)
Hydraulic Flow Trencher 10.0 GPM (38 LPM)
Hydraulic Oil Cooler Standard
Hydraulic Pressure 2,900 PSI (19,994.7 kPA)
Oil Capacity 1.8 qt / 1.7 L
Overall Height w/ 24" Boom Up & Chain 46 in. / 116.8 cm
Overall Length w/ 24" Boom Up & Chain 82.5 in. / 209.5 cm
Overall Width w/ 24" Boom Up & Chain 33.8 in. / 85.8 cm
Reservoir Capacity 6.3 gal. / 23.8 L
Start Method Recoil
Tracks Drive Sprocket-drive, 3 Road Wheels Per Side
Tracks Material Endless Nylon Reinforced Rubber
Tracks Traction Dual Hydrostatic Pump
Tracks Width 5.9 in. / 14.9 cm
Transport Speed - Forward Up tp 2.4 mph / 3.9 km/h
Transport Speed - Reverse Up to 1.2 mph / 2.4 km/h
Weight 1,114 lbs / 505 kg
Wheelbase 23 in. / 58.4 cm



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Change the engine oil.
After the first 50 hours
  • Check and adjust the track tension.
Before each use or daily
  • Grease the machine.(Grease immediately after every washing.)
  • Check the engine-oil level.
  • Check the condition of and clean the tracks.
  • Test the parking brake.
  • Check the condition of the digging teeth and replace any that are worn or damaged.
  • Check for loose fasteners.
After each use
  • Remove debris from the machine.
Every 25 hours
  • Clean the foam air-cleaner element(more often in dirty or dusty conditions)—Models 22972 and 22973 only.
  • Check the battery electrolyte level.
  • Check the hydraulic-fluid level.
  • Check the digging chain for excessive wear and proper tension.
Every 40 hours
  • Grease the trencher housing.
Every 100 hours
  • Check the paper air-cleaner element(more often in dirty or dusty conditions)—Models 22972 and 22973 only.
  • Change the engine oil.
  • Replace or clean and gap the spark plug(s).
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration and repair if necessary.
Every 200 hours
  • Replace the paper air-cleaner element(more often in dirty or dusty conditions)—Models 22972 and 22973 only.
  • Change the engine-oil filter.
  • Replace the fuel filter.
  • Replace the hydraulic filter.
Every 250 hours
  • Replace the primary air filter and check the condition of the safety filter(more often in dirty or dusty conditions)—Model 22974 only.
  • Check and grease the road wheels.
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • Replace the secondary air filter.(more often in dirty or dusty conditions)—Model 22974 only.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Check and adjust the chain tension.
  • Touch up chipped paint
