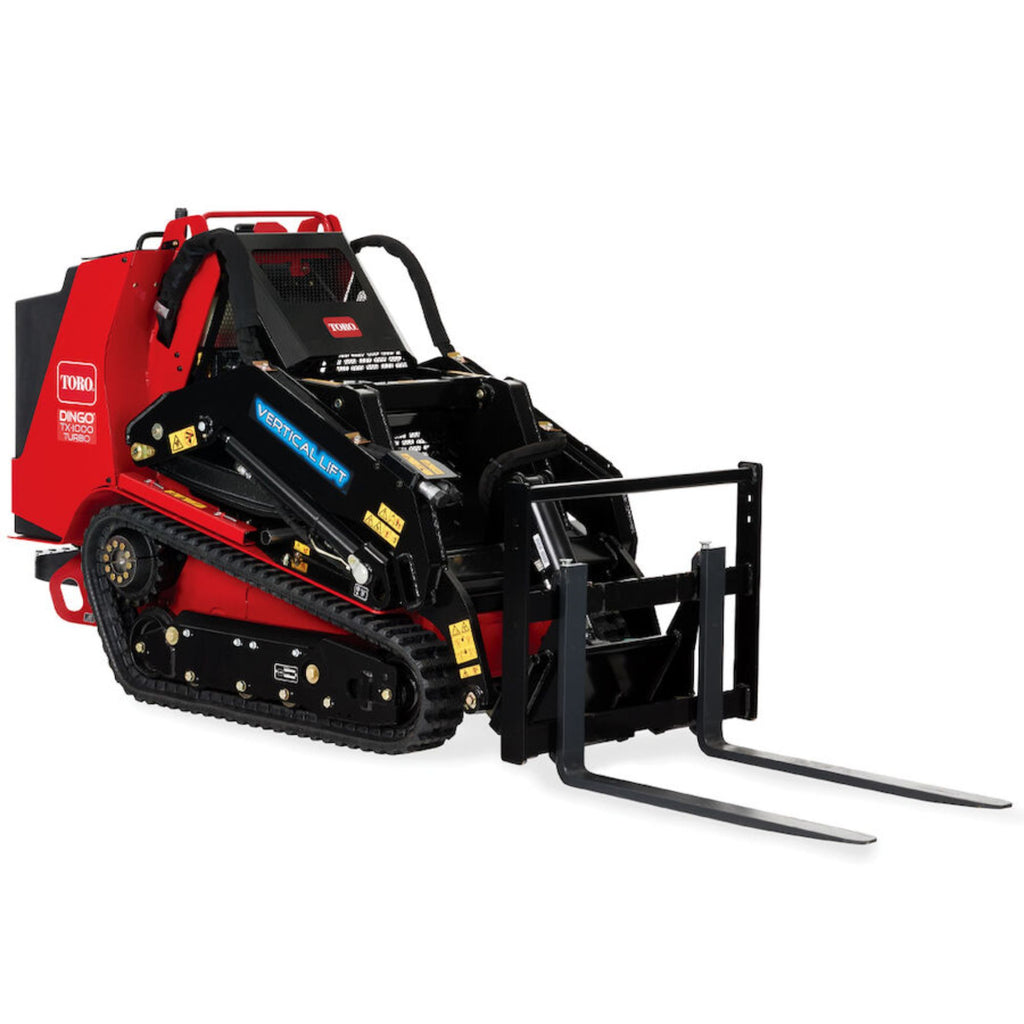

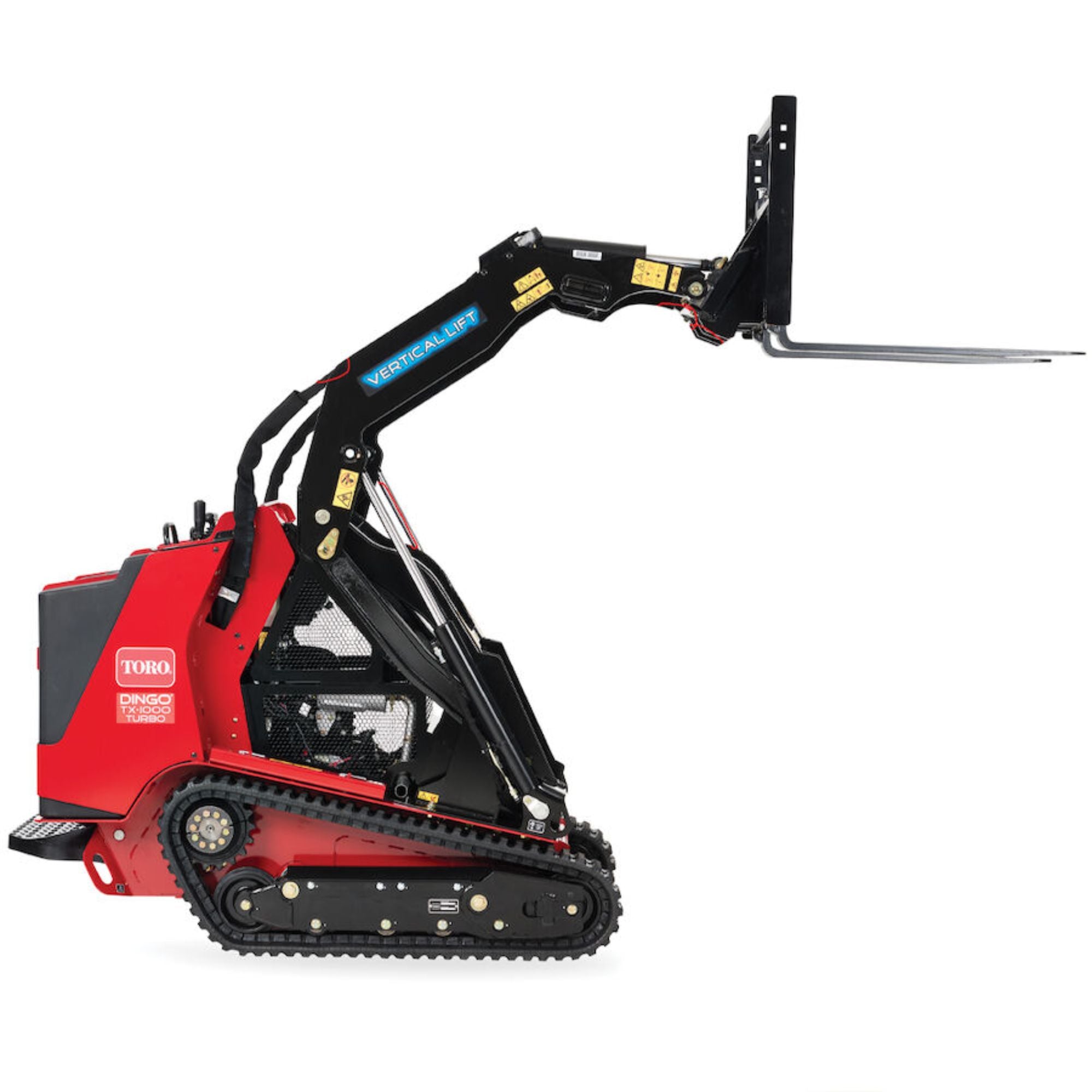

The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.
- Smart Power allows efficient machine run by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
- Compact footprint easily clears standard 36" gates.
- Toro's patented traction control system allows intuitive user operation for all skill levels.
- Maximum height easily clears the side of a standard 30-yard dumpster
- Patented intuitive traction control
Specifications
| Air Filter |
Remote: Primary and Safety Elements |
| Cooling System |
Combo Crossflow Radiator and Oil Cooler |
| Dump Angle |
40 deg |
| Dump Height |
60.3 in. / 153.2 cm |
| Engine Horsepower |
24.7 hp (18.4 kW) |
| Engine Make |
Yanmar |
| Engine Model |
3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
| Fuel Tank |
10.25 gal. / 38.8 L |
| Fuel Type |
Diesel |
| Ground Clearance |
5.9 in. / 14.9 cm |
| Ground Pressure |
6.1 psi |
| Ground Speed - Forward |
Up to 4.1 mph / 6.6 km/h |
| Ground Speed - Reverse |
Up to 4.1 mph / 6.6 km/h |
| Height |
54.6 in. / 138.7 cm |
| Height - With Bucket |
54.6 in. / 138.7 cm |
| Hinge Pin Height |
81 in. / 205.7 cm |
| Hydraulic Flow - Traction |
12.3 GPM |
| Hydraulic High Flow |
13.2 GPM |
| Hydraulic Low Flow |
4.9 GPM |
| Hydraulic Pressure |
3,000 psi |
| Length |
83 in. / 210.8 cm |
| Length - With Bucket |
104 in. / 264.2 cm |
| Loader Arms |
Vertical Lift |
| Max Operating Height |
106.2 in. / 269.7 cm |
| Oil Capacity |
3.8 qt / 3.6 L |
| Rated Operating Capacity* |
1,000 lbs / 454 kg |
| Reach - Fully Raised |
23.3 in. / 59.2 cm |
| Reservoir Capacity |
8.6 gal. / 32.5 L |
| System Capacity |
11.5 gal. / 43.5 L |
| Track Length |
126.6 in. / 321.5 cm |
| Track Width |
5.9 in. / 14.9 cm |
| Tracks |
MERT track with “B” style tread |
| Traction |
Dual Hydrostatic Pump |
| Weight |
2,826 lbs / 1,282 kg |
| Wheelbase |
39 in. / 99.0 cm |
| Width |
34.6 in. / 87.8 cm |
| Width - With Bucket |
42.2 in. / 107.2 cm |
Disclaimer
*Per ISO 14397-1
**As rated by the engine manufacturer. Starting January 1, 2025 the specifications on this engine will change to 23.2hp and 17.3kW
