Toro-Dingo | SKU: 22588

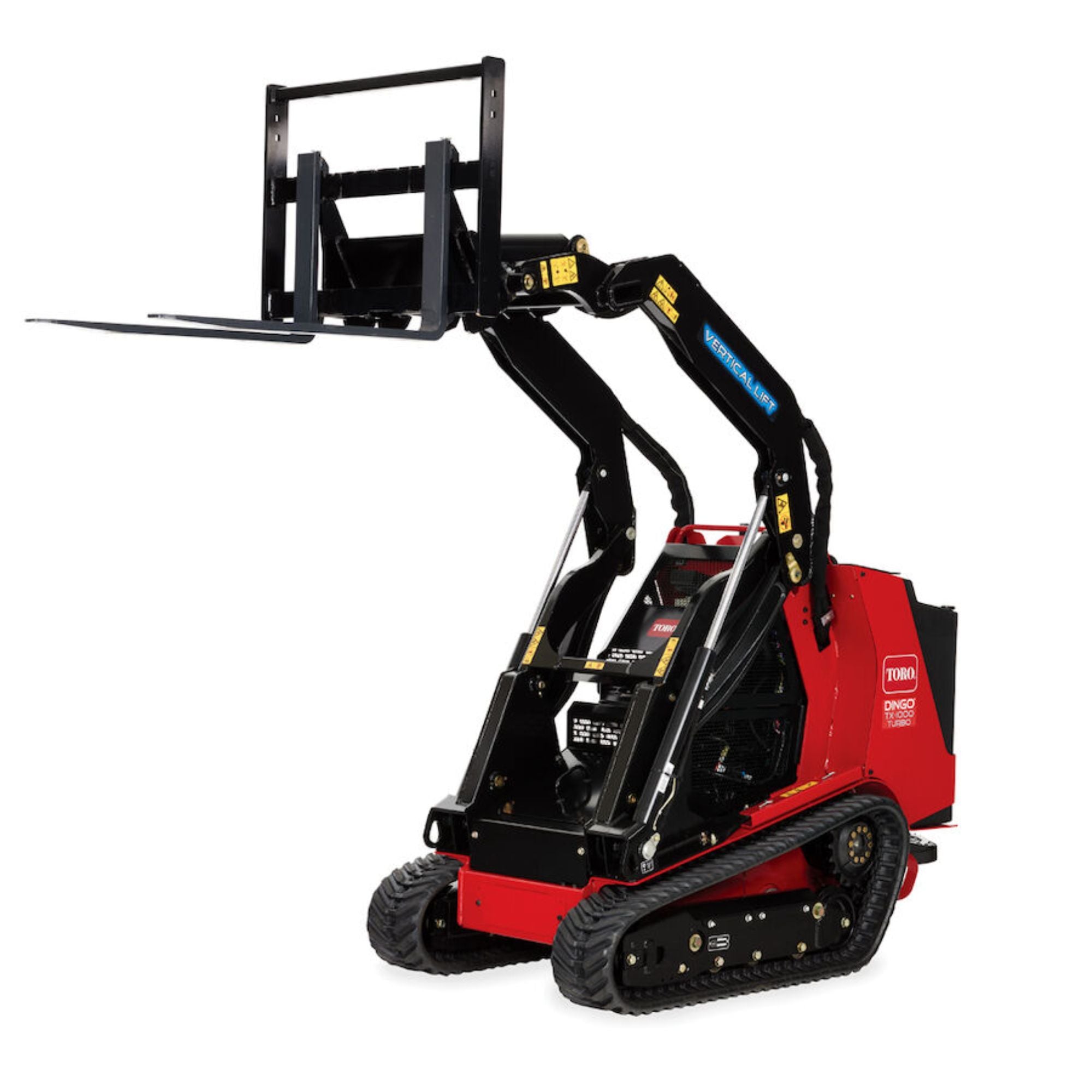

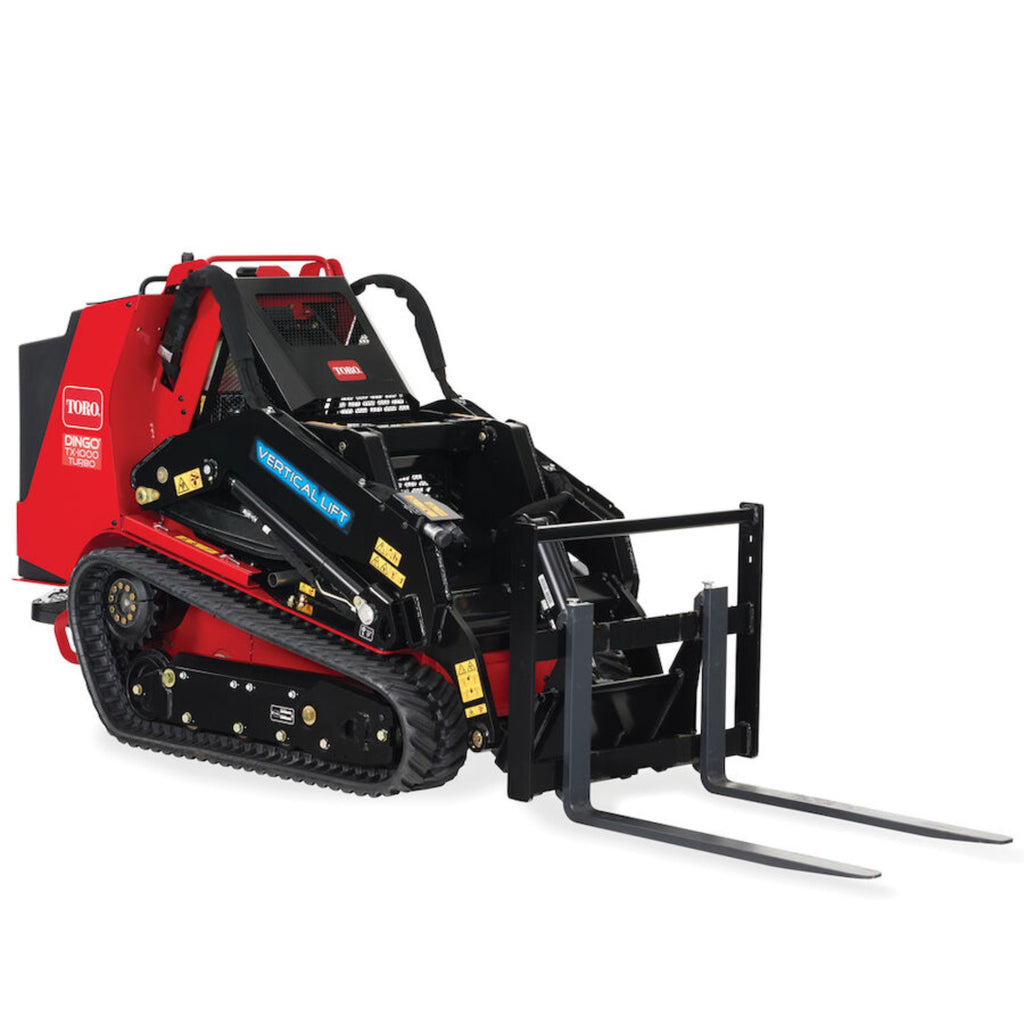

Dingo TX 1000 TURBO Track Loader | Wide | Yanmar | Diesel | 22588

Name: Dingo TX 1000 TURBO Track Loader | Wide | Yanmar | Diesel | 22588
Brand: Toro-Dingo
SKU: 22588
Price: 42980.00 USD
Availability: InStock

$42,980⁰⁰

Taxes and shipping calculated at checkout.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.

Smart Power allows efficient machine run by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
Toro's patented traction control system allows intuitive user operation for all skill levels.
Maximum height easily clears the side of a standard 30-yard dumpster
Patented intuitive traction control

Specifications

Air Filter	Remote: Primary and Safety Elements
Cooling System	Combo Crossflow Radiator and Oil Cooler
Dump Angle	40 deg
Dump Height	60.3 in. / 153.2 cm
Engine Horsepower	24.7 hp (18.4 kW)
Engine Make	Yanmar
Engine Model	3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank	10.25 gal. / 38.8 L
Fuel Type	Diesel
Ground Clearance	5.9 in. / 14.9 cm
Ground Pressure	4.1 psi
Ground Speed - Forward	Up to 4.1 mph / 6.6 km/h
Ground Speed - Reverse	Up to 4.1 mph / 6.6 km/h
Height	54.5 in. / 138.4 cm
Height - With Bucket	54.5 in. / 138.4 cm
Hinge Pin Height	81 in. / 205.7 cm
Hydraulic Flow - Traction	12.3 GPM
Hydraulic High Flow	13.2 GPM
Hydraulic Low Flow	4.9 GPM
Hydraulic Pressure	3,000 psi
Length	83 in. / 210.8 cm
Length - With Bucket	104 in. / 264.2 cm
Max Operating Height	106.2 in. / 269.7 cm
Oil Capacity	3.8 qt / 3.6 L
Rated Operating Capacity*	1,000 lbs / 454 kg
Reach - Fully Raised	23.3 in. / 59.2 cm
Reservoir Capacity	8.6 gal. / 32.5 L
System Capacity	11.5 gal. / 43.5 L
Track Width	9.1 in. / 23.1 cm
Tracks	MERT Track With Turf Friendly Style Tread
Traction	Dual Hydrostatic Pump
Weight	2,911 lbs / 1,320 kg
Wheelbase	39 in. / 99.0 cm
Width	39.9 in. / 101.3 cm
Width - With Bucket	42.2 in. / 107.2 cm

Disclaimer

*Per ISO 14397-1
**As rated by the engine manufacturer. Starting January 1, 2025 the specifications on this engine will change to 23.2hp and 17.3kW

Recommended Maintenance Schedule(s)

Maintenance Service Interval	Maintenance Procedure
After the first 8 hours	Check and adjust the track tension.
After the first 50 hours	Check and adjust the track tension.
Before each use or daily	Grease the machine.(Grease immediately after every washing.) Check the air-filter-service indicator. Check the engine-oil level. Clean the tracks and check for excessive wear and proper tension. Clean the screen, oil cooler, and front of the radiator (more often in dirty or dusty conditions). Check the coolant level in the expansion tank. Check and clean the radiator screen Check the hydraulic-fluid level. Remove debris from the machine. Check for loose fasteners.
Every 25 hours	Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
Every 50 hours	Drain water and other contaminants from the water separator. Check the battery condition. Check and adjust the track tension.
Every 100 hours	Check the cooling system hoses. Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.) Check for dirt buildup in the chassis.(More often in dirty conditions.) Check the alternator/fan belt tension (refer to the engine owner’s manual for instructions).
Every 250 hours	Change the engine oil and filter.
Every 400 hours	Check the fuel lines and connections for deterioration, damage, or loose connections. Replace the hydraulic filter and fluid (if not using Toro fluid).
Every 500 hours	Replace the air filters. Replacing the water separator filter. Replace the in-line fuel filter Replace the alternator/fan belt (refer to the engine owner’s manual for instructions).
Every 1,000 hours	Replace the hydraulic filter and fluid (if using Toro fluid).
Every 1,500 hours or 2 years, whichever comes first	Replace all moving hydraulic hoses.
Yearly	Change the engine coolant.
Yearly or before storage	Check and adjust the track tension. Touch up chipped paint.
Every 2 years	Drain and clean the fuel tank(s)—Authorized Service Dealer only.
