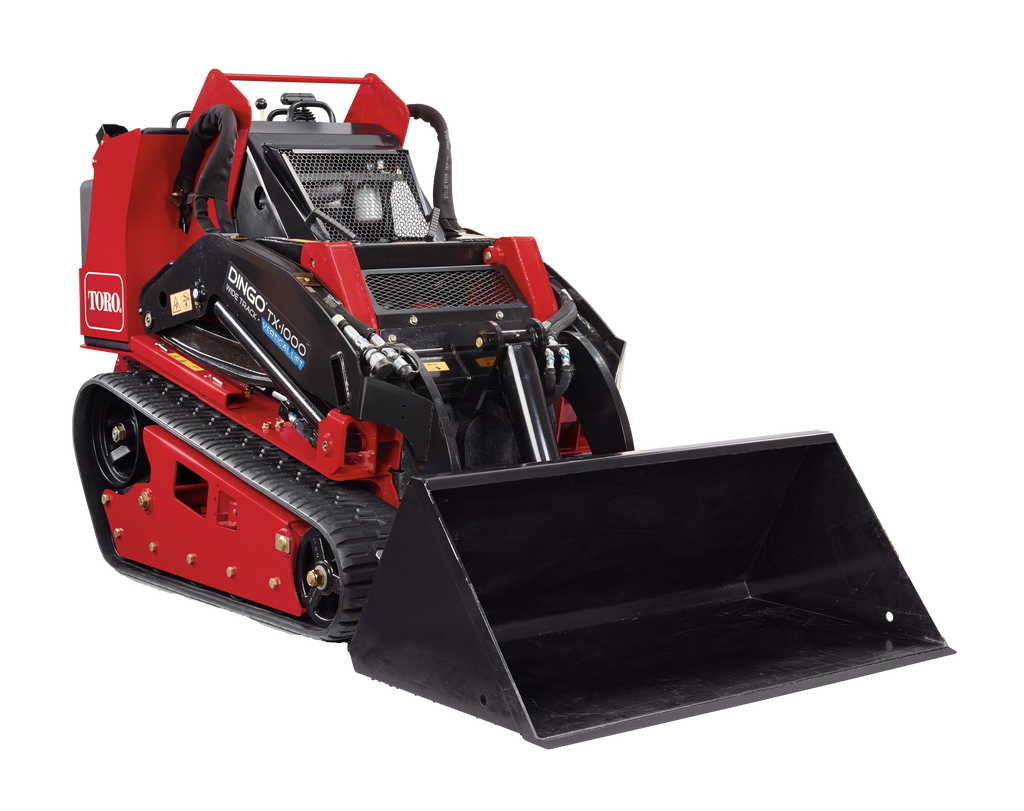

Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.
- Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
- Maximum height and reach easily clears the side of a 30-yard dumpster
- Patented traction control
Specifications:
Air Filter |
Remote: Primary and Safety Elements |
Cooling System |
Combo Crossflow Radiator and Oil Cooler |
Dump Angle |
40 degrees |
Dump Height (cm) |
153.2 |
Dump Height (inches) |
60.3 |
Engine Make |
Yanmar |
Engine Model |
3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
Fuel Tank (gallons) |
10.25 |
Fuel Tank (liters) |
38.8 |
Fuel Type |
Diesel |
Ground Clearance (cm) |
15 |
Ground Clearance (inches) |
5.9 |
Ground Pressure |
4.1 psi |
Ground Speed Forward (km/h) |
6.6 |
Ground Speed Forward (mph) |
4.1 |
Hinge Pin Height (cm) |
205.7 |
Hinge Pin Height (inches) |
81 |
Hydraulic Flow |
12.3 gpm (each pump) |
Hydraulic Flow Auxiliary |
13.2 gpm |
Hydraulic Reservoir Capacity (gallons) |
8.6 |
Hydraulic Reservoir Capacity (liters) |
32.5 |
Loader Arms |
Vertical Lift |
Manufacturer's Gross HP Rating (HP) |
24.7 |
Manufacturer's Gross HP Rating (kW) |
18.4 |
Max Operating Height (cm) |
269.7 |
Max Operating Height (inches) |
106.2 |
Oil Capacity (liters) |
3.6 |
Oil Capacity (quarts) |
3.8 |
Overall Height w/bucket (cm) |
138.4 |
Overall Height w/bucket (inches) |
54.5 |
Overall Height w/o bucket (cm) |
138.4 |
Overall Height w/o bucket (inches) |
54.5 |
Overall Length w/bucket (cm) |
264.2 |
Overall Length w/bucket (inches) |
104 |
Overall Length w/o bucket (cm) |
210.8 |
Overall Length w/o bucket (inches) |
83 |
Overall Width w/bucket (cm) |
107.2 |
Overall Width w/bucket (inches) |
42.2 |
Overall Width w/o bucket (cm) |
101.3 |
Overall Width w/o bucket (inches) |
39.9 |
Rated Operating Capacity* (kg) |
453 |
Rated Operating Capacity* (lbs) |
1000 |
Reach – Fully Raised (cm) |
59.2 |
Reach – Fully Raised (inches) |
23.3 |
Track Length (inches) |
126.6 |
Track Length(cm) |
321.6 |
Track Width (cm) |
23.1 |
Track Width (inches) |
9.1 |
Tracks |
MERT Track With Turf Friendly Style Tread |
Traction |
Dual Hydrostatic Pump |
Weight (kg) |
1320 |
Weight (lbs) |
2911 |
Wheelbase (inches) |
39 |
Disclaimer
*Per ISO 14397-1
