- Patented TX control system
- Compact footprint fits through standard 36" gates
- Liquid-Cooled Kubota diesel engine

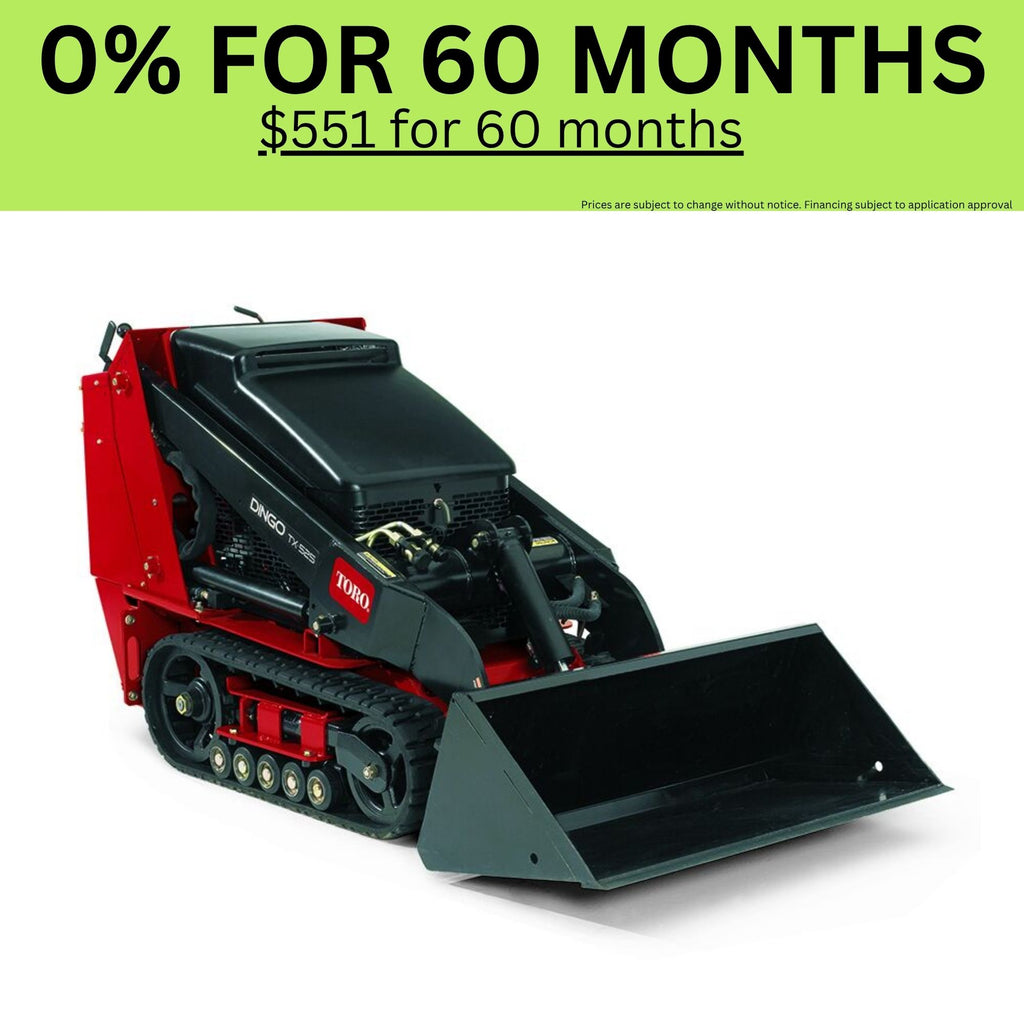

Diesel. Done Right. Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachments, yet has a ground pressure as low as 5.2 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.
Specifications
| Air Filter |
Two-stage, heavy-duty, remote |
| Cooling System |
Liquid Cooled |
| Displacement (cc) |
901 |
| Displacement (cu. in.) |
55 |
| Dump Angle |
38 degrees |
| Dump Height (cm) |
117.1 |
| Dump Height (inches) |
46.1 |
| Engine Make |
Kubota |
| Engine Model |
D902E3B |
| Fuel Tank (gallons) |
6 |
| Fuel Tank (liters) |
23 |
| Fuel Type |
Diesel |
| Ground Clearance (cm) |
11.6 |
| Ground Clearance (inches) |
4.6 |
| Ground Pressure |
5.2 psi |
| Ground Speed Forward (mph) |
4.5 |
| Ground Speed Foward (km/h) |
7.2 |
| Ground Speed Reverse (km/h) |
3.2 |
| Ground Speed Reverse (mph) |
2 |
| Hinge Pin Height (cm) |
167.1 |
| Hinge Pin Height (inches) |
65.8 |
| Hydraulic Flow |
16.9 gpm (each pump) |
| Hydraulic Flow Auxilary |
13.8 gpm |
| Loader Arms |
Radial |
| Manufacturer's Gross HP Rating (HP) |
24.8 |
| Manufacturer's Gross HP Rating (kW) |
18.5 |
| Max Operating Height (cm) |
228.8 |
| Max Operating Height (inches) |
90.1 |
| Oil Capacity (liters) |
3.63 |
| Oil Capacity (quarts) |
3.84 |
| Overall Height w/bucket (cm) |
117 |
| Overall Height w/bucket (inches) |
46.1 |
| Overall Height w/o bucket (cm) |
117 |
| Overall Height w/o bucket (inches) |
46.1 |
| Overall Length w/bucket (cm) |
233.6 |
| Overall Length w/bucket (inches) |
92 |
| Overall Length w/o bucket (cm) |
179.5 |
| Overall Length w/o bucket (inches) |
70.7 |
| Overall Width w/bucket (cm) |
86.5 |
| Overall Width w/bucket (inches) |
33.7 |
| Overall Width w/o bucket (cm) |
86.5 |
| Overall Width w/o bucket (inches) |
33.7 |
| Rated Operating Capacity* (kg) |
250 |
| Rated Operating Capacity* (lbs) |
553 |
| Reach – Fully Raised (cm) |
55.3 |
| Reach – Fully Raised (inches) |
21.8 |
| Reservoir Capacity (gallons) |
10 |
| Reservoir Capacity (liters) |
37.8 |
| RPM |
3400 |
| Track Length (inches) |
96.6 |
| Track Length(cm) |
245.3 |
| Track Width (cm) |
14.9 |
| Track Width (inches) |
5.9 |
| Tracks |
Sprocket-drive, 10 road wheels per side |
| Traction |
Dual Hydrostatic Pump |
| Weight (kg) |
863 |
| Weight (lbs) |
1904 |
| Wheelbase (inches) |
31.2 |
Disclaimer
*Per ISO 14397-1
