- Compact footprint
- Patented traction control
- Camso track system with less aggressive tread pattern that minimizes turf damage

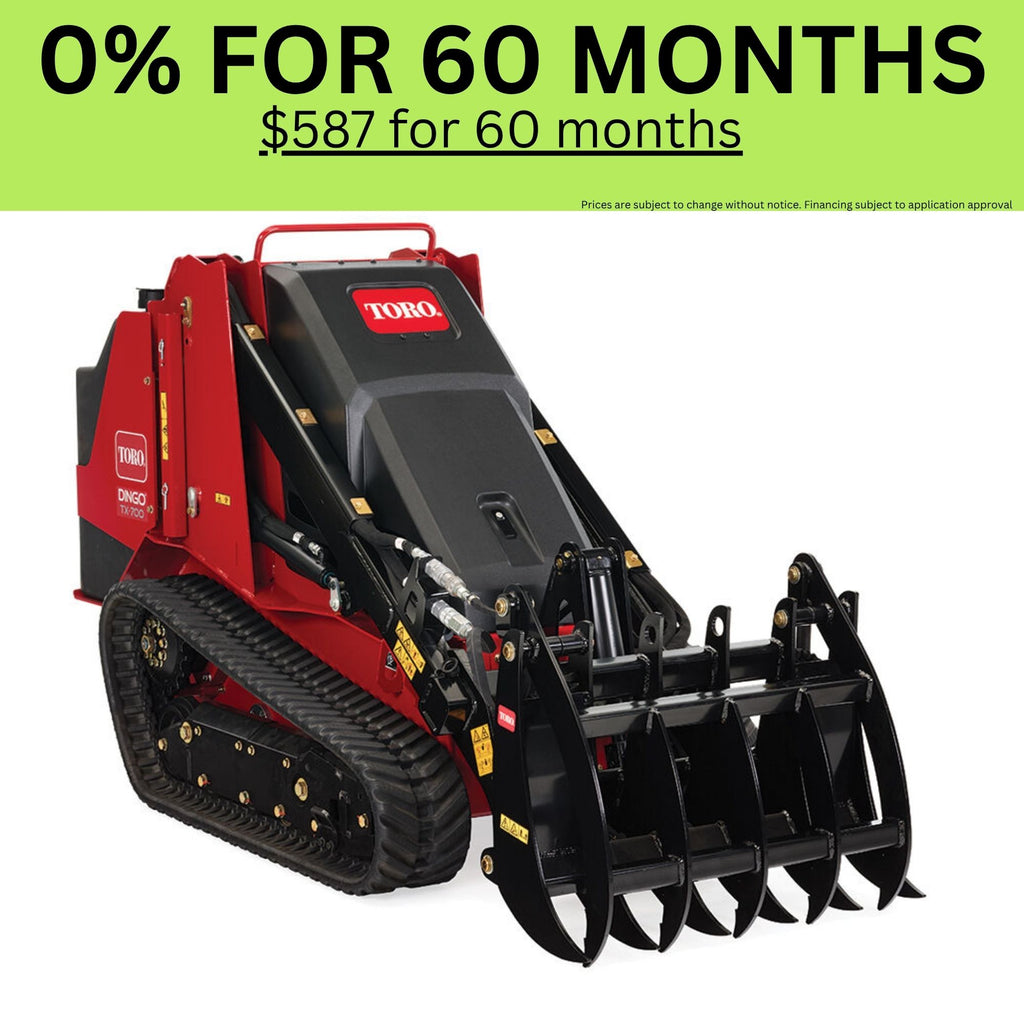

Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.
Specifications
Air Filter |
Dual Element |
Cooling System |
Combo Crossflow Radiator and Oil Cooler |
Dump Angle |
42 degrees |
Dump Height (cm) |
134.4 |
Dump Height (inches) |
52.9 |
Engine Make |
Yanmar |
Engine Model |
3TNV80F |
Fuel Tank (gallons) |
5.5 |
Fuel Tank (liters) |
20.8 |
Fuel Type |
Diesel |
Ground Clearance (cm) |
13.3 |
Ground Clearance (inches) |
5.25 |
Ground Pressure |
8 psi |
Ground Speed Forward (mph) |
4 |
Ground Speed Foward (km/h) |
6.4 |
Ground Speed Reverse (km/h) |
6.4 |
Ground Speed Reverse (mph) |
4 |
Hinge Pin Height (cm) |
186.7 |
Hinge Pin Height (inches) |
73.5 |
Hydraulic Flow |
14.5 gpm (each pump) |
Hydraulic Flow Auxilary |
13.7 gpm |
Loader Arms |
Radial |
Manufacturer's Gross HP Rating (HP) |
24.7 |
Manufacturer's Gross HP Rating (kW) |
18 |
Max Operating Height (cm) |
246.4 |
Max Operating Height (inches) |
97 |
Oil Capacity (liters) |
3.4 |
Oil Capacity (quarts) |
3.6 |
Overall Height w/bucket (cm) |
140.5 |
Overall Height w/bucket (inches) |
55.3 |
Overall Height w/o bucket (cm) |
140.5 |
Overall Height w/o bucket (inches) |
55.3 |
Overall Length w/bucket (cm) |
261.1 |
Overall Length w/bucket (inches) |
102.8 |
Overall Length w/o bucket (cm) |
208.3 |
Overall Length w/o bucket (inches) |
82 |
Overall Width w/bucket (cm) |
105.2 |
Overall Width w/bucket (inches) |
41.4 |
Overall Width w/o bucket (cm) |
102.1 |
Overall Width w/o bucket (inches) |
40.2 |
Rated Operating Capacity* (kg) |
321 |
Rated Operating Capacity* (lbs) |
708 |
Reach – Fully Raised (cm) |
78.7 |
Reach – Fully Raised (inches) |
31 |
Reservoir Capacity (gallons) |
10 |
Reservoir Capacity (liters) |
37.9 |
RPM |
3000 |
Track Length (inches) |
126.6 |
Track Length(cm) |
321.5 |
Track Width (cm) |
23.1 |
Track Width (inches) |
9.1 |
Tracks |
Camso Turf Friendly |
Traction |
Dual Hydrostatic Pump |
Weight (kg) |
1298 |
Weight (lbs) |
2862 |
Wheelbase (inches) |
39 |
Disclaimer
*Per ISO 14397-1
