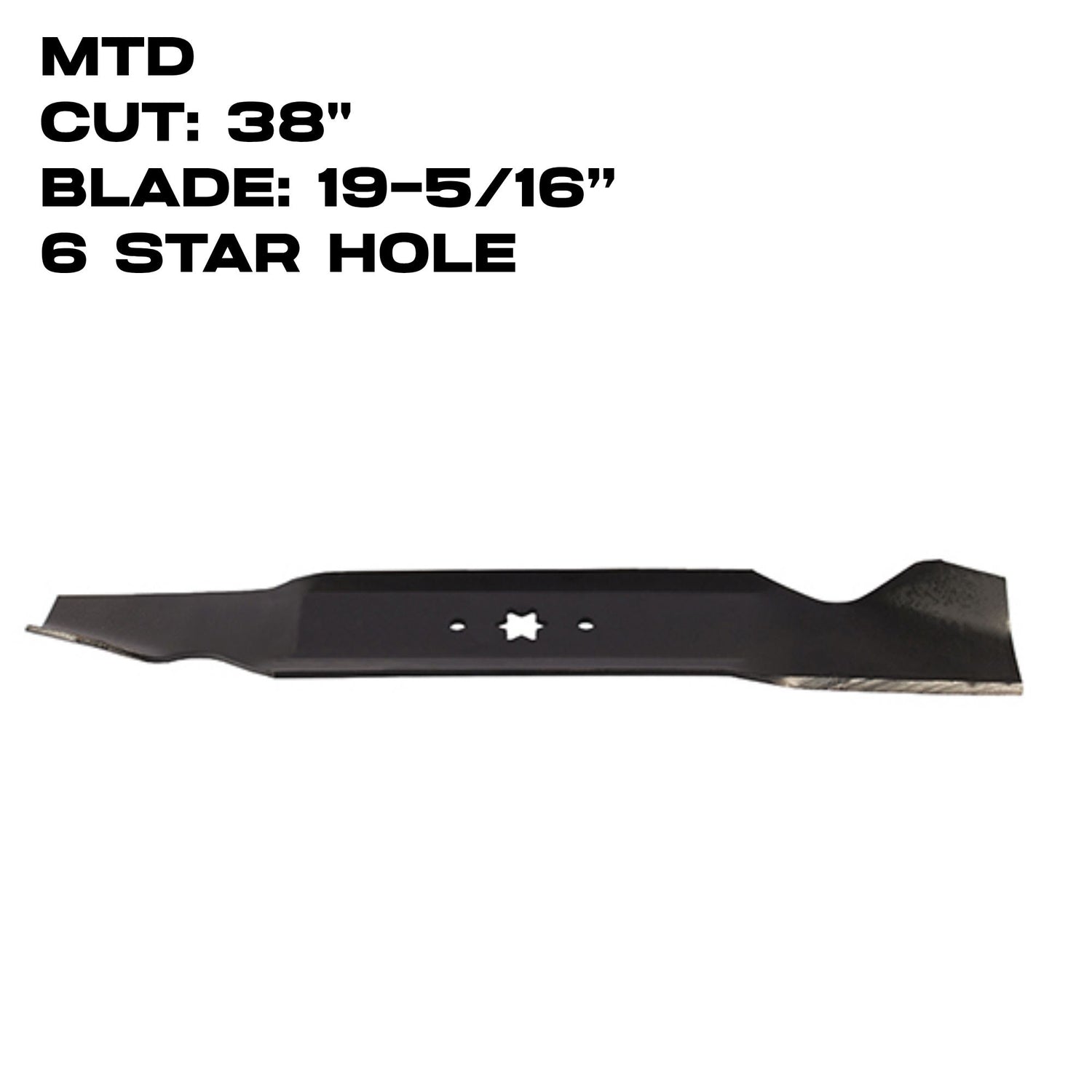

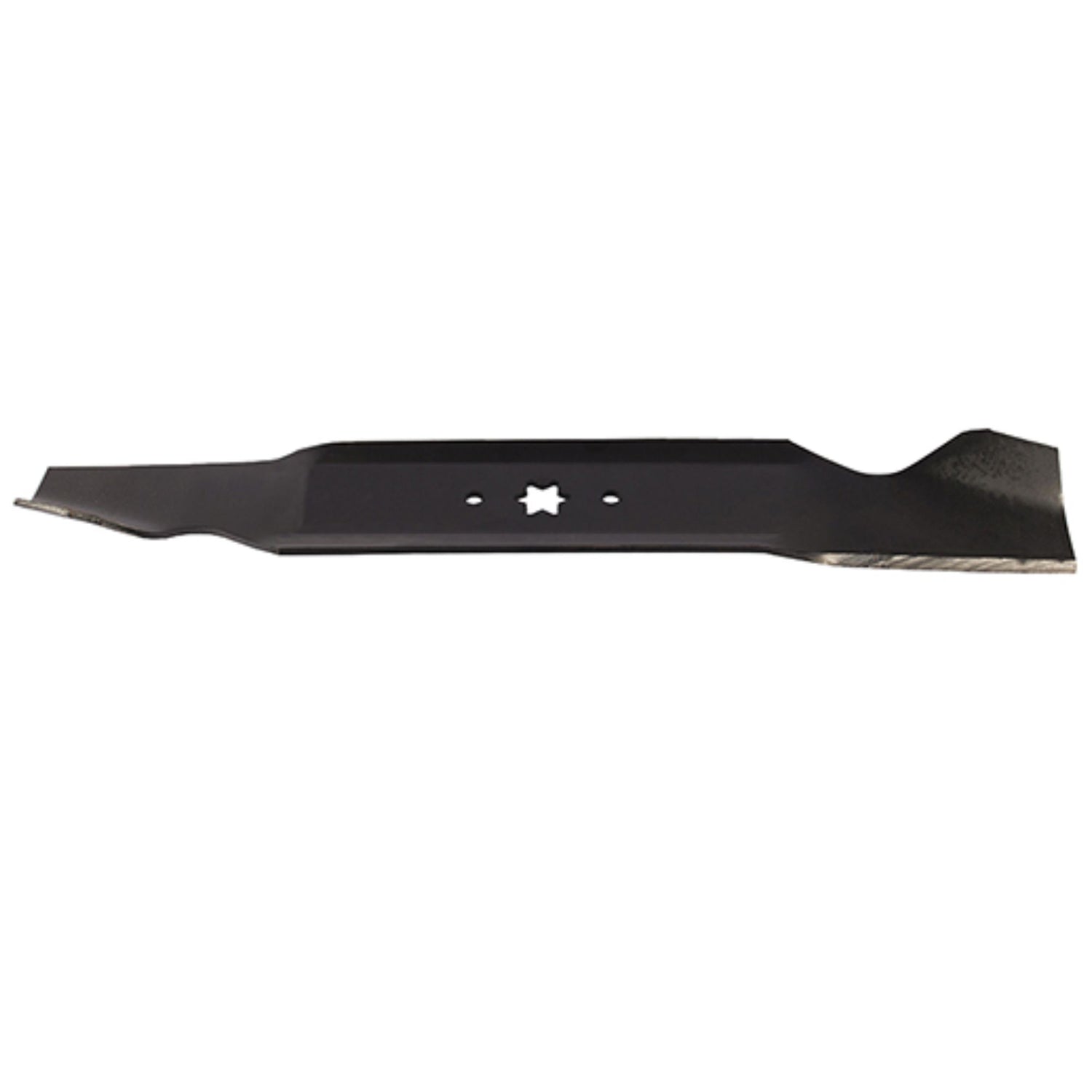

Rotary Blade | 19-5/16" X 6 Point Star | 38" Deck | MTD | 1024
Rotary Blade | 19-5/16" X 6 Point Star | 38" Deck | MTD | 1024 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Requires (2) for 38" Cut MTD.
Replaces
MTD: 742-0610, 942-0610, 742-0610A, 942-0654, 942-0610A
Fits Models
MTD: 13AM762F031, 13WV77TF090, LT3812 13BC77KF897, 13AM762F065, 13W1762F065, 13BC762F000, 13A2682F190 LT-15, 13A1762F700, 13AO785T055, 13AC762F729, 13AN79GF897, 13AM762F765, 13AA662F190 LT-13, 13A8693F190 LT-145, 13CP693F190 LT-1450, 13A1762F029, 13AV76GF897, 1
MURRAY: 13BC76LF058
Dimensions and Specifications
| CUT DIRECTION | CLOCKWISE (RIGHT) |
|---|---|
| DIAMETER OF OUTSIDE HOLES | 5/16" |
| THICKNESS | 0.158" |
| LENGTH | 19-5/16" |
| WIDTH | 3" |
| CENTER TO CENTER (MOUNTING HOLES) | 2-1/2" |
| HOLE/INNER DIAMETER | 6 POINT STAR |
Rotary Blade | 19-5/16" X 6 Point Star | 38" Deck | MTD |...
Description
Description
Requires (2) for 38" Cut MTD.
Replaces
MTD: 742-0610, 942-0610, 742-0610A, 942-0654, 942-0610A
Fits Models
MTD: 13AM762F031, 13WV77TF090, LT3812 13BC77KF897, 13AM762F065, 13W1762F065, 13BC762F000, 13A2682F190 LT-15, 13A1762F700, 13AO785T055, 13AC762F729, 13AN79GF897, 13AM762F765, 13AA662F190 LT-13, 13A8693F190 LT-145, 13CP693F190 LT-1450, 13A1762F029, 13AV76GF897, 1
MURRAY: 13BC76LF058
Dimensions and Specifications
| CUT DIRECTION | CLOCKWISE (RIGHT) |
|---|---|
| DIAMETER OF OUTSIDE HOLES | 5/16" |
| THICKNESS | 0.158" |
| LENGTH | 19-5/16" |
| WIDTH | 3" |
| CENTER TO CENTER (MOUNTING HOLES) | 2-1/2" |
| HOLE/INNER DIAMETER | 6 POINT STAR |
