Rotary  |  SKU: 14420

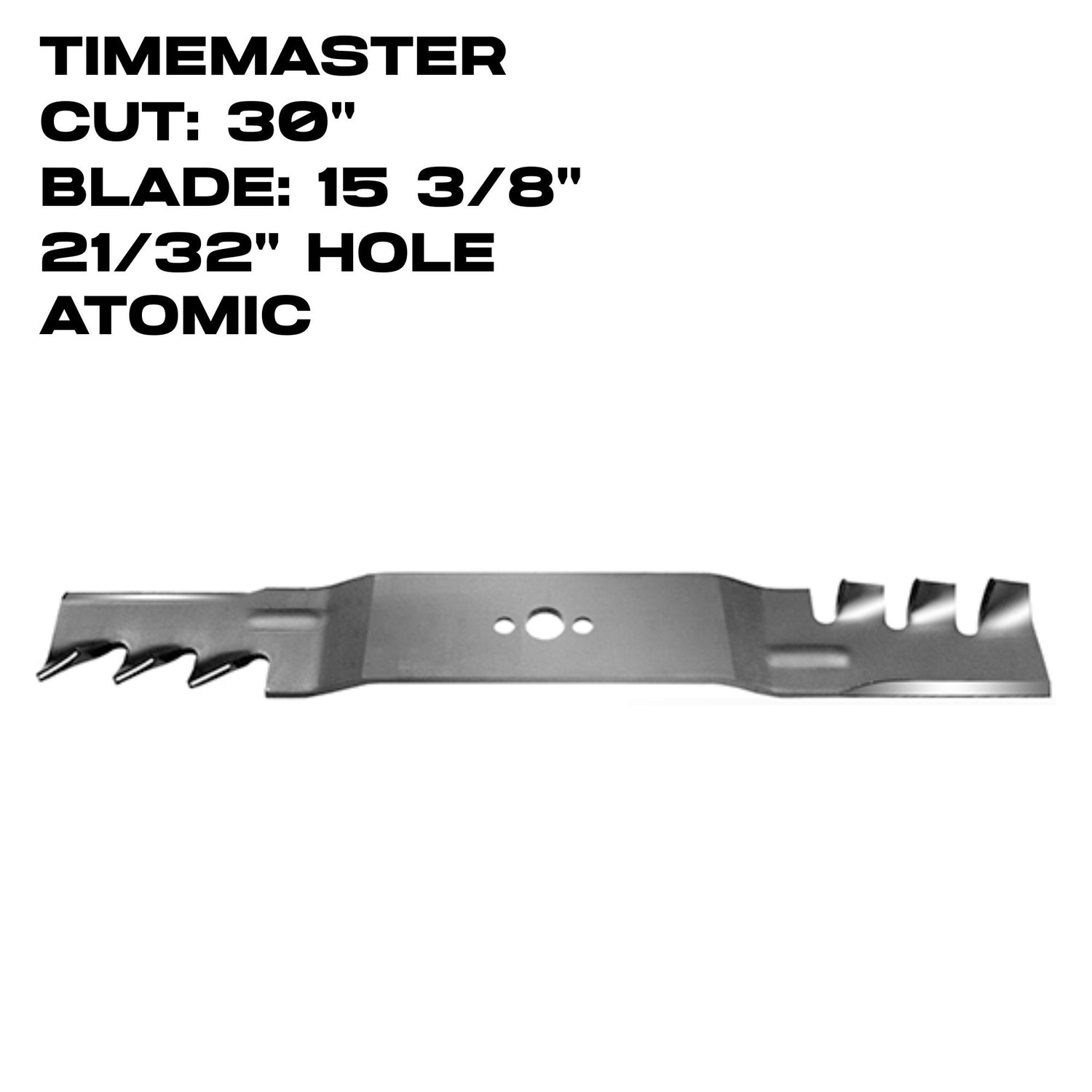

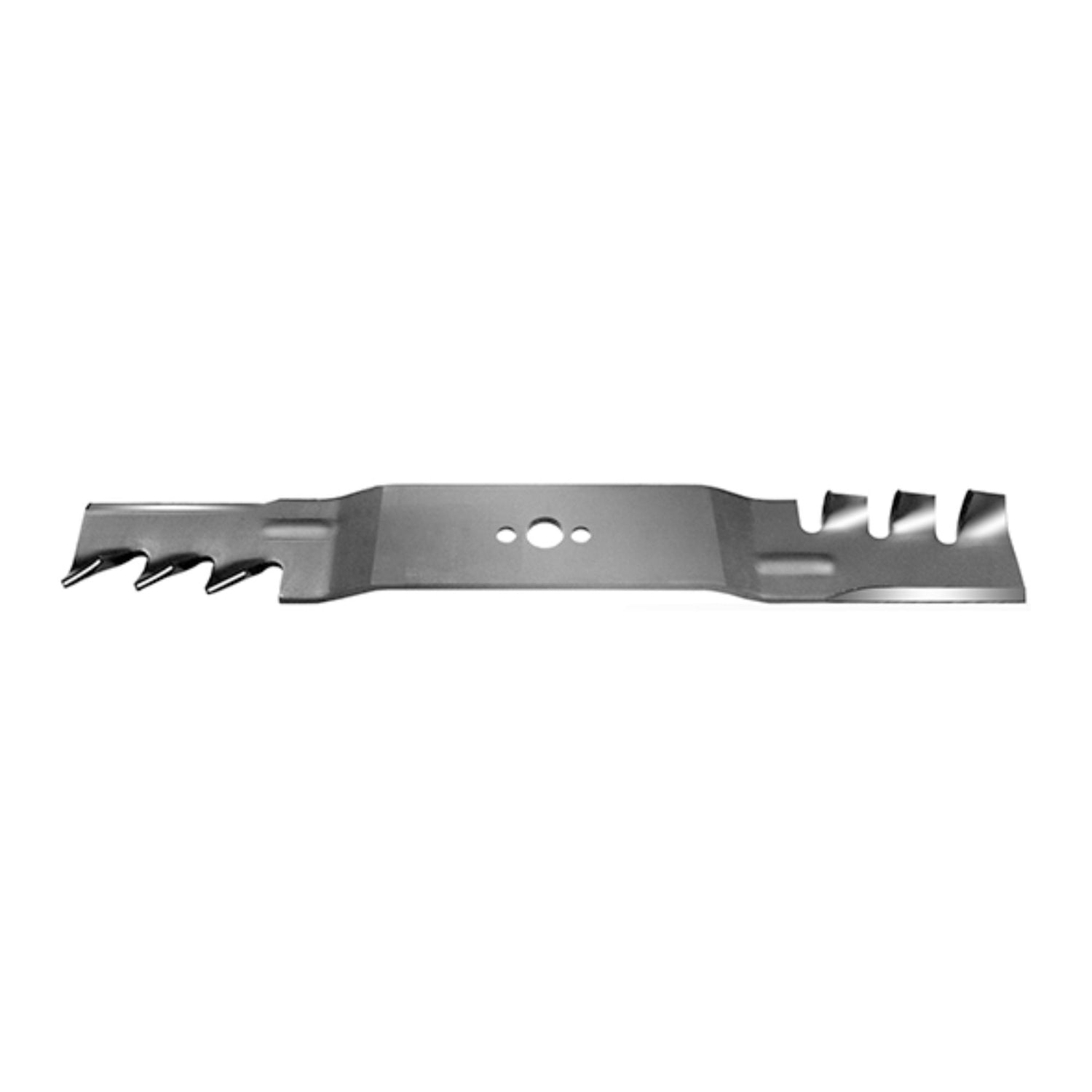

Rotary Copperhead Mulcher Blade | TimeMaster | 15-3/8 Inch | 30" Deck | 14420

$2099
Taxes and shipping calculated at checkout.

Rotary Copperhead Mulcher Blade | TimeMaster | 15-3/8 Inch | 30" Deck | 14420 is backordered and will ship as soon as it is back in stock.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Copperhead Mulcher Blade replaces Toro 120-9500-03 & Exmark 116-6358-03 PATENTED Commercial Mulcher blade. Fits 30" TimeMaster 30. Model #'s 20199 & 20200. Fits Model # ECKA30 (EXM-591-8414). Requires (2) for 30" Cut.

Technical Specifications
Center Hole Size: The center hole diameter is 21/32".
Blades Needed for Full Deck Replacement: Two blades are required for a full replacement on a compatible deck.
Compatible Mower Deck Size: This blade fits 30" cut mower decks.
Blade Dimensions:
Length: 15 3/8".
Width: 2 1/4".
Thickness: 0.1500" or 0.1580" (sources vary slightly).
Outer Hole Diameter: 0.3020".
Blade Type: This is an aftermarket replacement commercial toothed mulching lawn mower blade (also referred to as a "Copperhead Mulcher Blade").
Compatible Toro Mowers: It is compatible with the following Toro models:
Toro Timemaster 30 models 20199 and 20200.
It also fits the Exmark ECKA30 model.

Replaces

  • EXMARK: 116-6358-03
  • TORO: 120-9500-03

Fits Models

  • TORO: 20199, 20200, Timemaster 20199, Timemaster 20200
  • EXMARK: ECKA30
Dimensions and Specifications
WIDTH 2-1/4"
THICKNESS 0.1580"
LENGTH 15-3/8"
C. H. DIA 21/32"
DIAMETER OF OUTSIDE HOLES 0.3020"

Description

Copperhead Mulcher Blade replaces Toro 120-9500-03 & Exmark 116-6358-03 PATENTED Commercial Mulcher blade. Fits 30" TimeMaster 30. Model #'s 20199 & 20200. Fits Model # ECKA30 (EXM-591-8414). Requires (2) for 30" Cut.

Technical Specifications
Center Hole Size: The center hole diameter is 21/32".
Blades Needed for Full Deck Replacement: Two blades are required for a full replacement on a compatible deck.
Compatible Mower Deck Size: This blade fits 30" cut mower decks.
Blade Dimensions:
Length: 15 3/8".
Width: 2 1/4".
Thickness: 0.1500" or 0.1580" (sources vary slightly).
Outer Hole Diameter: 0.3020".
Blade Type: This is an aftermarket replacement commercial toothed mulching lawn mower blade (also referred to as a "Copperhead Mulcher Blade").
Compatible Toro Mowers: It is compatible with the following Toro models:
Toro Timemaster 30 models 20199 and 20200.
It also fits the Exmark ECKA30 model.

Replaces

  • EXMARK: 116-6358-03
  • TORO: 120-9500-03

Fits Models

  • TORO: 20199, 20200, Timemaster 20199, Timemaster 20200
  • EXMARK: ECKA30
Dimensions and Specifications
WIDTH 2-1/4"
THICKNESS 0.1580"
LENGTH 15-3/8"
C. H. DIA 21/32"
DIAMETER OF OUTSIDE HOLES 0.3020"
