Toro  |  SKU: 72504

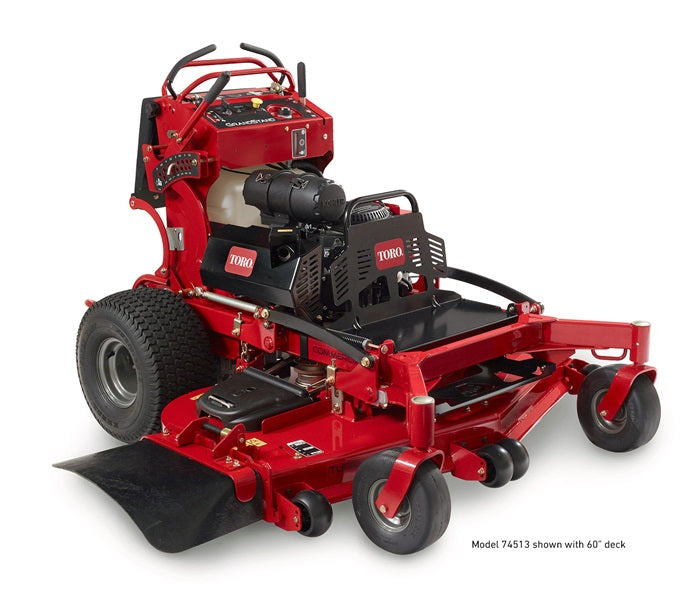

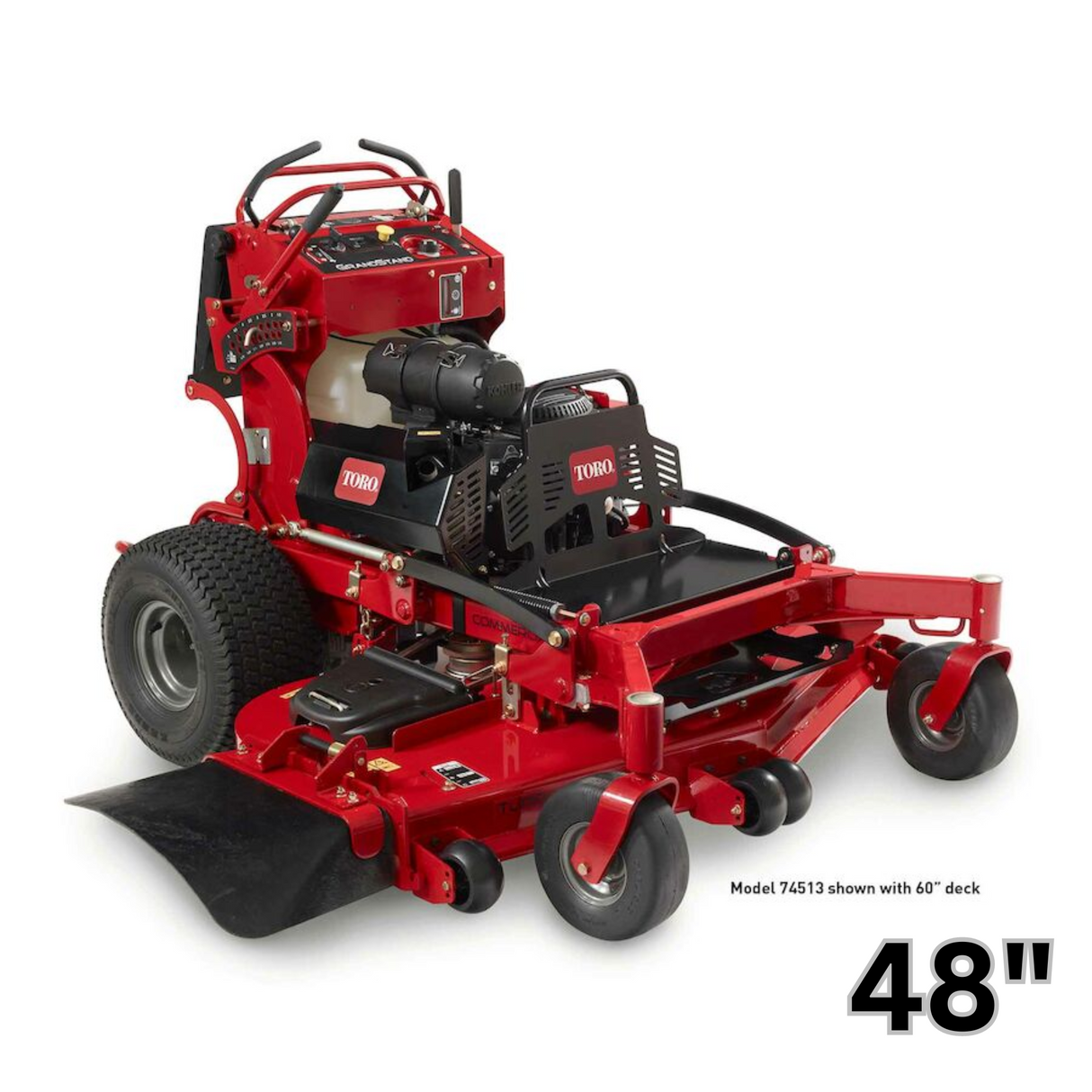

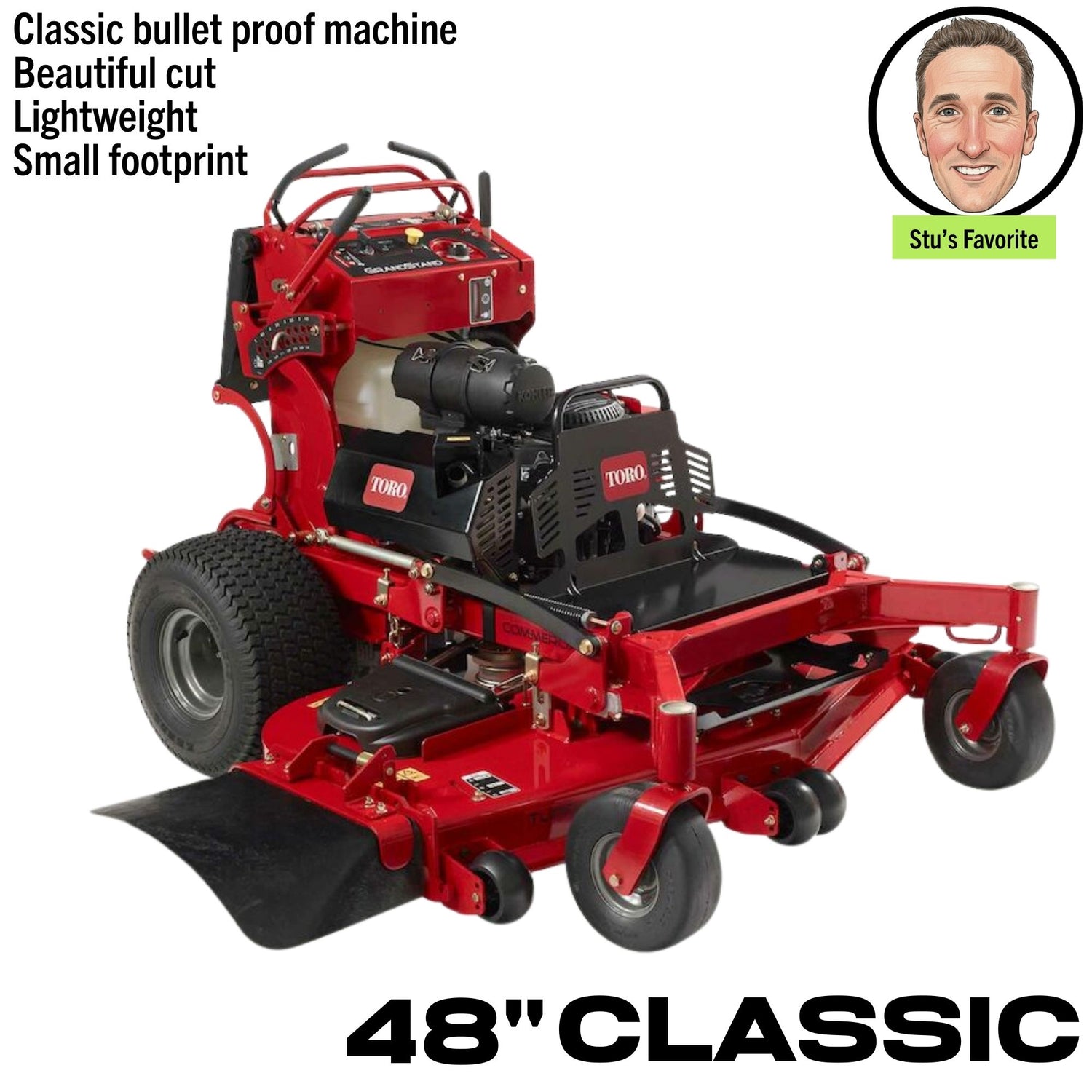

Toro Grandstand | 48" Deck | Kawasaki Stand On Mower | 72504

$12,39900
Taxes and shipping calculated at checkout.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

  • Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
  • Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
  • Toro's foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
  • Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki FX 726cc engine.

Specifications

Adjustable Discharge Baffle Standard
Air Filter Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels Optional
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
Clutch Electromagnetic
Comfort Platform Foldable Operator Platform with Suspension
Controls Twin lever
Deck Design 80-grade 7-gauge 48" (122 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 7 Gauge Steel
Deck Size 48 in / 122 cm
Discharge Chute Rubber
Drive System Unitized Pumps 10cc rev Wheel Motors 10 cir
Drive Tires 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
Engine 22 hp (16.4kW) Kawasaki FX691V 726 cc
Engine Brand Kawasaki
Engine Displacement (cc) 726 cc
Engine Horsepower 22.0 hp
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 10.5 gal. / 39.7 L / 42 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm
Hour Meter Standard
Hydraulic Fluid Premium synthetic
Product Type Stand-On Mowers
Product Use Commercial
Spindle Bearings Maintenance-free
Spindle Housing 9.375 in / 23.8 cm Diameter Cast Iron
Start Type Electric
Steering Controls Twin Lever
Weight 875 lbs / 396.9 kg



Maintenance Service Interval Maintenance Procedure
After the first 8 hours
  • Change the engine oil.
  • Check the hydraulic-fluid level.
After the first 50 hours
  • Change the hydraulic filters and hydraulic fluid.
After the first 100 hours
  • Check the wheel-lug nuts.
Before each use or daily
  • Check the safety-interlock system.
  • Check the engine-oil level.
  • Clean the air-intake screen (more often in dirty or dusty conditions).
  • Test the parking brake.
  • Inspect the blades.
  • Clean under the mower deck.
  • Wash the machine, especially after winter applications.
Every 50 hours
  • Check the spark arrester (if equipped).
  • Check the tire pressure.
  • Check the hydraulic-fluid level.
Every 100 hours
  • Change the engine oil.
  • Check, clean and gap the spark plug.
  • Check the battery.
  • Check the clutch.
  • Check and clean the engine cooling fins and shrouds (more often in dirty or dusty conditions).
  • Check the mower-deck belt(s).
Every 200 hours
  • Change the engine-oil filter.
Every 250 hours
  • Replace the primary air filter (more often in dirty or dusty conditions).
  • Check the inner air filter (more often in dirty or dusty conditions).
Every 300 hours
  • Check and adjust the valve clearance. Contact an Authorized Service Dealer.
Every 500 hours
  • Replace the inner air filter (more often in dirty or dusty conditions).
  • Adjust the caster-pivot bearing.
  • Change the hydraulic filters and hydraulic fluid.
Every 800 hours
  • Replace the fuel filter.
Every 1,000 hours
  • Replace the transmission belt.
Before storage
  • Paint chipped surfaces.
  • Perform all maintenance procedures listed above before storage.
Yearly
  • Grease the torsion idler.
  • Grease the front caster pivots (more often in dirty or dusty conditions).
  • Grease the caster-wheel hubs.
  • Grease the motion controls.
  • Apply anti-seize compound to the cushion knobs.
