Toro | SKU: 72514

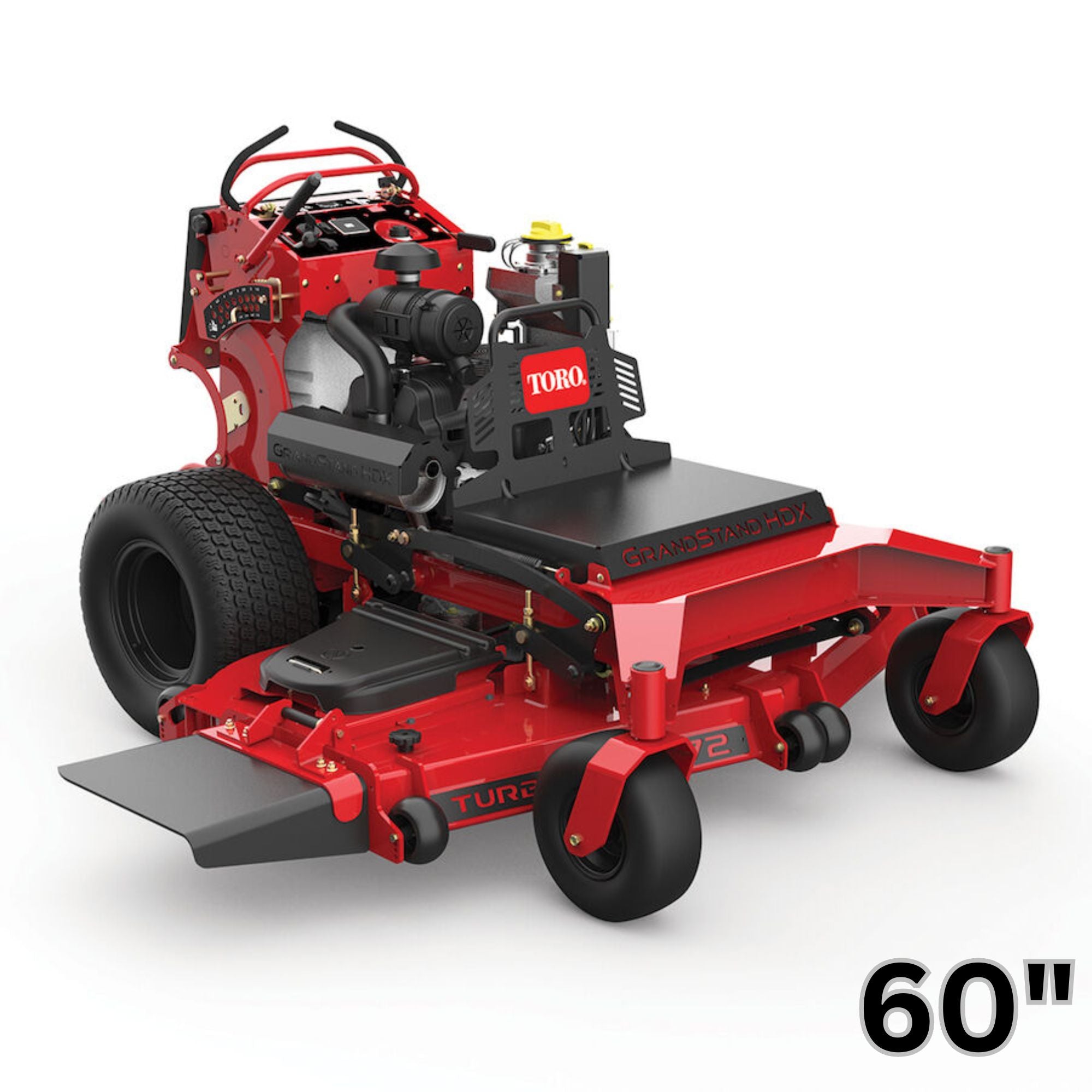

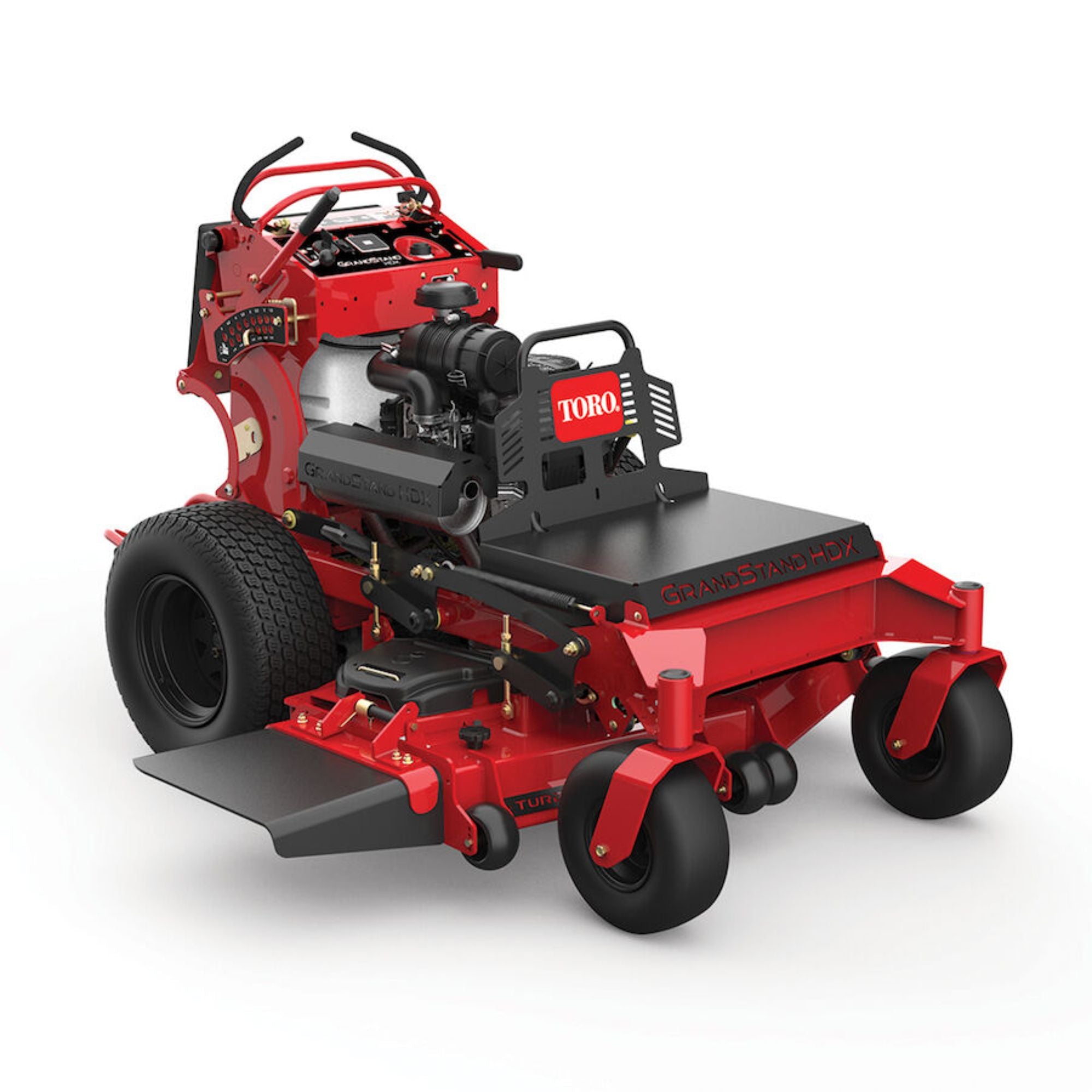

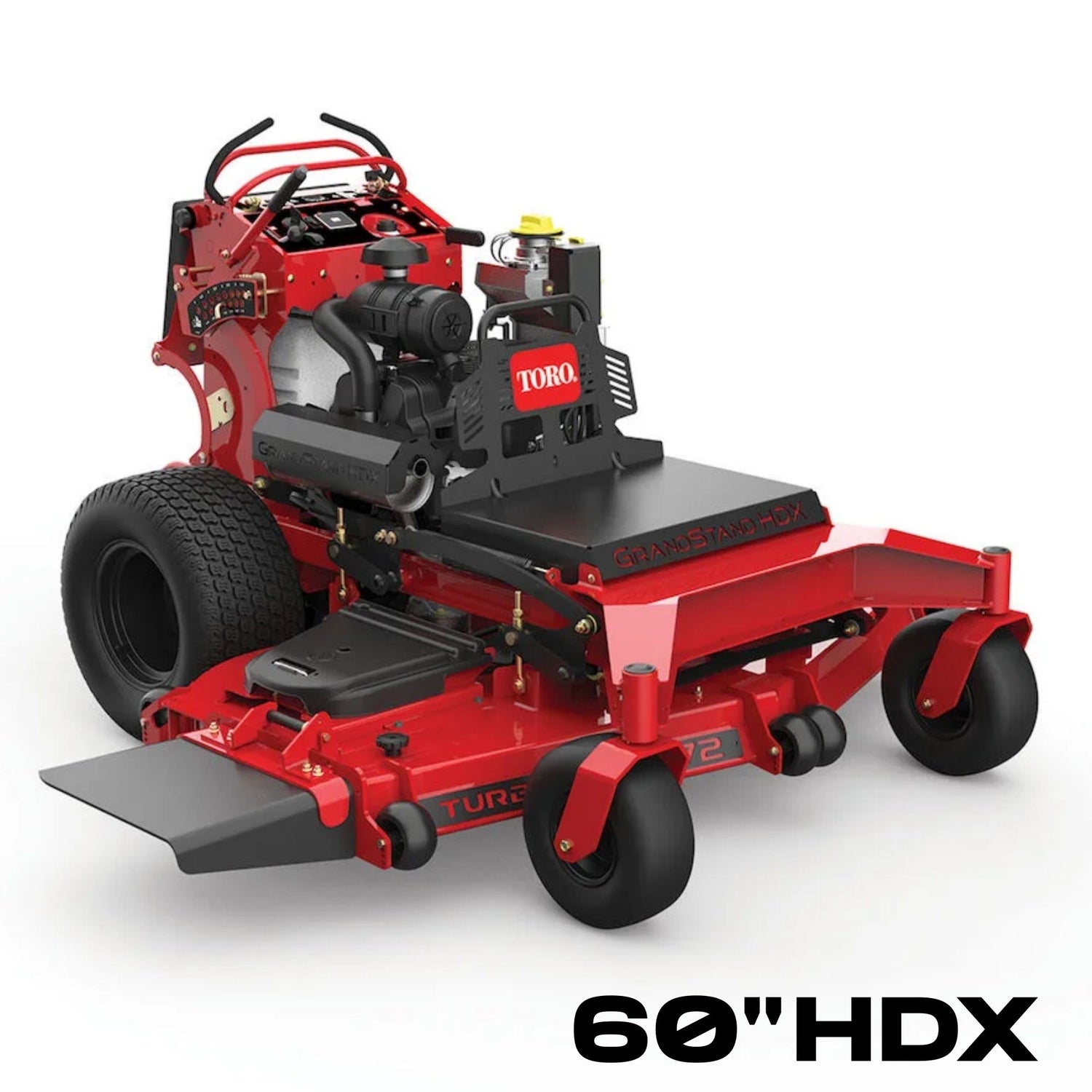

Toro GrandStand HDX | 60 in. Deck | 37 hp 993 cc EFI with Oil Guard | 72514

Name: Toro GrandStand HDX | 60 in. Deck | 37 hp 993 cc EFI with Oil Guard | 72514
Brand: Toro
SKU: 72514
Price: 16699.00 USD
Availability: InStock

$16,699⁰⁰

Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

The TURBO FORCE^® cutting deck is built to withstand the long, tough days on the job.
24" tires with big block horsepower allow you to travel at 12 mph.
More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
The 7 gauge TURBO FORCE^® deck with the i-beam front end is built to last and backed by our impressive warranty.
Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
A wide stance and optimal balance enhance hillside stability and control.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle	Standard, Tools-Free
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	Standard
Blade Design	0.204 in. / 0.518 cm
Box Dimensions	91 in. x 70 in. x 52.5 in. / 231.1 cm x 117.8 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Caster Tires	13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Comfort Platform	Foldable Operator Platform with Suspension
Deck Design	7-gauge 60" (152 cm) TURBO FORCE® 2 w/bull-nose bumper
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive System	Tuff Torq TZT13s 13cc IHTs
Drive Tires	24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine	37 hp Briggs & Stratton Vanguard 993 cc EFI
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	993 cc
Engine Horsepower	37 hp
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Capacity	10.5 gal. / 39.7 L / 42 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hour Meter	Standard
Number of Blades	3
Product Type	Stand-On Mowers
Product Use	Commercial
Reverse Ground/Transport Speed	Up to 5.0 mph / 8.0 kph
Spindle Bearings	Greaseless Ball Bearings
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	Twin Lever
Weight	1,120 lbs / 508 kg

Maintenance Service Interval	Maintenance Procedure
After the first 8 hours	Check the hydraulic-fluid level.
After the first 50 hours	Change the hydraulic filters and hydraulic fluid.
After the first 100 hours	Check the wheel-lug nuts.
Before each use or daily	Check the safety-interlock system. Check the engine-oil level. Clean the air-intake screen (more often in dirty or dusty conditions). Test the parking brake. Inspect the blades. Clean under the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure. Check the hydraulic-fluid level.
Every 100 hours	Check the battery. Check the clutch. Check and clean the engine cooling fins and shrouds (more often in dirty or dusty conditions). Check the mower-deck belt(s).
Every 100 hours or yearly, whichever comes first	Clean the primary air filter(more often in dirty or dusty conditions). Replace or clean and gap the spark plug.
Every 250 hours	Check the valve clearance. Adjust if necessary.
Every 400 hours	Replace the fuel filter. Check the transmission belt.
Every 400 hours or yearly, whichever comes first	Replace the primary air filter(more often in dirty or dusty conditions).
Every 500 hours	Change the engine oil and filter(more often in dirty or dusty conditions). Adjust the caster-pivot bearing. Change the hydraulic filters and hydraulic fluid.
Every 600 hours	Replace the safety air filter(more often in dirty or dusty conditions).
Every 1,000 hours	Replace the transmission belt.
Before storage	Paint chipped surfaces. Perform all maintenance procedures listed above before storage.
Yearly	Grease the front caster pivots (more often in dirty or dusty conditions). Grease the caster-wheel hubs. Grease the motion controls. Apply anti-seize compound to the cushion knobs. Apply dielectric grease to the battery terminals.

Description

The TURBO FORCE^® cutting deck is built to withstand the long, tough days on the job.
24" tires with big block horsepower allow you to travel at 12 mph.
More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
The 7 gauge TURBO FORCE^® deck with the i-beam front end is built to last and backed by our impressive warranty.
Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
A wide stance and optimal balance enhance hillside stability and control.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle	Standard, Tools-Free
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	Standard
Blade Design	0.204 in. / 0.518 cm
Box Dimensions	91 in. x 70 in. x 52.5 in. / 231.1 cm x 117.8 cm x 133.4 cm
CARB Compliant	Not CARB Compliant
Caster Tires	13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Comfort Platform	Foldable Operator Platform with Suspension
Deck Design	7-gauge 60" (152 cm) TURBO FORCE® 2 w/bull-nose bumper
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive System	Tuff Torq TZT13s 13cc IHTs
Drive Tires	24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine	37 hp Briggs & Stratton Vanguard 993 cc EFI
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	993 cc
Engine Horsepower	37 hp
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Capacity	10.5 gal. / 39.7 L / 42 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hour Meter	Standard
Number of Blades	3
Product Type	Stand-On Mowers
Product Use	Commercial
Reverse Ground/Transport Speed	Up to 5.0 mph / 8.0 kph
Spindle Bearings	Greaseless Ball Bearings
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	Twin Lever
Weight	1,120 lbs / 508 kg

Maintenance Service Interval	Maintenance Procedure
After the first 8 hours	Check the hydraulic-fluid level.
After the first 50 hours	Change the hydraulic filters and hydraulic fluid.
After the first 100 hours	Check the wheel-lug nuts.
Before each use or daily	Check the safety-interlock system. Check the engine-oil level. Clean the air-intake screen (more often in dirty or dusty conditions). Test the parking brake. Inspect the blades. Clean under the mower deck.
Every 50 hours	Check the spark arrester (if equipped). Check the tire pressure. Check the hydraulic-fluid level.
Every 100 hours	Check the battery. Check the clutch. Check and clean the engine cooling fins and shrouds (more often in dirty or dusty conditions). Check the mower-deck belt(s).
Every 100 hours or yearly, whichever comes first	Clean the primary air filter(more often in dirty or dusty conditions). Replace or clean and gap the spark plug.
Every 250 hours	Check the valve clearance. Adjust if necessary.
Every 400 hours	Replace the fuel filter. Check the transmission belt.
Every 400 hours or yearly, whichever comes first	Replace the primary air filter(more often in dirty or dusty conditions).
Every 500 hours	Change the engine oil and filter(more often in dirty or dusty conditions). Adjust the caster-pivot bearing. Change the hydraulic filters and hydraulic fluid.
Every 600 hours	Replace the safety air filter(more often in dirty or dusty conditions).
Every 1,000 hours	Replace the transmission belt.
Before storage	Paint chipped surfaces. Perform all maintenance procedures listed above before storage.
Yearly	Grease the front caster pivots (more often in dirty or dusty conditions). Grease the caster-wheel hubs. Grease the motion controls. Apply anti-seize compound to the cushion knobs. Apply dielectric grease to the battery terminals.
