- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

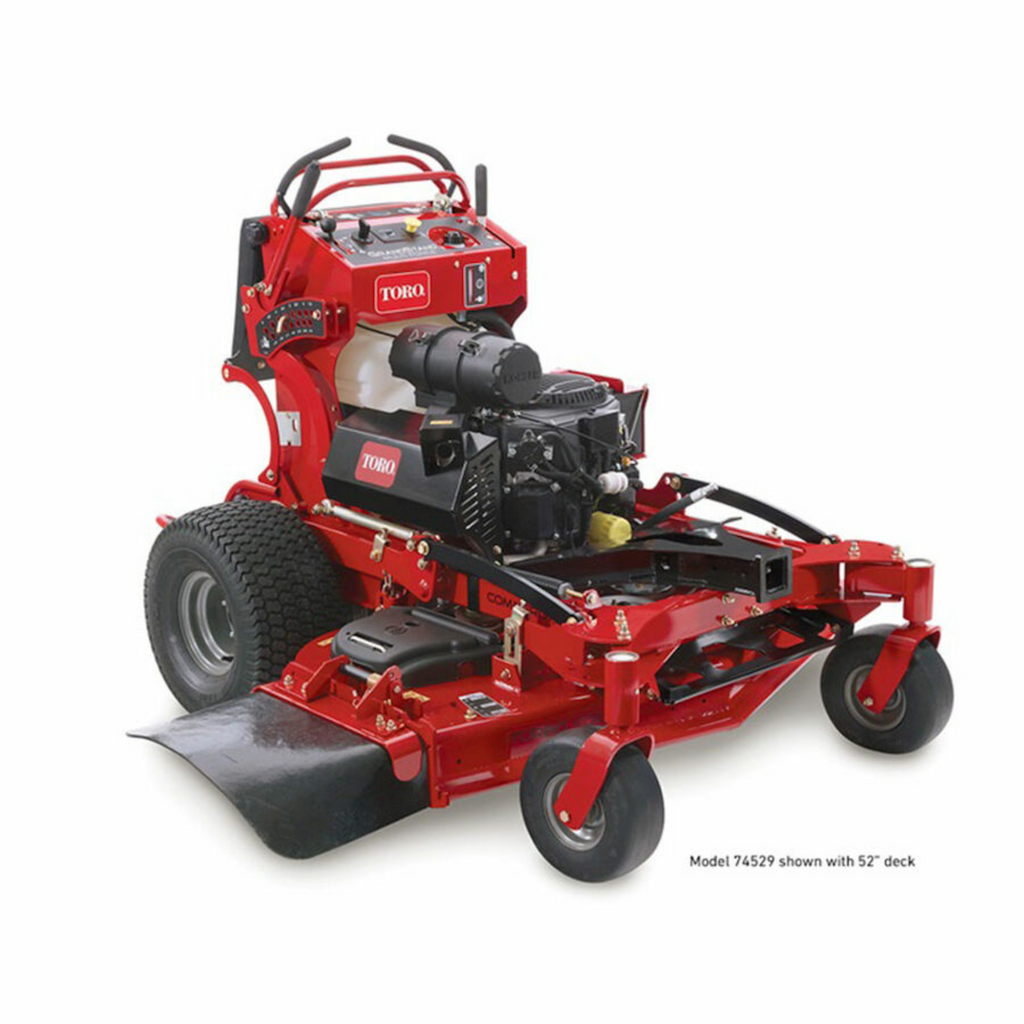

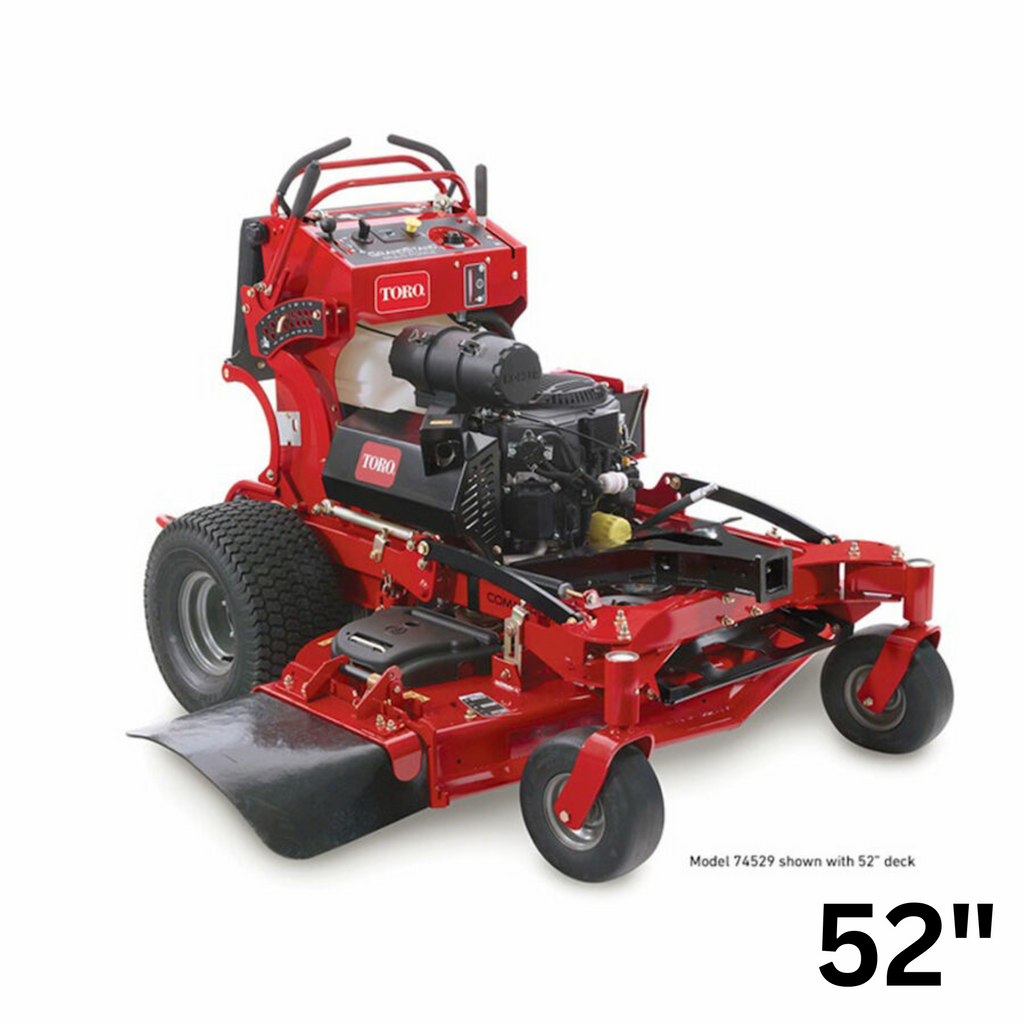

Now you can be more productive all-season long with the innovative Toro® GrandStand® MULTI FORCE stand-on mower that has the ability to attach a plow, power broom and bagging system. It features a 52 in. Turbo Force cutting and 26.5 hp Kohler EFI 747cc engine. It's designed to give you even more productivity. The smaller footprint takes up less space on the trailer when transporting. Mows 25% faster with speed up to 10 mph, has a 10.5 gallon fuel tank that allows you to go farther and work longer. We've eliminated the hydraulic hoses, reduced parts, no routine greasing and simplified the design to save you time. All GrandStand stand-on mowers give you exceptional operator visibility which leads to less property damage and a higher quality of work. Best of all, great traction on slopes and maneuverability.
Specifications
| Adjustable Discharge Baffle |
Standard, Tools-Free |
| Air Filter |
HD Canister |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| Blades |
0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions |
82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm |
| CARB Compliant |
Not CARB Compliant |
| Carrier Frame |
3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) |
| Caster Tires |
11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic |
| Clutch |
Electromagnetic |
| Comfort Platform |
Foldable Operator Platform with Suspension |
| Controls |
Twin lever |
| Cutting Width |
52 in / 132 cm |
| Deck Design |
80-grade 7-gauge 52" (132 cm) TURBO FORCE® w/bull-nose bumper |
| Deck Material |
7 Gauge Steel |
| Discharge Chute |
Rubber |
| Drive System |
Unitized Pumps 10cc rev Wheel Motors 10 cir |
| Drive Tires |
20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm) |
| Engine |
26.5 hp Kohler Command EFI 747 cc |
| Engine Brand |
Kohler |
| Engine Displacement (cc) |
747 cc |
| Engine Horsepower |
26.5 hp |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Front Bumper |
Reinforced Bull-Nose |
| Fuel Capacity |
10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hour Meter |
Standard Hour Meter |
| Hydraulic Fluid |
Premium synthetic |
| Product Type |
Stand-On Mowers |
| Product Use |
Commercial |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
9.375 in / 23.8 cm Diameter Cast Iron |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
