Toro | SKU: 34230

Toro SprayMaster Lean-to-Steer Spreader / Sprayer | Kohler | 34230

Name: Toro SprayMaster Lean-to-Steer Spreader / Sprayer | Kohler | 34230
Brand: Toro
SKU: 34230
Price: 13199.00 USD
Availability: OutOfStock

$13,199⁰⁰

Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Make Adjustments on the Fly - Control forward/reverse and left/right steering with one hand.

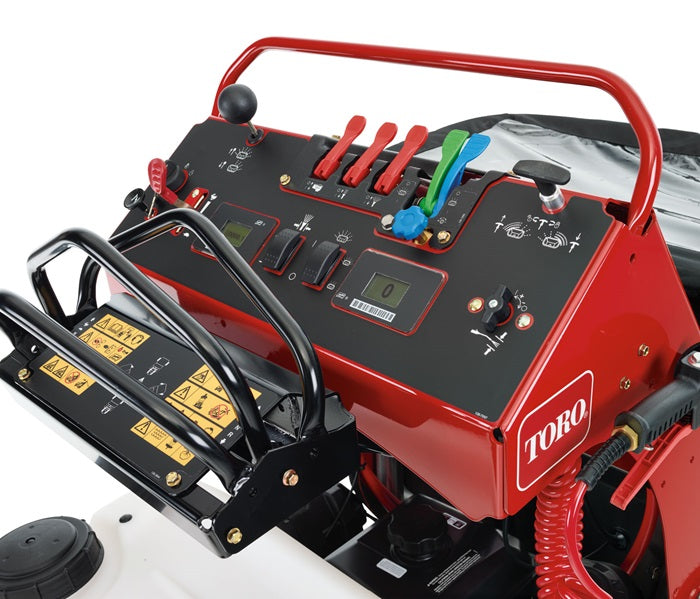

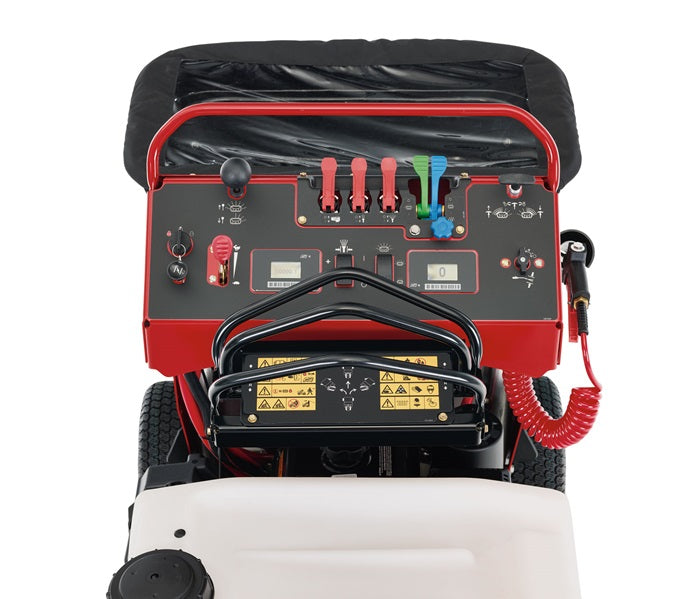

Easy-to-Use Controls - The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings.
Reduce Fatigue - Stand-on operator platform, isolation mounts and padded knee bolster for a comfortable ride
Increase Versatility - One multiuse machine that allows you to feed and treat all turf types and property sizes.

Treating turf can be a big job. Toro’s stand-on spreader sprayer makes that job a whole lot easier. It’s the industry’s most innovative product of its kind, featuring Lean To Steer technology so you can control the machine with one hand and have one hand free to make adjustments to the spreader or sprayer using the intuitive control panel. With fast forward speeds of up to 5.5 mph, a large 175-lb. hopper and a 20-gallon spray tank, you can count on spending less time refilling and more time covering ground.

Specifications

Deflector Shield	Molded Plastic
Engine	Kohler 9.5 hp CH395 277cc
Engine Brand	Kohler
Engine Displacement (cc)	277 cc
Engine Horsepower	9.5 hp
Engine Orientation	Horizontal
Fertilizer Capacity	225 lbs
Fuel Capacity	1.85 gal. / 7.0 L / 7.4 Qt.
Fuel Type	Gasoline
Ground Speed	Up to 5.5 mph / 8.8 kph
Hopper Capacity	175 lbs
Pump Capacity	5 GPM
Spinner Motor	Electric
Spot Spray Hose	15 ft Coil Hose
Spray Capacity (gallons)	20
Spray Wand	Standard, hand-held spray wand for spot spraying
Spray Width	4 ft or 10 ft / 1.2 m or 3.0 m
Spreader Hopper Capacity (lbs)	175
Spreading Width	Adjustable from 4 ft to 22 ft / 1.2 m to 6.7 m
Start Type	Electric
Transmission	Hydrostatic

Maintenance Service Interval	Maintenance Procedure
After the first 10 hours	Change the engine oil.
Before each use or daily	Check the safety interlock system. Test the starter interlock. Check air cleaner; replace if dirty (more often under severe conditions). Check the engine-oil level. Check the machine for loose hardware.
After each use	Clean and lubricate the spreader. Clean the sprayer system. Clean the strainer. Clean the sprayer nozzles. Clean the engine and the exhaust system area.(may be required more often in dry or dirty conditions.) Clean the grass and debris buildup from the machine.
Every 50 hours	Check the pressure in the tires. Service the transaxle. Check sprayer system.
Every 80 hours	Remove the engine shrouds and clean the cooling fins.
Every 100 hours	Lubricate the grease fittings. Replace the dual element air filter. Change the engine oil(more often under severe condition).
Monthly	Check the battery.
Yearly	Torque the axle bolts.
Yearly or before storage	Prepare the machine for storage.

Description

Make Adjustments on the Fly - Control forward/reverse and left/right steering with one hand.
Easy-to-Use Controls - The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings.
Reduce Fatigue - Stand-on operator platform, isolation mounts and padded knee bolster for a comfortable ride
Increase Versatility - One multiuse machine that allows you to feed and treat all turf types and property sizes.

Specifications

Deflector Shield	Molded Plastic
Engine	Kohler 9.5 hp CH395 277cc
Engine Brand	Kohler
Engine Displacement (cc)	277 cc
Engine Horsepower	9.5 hp
Engine Orientation	Horizontal
Fertilizer Capacity	225 lbs
Fuel Capacity	1.85 gal. / 7.0 L / 7.4 Qt.
Fuel Type	Gasoline
Ground Speed	Up to 5.5 mph / 8.8 kph
Hopper Capacity	175 lbs
Pump Capacity	5 GPM
Spinner Motor	Electric
Spot Spray Hose	15 ft Coil Hose
Spray Capacity (gallons)	20
Spray Wand	Standard, hand-held spray wand for spot spraying
Spray Width	4 ft or 10 ft / 1.2 m or 3.0 m
Spreader Hopper Capacity (lbs)	175
Spreading Width	Adjustable from 4 ft to 22 ft / 1.2 m to 6.7 m
Start Type	Electric
Transmission	Hydrostatic

Maintenance Service Interval	Maintenance Procedure
After the first 10 hours	Change the engine oil.
Before each use or daily	Check the safety interlock system. Test the starter interlock. Check air cleaner; replace if dirty (more often under severe conditions). Check the engine-oil level. Check the machine for loose hardware.
After each use	Clean and lubricate the spreader. Clean the sprayer system. Clean the strainer. Clean the sprayer nozzles. Clean the engine and the exhaust system area.(may be required more often in dry or dirty conditions.) Clean the grass and debris buildup from the machine.
Every 50 hours	Check the pressure in the tires. Service the transaxle. Check sprayer system.
Every 80 hours	Remove the engine shrouds and clean the cooling fins.
Every 100 hours	Lubricate the grease fittings. Replace the dual element air filter. Change the engine oil(more often under severe condition).
Monthly	Check the battery.
Yearly	Torque the axle bolts.
Yearly or before storage	Prepare the machine for storage.
