Toro  |  SKU: 34246

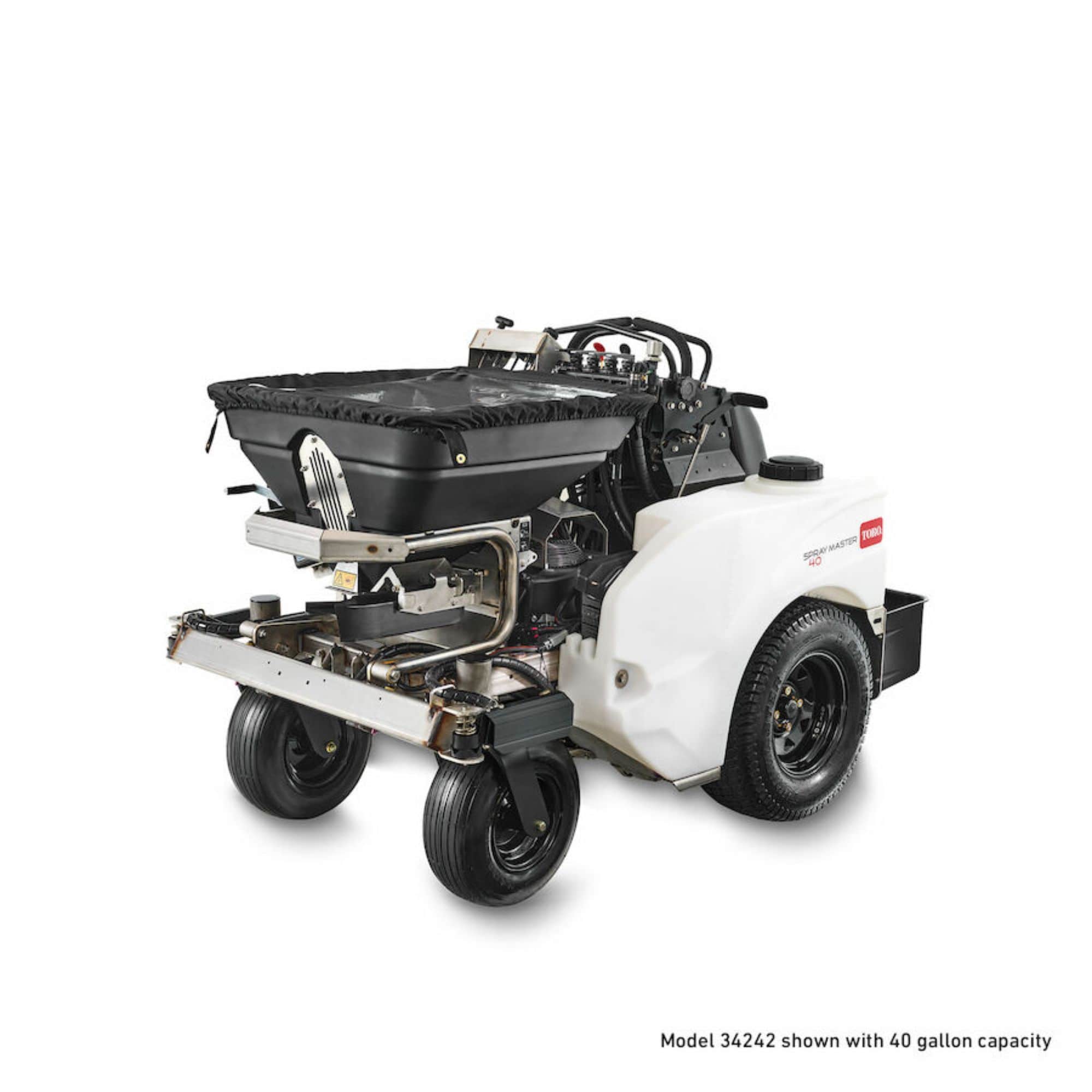

Toro Stand-On 24 Gallon SprayMaster | 16hp Vanguard | 34246

Customers rate us 4.9/5 based on 43 reviews.
$22,99900
Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

  • The control panel allows the operator to conveniently make adjustments for a precise application.
  • The 36" wide compact design allows for exceptional maneuverability.
  • Reduce operator fatigue with rubber compression in the foot plate and a larger padded knee bolster.
  • The flip up hopper provides easy access to the engine and battery for maintenance.
  • Ride in style with improved hopper cover and knee bolster featuring Toro's bullhorn logo.
  • The new design increases the balance and stability resulting in less turf tear up.
  • Easy spot spraying with larger foot switch so the operator doesn't accidentally hit it. Operator can move the location to three different spots for convenience.
  • Carry up to 100 lbs. of additional fertilizer with 2 fertilizer trays (50 lbs. per tray) to get the job done faster with less re-fill trips.
  • Horizon360Ā®Ā Business Management Software. Work More Efficiently. Run More Profitably.

Uneven applications cost you valuable time and money, not to mention unhappy clients. The Stand-On 60 Gallon SprayMaster And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Ā

Specifications

Drive System HYDRO
Engine Vanguard 16 hp
Engine Brand Briggs and Stratton
Engine Displacement (cc) 479 cc
Engine Horsepower 16.0 hp
Frame Stainless Steel
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Ground Speed Up to 7.0 mph / 11.2 kph
Hopper Capacity 150 lbs
Recommended Oil Type 10W50
Spray Capacity (gallons) 24
Spray Wand Standard, hand-held spray wand for spot spraying
Spray Width 2 ft, 4 ft, 6 ft or 8 ft / 0.6 m, 1.2 m, 1.8 m or 2.4 m
Spreader Hopper Capacity (lbs) 150
Spreading Width Up to 25 ft
Start Type Electric
Tires Drive Tires 22 in x 8.5 in - 12 in / 55.8 cm x 21.5 cm - 30.4 cm; & Ribbed Front Tires 15 in x 5 in - 6 in / 38.1 cm x 12.7 cm x 15.2 cm
Transaxle HydroGear ZT3400

Ā

Maintenance Service Interval Maintenance Procedure
After the first 5 hours
  • Change the engine oil.
After the first 100 hours
  • Check the wheel mount screw torque specification.
  • Change hydraulic system filter and fluid.
Before each use or daily
  • Check air cleaner; replace if dirty. (May need more often under severe conditions.)
  • Check the engine oil level.
  • Check fuel strainer, filter, and tank.
  • Check for loose hardware.
  • Clean the engine and exhaust system area.(May be required more often in dry or dirty conditions.)
  • Clean the debris build-up from the machine.
Every 40 hours
  • Check the condition of belt.
  • Check the hydraulic oil and tank level.
Every 50 hours
  • Check the tire pressures.
  • Check sprayer system.
  • Check spreader system.
Every 80 hours
  • Remove engine shrouds and clean cooling fins.
Every 100 hours
  • Grease caster pivots (2x).
  • Grease idler pivot.
  • Replace the dual element air cleaner element.
  • Change the engine oil.(May need more often under severe conditions.)
  • Check the spark plugs.
Every 400 hours
  • Check the wheel mount screw torque specification.thereafter
Monthly
  • Check the battery charge.
Yearly or before storage
  • Prepare the machine for storage.

Description
  • The control panel allows the operator to conveniently make adjustments for a precise application.
  • The 36" wide compact design allows for exceptional maneuverability.
  • Reduce operator fatigue with rubber compression in the foot plate and a larger padded knee bolster.
  • The flip up hopper provides easy access to the engine and battery for maintenance.
  • Ride in style with improved hopper cover and knee bolster featuring Toro's bullhorn logo.
  • The new design increases the balance and stability resulting in less turf tear up.
  • Easy spot spraying with larger foot switch so the operator doesn't accidentally hit it. Operator can move the location to three different spots for convenience.
  • Carry up to 100 lbs. of additional fertilizer with 2 fertilizer trays (50 lbs. per tray) to get the job done faster with less re-fill trips.
  • Horizon360Ā®Ā Business Management Software. Work More Efficiently. Run More Profitably.

Uneven applications cost you valuable time and money, not to mention unhappy clients. The Stand-On 60 Gallon SprayMaster And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Ā

Specifications

Drive System HYDRO
Engine Vanguard 16 hp
Engine Brand Briggs and Stratton
Engine Displacement (cc) 479 cc
Engine Horsepower 16.0 hp
Frame Stainless Steel
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Ground Speed Up to 7.0 mph / 11.2 kph
Hopper Capacity 150 lbs
Recommended Oil Type 10W50
Spray Capacity (gallons) 24
Spray Wand Standard, hand-held spray wand for spot spraying
Spray Width 2 ft, 4 ft, 6 ft or 8 ft / 0.6 m, 1.2 m, 1.8 m or 2.4 m
Spreader Hopper Capacity (lbs) 150
Spreading Width Up to 25 ft
Start Type Electric
Tires Drive Tires 22 in x 8.5 in - 12 in / 55.8 cm x 21.5 cm - 30.4 cm; & Ribbed Front Tires 15 in x 5 in - 6 in / 38.1 cm x 12.7 cm x 15.2 cm
Transaxle HydroGear ZT3400

Ā

Maintenance Service Interval Maintenance Procedure
After the first 5 hours
  • Change the engine oil.
After the first 100 hours
  • Check the wheel mount screw torque specification.
  • Change hydraulic system filter and fluid.
Before each use or daily
  • Check air cleaner; replace if dirty. (May need more often under severe conditions.)
  • Check the engine oil level.
  • Check fuel strainer, filter, and tank.
  • Check for loose hardware.
  • Clean the engine and exhaust system area.(May be required more often in dry or dirty conditions.)
  • Clean the debris build-up from the machine.
Every 40 hours
  • Check the condition of belt.
  • Check the hydraulic oil and tank level.
Every 50 hours
  • Check the tire pressures.
  • Check sprayer system.
  • Check spreader system.
Every 80 hours
  • Remove engine shrouds and clean cooling fins.
Every 100 hours
  • Grease caster pivots (2x).
  • Grease idler pivot.
  • Replace the dual element air cleaner element.
  • Change the engine oil.(May need more often under severe conditions.)
  • Check the spark plugs.
Every 400 hours
  • Check the wheel mount screw torque specification.thereafter
Monthly
  • Check the battery charge.
Yearly or before storage
  • Prepare the machine for storage.
