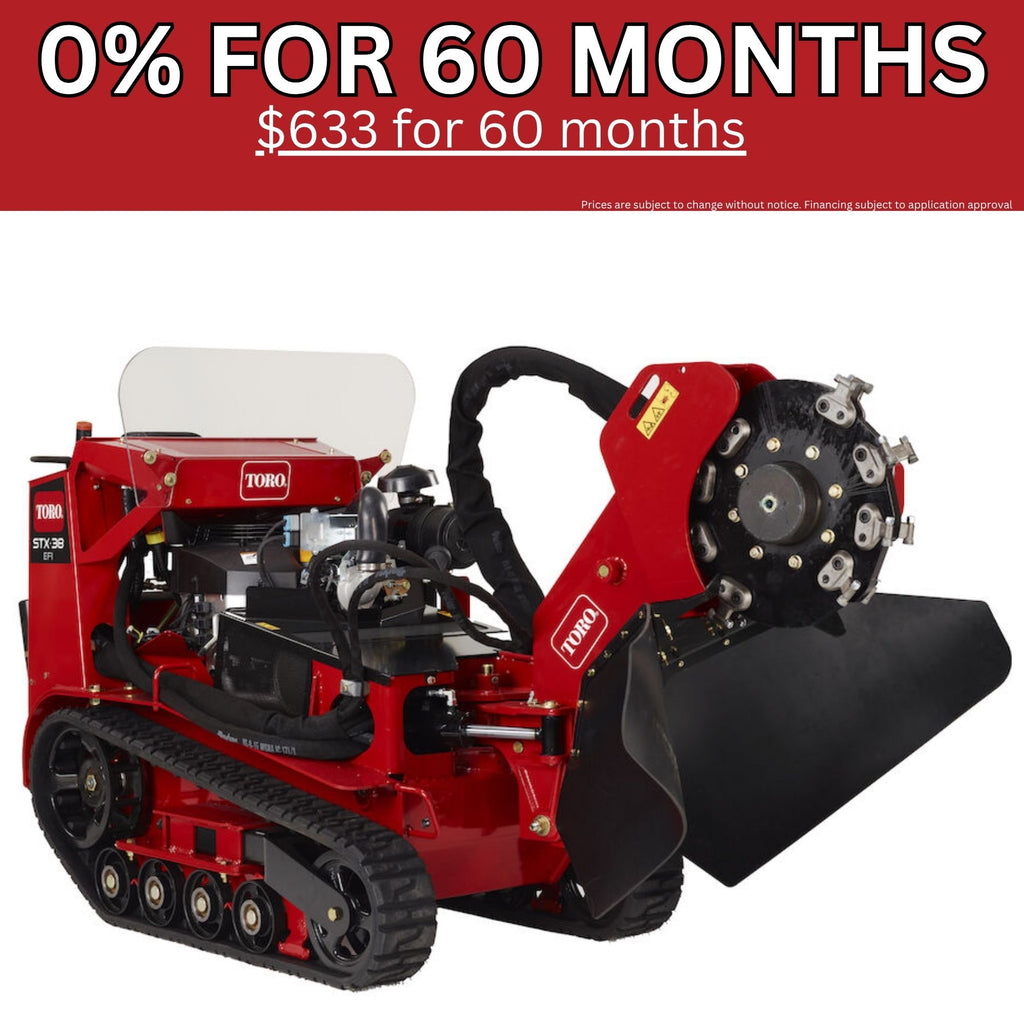

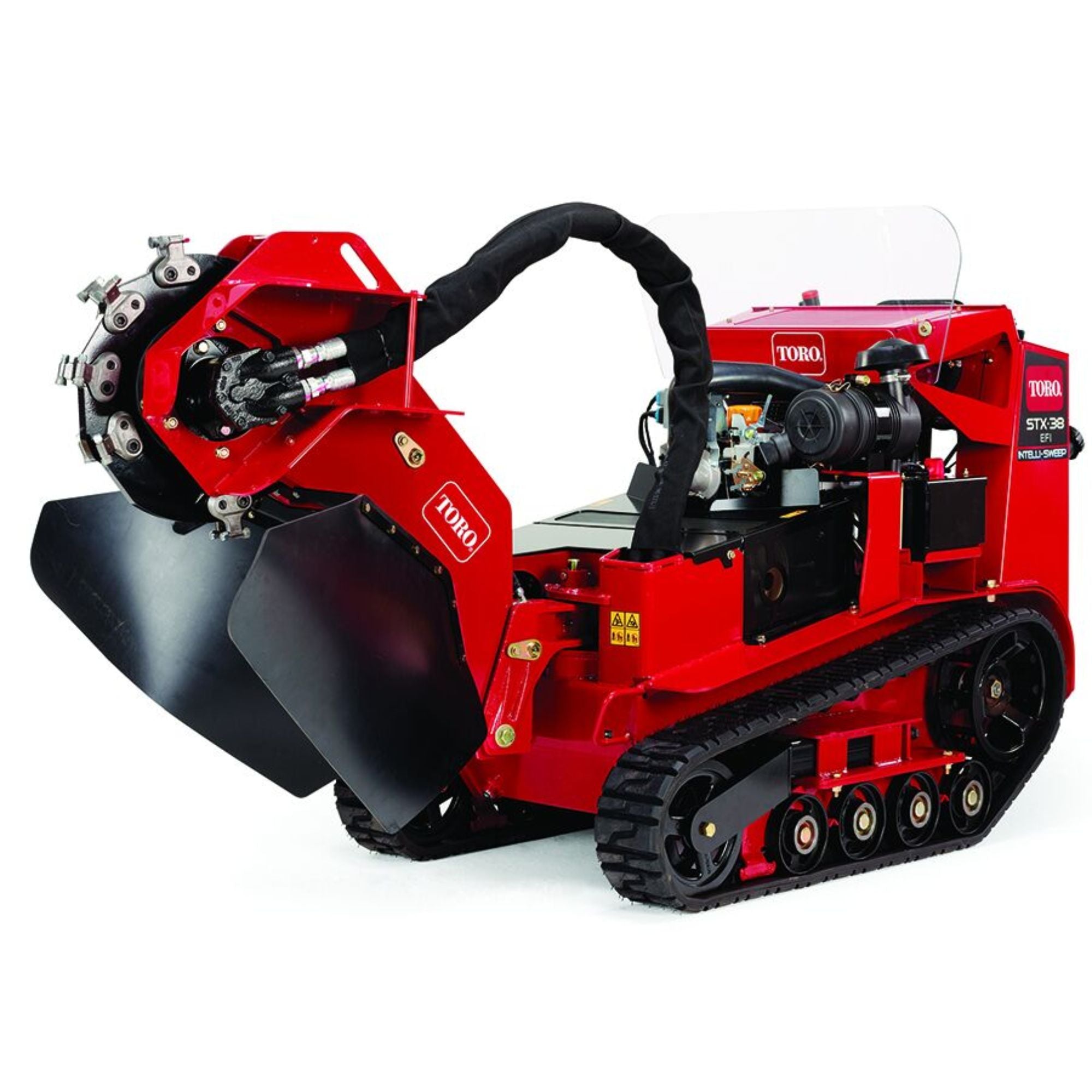

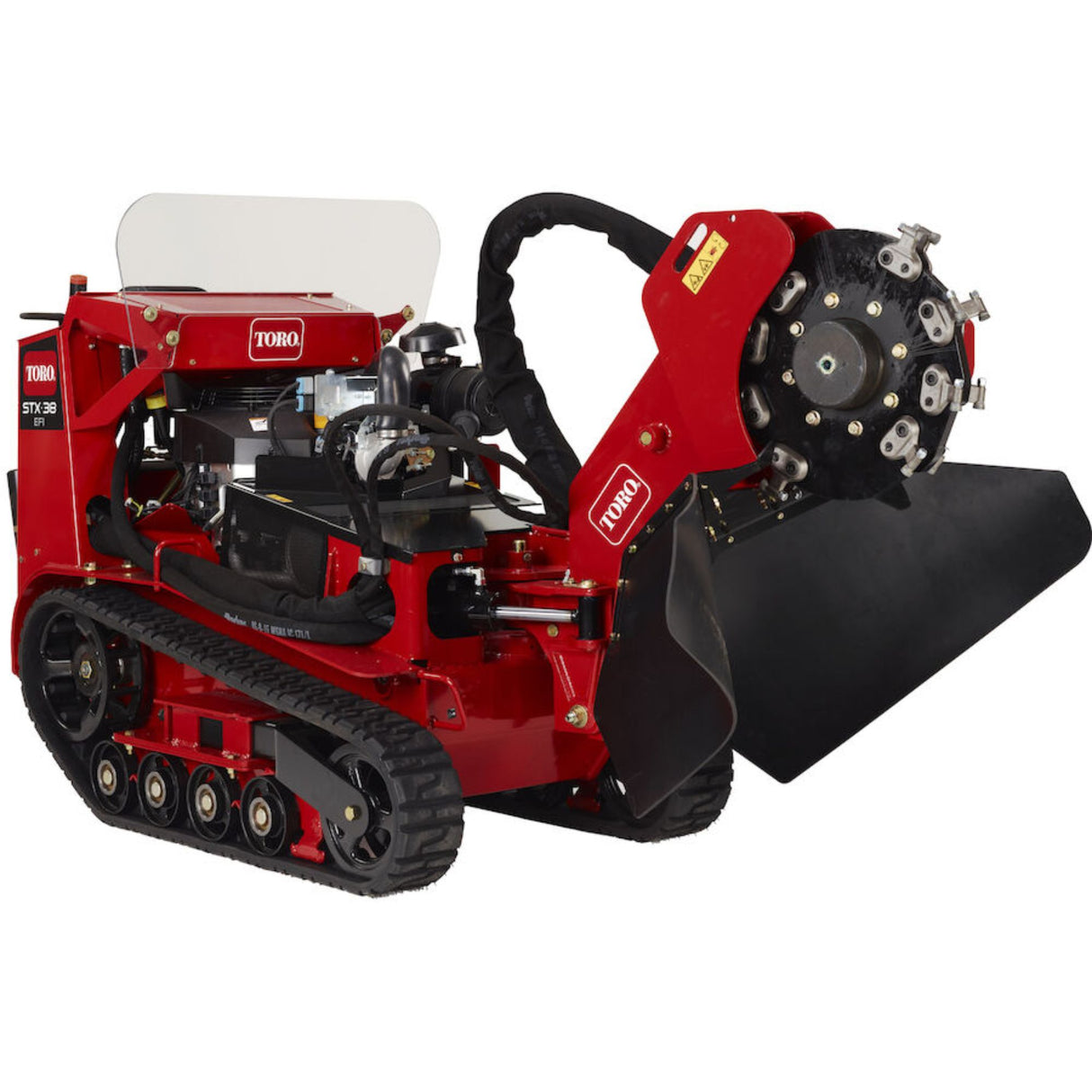

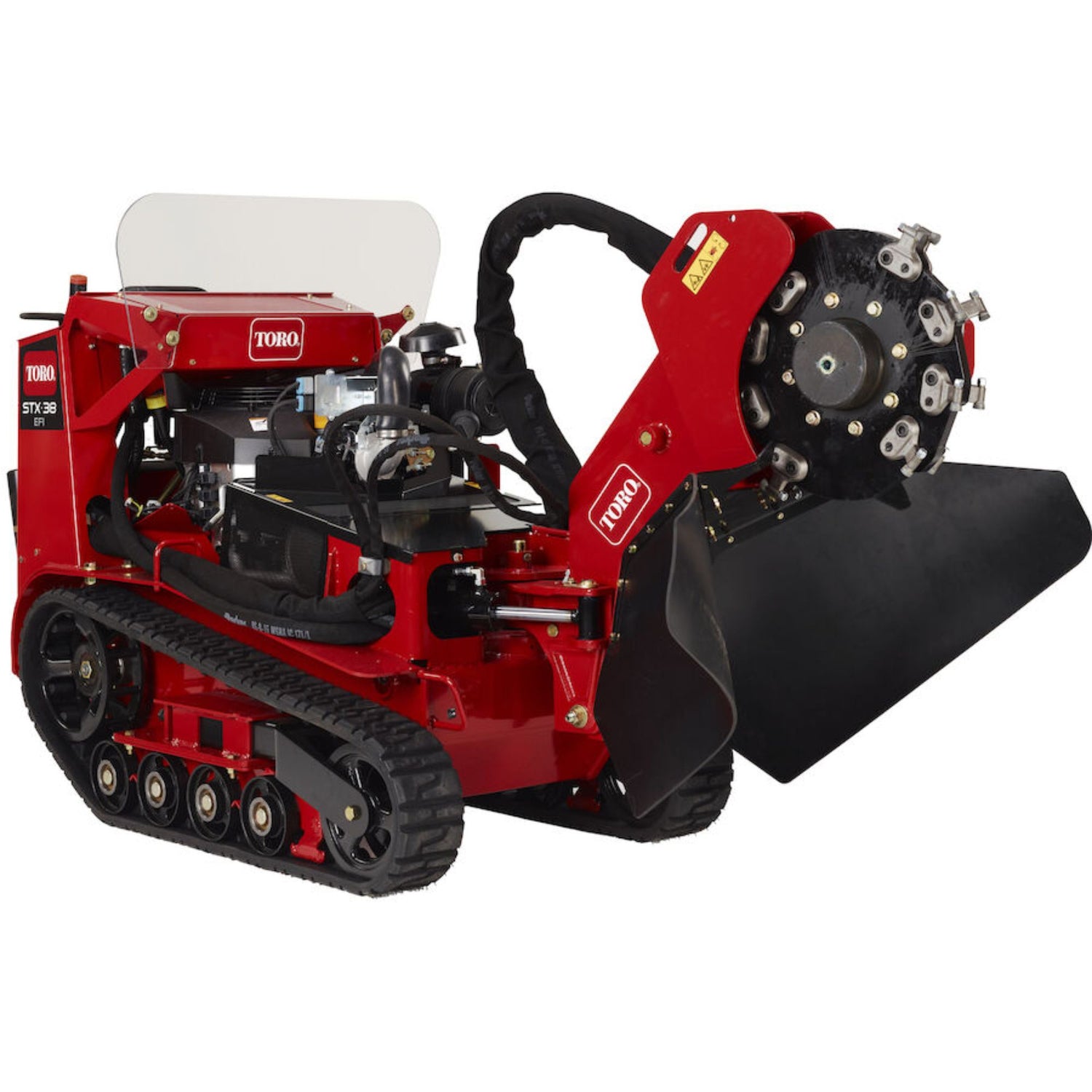

Toro STX-38 Stump Grinder | 23214

$42,08500
Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Toro® STX-38 Stump Grinder is built for outstanding durability in the toughest conditions. Fully hydraulic operation means no chance of expensive belts breaking or slipping and no tension adjustments. The Intelli-Sweep® feature automatically slows the sweep speed of the cutting head based on the load of the wheel, so heavy cutting loads won’t bog down the engine. And with easy-to-use TX-style controls and tracks for maneuverability and stability, the STX-38 is extremely operator-friendly. The STX-38's electronic fuel injection engine provides less maintenance, easier starting, and improved performance. Best of all, ground speeds of 4.5 mph allow you to spend more time grinding — and less time transporting the machine — for greater productivity.

  • Intelli-sweep® automatically adjusts cutting head sweep speed
  • Turn stumps to chips quickly
  • Hydraulically driven cutting head
  • No tire ruts or flat tires

Specifications

Compliance CE and EPA compliant
Cutter Depth - Below Grade 18 in. / 45. 7 cm
Cutter Height - Above Grade 35 in. / 88.9 cm
Engine Cooling System Air Cooled
Engine Horsepower 38 hp
Engine Make Kohler
Engine Model Kohler® Command PRO® ECV980 4-cycle
Fuel Type Gasoline
Head Swing 52" (132 cm) arc length x 60˚ sweep arc
Height 51 in. / 129.5 cm
Hydraulic Pressure 3,000 PSI (207 BAR)
Hydraulics Dual hydrostatic traction drive – 16 cc hydropumps with 15 gpm max flow to each side; 20 gpm gear pump flow to the piston motor driving the cutter head
Length 95 in. / 241. 3 cm
Start Method Electric
Transmission Hydrostatic
Travel Speed - Forward Up to 4.5 mph / 7.2 kph
Weight 1,750 lbs / 794 kg
Wheel 22.25" (56.5 cm) diameter to tooth; 1" (2.5 cm) thick; 16 grinder teeth
Width 34 in. / 86.3 cm



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 50 hours
  • Check and adjust the track tension.
Before each use or daily
  • Check that all lift and tie-down points are in good condition.
  • Grease the machine.(Grease it immediately after every washing.)
  • Check the engine-oil level.
  • Check the condition of and clean the tracks.
  • Clean the engine screen.
  • Check the condition of the teeth; rotate or replace any that are worn or damaged and torque the nuts for all teeth.
  • Check for loose fasteners.
After each use
  • Remove debris from the machine.
Every 25 hours
  • Check the battery electrolyte level.
  • Check the hydraulic-fluid level.
Every 100 hours
  • Change the engine oil (more often in dirty or dusty conditions).
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration and repair if necessary.
Every 150 hours
  • Inspect the primary filter.
  • Replace the low-pressure fuel filter(more often in dirty or dusty conditions).
Every 200 hours
  • Change the engine-oil filter.
  • Replace the hydraulic filter.
Every 250 hours
  • Replace the primary air filter(more often in dusty or sandy conditions).
  • Check and grease the road wheels.
Every 300 hours
  • Check the inner air filter.
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • Replace and gap the spark plug(s).
Every 600 hours
  • Replace the inner air filter.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
