Toro-Dingo  |  SKU: 22983

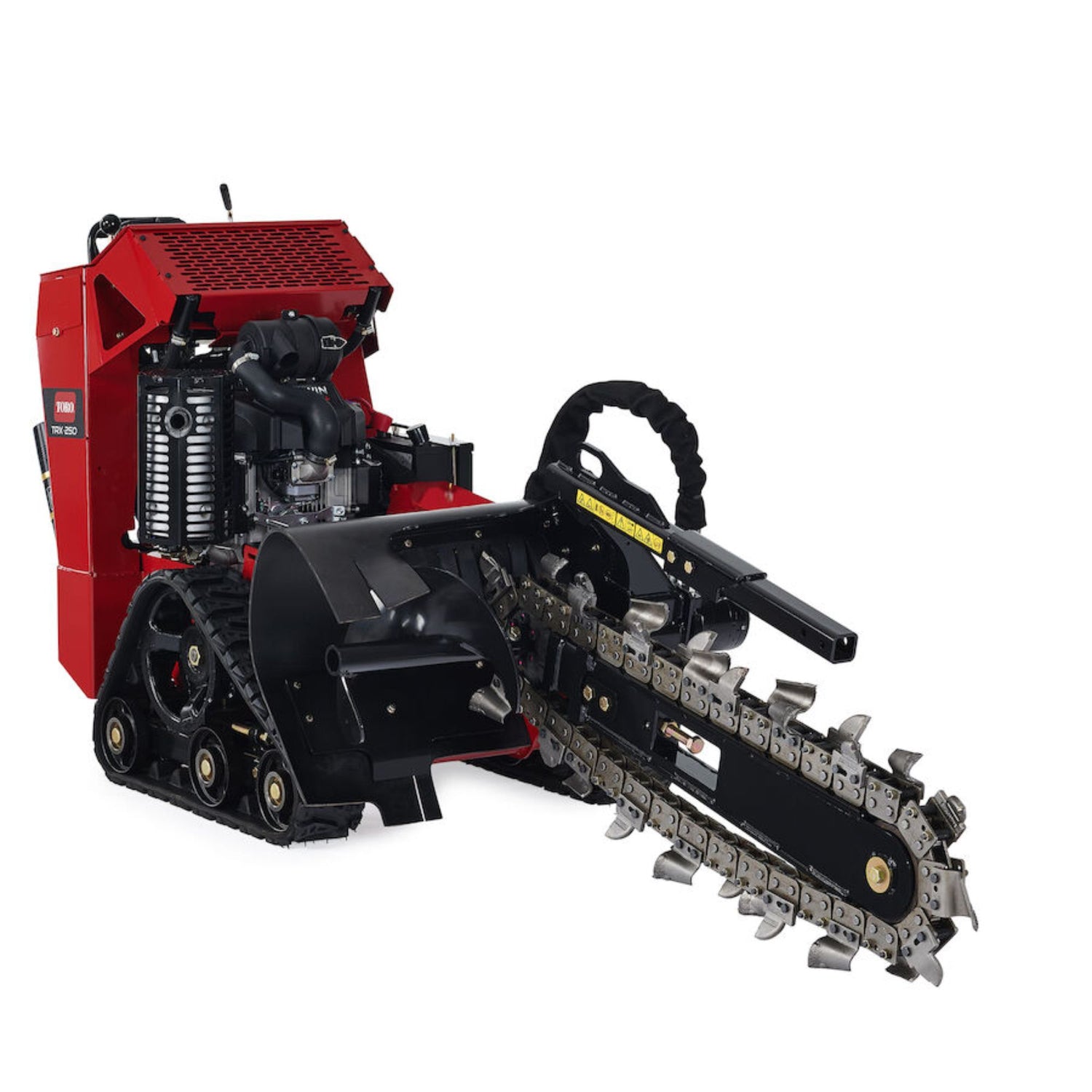

Toro TRX-250 Walk-Behind Trencher | 22983

$23,92000
Taxes and shipping calculated at checkout.

Pickup available at MSM - Clermont

Usually ready in 4 hours

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

  • Low center of gravity and large footprint, offer stability and increased maneuverability
  • Exclusive Intelli-Trench® Technology
  • Fewer parts than previous models simplifies maintenance

Specifications

Boom Depths 24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm
Boom Widths 4 in. & 6 in. / 10.1 cm & 15.2 cm
Cooling System Air Cooled
Engine Horsepower 24.5 hp (18.3 kW) @ 3,600 rpm
Engine Make Toro
Engine Model V-Twin
Fuel Tank 4 gal. / 15.1 L
Fuel Type Gasoline
Ground Pressure w/ 24" (60.9 cm) Boom 4.1 PSI
Ground Pressure w/ 36" (91.4 cm) Boom 4.4 PSI
Ground Pressure w/ 48" (121.9 cm) Boom 4.5 PSI
Headshaft Speed 210 rpm with 498 ft/lbs of torque
Hour Meter Standard
Hydraulic Flow Traction - Transport 16.2 GPM (61.3 LPM)
Hydraulic Flow Traction - Trenching 3.0 GPM (11.4 LPM)
Hydraulic Flow Trencher 13.2 GPM (50 LPM)
Hydraulic Oil Cooler Standard
Hydraulic Pressure 2,670 PSI (18,409.0 kPa)
Oil Capacity 2.5 qt / 2.4 L
Overall Height w/ 24" Boom Up & Chain 46 in. / 116.8 cm
Overall Length w/ 24" Boom Up & Chain 82.5 in. / 209.5 cm
Overall Width w/ 24" Boom Up & Chain 33.8 in. / 85.8 cm
Reservoir Capacity 6.3 gal. / 23.8 L
Start Method Electric
Tracks Drive Sprocket-drive, 3 Road Wheels Per Side
Tracks Material Endless Nylon Reinforced Rubber
Tracks Traction Two-section Hydraulic Pump With Two Hydraulic Motors (one for each track)
Tracks Width 5.9 in. / 14.9 cm
Transport Speed - Forward Up tp 2.4 mph / 3.9 km/h
Transport Speed - Reverse Up to 1.2 mph / 2.4 km/h
Weight 1,104 lbs / 500 kg
Wheelbase 23 in. / 58.4 cm

Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 5 hours
  • For Toro engines—change the engine oil and filter.
After the first 50 hours
  • Check and adjust the track tension.
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air cleaner.
  • For Kohler engines—check the engine-oil level.
  • For Toro engines—check the engine-oil level.
  • Check the condition of and clean the tracks.
  • Test the parking brake.
  • Check the condition of the digging teeth and replace any that are worn or damaged.
  • Check for loose fasteners.
After each use
  • Remove debris from the machine.
Every 25 hours
  • Check the battery-electrolyte level(replacement batteries only).
  • Check the hydraulic-fluid level.
  • Check the digging chain for excessive wear and proper tension.
Every 40 hours
  • Grease the trencher housing.
Every 100 hours
  • For Kohler engines—change the engine oil(more often in dusty or sandy conditions).
  • For Toro engines—change the engine oil and oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the spark plug(s).
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration and repair if necessary.
Every 150 hours
  • For Kohler engines—Inspect the outer air filter.
Every 200 hours
  • For Kohler engines—change the engine-oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the valve clearance.
  • For Toro engines—replace the spark plug(s).
  • Replace the fuel filter.
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 300 hours
  • For Kohler engines—replace the outer air filter(more often in dusty or sandy conditions).
  • For Kohler engines—check the inner air filter.
  • For Toro engines—replace the air filter(more often in dirty or dusty conditions).
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • For Kohler engines—replace or clean and gap the spark plug(s).
Every 600 hours
  • For Kohler engines—replace the inner air filter.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Check and adjust the chain tension.
  • Touch up chipped paint
