Toro-Dingo  |  SKU: 22984

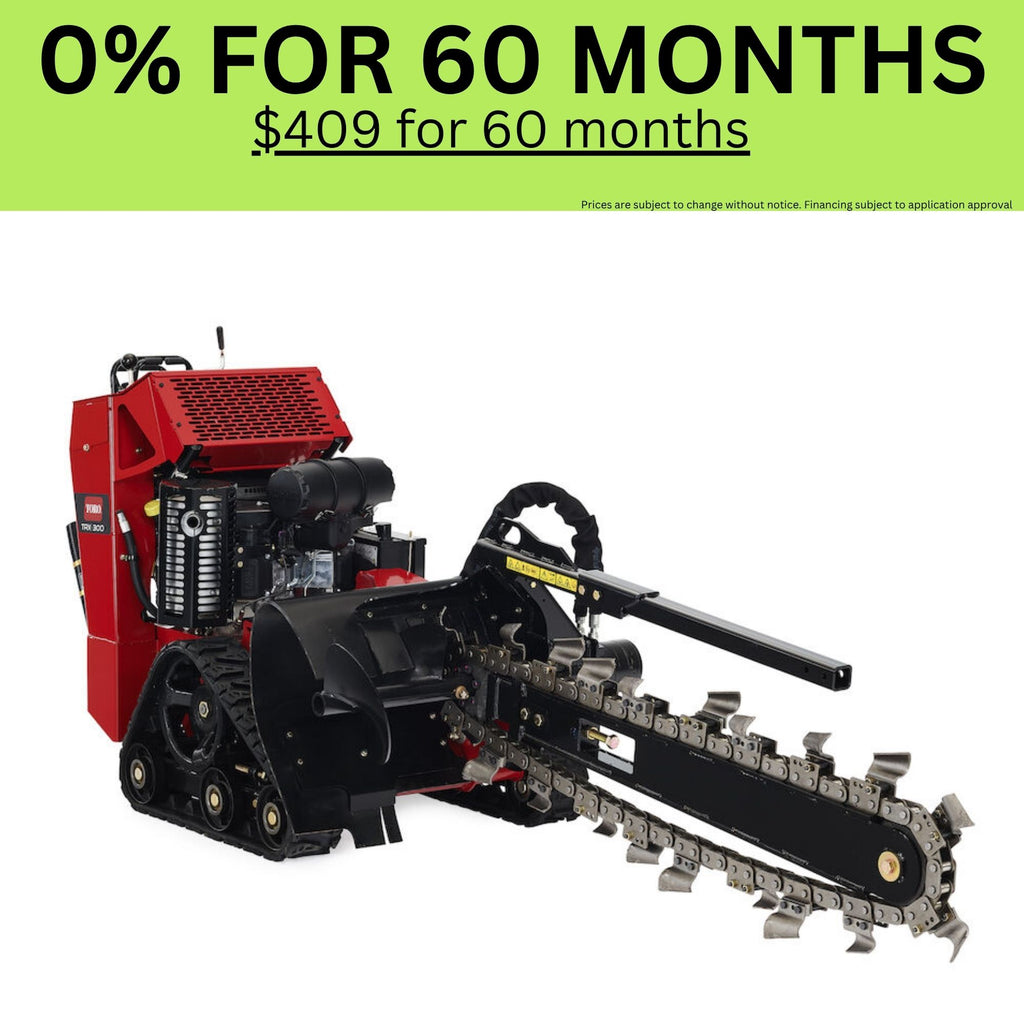

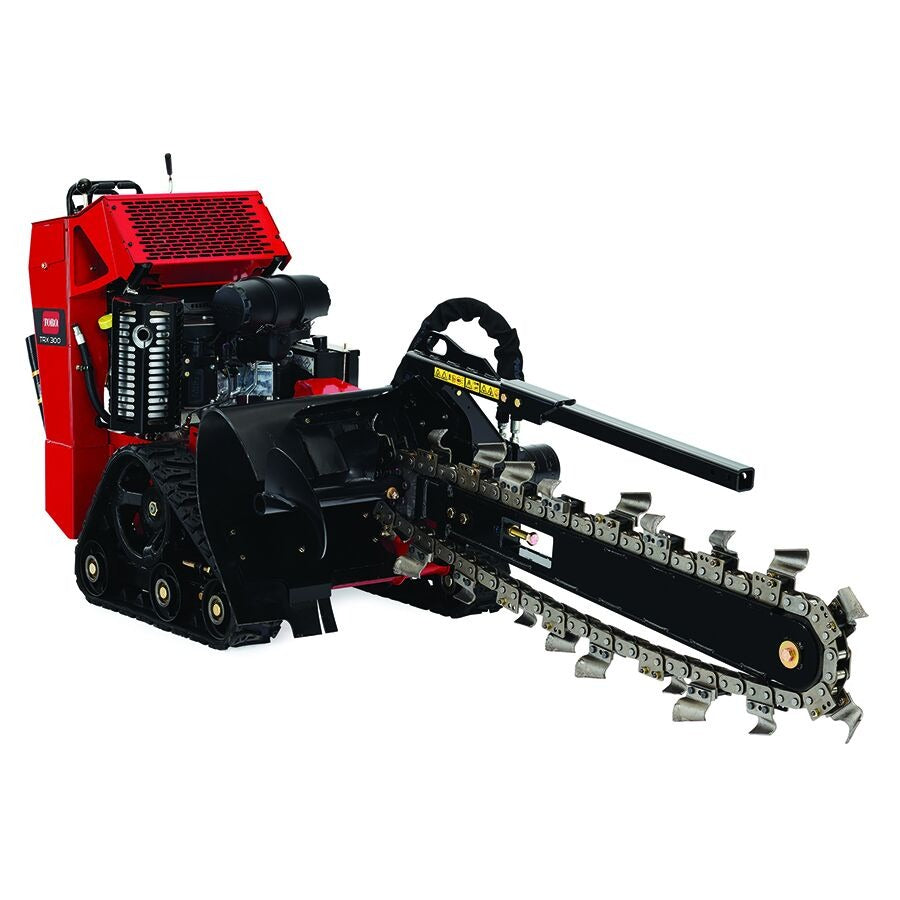

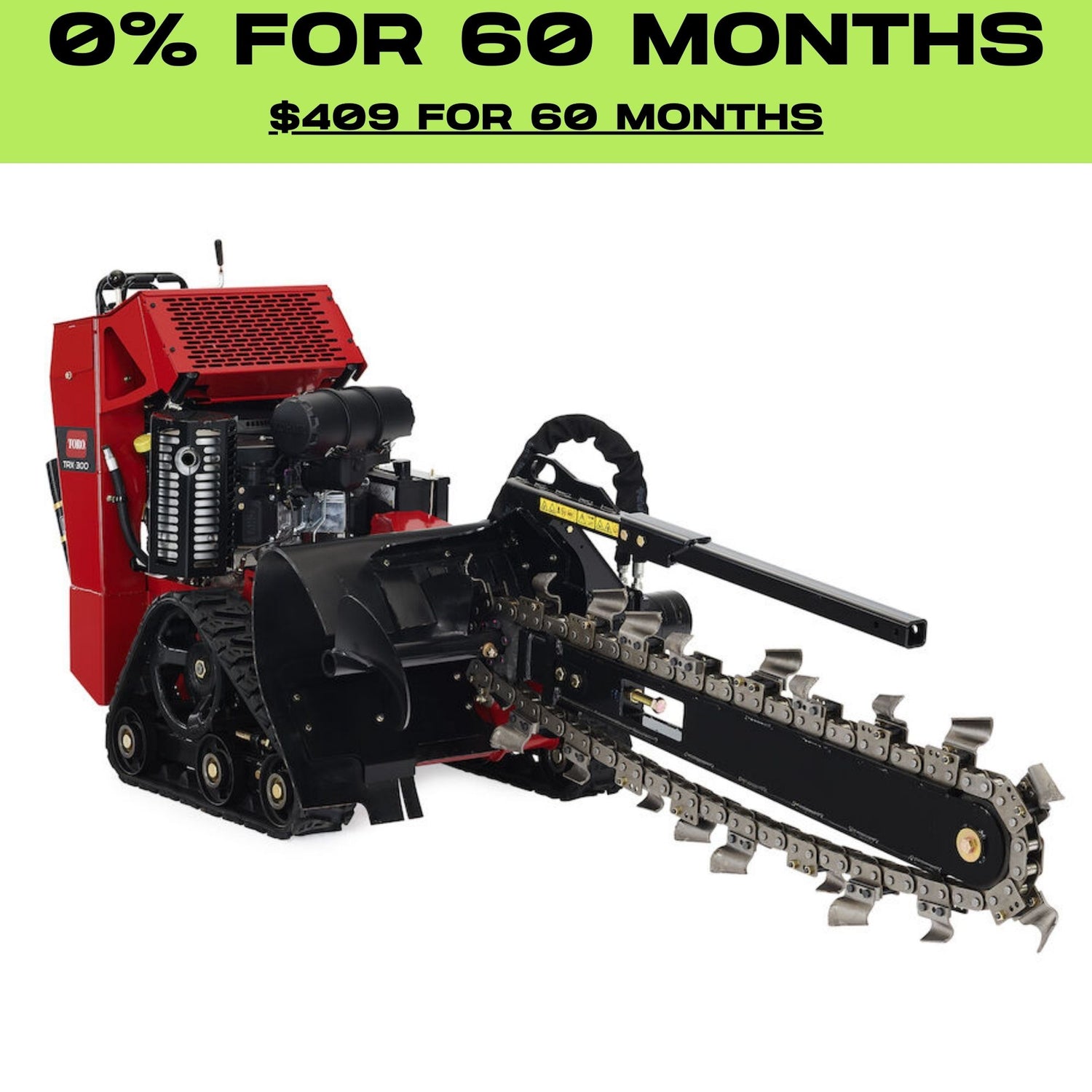

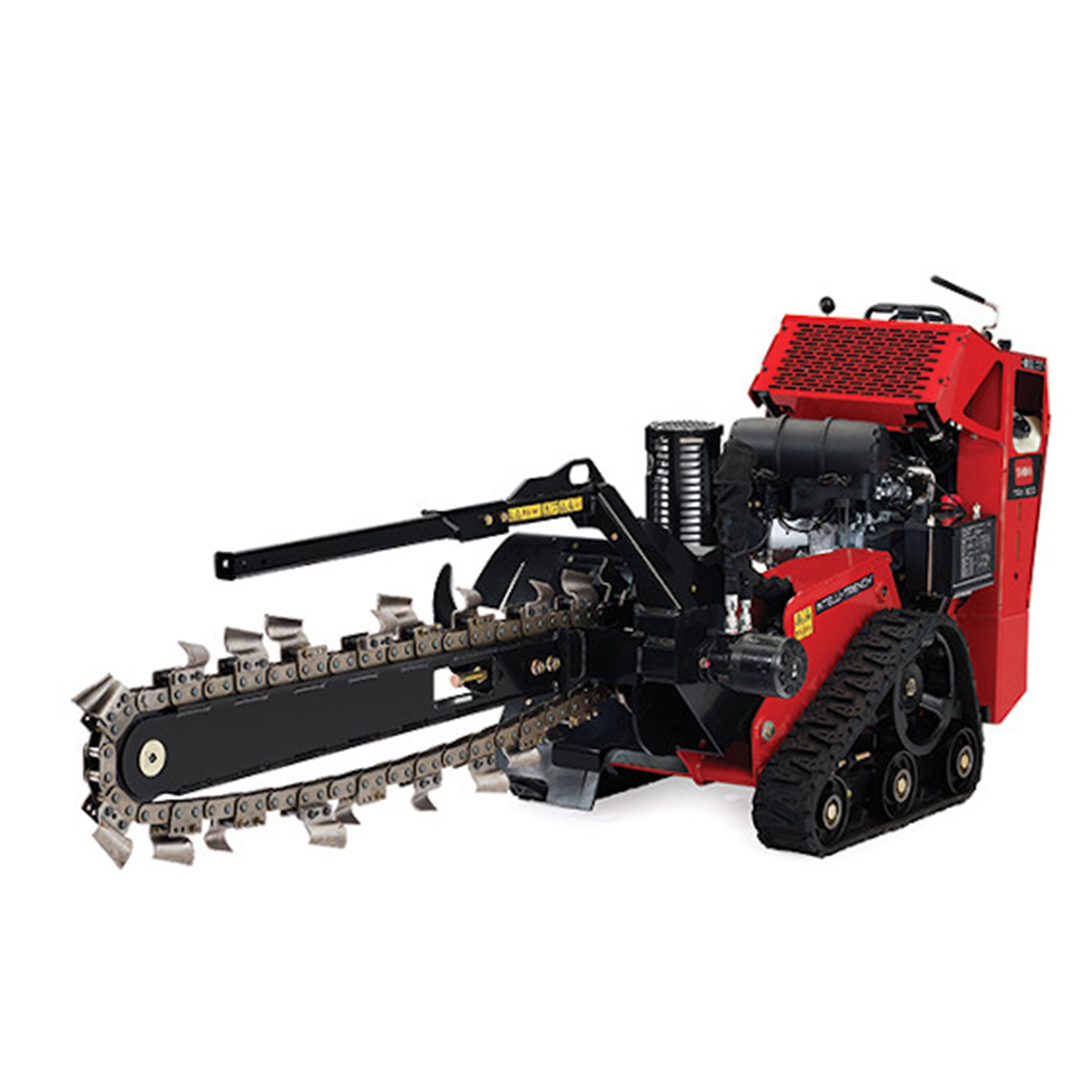

Toro TRX-300 Walk Behind Trencher | 22984

$27,24000
Taxes and shipping calculated at checkout.

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov



  • 26.5 hp (19.8 kW) @ 3,600 rpm Kohler® ECV749, EFI
  • New Intelli-Trench™ technology
  • Groundbreaking maneuverability
  • Easy-to-use controls

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.



Specifications

Boom Depth Options (cm) 61 cm, 91 cm and 122 cm
Boom Depth Options (inches) 24", 36" and 48"
Boom Width Options (cm) 10 cm, 15 cm and 20 cm (20 cm chain conversion kit available through parts only)
Boom Width Options (inches) 4", 6" and 8" (8" chain conversion kit available through parts only)
Cooling System Air Cooled
Engine Make Kohler
Engine Model ECV749, EFI
Fuel Tank (gallons) 4
Fuel Tank (liters) 15.1
Fuel Type Gasoline
Ground Pressure 24" (61 cm) boom = 4.1 psi 36" (91 cm) boom = 4.4 psi 48" (122 cm) boom = 4.5 psi
Ground Speed Forward (mph) 2.3
Ground Speed Foward (km/h) 3.7
Ground Speed Reverse (km/h) 2.4
Ground Speed Reverse (mph) 1.2
Headshaft Speed 210 rpm with 498 ft/lbs of torque
Hour Meter Standard
Hydraulic Flow Auxiliary 13.2 gpm (50.0 lpm)
Hydraulic Flow Traction 16.2 gpm (61.3 lpm) transport 3.0 gpm (11.4 lpm) trenchering (each pump)
Hydraulic Pressure (bar) 180
Hydraulic Pressure (psi) 2610
Manufacturer's Gross HP Rating 26.5
Manufacturer's Gross kW Rating 19.8
Oil Capacity (liters) 1.9
Oil Capacity (quarts) 2
Overall Height (cm) 117
Overall Height (inches) 46
Overall Length w/24" Boom (inches) 82.5
Overall Length w/61 cm Boom (cm) 210
Overall Width (cm) 86
Overall Width (inches) 33.8
Reservoir Capacity (gallons) 6.3
Reservoir Capacity (liters) 23.8
RPM 3600
Start Method Electric
Track Drive Sprocket-drive, 3 road wheels per side
Track Width (cm) 15
Track Width (inches) 5.9
Tracks Endless nylon reinforced rubber
Traction Two-section hydraulic pump with two hydraulic motors (one for each track)
Weight (kg) 505
Weight (lbs) 1114
Wheelbase (cm) 58
Wheelbase (inches) 23



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 5 hours
  • For Toro engines—change the engine oil and filter.
After the first 50 hours
  • Check and adjust the track tension.
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air cleaner.
  • For Kohler engines—check the engine-oil level.
  • For Toro engines—check the engine-oil level.
  • Check the condition of and clean the tracks.
  • Test the parking brake.
  • Check the condition of the digging teeth and replace any that are worn or damaged.
  • Check for loose fasteners.
After each use
  • Remove debris from the machine.
Every 25 hours
  • Check the battery-electrolyte level(replacement batteries only).
  • Check the hydraulic-fluid level.
  • Check the digging chain for excessive wear and proper tension.
Every 40 hours
  • Grease the trencher housing.
Every 100 hours
  • For Kohler engines—change the engine oil(more often in dusty or sandy conditions).
  • For Toro engines—change the engine oil and oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the spark plug(s).
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration and repair if necessary.
Every 150 hours
  • For Kohler engines—Inspect the outer air filter.
Every 200 hours
  • For Kohler engines—change the engine-oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the valve clearance.
  • For Toro engines—replace the spark plug(s).
  • Replace the fuel filter.
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 300 hours
  • For Kohler engines—replace the outer air filter(more often in dusty or sandy conditions).
  • For Kohler engines—check the inner air filter.
  • For Toro engines—replace the air filter(more often in dirty or dusty conditions).
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • For Kohler engines—replace or clean and gap the spark plug(s).
Every 600 hours
  • For Kohler engines—replace the inner air filter.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Check and adjust the chain tension.
  • Touch up chipped paint

Description



  • 26.5 hp (19.8 kW) @ 3,600 rpm Kohler® ECV749, EFI
  • New Intelli-Trench™ technology
  • Groundbreaking maneuverability
  • Easy-to-use controls

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.



Specifications

Boom Depth Options (cm) 61 cm, 91 cm and 122 cm
Boom Depth Options (inches) 24", 36" and 48"
Boom Width Options (cm) 10 cm, 15 cm and 20 cm (20 cm chain conversion kit available through parts only)
Boom Width Options (inches) 4", 6" and 8" (8" chain conversion kit available through parts only)
Cooling System Air Cooled
Engine Make Kohler
Engine Model ECV749, EFI
Fuel Tank (gallons) 4
Fuel Tank (liters) 15.1
Fuel Type Gasoline
Ground Pressure 24" (61 cm) boom = 4.1 psi 36" (91 cm) boom = 4.4 psi 48" (122 cm) boom = 4.5 psi
Ground Speed Forward (mph) 2.3
Ground Speed Foward (km/h) 3.7
Ground Speed Reverse (km/h) 2.4
Ground Speed Reverse (mph) 1.2
Headshaft Speed 210 rpm with 498 ft/lbs of torque
Hour Meter Standard
Hydraulic Flow Auxiliary 13.2 gpm (50.0 lpm)
Hydraulic Flow Traction 16.2 gpm (61.3 lpm) transport 3.0 gpm (11.4 lpm) trenchering (each pump)
Hydraulic Pressure (bar) 180
Hydraulic Pressure (psi) 2610
Manufacturer's Gross HP Rating 26.5
Manufacturer's Gross kW Rating 19.8
Oil Capacity (liters) 1.9
Oil Capacity (quarts) 2
Overall Height (cm) 117
Overall Height (inches) 46
Overall Length w/24" Boom (inches) 82.5
Overall Length w/61 cm Boom (cm) 210
Overall Width (cm) 86
Overall Width (inches) 33.8
Reservoir Capacity (gallons) 6.3
Reservoir Capacity (liters) 23.8
RPM 3600
Start Method Electric
Track Drive Sprocket-drive, 3 road wheels per side
Track Width (cm) 15
Track Width (inches) 5.9
Tracks Endless nylon reinforced rubber
Traction Two-section hydraulic pump with two hydraulic motors (one for each track)
Weight (kg) 505
Weight (lbs) 1114
Wheelbase (cm) 58
Wheelbase (inches) 23



Recommended Maintenance Schedule(s)

Maintenance Service Interval Maintenance Procedure
After the first 5 hours
  • For Toro engines—change the engine oil and filter.
After the first 50 hours
  • Check and adjust the track tension.
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air cleaner.
  • For Kohler engines—check the engine-oil level.
  • For Toro engines—check the engine-oil level.
  • Check the condition of and clean the tracks.
  • Test the parking brake.
  • Check the condition of the digging teeth and replace any that are worn or damaged.
  • Check for loose fasteners.
After each use
  • Remove debris from the machine.
Every 25 hours
  • Check the battery-electrolyte level(replacement batteries only).
  • Check the hydraulic-fluid level.
  • Check the digging chain for excessive wear and proper tension.
Every 40 hours
  • Grease the trencher housing.
Every 100 hours
  • For Kohler engines—change the engine oil(more often in dusty or sandy conditions).
  • For Toro engines—change the engine oil and oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the spark plug(s).
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration and repair if necessary.
Every 150 hours
  • For Kohler engines—Inspect the outer air filter.
Every 200 hours
  • For Kohler engines—change the engine-oil filter(more often in dirty or dusty conditions).
  • For Toro engines—check the valve clearance.
  • For Toro engines—replace the spark plug(s).
  • Replace the fuel filter.
  • Replace the hydraulic filter.
Every 250 hours
  • Check and grease the road wheels.
Every 300 hours
  • For Kohler engines—replace the outer air filter(more often in dusty or sandy conditions).
  • For Kohler engines—check the inner air filter.
  • For Toro engines—replace the air filter(more often in dirty or dusty conditions).
Every 400 hours
  • Change the hydraulic fluid.
Every 500 hours
  • For Kohler engines—replace or clean and gap the spark plug(s).
Every 600 hours
  • For Kohler engines—replace the inner air filter.
Every 1,500 hours
  • Replace all moving hydraulic hoses.
Yearly or before storage
  • Check and adjust the track tension.
  • Check and adjust the chain tension.
  • Touch up chipped paint
