- 26.5 hp (19.8 kW) @ 3,600 rpm Kohler® ECV749, EFI
- New Intelli-Trench™ technology
- Groundbreaking maneuverability
- Easy-to-use controls

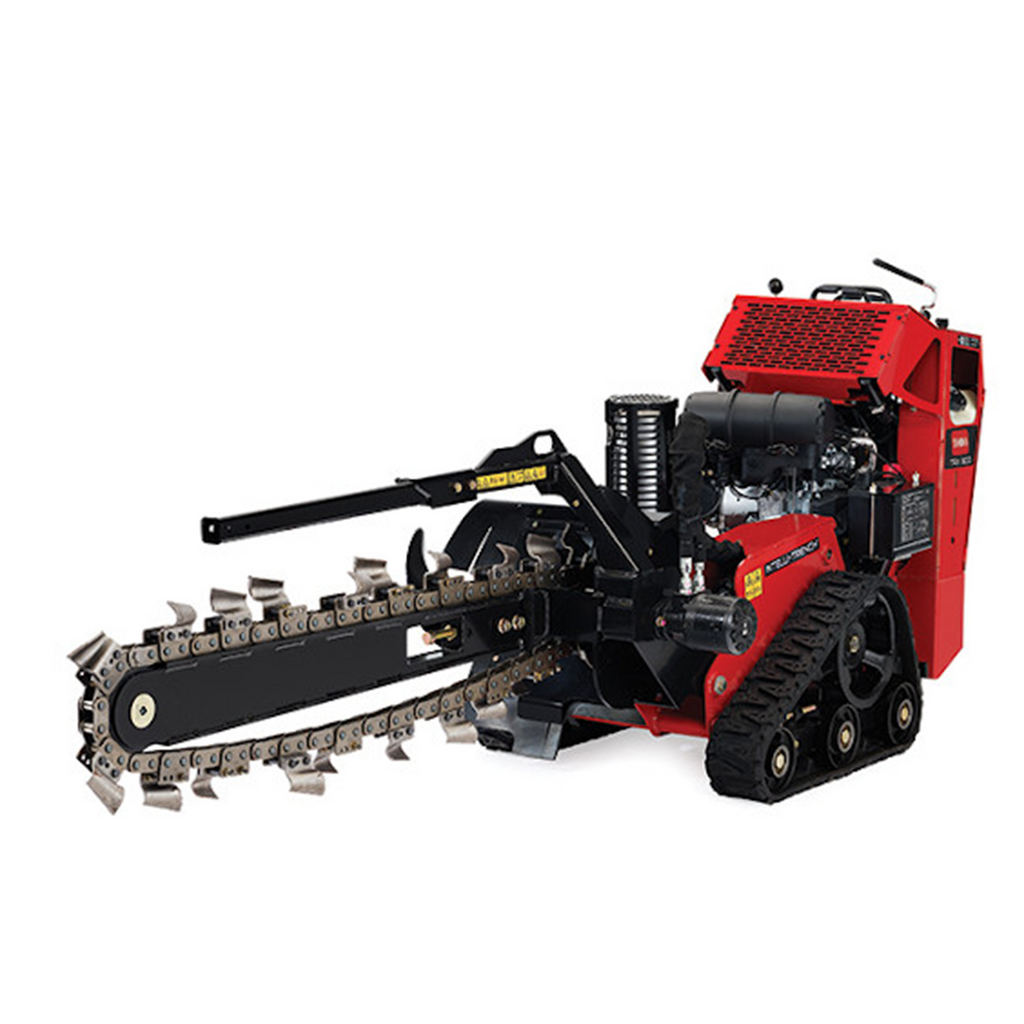

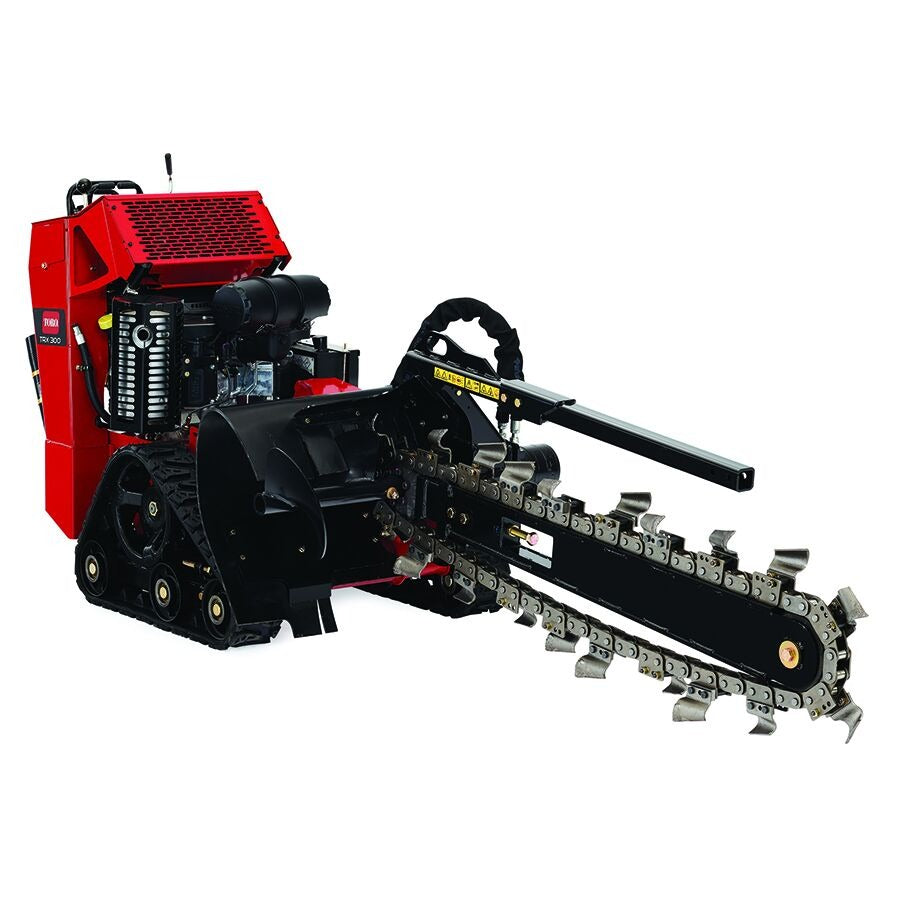

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.
Specifications
Boom Depth Options (cm) |
61 cm, 91 cm and 122 cm |
Boom Depth Options (inches) |
24", 36" and 48" |
Boom Width Options (cm) |
10 cm, 15 cm and 20 cm (20 cm chain conversion kit available through parts only) |
Boom Width Options (inches) |
4", 6" and 8" (8" chain conversion kit available through parts only) |
Cooling System |
Air Cooled |
Engine Make |
Kohler |
Engine Model |
ECV749, EFI |
Fuel Tank (gallons) |
4 |
Fuel Tank (liters) |
15.1 |
Fuel Type |
Gasoline |
Ground Pressure |
24" (61 cm) boom = 4.1 psi 36" (91 cm) boom = 4.4 psi 48" (122 cm) boom = 4.5 psi |
Ground Speed Forward (mph) |
2.3 |
Ground Speed Foward (km/h) |
3.7 |
Ground Speed Reverse (km/h) |
2.4 |
Ground Speed Reverse (mph) |
1.2 |
Headshaft Speed |
210 rpm with 498 ft/lbs of torque |
Hour Meter |
Standard |
Hydraulic Flow Auxiliary |
13.2 gpm (50.0 lpm) |
Hydraulic Flow Traction |
16.2 gpm (61.3 lpm) transport 3.0 gpm (11.4 lpm) trenchering (each pump) |
Hydraulic Pressure (bar) |
180 |
Hydraulic Pressure (psi) |
2610 |
Manufacturer's Gross HP Rating |
26.5 |
Manufacturer's Gross kW Rating |
19.8 |
Oil Capacity (liters) |
1.9 |
Oil Capacity (quarts) |
2 |
Overall Height (cm) |
117 |
Overall Height (inches) |
46 |
Overall Length w/24" Boom (inches) |
82.5 |
Overall Length w/61 cm Boom (cm) |
210 |
Overall Width (cm) |
86 |
Overall Width (inches) |
33.8 |
Reservoir Capacity (gallons) |
6.3 |
Reservoir Capacity (liters) |
23.8 |
RPM |
3600 |
Start Method |
Electric |
Track Drive |
Sprocket-drive, 3 road wheels per side |
Track Width (cm) |
15 |
Track Width (inches) |
5.9 |
Tracks |
Endless nylon reinforced rubber |
Traction |
Two-section hydraulic pump with two hydraulic motors (one for each track) |
Weight (kg) |
505 |
Weight (lbs) |
1114 |
Wheelbase (cm) |
58 |
Wheelbase (inches) |
23 |
|
