Toro-Dingo | SKU:
68138

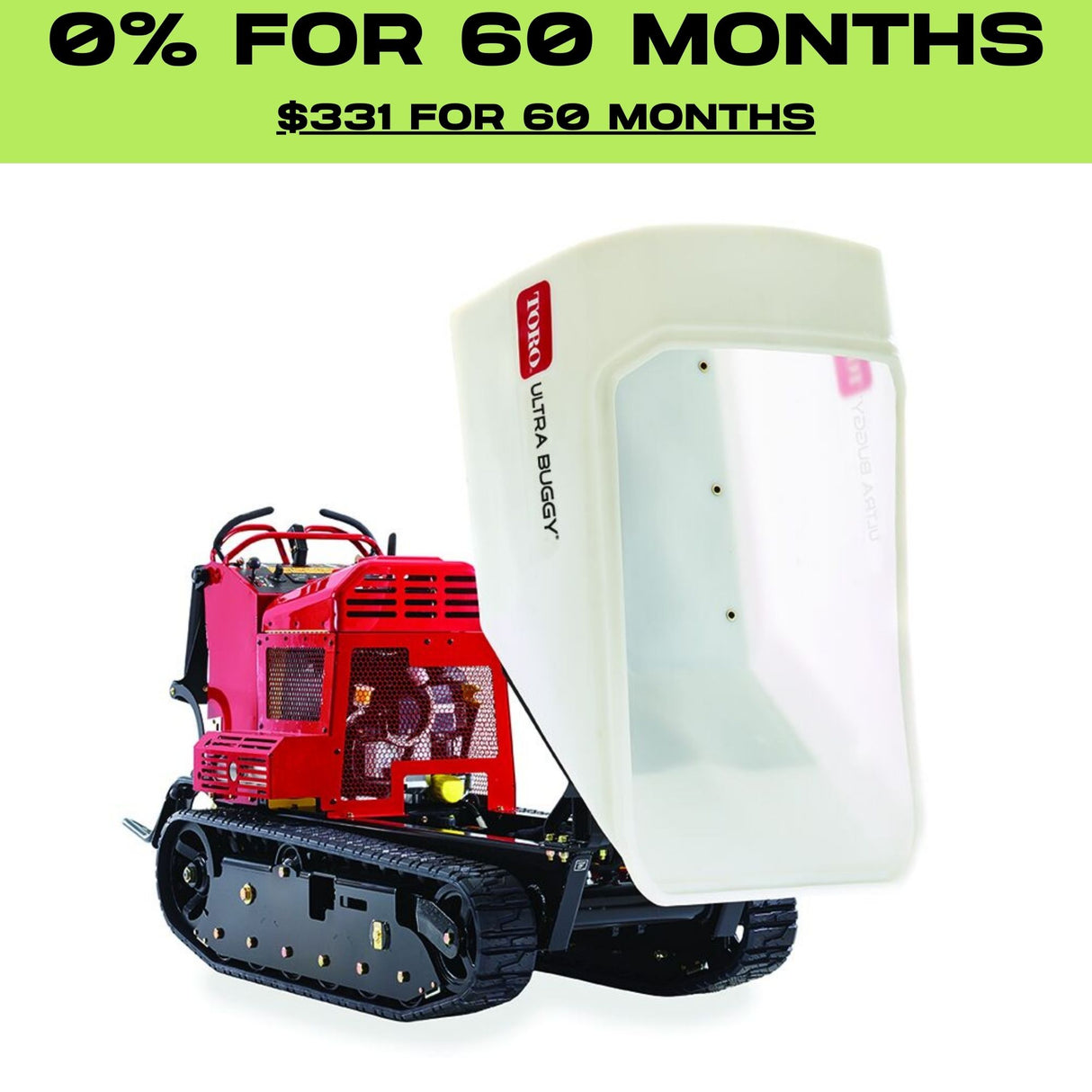

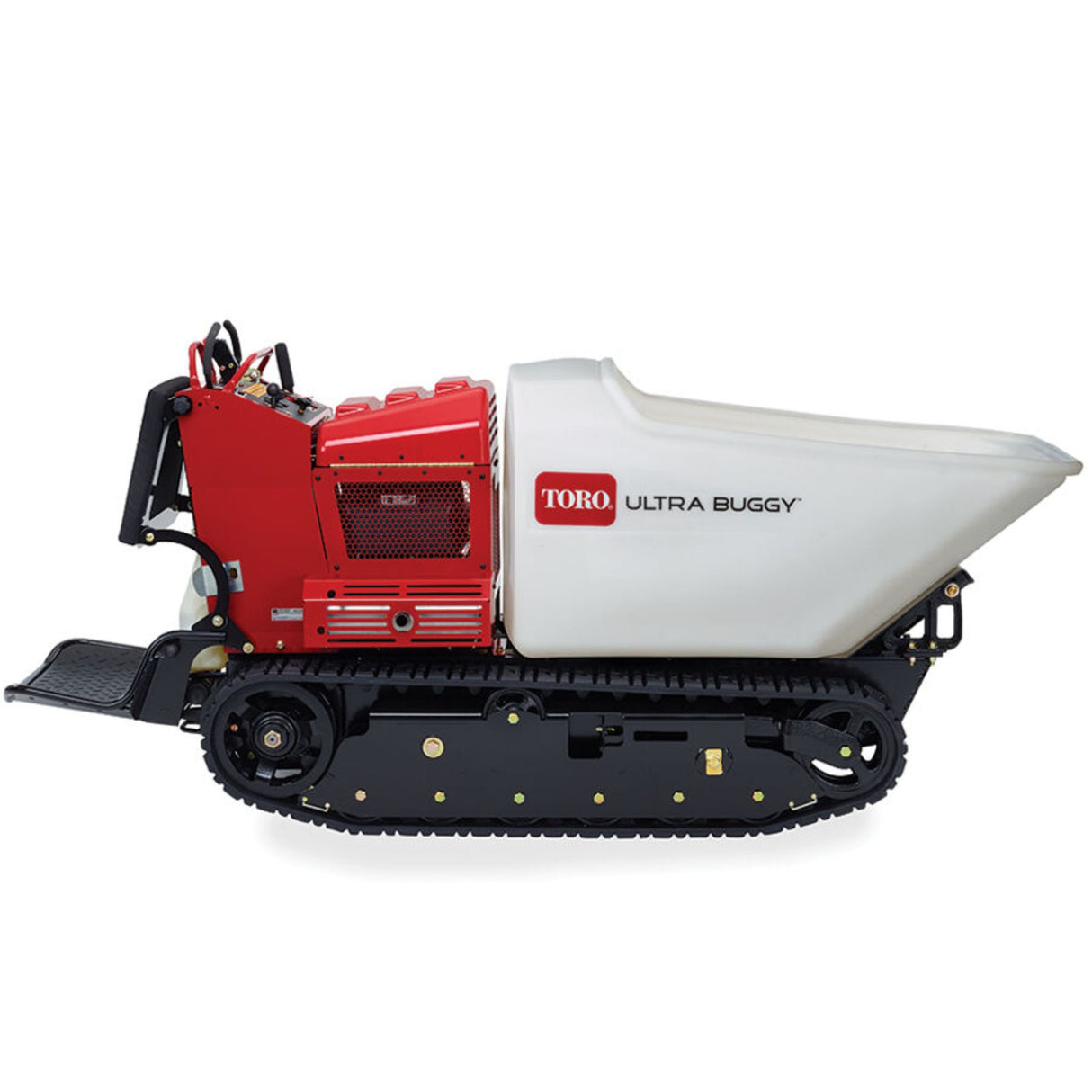

Toro Ultra Buggy 2500-T | Kohler Engine | 68138
$24,19000
Unit price
Taxes and shipping calculated at checkout.
Toro Ultra Buggy 2500-T | Kohler Engine | 68138 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
The Tracked Ultra Buggy® represents the ultimate in productivity, jobsite efficiency and return on investment (ROI) with controls that are intuitive and easy-to-use, superior traction and maneuverability, high weight carrying capacity and a powerful engine.
- Precisely place heavy loads outdoors.
- 2,500 lb carrying capacity makes light work of heavy jobs.
- Auto-return dump feature ensures the tub automatically returns to the resting position so the operator can quickly focus on obtaining the next load of material.
Specifications
| Discharge Height | 12.75 in. / 32.4 cm |
|---|---|
| Dump Position | Straight |
| Engine Horsepower | 25 hp |
| Engine Make | Kohler |
| Engine Model | Confidant |
| Fuel Capacity | 10 gal. / 37.8 L |
| Fuel Type | Gasoline |
| Height | 47.7 in. / 121.2 cm |
| Length - Platform Down | 109.5 in. / 278.1 cm |
| Length - Platform Up | 95.5 in. / 238.8 cm |
| Maximum Load Capacity | 2,500 lbs / 1,134 kg |
| Speed - Forward | Up to 6 mph / 9.7 km/h |
| Speed - Reverse | Up to 3 mph / 4.8 km/h |
| Tracks | Rugged armid corde |
| Tub Material | Polyethylene |
| Tub Volume | 16 ft³ (0.45 m³) |
| Weight | 1,886 lbs / 855 kg |
| Width | 35.5 in. / 90.2 cm |
Recommended Maintenance Schedule
|
Maintenance
Service Interval |
Maintenance Procedure
|
Part No.
|
Qty
|
Description
|
|---|---|---|---|---|
|
Before each use or daily
|
Check the engine oil level.
|
-
|
-
|
-
|
|
Clean the blower housing.
|
-
|
-
|
-
|
|
|
Check the tracks.
|
-
|
-
|
-
|
|
|
Check the parking brake operation.
|
-
|
-
|
-
|
|
|
Check the hydraulic fluid for the drive system.
|
-
|
-
|
-
|
|
|
Check the hydraulic fluid for the lift system.
|
-
|
-
|
-
|
|
|
Check for loose fasteners.
|
-
|
-
|
-
|
|
|
Remove debris from the machine.
|
-
|
-
|
-
|
|
|
After the first 10 hours
|
Check and adjust the track tension.
|
-
|
-
|
-
|
|
Every 25 hours
|
Service the air cleaner foam element.
|
-
|
-
|
-
|
|
Every 40 hours
|
Check the hydraulic lines.
|
-
|
-
|
-
|
|
Every 50 hours
|
Grease and oil the machine.
|
-
|
-
|
-
|
|
Check and adjust the track tension
|
-
|
-
|
-
|
|
|
Check the battery.
|
-
|
-
|
-
|
|
|
Every 100 hours
|
Change the engine oil.
|
-
|
-
|
-
|
|
Change the engine oil filter.
|
-
|
-
|
-
|
|
|
Replace the air cleaner paper element.
|
-
|
-
|
-
|
|
|
Replace the fuel filter.
|
-
|
-
|
-
|
|
|
Check the spark plug.
|
-
|
-
|
-
|
|
|
Clean the cooling areas under the cooling shrouds.
|
-
|
-
|
-
|
|
|
Inspect the drive belt.
|
-
|
-
|
-
|
|
|
Clean the chassis.
|
-
|
-
|
-
|
|
|
Every 300 hours
|
Check the road wheels.
|
-
|
-
|
-
|
|
Replace the spark plug.
|
-
|
-
|
-
|
|
|
Replace the drive belt.
|
139-1295
|
1
|
Belt
|
|
|
Change the hydraulic fluid for the drive system.
|
108-1184
|
1
|
Toro premium transmission/hydraulic fluid
|
|
|
Change the hydraulic fluid for the lift system.
|
114-4714
|
2
|
Toro hypr-oil 500
|
|
|
Change the hydraulic filters for the drive system.
|
137-3772
|
2
|
Filter
|
|
|
1-633750
|
1
|
Filter
|
