Toro-Dingo  |  SKU: 68141

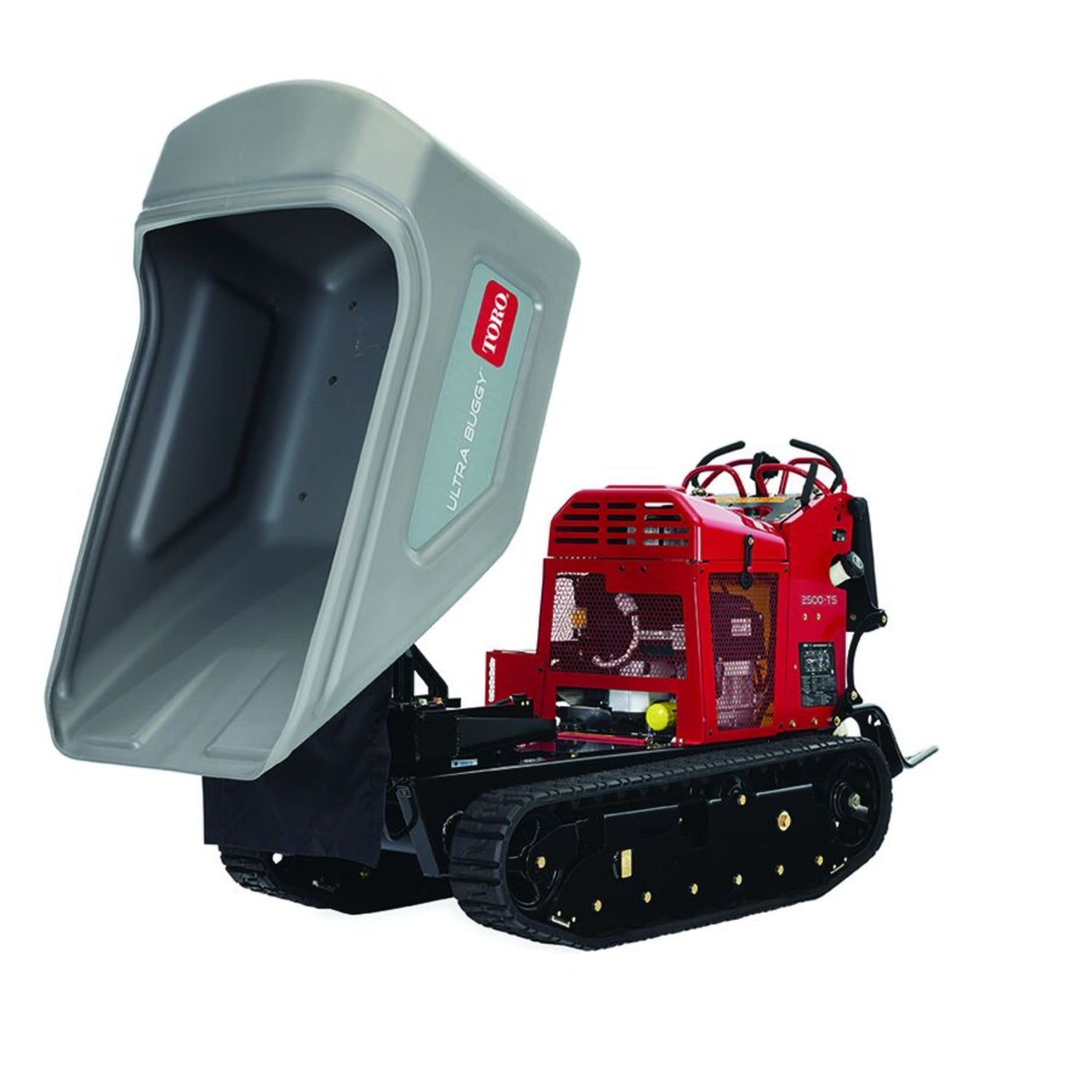

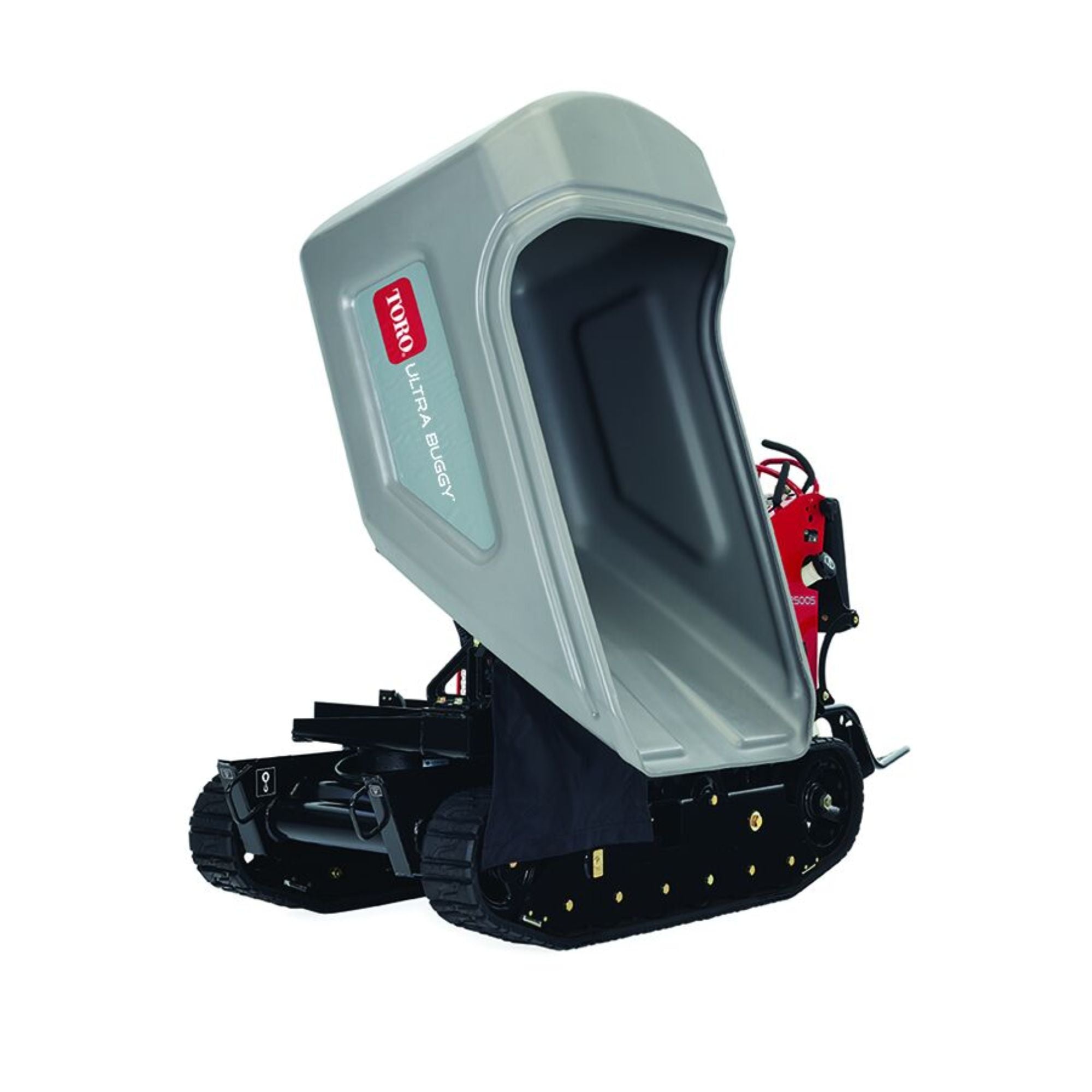

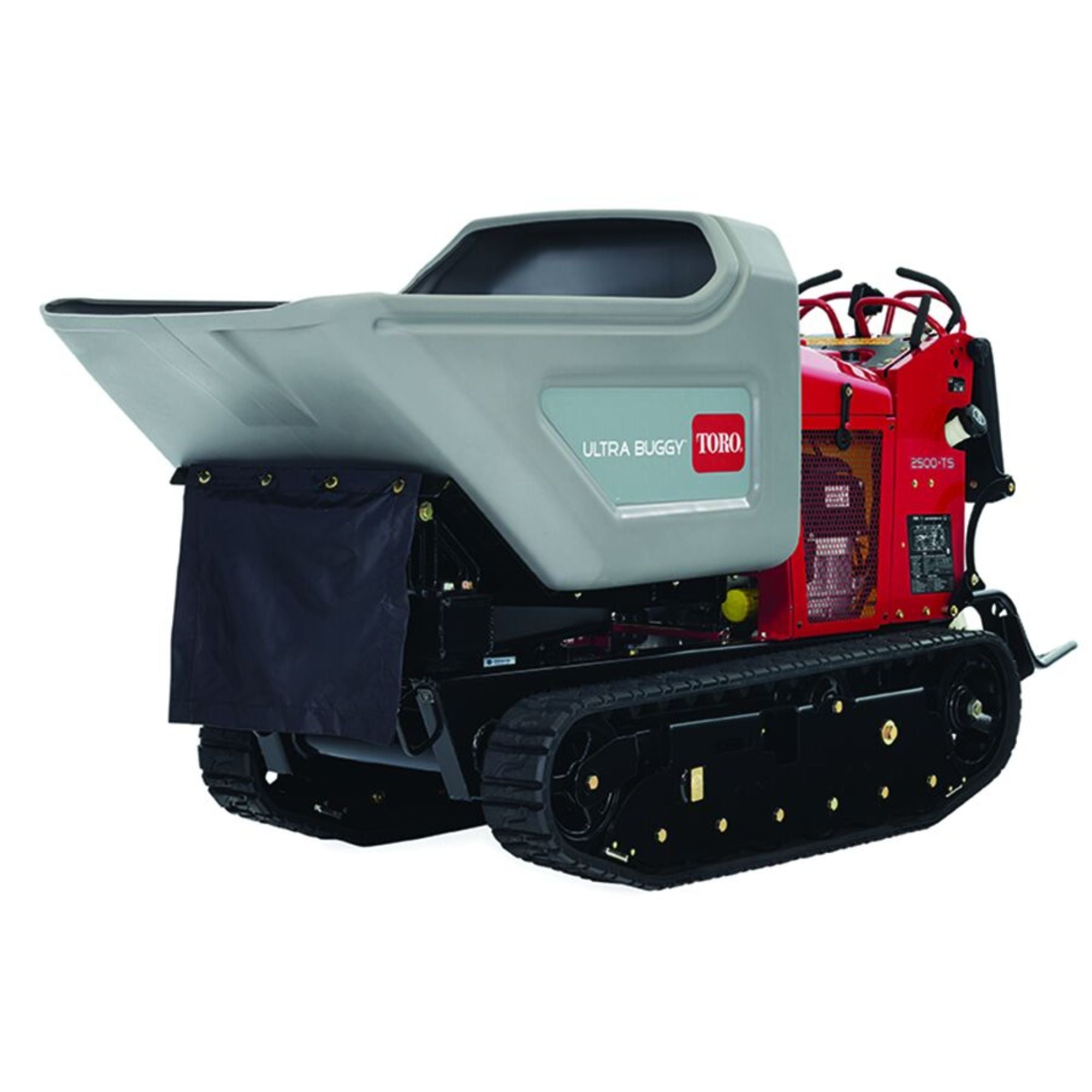

Toro Ultra Buggy 2500-TS | Kohler Engine | 68141

$26,83000
Taxes and shipping calculated at checkout.

Pickup currently unavailable at MSM - Clermont

WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov

Built on the trusted Tracked Ultra Buggy® frame, the Swivel Ultra Buggy offers the same intuitive and easy-to-use controls, superior traction and maneuverability with increased productivity and job efficiency. The Swivel Ultra Buggy allows user to dump at any point along the 180 degree swivel radius. The 2500 lbs. carrying capacity and 25 hp engine makes this machine perfect for any project and any material.



Specifications

Discharge Height 21 in. / 53.3 cm
Dump Position Swivel
Engine Horsepower 25 hp
Engine Make Kohler
Engine Model Confidant
Fuel Capacity 10 gal. / 37.8 L
Fuel Type Gasoline
Height 47.7 in. / 121.2 cm
Length Platform Down 109.2 in. / 277.3 cm
Length Platform Up 95.5 in. / 238.8 cm
Maximum Load Capacity 2,500 lbs / 1,134 kg
Speed - Forward Up to 6 mph / 9.6 km/h
Speed - Reverse Up to 3 mph / 4.8 km/h
Tracks Rugged armid corde
Tub Material Polypropylene
Tub Volume 16 ft³ (0.45 m³)
Weight 1,886 lbs / 855 kg
Width 35.5 in. / 90.2 cm



Recommended Maintenance Schedule

Maintenance

Service Interval

Maintenance Procedure

Part No.

Qty

Description

Before each use or daily

Check the engine oil level.

-

-

-

Clean the blower housing.

-

-

-

Check the tracks.

-

-

-

Check the parking brake operation.

-

-

-

Check the hydraulic fluid for the drive system.

-

-

-

Check the hydraulic fluid for the lift and slew system.

-

-

-

Check for loose fasteners.

-

-

-

Remove debris from the machine.

-

-

-

After the first 10 hours

Check and adjust the track tension.

-

-

-

Every 25 hours

Service the air cleaner foam element.

-

-

-

Every 40 hours

Check the hydraulic lines.

-

-

-





Every 50 hours

Grease and oil the machine.

-

-

-

Check and adjust the track tension

-

-

-

Check the battery.

-

-

-

Every 100 hours

Change the engine oil.

-

-

-

Change the engine oil filter.

-

-

-

Replace the air cleaner paper element.

-

-

-

Replace the fuel filter.

-

-

-

Check the spark plug.

-

-

-

Clean the cooling areas under the cooling shrouds.

-

-

-

Inspect the drive belt.

-

-

-

Clean the chassis.

-

-

-

Every 300 hours

Check the road wheels.

-

-

-

Replace the spark plug.

-

-

-

Replace the drive belt.

139-1295

1

Belt

Change the hydraulic fluid for the drive system.

108-1184

1

Toro premium transmission/hydraulic fluid

Change the hydraulic fluid for the lift and slew system.

114-4714

2

Toro hypr-oil 500

Change the hydraulic filters for the drive system.

137-3772

2

Filter

Change the hydraulic filter for the lift and slew system.

1-633750

1

Filter
