Toro Ultra Buggy e2500-THL | Toro HyperCell | 68142
Toro Ultra Buggy e2500-THL | Toro HyperCell | 68142 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at MSM - Clermont
WARNING: This product can expose you to chemicals including lead and lead compounds, which is [are] known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Raise productivity on the jobsite with Toro’s electric high-lift Ultra Buggy® e2500-THL. With a 76" dump height, operators can effortlessly clear a 30-yard dumpster with up to 1,250-lbs of material.Powered by Toro’s patented HyperCell® Battery technology, the Ultra Buggy e2500-THL delivers up to eight hours of quiet performance to easily transition from outdoor jobsites to noise-sensitive indoor spaces. Save time, boost efficiency and save crews from excess fatigue.
- HyperCell Power System® delivers up to 8 hours of continuous runtime.
- Carry up to 2,500 lbs

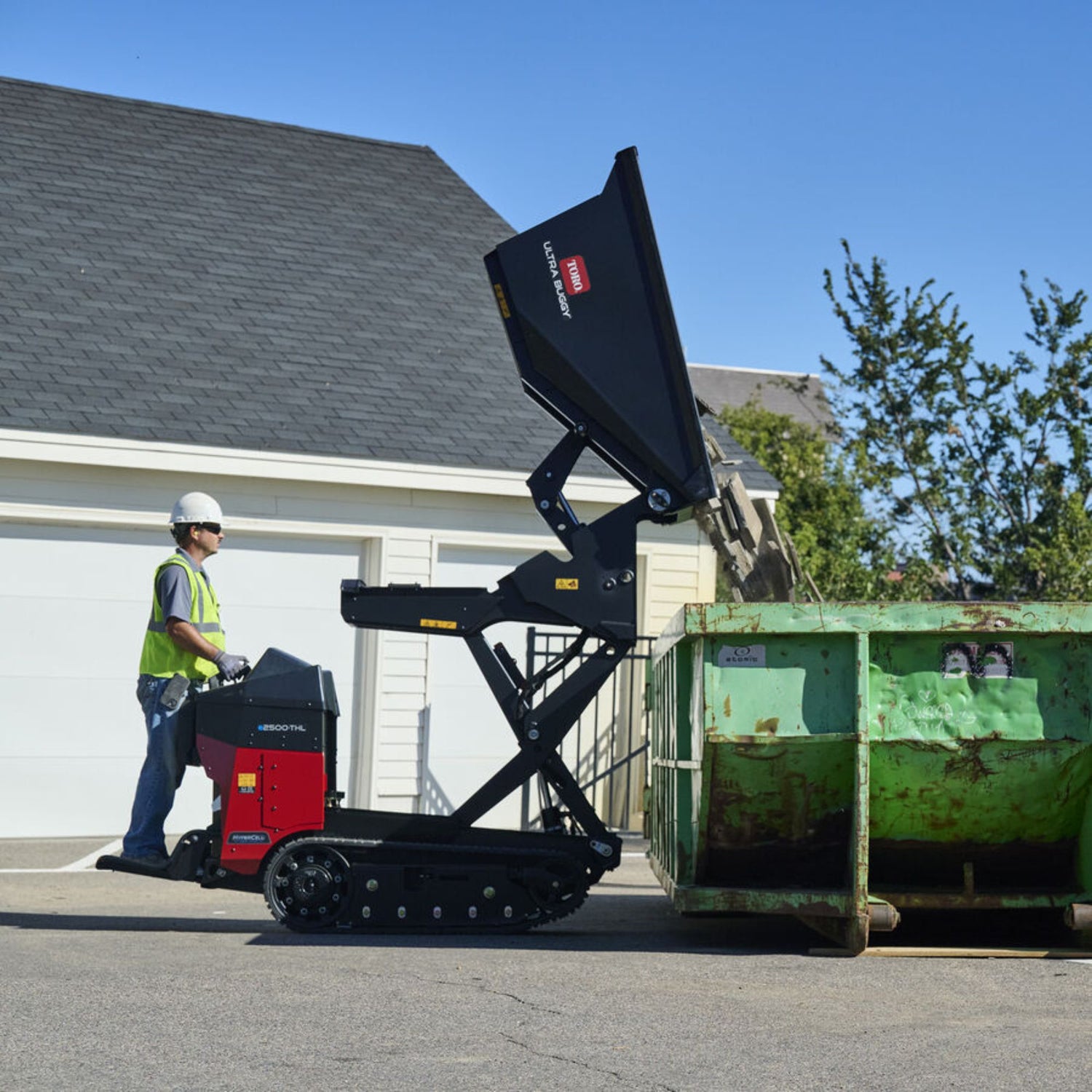

- Dump into 30-yard dumpsters

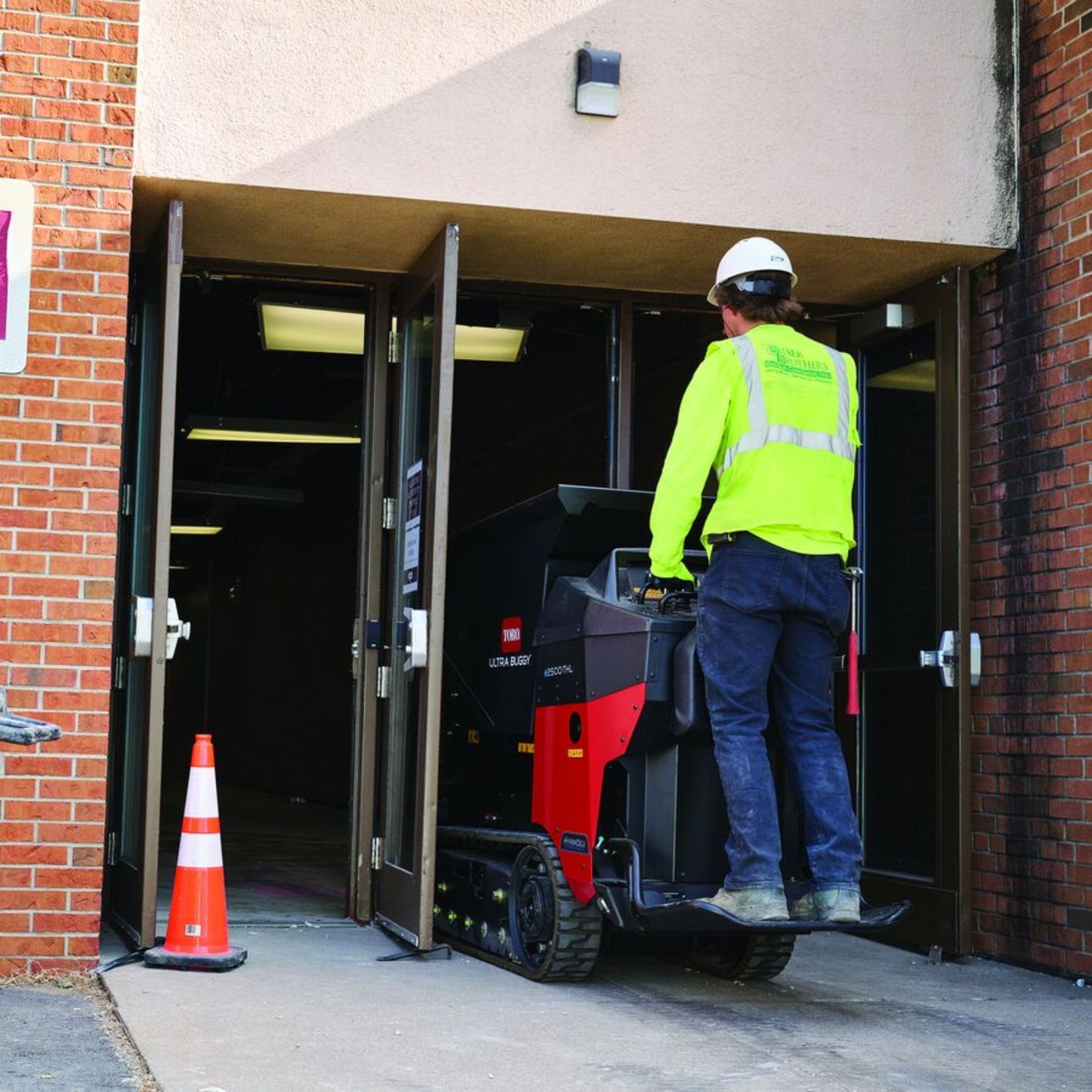

- Easily fits through standard doors and gates
Specifications
| Battery Capacity | 13 kWh |
|---|---|
| Battery Charging Requirements | 100-240 Volt, on-board |
| Battery Charging Time | Up to 6 hours for full charge |
| Battery Charging Type | 100-240 Volt, on-board |
| Battery Chemistry | Toro HyperCell Lithium Ion |
| Discharge Height - Scissor Down | 41.7 in. / 105.9 cm |
| Discharge Height - Scissor Raised | 76 in. / 193.0 cm |
| Distributed Floor Pressure - Loaded | 1.55 psi |
| Distributed Floor Pressure - Unloaded | 1.15 psi |
| Dump Position | High Lift |
| Fuel Type | Electric |
| Height | 59.3 in. / 150.6 cm |
| Length - Platform Down | 101.5 in. / 257.8 cm |
| Length - Platform Up | 88.7 in. / 225.2 cm |
| Max Load Capacity - Full Dump Height | 1,250 lbs / 567 kg |
| Max Load Capacity - Standard Dump Height | 2,500 lbs / 1,134 kg |
| Maximum Load Capacity | 2,500 lbs / 1,134 kg |
| Run Time | Up to 8 hours |
| Speed - Forward | Up to 5.0 mph / 8.0 kph |
| Speed - Reverse | Up to 3.0 mph / 4.8 kph |
| Tracks | Rugged armid corde |
| Tub Material | Steel |
| Tub Volume | 12.8 ft³ (0.4 m³) |
| Weight | 2,650 lbs / 1,202 kg |
| Width | 31.5 in. / 80.65 cm |
Recommended Maintenance Schedule
|
Maintenance Service Interval |
Maintenance Procedure |
|
After the first 50 hours |
Change the drive-motor gear oil. |
|
Before each use or daily |
Check the swivel hydraulic fluid level. |
|
Check the high-lift hydraulic fluid level. |
|
|
Remove debris. |
|
|
Check for loose fasteners. |
|
|
Every 40 hours |
Check the hydraulic lines. |
|
Every 50 hours |
Grease and oil the machine. |
|
Every 500 hours |
Change the drive-motor gear oil. |
|
Change the swivel hydraulic fluid and filter. |
|
|
Change the high-lift hydraulic fluid and filter. |
|
|
Change the swivel hydraulic filter. |
|
|
Change the high-lift hydraulic filter. |
|
|
Every 1,500 hours |
Replace all moving hydraulic hoses. |
|
Yearly or before storage |
Touch up chipped paint. |
|
|
|
|
Change the swivel hydraulic fluid. |
|
|
Change the high-lift hydraulic fluid. |
|
|
Change the swivel hydraulic filter. |
|
|
Change the high-lift hydraulic filter. |
